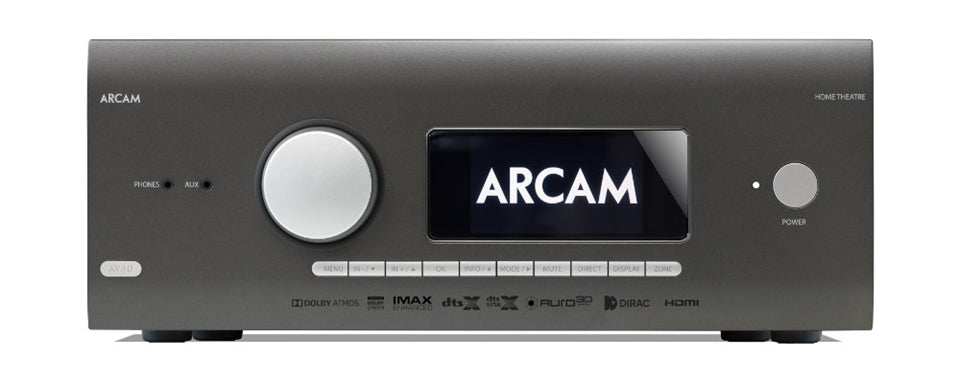

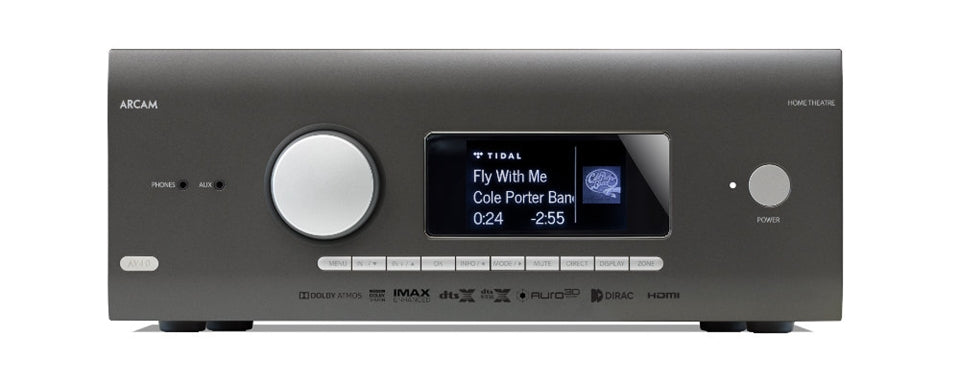

ARCAM AV40 - Pre Amp / Processor

Name: ARCAM AV40 - Pre Amp / Processor
Brand: Rave Services
Price: 544990.00 INR
Availability: InStock

ARCAM AV40 - Pre Amp / Processor

Stunning Realism, Immersive Sound

The AV40 is a high-performance audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With an impressive 16-channels of surround sound processing and featuring all the latest CODECs from Dolby, DTS, Auro-3D and IMAX Enhanced, the AV40 exemplifies sound quality and engineering excellence.

The AV40 boasts XLR balanced outputs for every channel to deliver the highest quality analogue connection to power amplifiers.

Rs. 544,990.00

Sale Sold out

Shipping calculated at checkout.

Features

Dolby Atmos,
IMAX Enhanced, Auro-3D & DTS:X 9.1.6 decoding
4K (UHD) HDMI2.0b with HDCP2.2
7 HDMI inputs, 3 HDMI outputs, eARC compatible
Dirac Live® for Arcam room correction
ESS 9026PRO audiophile DAC

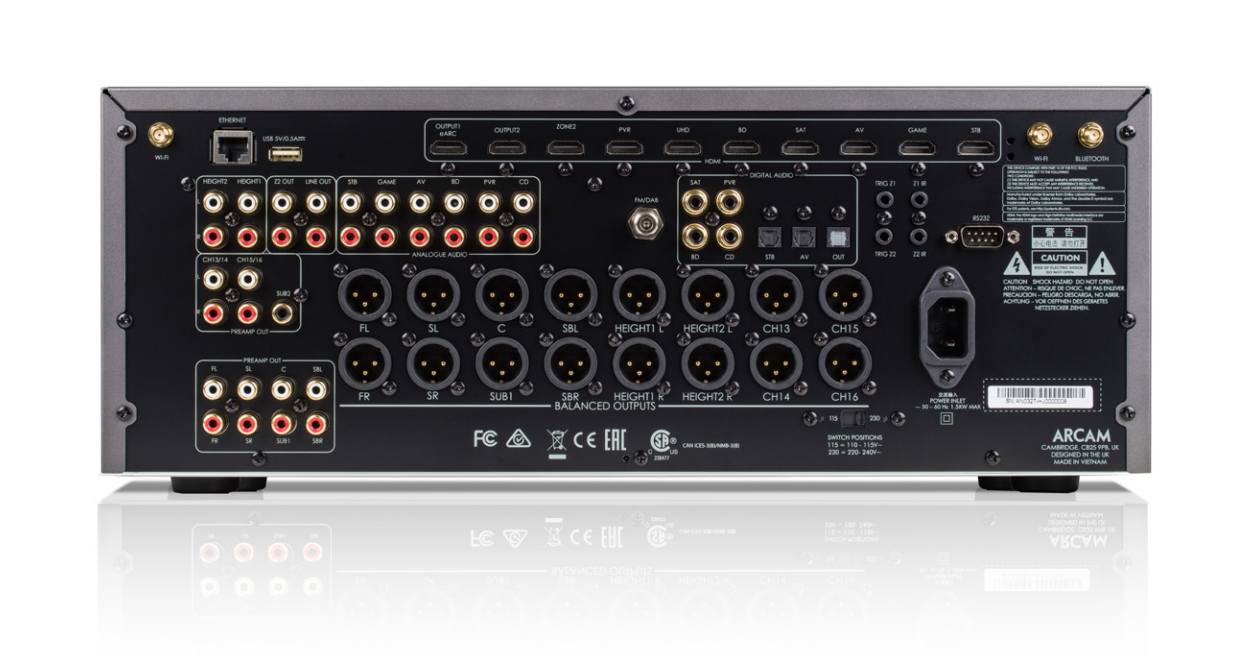

16 channel pro-grade XLR outputs
16 channel single-ended RCA outputs
Pairs with PA240, PA720, and PA410 power amplifiers
Wifi / Ethernet, RS232 and IR control
Google Cast/UPnP capability for streaming audio
Roon Ready certified
MQA supported
Bluetooth
Free MusicLife iOS UPnP and control app

Specification

Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB
Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω

General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 10.6kg
Weight (packed) 13.9kg
Supplied accessories Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
