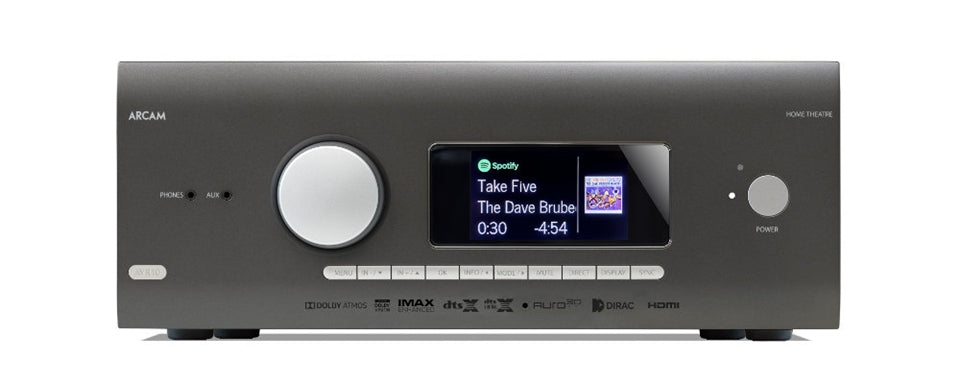

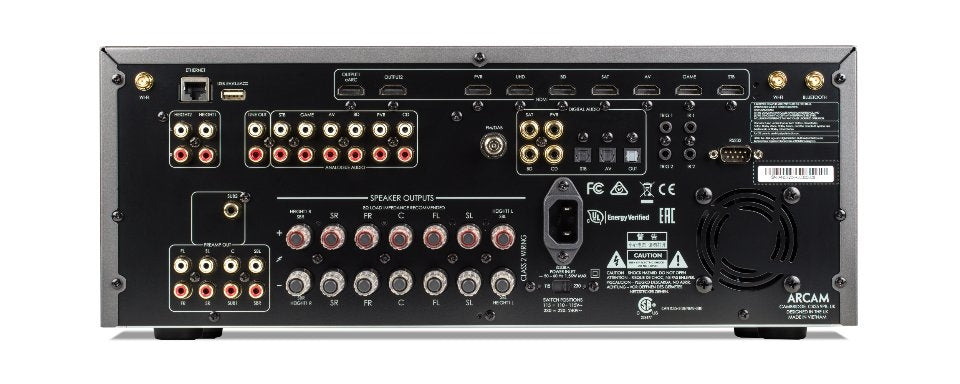

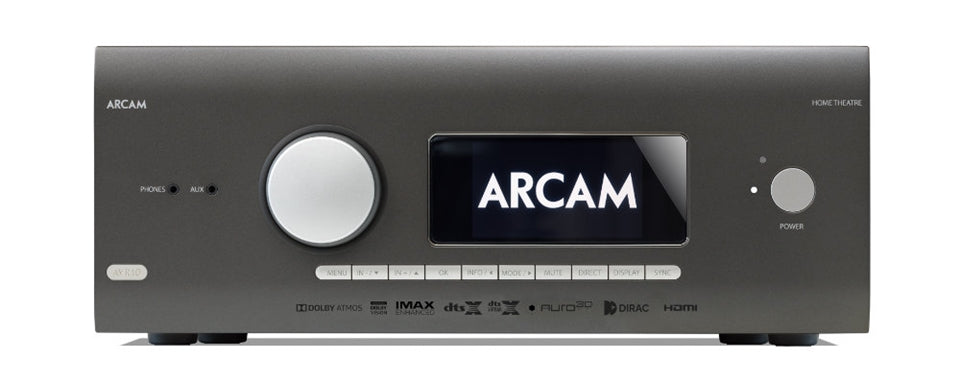

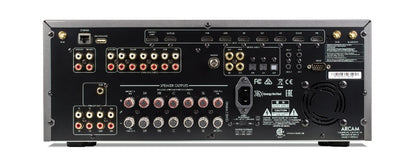

ARCAM AVR10 - 7.2 Channel Class AB AV Receiver

Name: ARCAM AVR10 - 7.2 Channel Class AB AV Receiver
Brand: Rave Services
Price: 371990.00 INR
Availability: InStock

ARCAM AVR10 - 7.2 Channel Class AB AV Receiver

Stunning Realism, Immersive Sound

The AVR10 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 12-channel surround solution and featuring all the latest CODECs from Dolby, DTS, Auro-3D and IMAX Enhanced, the AVR10 exemplifies sound quality and engineering excellence.

The AVR10 features the efficient class AB amplification for a level of transparency that delivers the most captivating sound. Audiophile listening experiences are optimized with full 12-channel Dirac calibration on board as well as simple streaming with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.

Rs. 371,990.00

Sale Sold out

Shipping calculated at checkout.

Features

Dolby Atmos,
IMAX Enhanced, Auro-3D & DTS:X 7.1.4 decoding
4K (UHD) HDMI2.0b with HDCP2.2
7 HDMI inputs, 2 HDMI outputs, eARC compatible
Dirac Live® room correction
ESS 9026PRO audiophile DAC
Class AB power amplification -
Uses frame-type transformer
Wifi / Ethernet, RS232 and IR control
Google Cast/UPnP capability for streaming audio
Roon Ready Certified
MQA supported
Bluetooth
Free MusicLife iOS and Android UPnP and control app

Specification

Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD 60W/85W
Residual noise & hum (A-wtd) <0.15mV
Stereo Line Inputs

Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Nominal output level 1V RMS (max. 5V RMS)
Output impedance 560Ω
THD+N (20Hz—20kHz) –100dB
Headphone Output
Maximum output level into 32Ω 5Vrms
Output impedance <100Ω

General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W

Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 16.5kg
Weight (packed) 19.8kg

Supplied accessories Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
