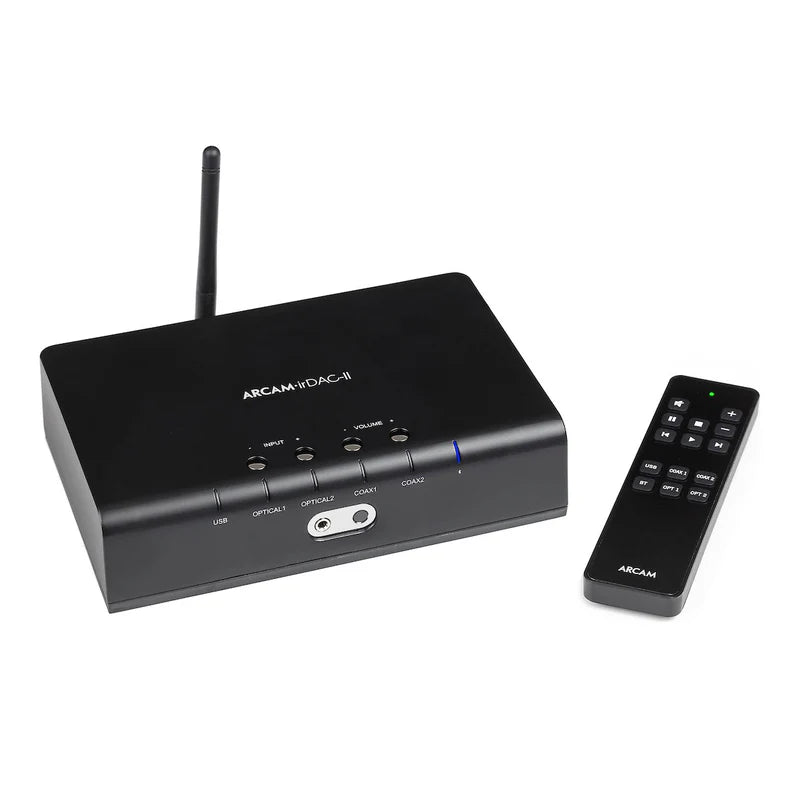

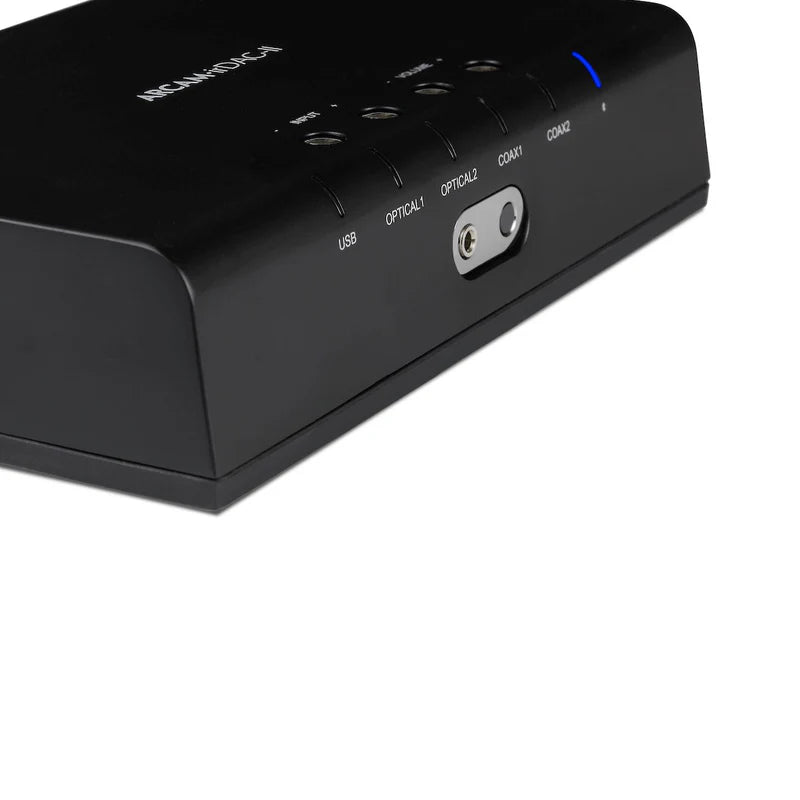

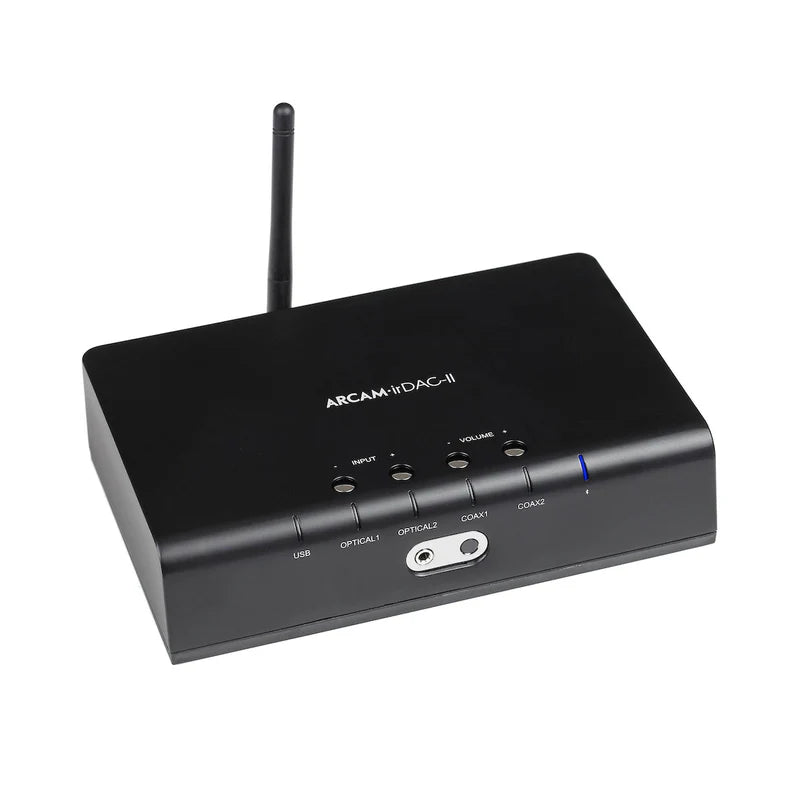

ARCAM IRDAC-II - Audiophile DAC
ARCAM IRDAC-II - Audiophile DAC
The new irDAC-II continues the story adding Bluetooth connectivity, headphone output and DSD128 support. The irDAC-II comes packed with cutting edge technology and features that will benefit the most demanding user. We have gained a lot of knowledge developing class leading DACs. Areas like isolation of the digital and analogue stages, ultralow noise power supplies and a direct coupled signal path make a big difference.
Couldn't load pickup availability
Share
Features
Features

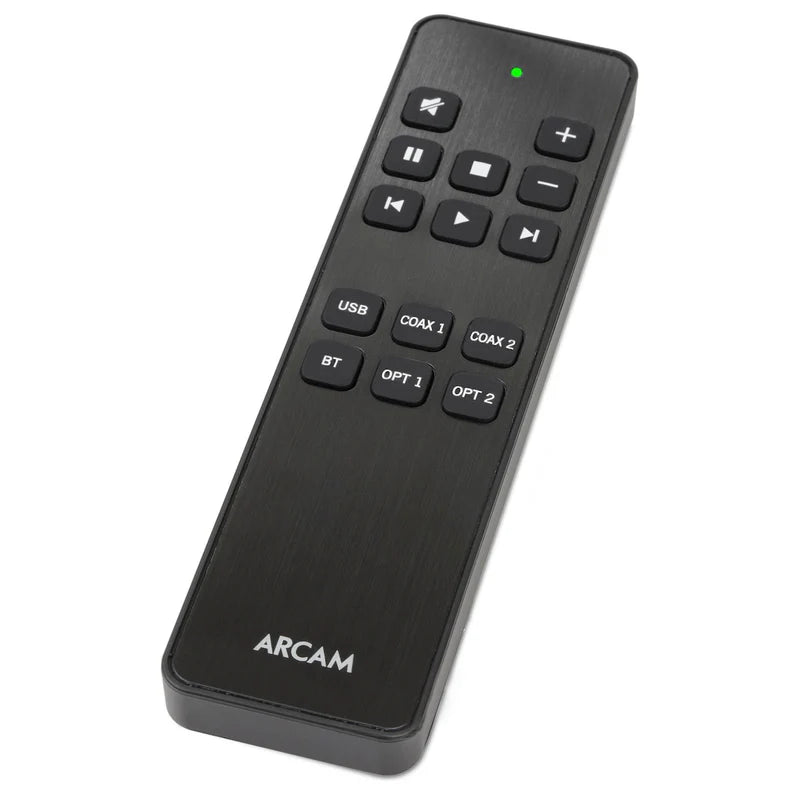

The irDAC-II is designed to be the heart of a digital system and can be connected to a host of different types of digital sources and connections. This includes asynchronous USB and Bluetooth. All of the inputs can be controlled through an IR remote that will also give you transport control of a PC or Mac USB source via the HID (Human Interface Device) control.
Specification
Specification
USB: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 384kHz
Optical: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Coaxial: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bluetooth: SBC, AAC, aptX, aptX:LL
Bit Depth : 16:bit, 24:bit
Headphone : 30Ω : 600Ω, 3.5mm plug
Power requirements: 18W max
Dimensions: W194 x H44 x D124mm
Weight: 1.1kg
EAN/UPC code: 5 060133 602545
DAC:ESS ES9016K2M

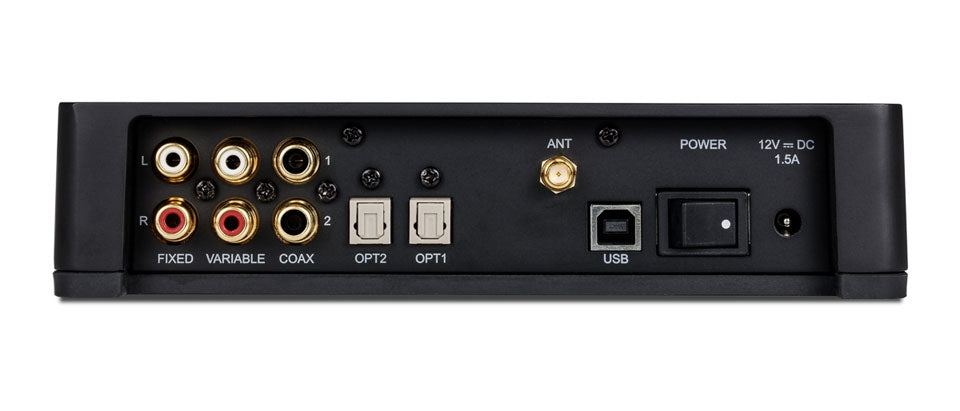

Input: USB, SPDIF, optical, Bluetooth
Frequency Response: 20Hz-20kHz, +/-0.1dB
Total Harmonic Distortion + Noise: 0.0007%
Signal-to-noise ratio (A-weighted): 117dB (24 bit)
Maximum output level: 2.1V RMS
