ARCAM PA410- 4 Channel Power Amplifier
ARCAM PA410- 4 Channel Power Amplifier
A FLEXIBLE POWER AMP FOR MUSIC OR HOME THEATER APPLICATIONS
The Arcam PA410 provides 50 watts per channel, with four inputs and connections for four speakers. It's a versatile amp, too — you can use it to bi-wire or bi-amp stereo speakers, add surround channels to a home theater system, or power music zones in a multi-room audio system. It features a high-fidelity, low-distortion Class AB amplifier circuit with a beefy toroidal transformer that provides plenty of high-current output.
CONNECTIONS

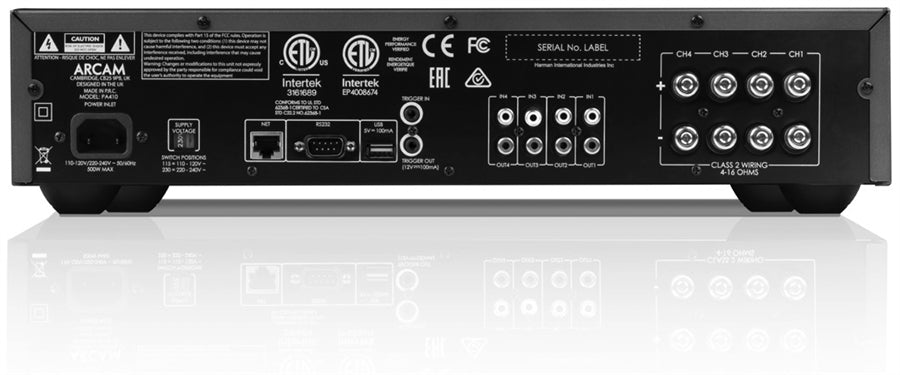

The amp offers four unbalanced RCA preamp inputs, with corresponding outputs. There are also binding posts for connecting up to four speakers. The back panel includes a 12-volt trigger input and output for automatically turning the amp and other components on and off. An RS-232 port lets you integrate third-party automation systems, and a USB Type-A port is provided for firmware updates.
Couldn't load pickup availability
Share
Features
Features
Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
. 4 Channel Power Amplifier
. 4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)
. Toroidal transformer
. RS232 control
Specification
Specification
Continuous power output at 0.2% THD per channel
Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 70W / 50W
Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 90W / 60W
Harmonic distortion, 80% power, 8Ω at 1kHz - 0.003%
Inputs
Input sensitivity 50W / 8Ω - 600mV RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω - 105dB
Input impedance - 10kΩ
Frequency response - 20 - 20kHz +/-0.05dB
General
Mains voltage - 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) - 700W
Power consumption (idle, typical) - 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) - <0.5W
Dimensions W x H x D (including feet, control knob and speaker terminals) - 433x325x105mm
