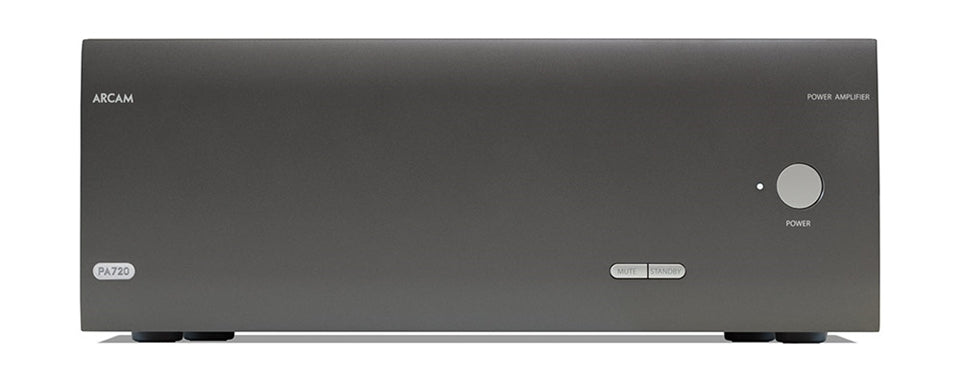

ARCAM PA720 - 7 Channel Class G Power Amplifier
ARCAM PA720 - 7 Channel Class G Power Amplifier
SEVEN CHANNELS OF SOLID POWER
If you're building a home theater sound system, the Arcam PA720 can feed your speakers the watts they need. It produces 100 watts times seven channels, for your front left, right, and center speakers, plus four more surround and/or effects speakers. Now you can immerse yourself completely in movie dialogue, sound effects, and music.
VERSATILE CLASS G AMPLIFIER
The engineers who designed the PA720 wanted it to provide the right amount of power at the right time, so your entertainment choices sound exactly as they should. That's why they chose a Class G amplifier design, which uses 20 watts of Class A circuitry for standard-level signals, then kicks in a higher-voltage power supply for more demanding dynamic peaks. And it does it without adding any crossover distortion or noise.
Couldn't load pickup availability
Share
Features
Features
Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
Specification
Specification
General
Number of Channels:7
Power Output per Channel (8 ohms):100
Power Output per Channel (6 ohms):—
Power Output per Channel (4 ohms):140
Frequency Bandwidth:20-20k
THD:0.2%
Minimum Impedance:4
Bridged Power per Channel:N/A
Speaker Outputs:7
THX Certification:No
Width (inches):17-1/16
Height (inches):7
Depth (inches):17-15/16
Weight:39.68 pounds
Parts Warranty:5 Years
Labor Warranty:5 Years

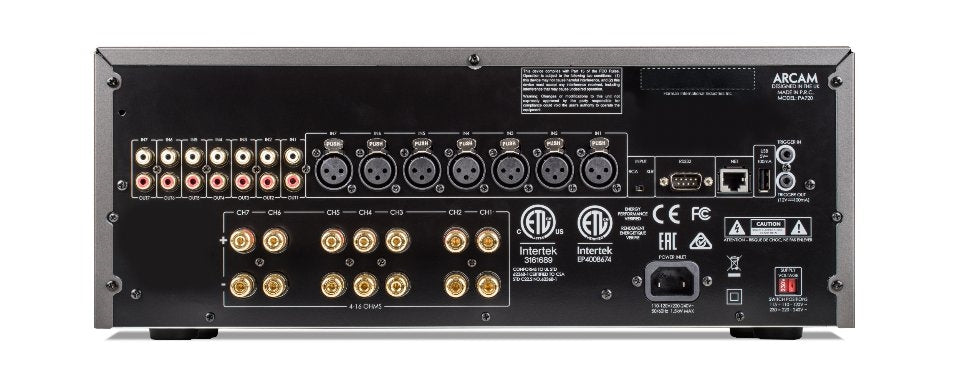

Inputs & Outputs
Number of Inputs:14
Input Type:RCA, XLR
Removable Power Cord:IEC 2-prong
Level Controls:No
Speaker Connectors:Binding Post
