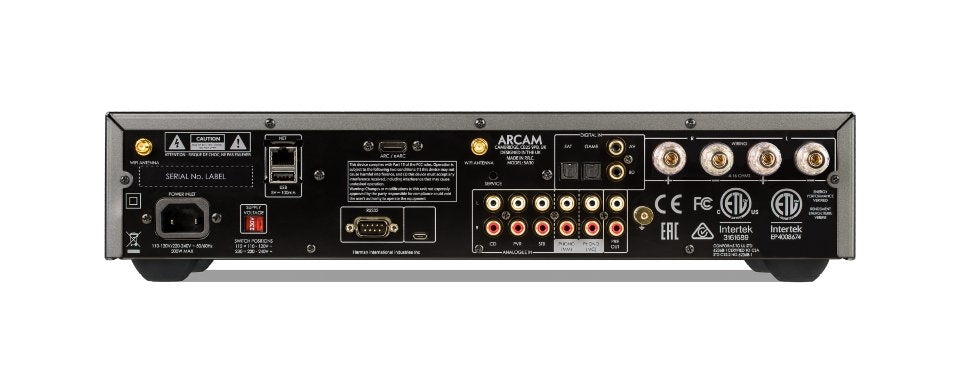

ARCAM SA30 - Class G Integrated Amplifier, ARCAM, Integrated Amplifier
ARCAM SA30 - Class G Integrated Amplifier, ARCAM, Integrated Amplifier
The SA30 is a streaming integrated amplifier offering an impressive 120W of Class G amplification for impeccable sound, control and efficiency.
Featuring Dirac Live, state-of-the-art room correction technology, and eARC support, the SA30 delivers unparalleled performance with sound quality optimized to its surroundings.
Simple streaming is available with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.
Couldn't load pickup availability
Share
Features
Features
Class G amplification for impeccable sound and efficiency
120W of power per channel into 8Ω, 220W into 4Ω
5 analogue inputs including switchable MM/MC PHONO input
4 digital inputs
1 ARC input
Google Cast, AirPlay 2, uPnP Streamer
Gapless playback
Roon Ready
3 Dirac EQ profiles (input assignable)
32-bit DAC,Sabre ES9038Q2M
Full I/P control including Control4 and Crestron
Total harmonic distortion + noise = 0.002%
Specification
Specification
Continuous power output
(0.5% THD), per channel
Both channels, 8Ω, 20Hz—20kHz 130W
Both channels, 4Ω, at 1kHz 200W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.002%
Analogue Inputs
ADC AK5552
Sample rate / bit depth 192kHz / 32 bit
Phono Inputs Moving Magnet (MM) Moving Coil (MC)
Input sensitivity at 1kHz (nominal) 5mV 0.35mV
Input impedance 47kΩ + 200pF 470Ω + 1nF
Signal/Noise ratio (A-wtd) 80dB, ref. 5mVat 1kHz 80dB, ref. 0.35mV at 1kHz
Overload margin 21dB ref. 5mV at 1kHz 21dB ref. 0.35mV at 1kHz
Frequency response (ref. RIAA curve) 20Hz – 20kHz ± 1dB 20Hz – 20kHz ± 1dB
Line Inputs:
Nominal sensitivity 1V
Input impedance 10kΩ
Maximum input 4.8Vrms
Frequency response 20Hz – 20kHz ± 0.2dB
Signal/Noise ratio (A-wtd) 100W, ref. 2.1V input 112dB analogue direct, 106dB ADC / DAC
Digital Inputs
DAC ESS9038K2M
Frequency response 20Hz - 20kHz ± 0.1dB
Total harmonics distortion + Noise 0.0007%
Signal/Noise ratio (A-wtd) ref. 0dBFS/100W 113dB
Supported sample rates Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth 16-bit – 32-bit
Pre-amplifier output
Nominal/Maximum output level 800mV / 1.25V
Output impedance 240Ω
Headphone output
Maximum output level into 600Ω 5Vrms
Output impedance 1Ω
Load range 16Ω – 2kΩ
General
Mains voltage 110–120V or 220–240V, 50/60Hz
Maximum power consumption 800W
Low power standby consumption 0.5W
Network standby consumption 2W
BTU rating 631 BTU
Dimensions W x H x D (including feet, control
knob and speaker terminals)
433x100x323mm
Weight (net) 10.7kg
Weight (gross) 13.8kg
Supplied accessories Mains leads
Remote control
2 x AAA batteries
User Manual
2 x WiFi Antenna
Setup microphone
USB cable
