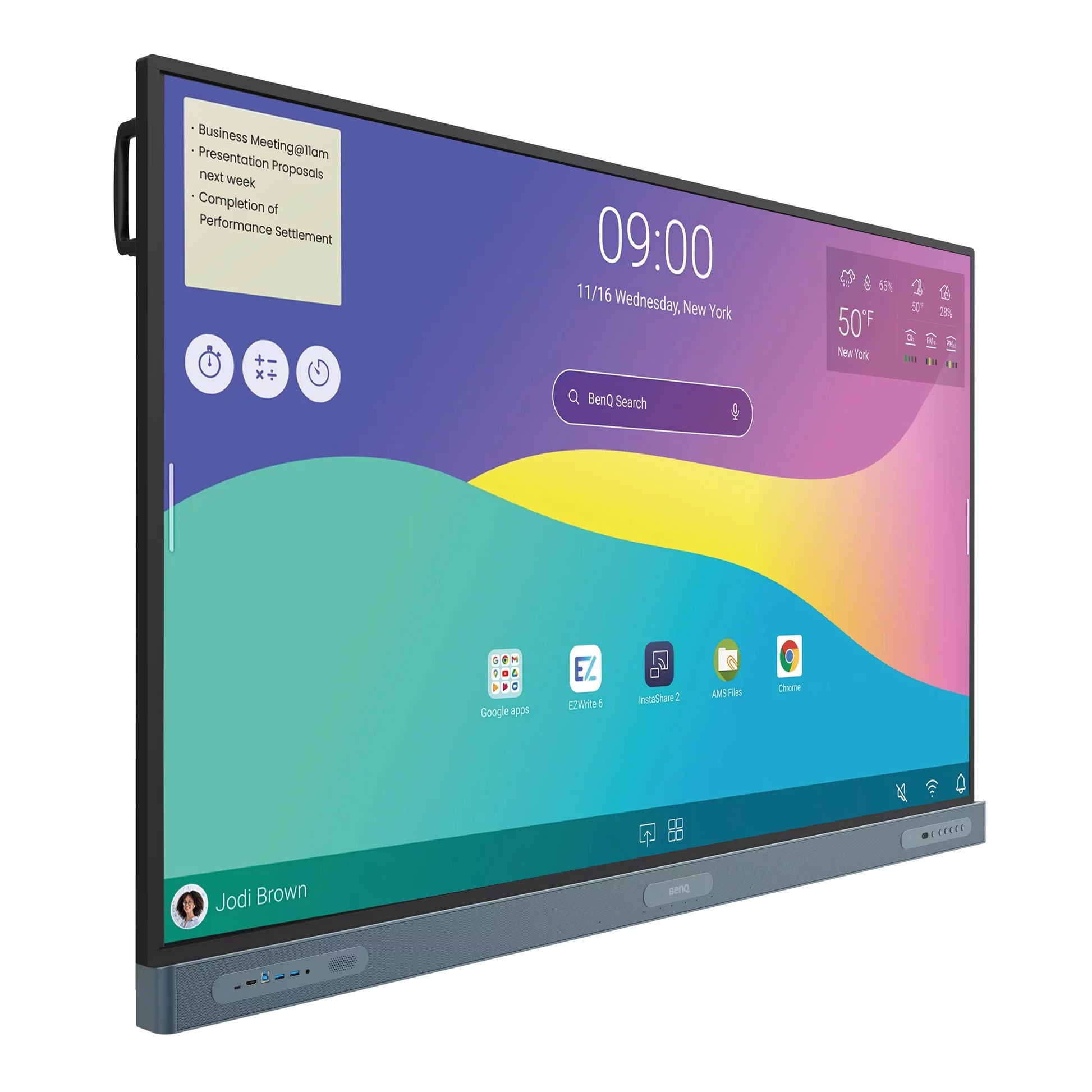

BenQ Board Pro | RP04

Convenient file access
Open files from your Google Drive to teach with material you’ve prepared beforehand, and save
them right back onto the cloud so you can always have access to the latest files.

AI tools for more inclusive lessons
Easily edit text from photos and
scanned pages.
OCR
Hear text as it is displayed or written
on screen.
Text-to-speech Multilingual translation
Translate text in numerous languages for more
context-rich lessons.

Whiteboard without limits
Enhance your lessons using EZWrite, a powerful
whiteboard that’s packed with classroom tools
you can use for more engaging face-to-face or
hybrid classes.

Extend your classroom
Cloud whiteboarding lets students join the session from their
seats or even from home. Remote students can use the
whiteboard as if they were right on the display.

Tools within reach
Pull up the Floating Tool to annotate, take screenshots, or even record videos while you’re using apps, browsing files, or scrolling through sites on the board.

Quick access every time
Tap the sidebar to quickly switch input sources, go back to the Home screen, or get a menu of your most-used apps.

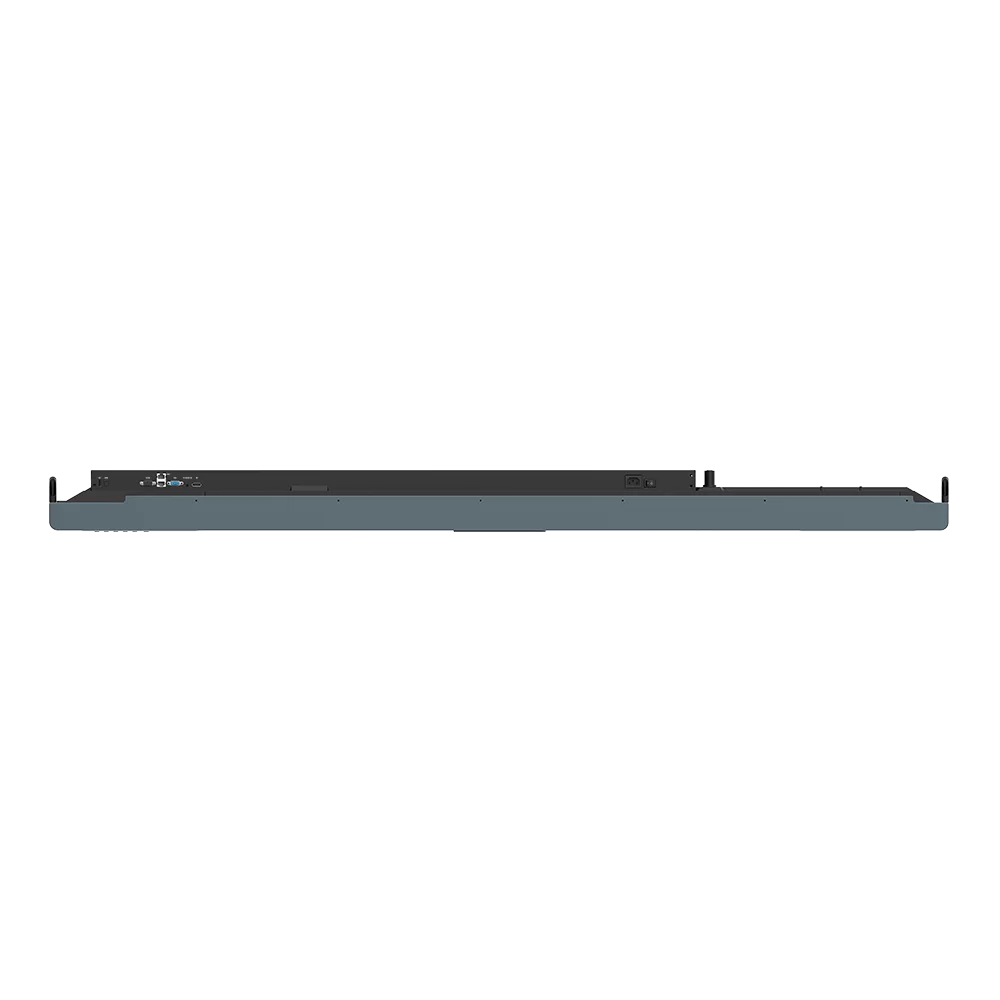

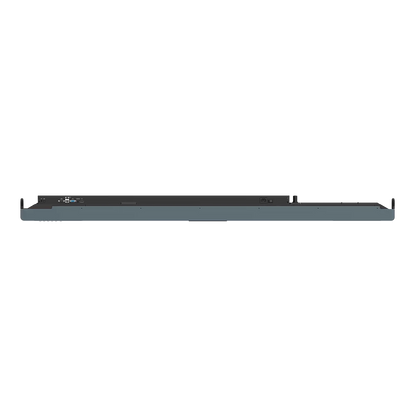

Front-facing ports
The multiple front ports include a full-functioned USB-C port that provides 65W of charging and allows you to extend your laptop screen and gain touchback controls.

Stream and record classes with AI
Combine the BenQ Board with the DV01K smart 4K UHD camera for high-quality video streaming and recording. Ensure clear and dynamic audiovisuals with the camera’s built-in AI features including auto
framing, face and voice tracking, and active noise cancellation.

Smooth and intuitive writing
The BenQ Board Master allows multiple students to interact intuitively with the display at the same
time for group work and other classroom activities.

A smarter teaching environment
High Precision IR touch provides
the most accurate writing experience
of any BenQ Board.

High Precision IR
The RM04 allows up to 40 touch points
to let everyone interact on the display
at the same time.

40 touch points Natural writing
Zero gap between the glass and panel
makes writing feel as smooth as
writing on paper.

Panel type IPS
Resolution UHD 3840 × 2160 pixels
Active area :
RP6504 : 1428.5 × 803.5 mm
RP7504 : 1649.7 × 927.9 mm
RP8504 : 1895.0 × 1066.0 mm
Aspect ratio 16:9
Panel brightness (typical) 450 nits
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 50,000:1
Color depth 10-bit
Response time 8 ms
Color gamut 72% NTSC
Backlight life (typical) 50,000 hrs
Orientation : Landscape

Glass
Germ-resistant technology
Nano-ionic silver
Anti-glare
Yes
Hardness
9H tempered
Touch screen
Touch technology
Ultra Precision IR
Touch points
up to 50
Touch response time
< 2.5 ms

System
Memory | Storage
8GB I 64GB
OS
Android 13 (EDLA)
GPU
Arm Mali-G57 MC5
CPU
Arm Cortex-A78 × 4 + A55 × 4

Connectivity
VGA X 1
HDMI (in | out)
4 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort
1 × 1.2a
USB-A
7 × 3.0, 1 × 2.0
USB-C
1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)
USB-B (for touch)
3 × 3.0
3.5 mm Line in (1)
Mic × 1
3.5 mm Line out
Earphone × 1
OPS slot (for slot-in PC)
1
Wi-Fi
Wi-Fi 6
Bluetooth®
Bluetooth 5.2
S/PDIF out
1 (optical)
Ethernet
2
3.5 mm Line in (2)
PC Audio × 1
RS-232
1

Built-in peripherals
NFC sensor
Yes
Ambient light sensor
Yes
IR sensor
Yes
Motion sensor
Yes
Microphone
8-microphone array (range: up to 8 m | 26ft)
Speaker
2 × 20 W (max)
Air sensor
CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity
Subwoofer
1 × 16 W
Air Ionizer
Yes

Power ENERGY STAR®
Yes
Power
AC 100-240V 50/60Hz
Standby power consumption
<0.5 W
Typical power consumption
109.3 W

Software
Whiteboarding
EZWrite 6.0
Wireless screen sharing
InstaShare 2
Device management
DMS
Account management
AMS
Quick access tool
Floating Tool
Broadcast system
X-Sign Broadcast
Flicker Free
Yes
Low Blue Light
Yes

Accessories
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
Wall mount 1
Pen 2
Remote control 1
