Brightness (ANSI lumens) : 3500
Resolution : 1080P (1920x1080)
Native Aspect Ratio : 16:9
Contrast Ratio (FOFO) : 10,000:1
Display Color : 30-bit (1.07 billion colors)

Light Source : Lamp
Light Source Life :
a. Normal 5000 hrs
b. ECO 10000 hrs
c. SmartEco 15000 hrs
d. LampSave 15000 hrs

Optical Throw Ratio : 1.49~1.64
Zoom Ratio : 1.1x
Lens : F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height) : 108%
Keystone Adjustment : 1D, Vertical ± 40 degrees

Picture Modes
3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video
Compatibility : Input Lag 33.4 ms (1080P 60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency : 15K~102KHz
Vertical Scan Rate : 23~120Hz

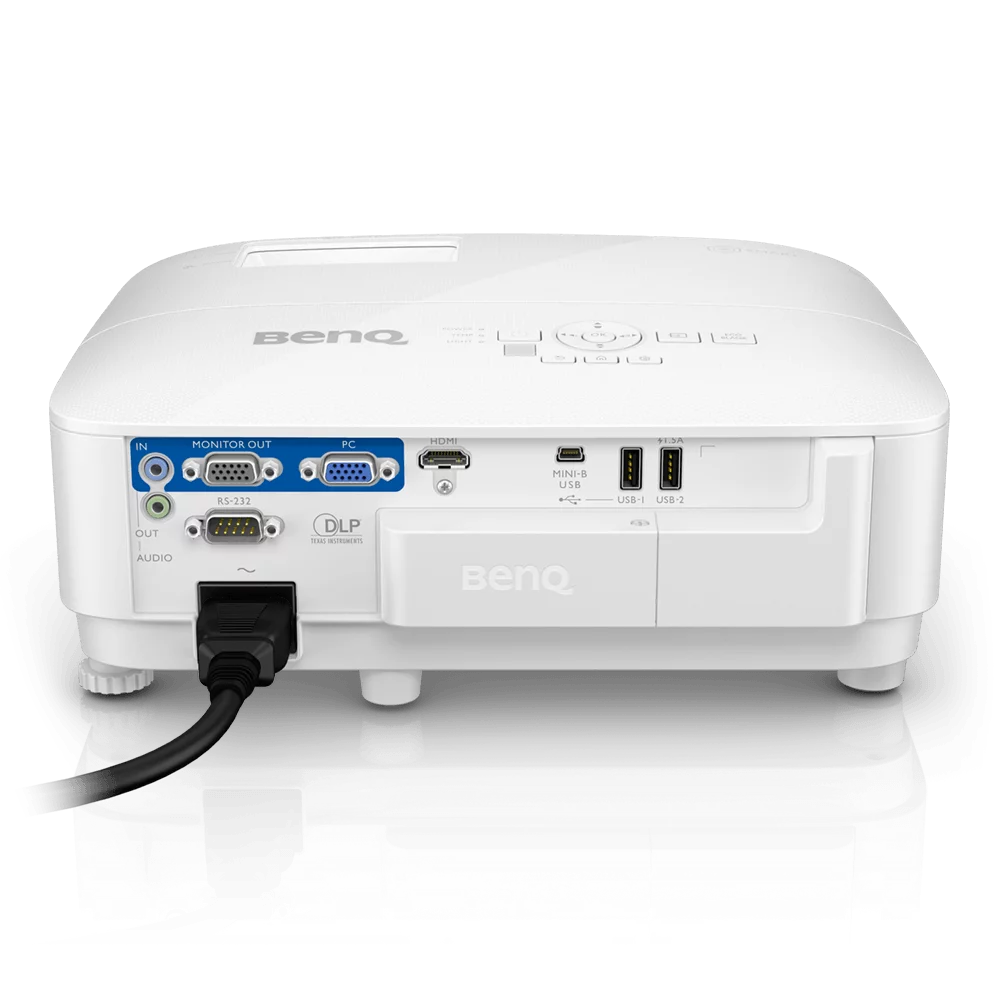

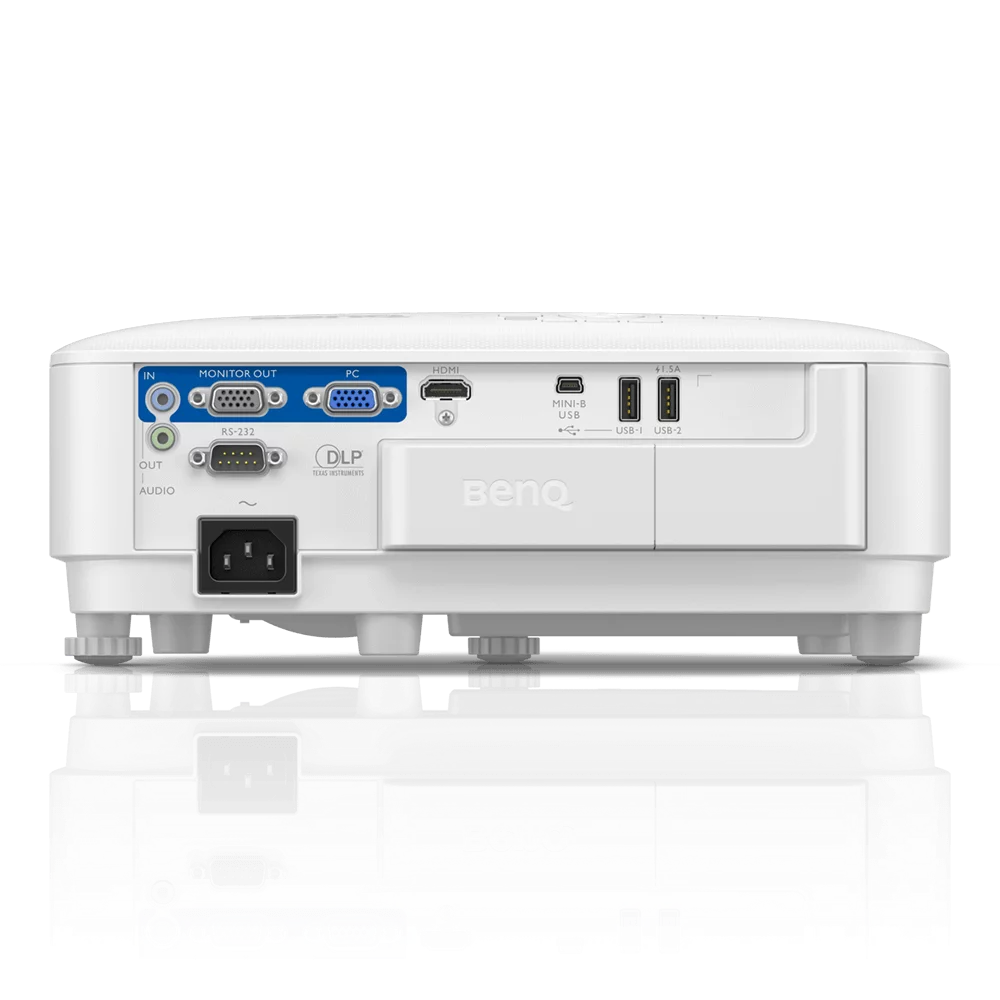

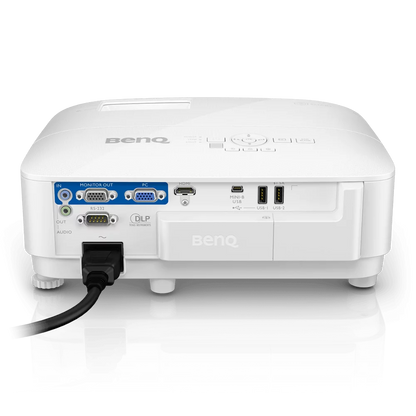

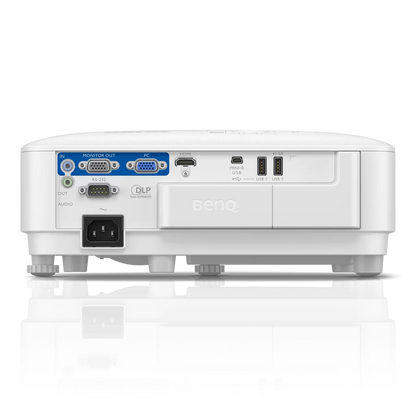

I/O Interface
PC in (D-sub 15pin)
PC in-1 (shared with component video)
Monitor out (D-sub 15pin) (x1)
HDMI in (x1), HDMI-1 (1.4a/HDCP1.4)
USB Type A (x3), USB Type A-1 (2.0/Power Supply1.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader), USB Type A-3 (2.0/Wireless Dongle)
USB Type Mini B (x1), USB Type Mini B-1
(service/Page up & down)
RS232 in (DB-9pin) (x1)

Audio
Speaker (x1), 2W
Audio in (3.5mm Mini Jack) (x1)
Audio out (3.5mm Mini Jack) (x1)

Environment
Operating Temperature 0~40℃

Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
270W/110V
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
33/29 dB

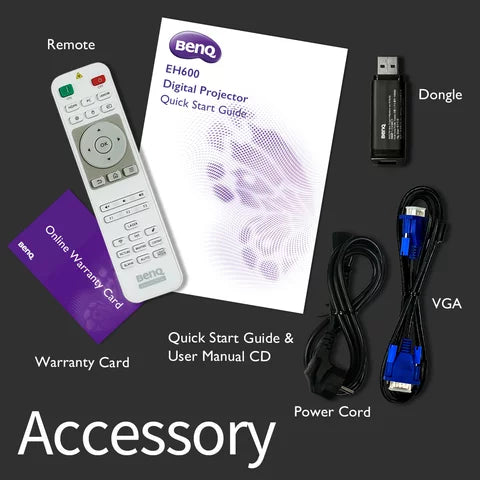

Accessories
Wireless USB dongle : WDR02U
Carry Bag (optional),5J.J3T09.001
Remote Control w/ Battery
RCI023
Power Cord (by region) x1 (1.8M)
VGA(D-sub 15pin) Cable 1 (1.5m)
3D Glasses (Optional), DGD5
Quick Start Guide (x1) 21L

Warranty Card (by region) Yes
Universal Ceiling Mount
(Optional), CM00G3
Onscreen Display
Launcher
Smart Business
Smart System Built-in OS
Yes, Android 6.0
Bluetooth: Yes, Bluetooth 4.0
Wi-Fi Standard :
802.11 a/b/g/n/ac (2.4G/5G)
Wireless Projection
AirPlay, Google Cast
Preload Apps
Teamviewer Meeting, Firefox

Dimension & Weight
Dimensions (WxHxD) (mm)
296 x120 x232
Net Weight (kg)
2.5 kg(5lbs)
Dimensions (WxHXD) (inch)
11.6 x4.7 x9.1
Net Weight (lb)
5
