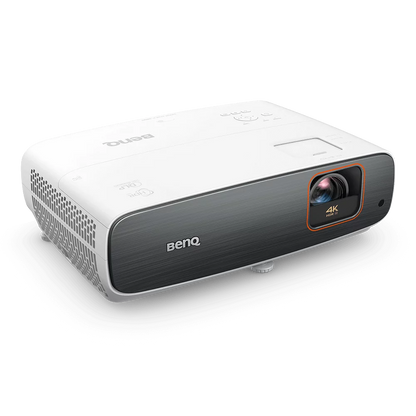

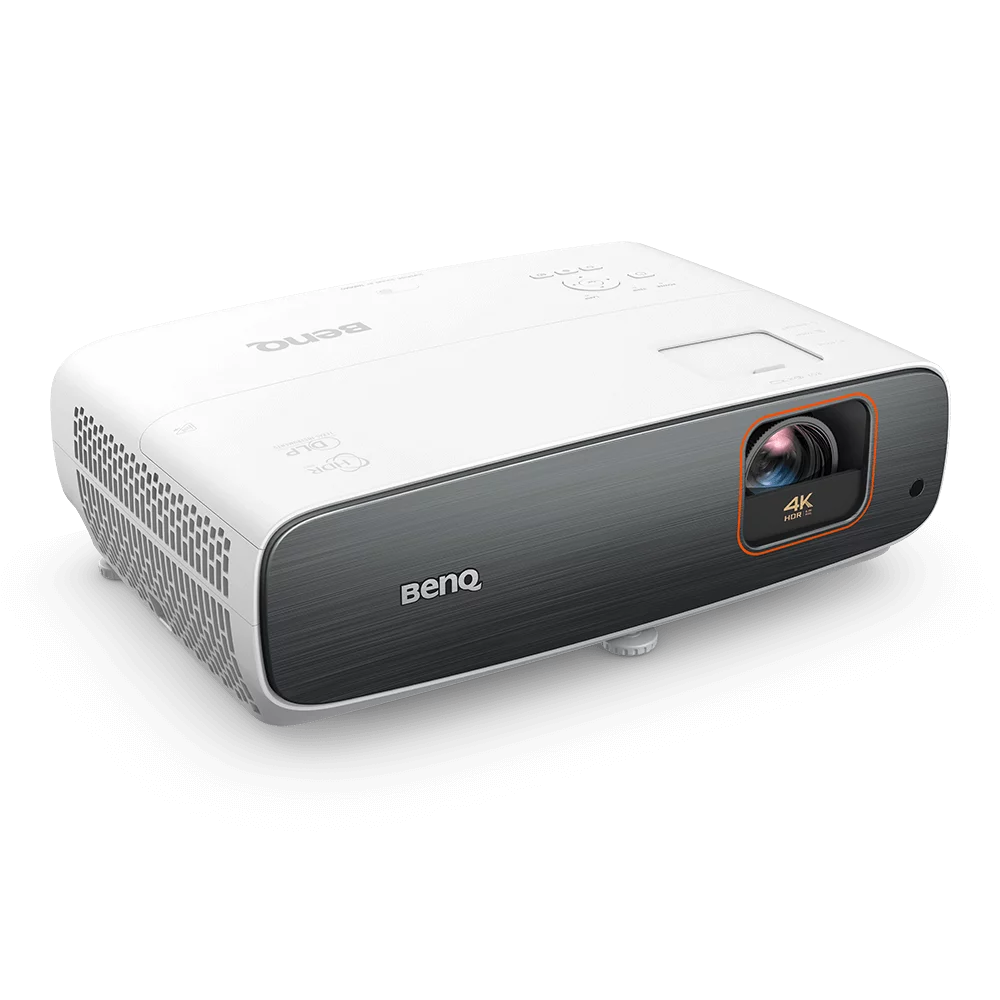

Benq TK860i

Expand Your Vision with All-New Home Projectors
Experience innovative cinematic visuals and immersive entertainment with new BenQ home projectors. Busk in authentic colors and bright and dark details supported by CinematicColor and HDR-PRO technologies in your home cinema for the most genuine, eye-popping experiences.

HDR-PRO Intensifies Contrast Day and Night
Leading Local Contrast Enhancement
Dividing images into 1,000+ zones, Local Contrast Enhancer analyzes each segment’s brightness and adjusts gamma independently for greater dark and bright detail definition and enriched 4K image depth.

Exclusive Color Temperature Tuning
For ultimate color accuracy, BenQ high-end cinema projectors provide advanced color temperature tuning with 11 leading levels of white balance controls between high to low brightness, enabling content fanatics to adjust the most accurate mid-tone colors.

24P Playback Support
Most movies are shot at 24 frames per second (fps). In order to display movies exactly as directors intended, TK860i supports 24P playback of high-definition sources at 24 fps without judder in HDR mode to preserve the purity of the original image.

Motion Enhancer
Inserting 36 interpolated frames between sequences to produce seamless, vivid 60 frames-per-second videos, Motion Enhancer eliminates laggy images, jittery playback, and blurry shadows.

Indulge in Immersive Sound
TK860i’s treVolo 5Wx2 chambered speakers employ acoustic and psychoacoustic sciences for deep bass and soaring highs, also providing exclusive EQ algorithms used by Hollywood studios for pure clarity and sensual sound quality.

Universal Connectivity
TK860i connects you to all kinds of entertainment with universal ports including three HDMI 2.0b (HDCP 2.2)*, SPDIF, and eARC for 7.1 channel and Dolby Atmos audio pass through, transmitting original full-resolution audio signals to your sound system via one HDMI cable.

Display

Brightness (ANSI lumens) : 3300
Native Resolution : 4K UHD (3840×2160)
Native Aspect Ratio : 16:9
Contrast Ratio (FOFO): 50,000:1
Display Colo: 30-bit (1.07 billion colors)
Light Source: Lamp
Light Source Life
a. Normal 4000 hrs,
b. ECO 10000 hrs
c. SmartEco 15000 hrs

Optical

Throw Ratio :- 1.13~1.47
Zoom Ratio: 1.3x
Lens: F/# = 1.9 - 2.47, f = 12 - 15.6 mm
Projection Offset (Full-Height): 100%
Keystone Adjustment
2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees
Lens Shift Vertical : +10%


Rec. 709 Coverage: 98%
Picture Modes
3D, Bright, Cinema, Game, HDR Game, HDR10, HLG, Living Room, Sport, User

Compatibility

Input Lag
17.9ms (1080P 60Hz), 17.9ms (4K 60Hz), 21ms (1080p120Hz), 8.7ms (1080P 240Hz)
Resolution Support
VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency
15K~135KHz
Vertical Scan Rate
23~120Hz

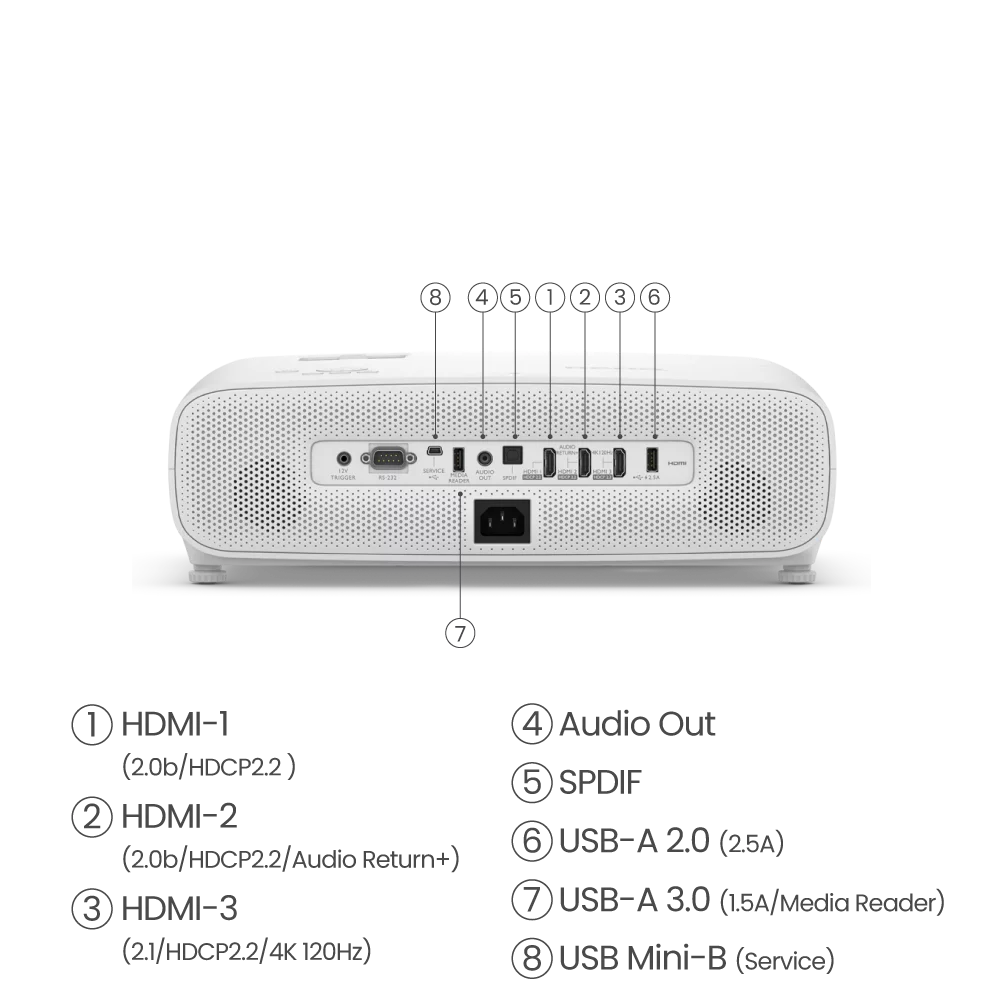

I/O Interface

HDMI in
(x3), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2), HDMI-3 (2.0/HDCP2.2) (4K 120Hz *downscaling to 1080p120Hz), HDMI-Internal (2.0/HDCP2.2)
USB Type A
(x2), USB Type A-1 (3.0/Power Supply1.5A), USB Type A-3 (2.0/Power Supply2.5A)
USB Type Mini B
(x1), USB Type Mini B-1(service)
RS232 in (DB-9pin)
(x1)
DC 12V Trigger (3.5mm Jack)
(x1)
Audio

Speaker
(x2), 5W Chamber
Audio out (3.5mm Mini Jack)
(x1)
HDMI Audio Return
Yes, eARC, Dolby Atmos
S/PDIF
Multi-Channel, RAW
Environment

Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
330W
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
30/28
Accessories

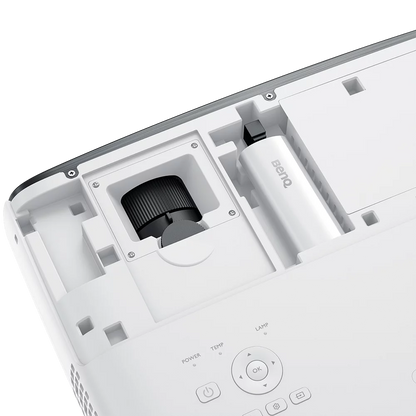

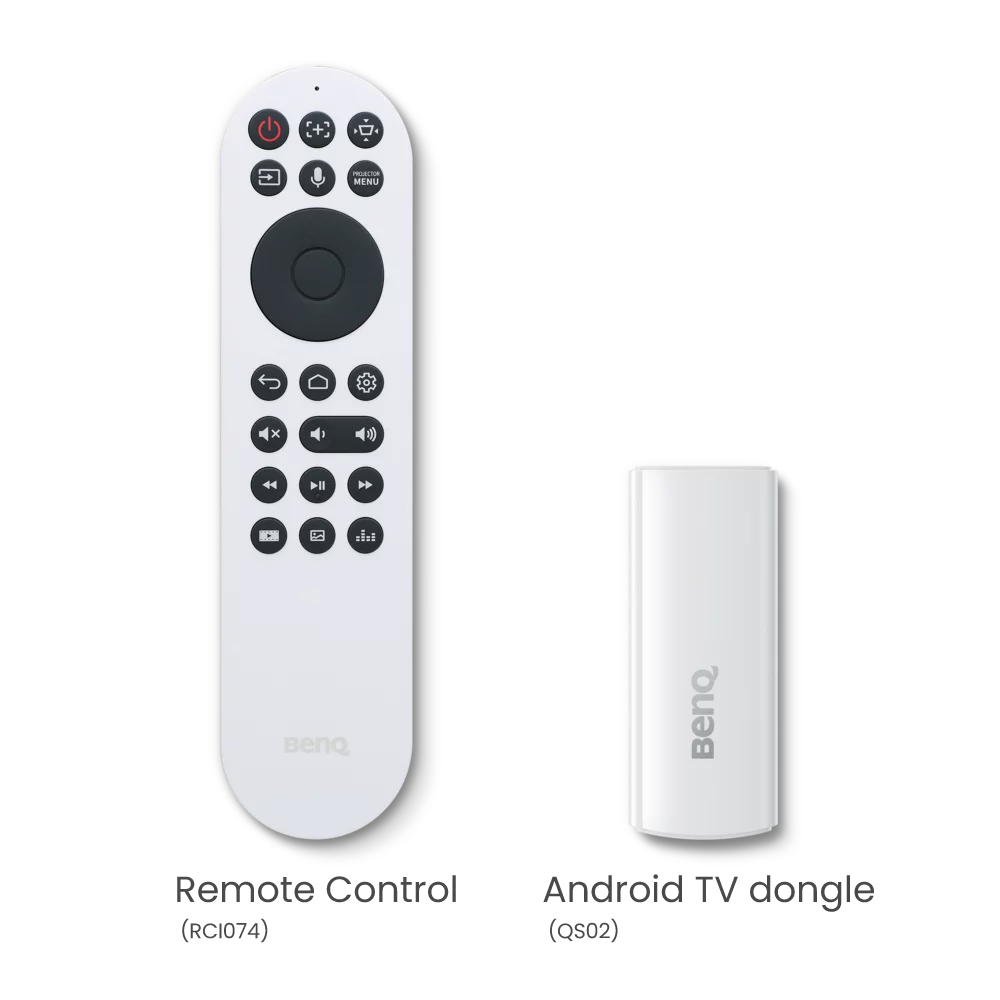

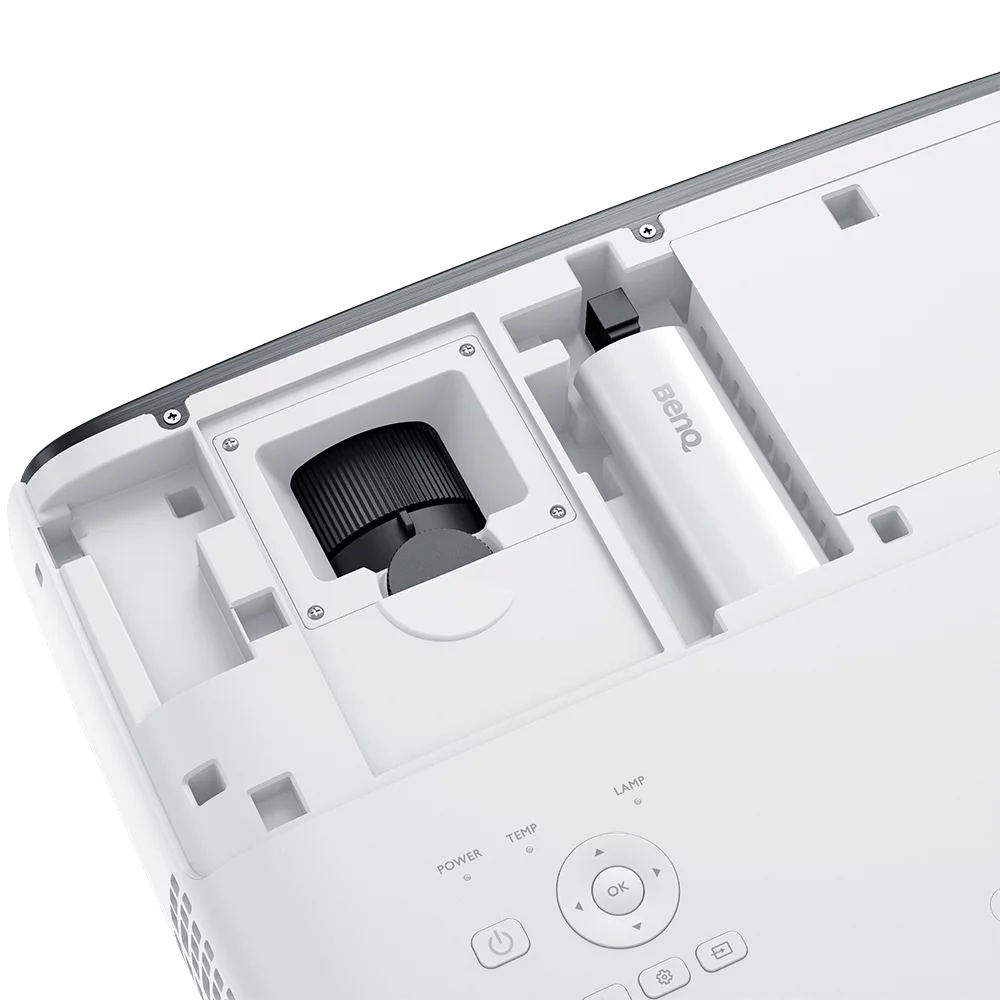

Android TV dongle
QS02, (Standard)
Remote Control w/ Battery
RCI074
Power Cord (by region)
x1 (1.8M)
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Lens cover
Yes
Universal Ceiling Mount
CM00G3, (Optional)
Dimension & Weight

Dimensions (WxHxD) (mm)
380 x 127 x 263
Net Weight (kg)
4.2
Dimensions (WxHXD) (inch)
14.96 x 4.99 x 10.35
Net Weight (lb)
9.25
