BOSE AMM108 Multipurpose Loudspeaker

BOSE AMM108 Multipurpose Loudspeaker

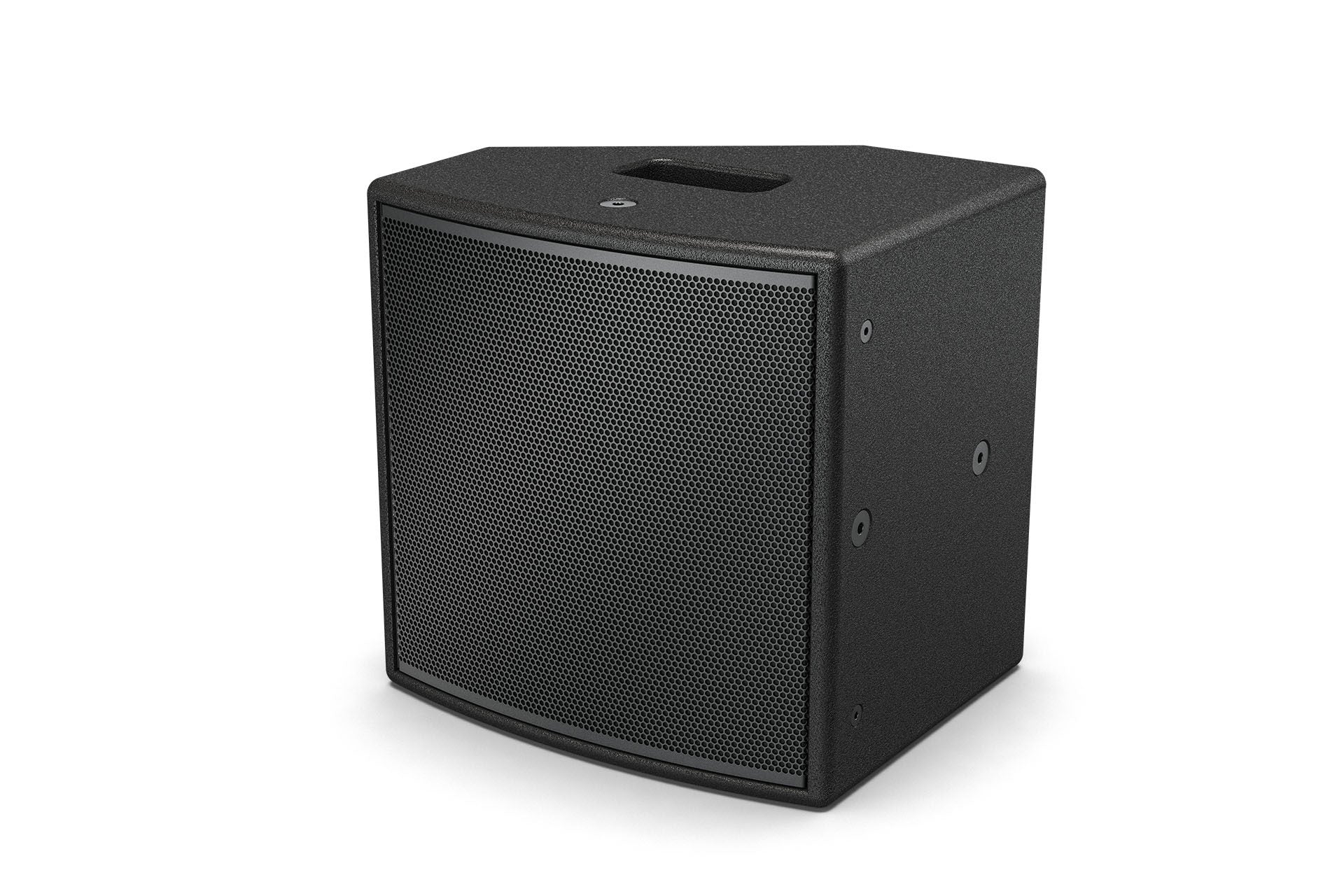

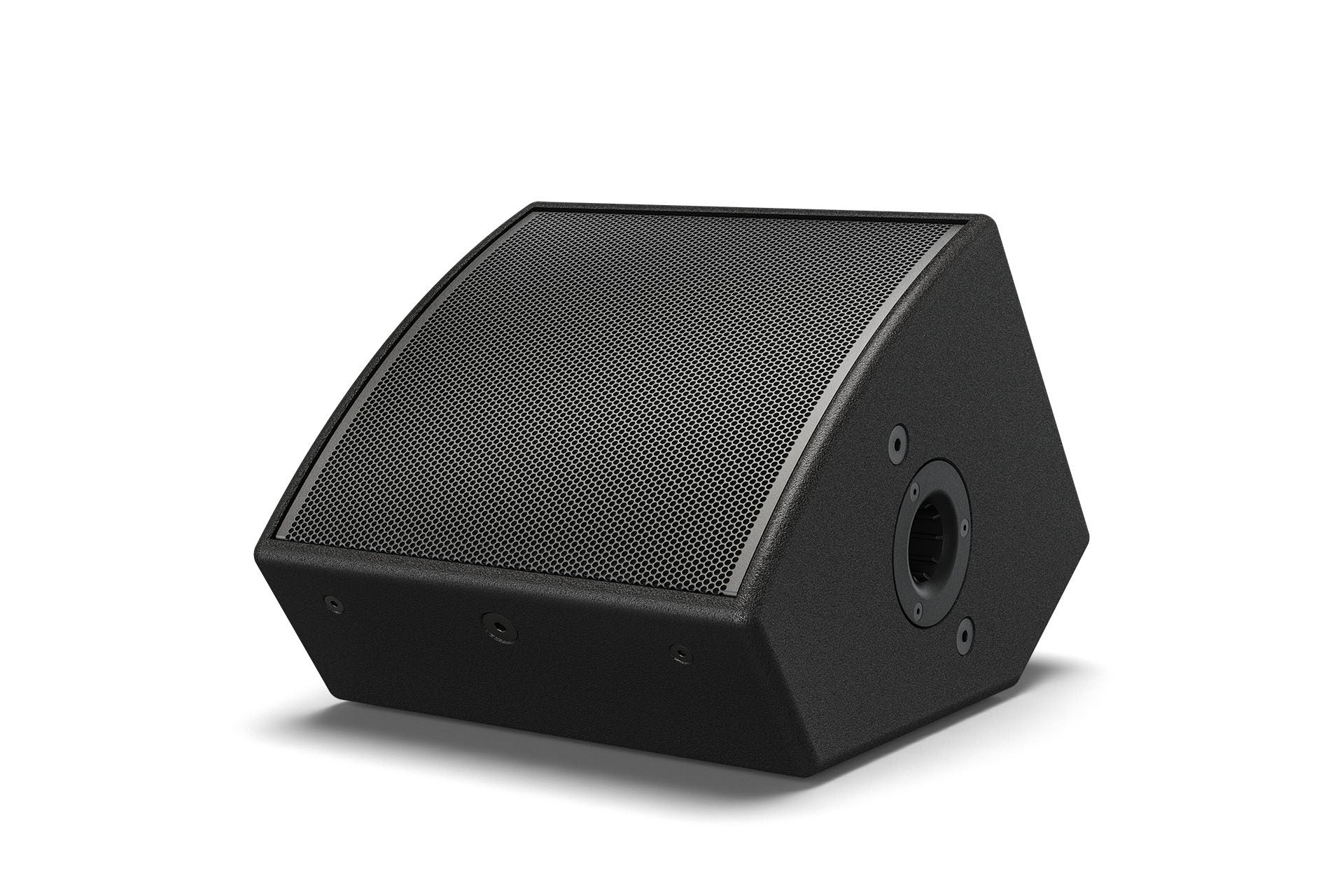

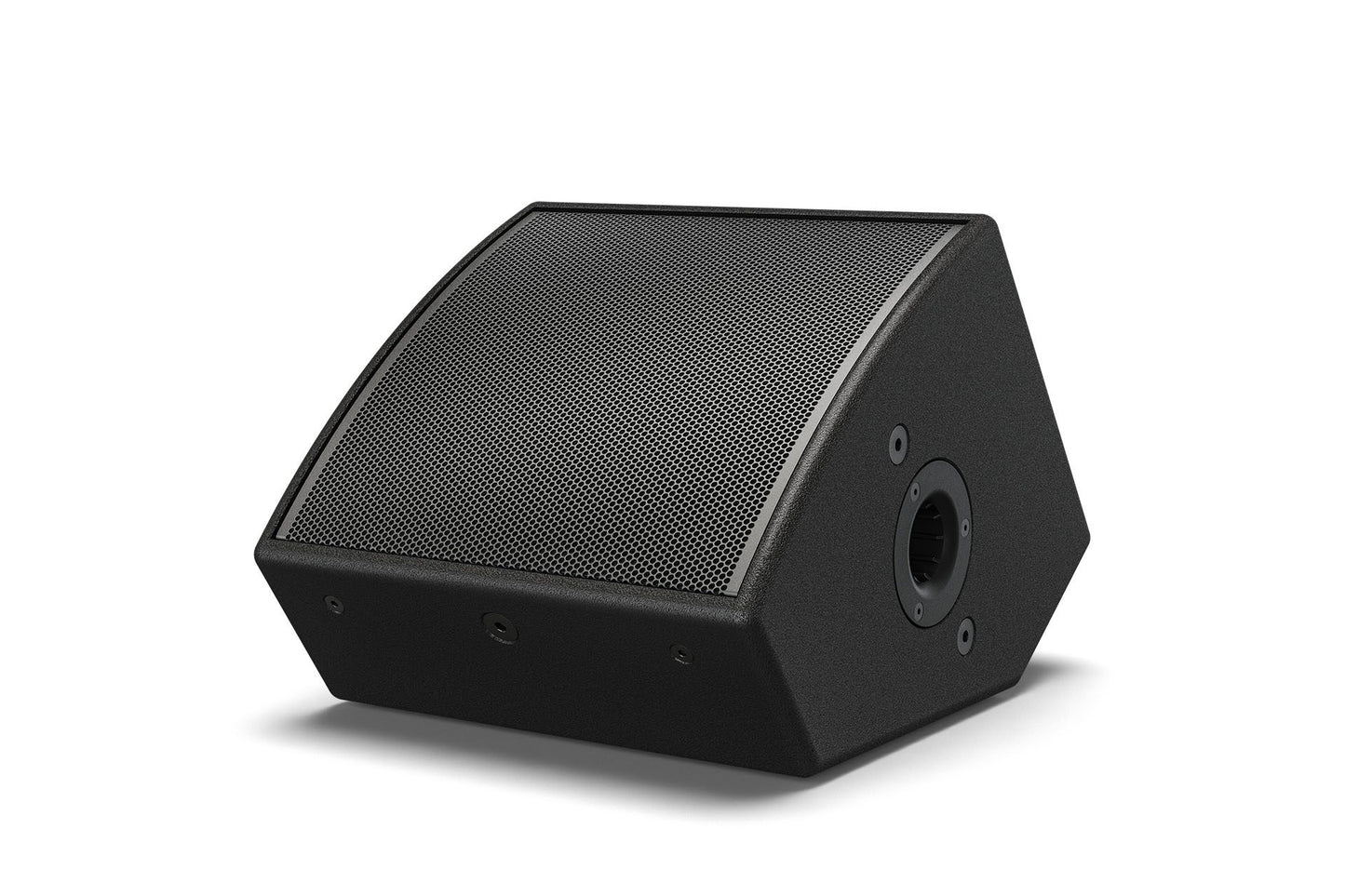

The Bose Professional AMM108

Multipurpose loudspeaker features a passive, coaxial two-way design with a 1.7-inch compression driver, 8-inch low-frequency transducer, and high output: 128 dB peak. Its proprietary Beamwidth Matching Waveguide ensures signature Bose Professional sound quality, delivering consistent frequency response, clarity, and projection across the coverage area — a remarkably powerful audio experience for both performers and audiences. The AMM108 is equally suited for a variety of medium-throw sound reinforcement, monitor, and fill applications in permanent or portable sound systems and offers outstanding vocal clarity and projection. The AMM108 features consistent voicing with Bose Professsional AM array modules and Bose Professional AMU utility loudspeakers. So it’s easy to mix and match models from all three lines to create different types of systems.



TECHNICAL SPECIFICATION

COMPLIANCE

  • EN 54-24 Certified

  • No

PHYSICAL

  • Colors

  • Black

  • Enclosure Material

  • Baltic birch plywood

  • Grille Material

  • Perforated steel, powder-coated finish

  • Ingress Protection

  • IP43 (front-of-house position only)

  • Mounting/Rigging Provisions

  • 1 × 35 mm (1.4 in) pole cup, 4 × M8 threaded inserts, 6 × M10 threaded inserts

  • Net Weight

  • 28.8 lb (13.0 kg)

  • Product Dimensions (H×W×D)

  • 12.5 in × 12.5 in × 10.5 in (318 mm × 318 mm × 268 mm)

PERFORMANCE

  • Frequency Range (-10 dB)

  • 75 Hz – 20,000 Hz

  • Coverage, Horizontal

  • 110°

  • Maximum SPL at 1 m

  • 116 dB continuous, 128 dB peak

  • Nominal Impedance

  • 8 Ω, passive

  • Power Handling, Continuous

  • 150 W

  • Power Handling, Peak

  • 2400 W

  • Sensitivity (SPL/1 W at 1 m)

  • 94 dB

  • Coverage, Vertical

  • 60°

TRANSDUCERS

  • High-Frequency Transducer Quantity and Size

  • 1 × 1.7 in (43 mm) compression driver

  • Low-Frequency Transducer Quantity and Size

  • 1 × 8 in (203 mm) woofer

Rs. 204,796.00
Rs. 241,659.00 Rs. 204,796.00
