BOSE CONTROLSPACE EX-1280C PROCESSOR

BOSE CONTROLSPACE EX-1280C PROCESSOR

BOSE CONTROLSPACE EX-1280C PROCESSOR

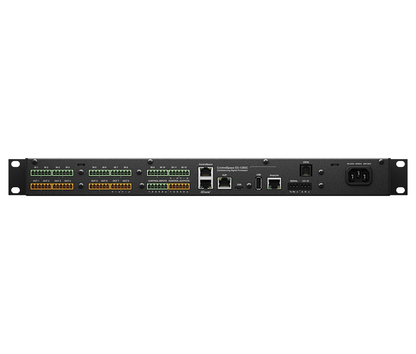

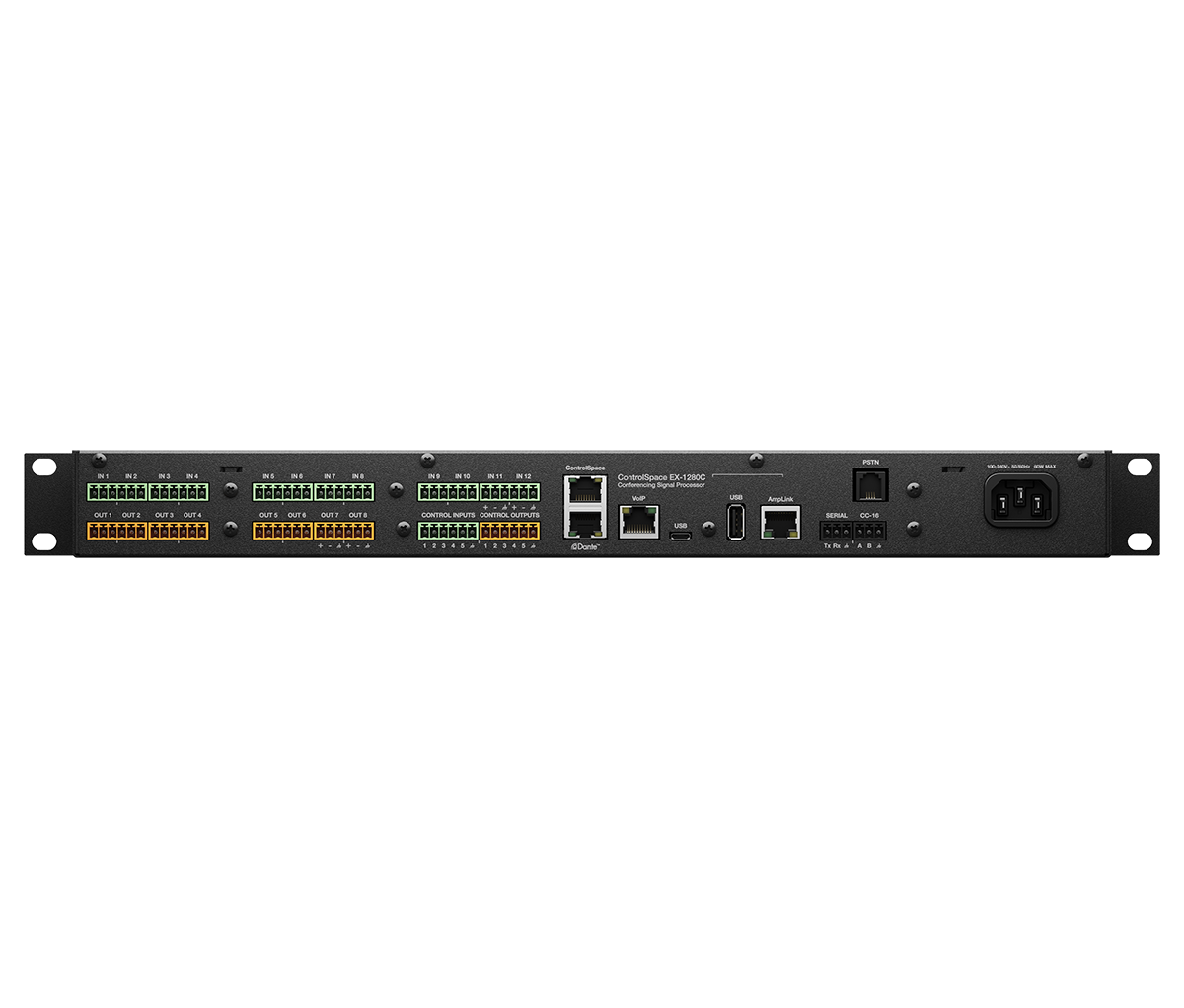

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 × 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

FEATURES

  •

    All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model



  •

    12 acoustic echo cancellers (AEC) route to both analog and Dante inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors



  •

    Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings



  •

    2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement



  •

    PSTN connection (RJ-11) for worldwide POTS/analog telephone systems



  •

    USB connection facilitates easy integration with PC soft codecs



  •

    Dante audio networking supports 64 × 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones



  •

    AmpLink port provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose Professional amplifiers



  •

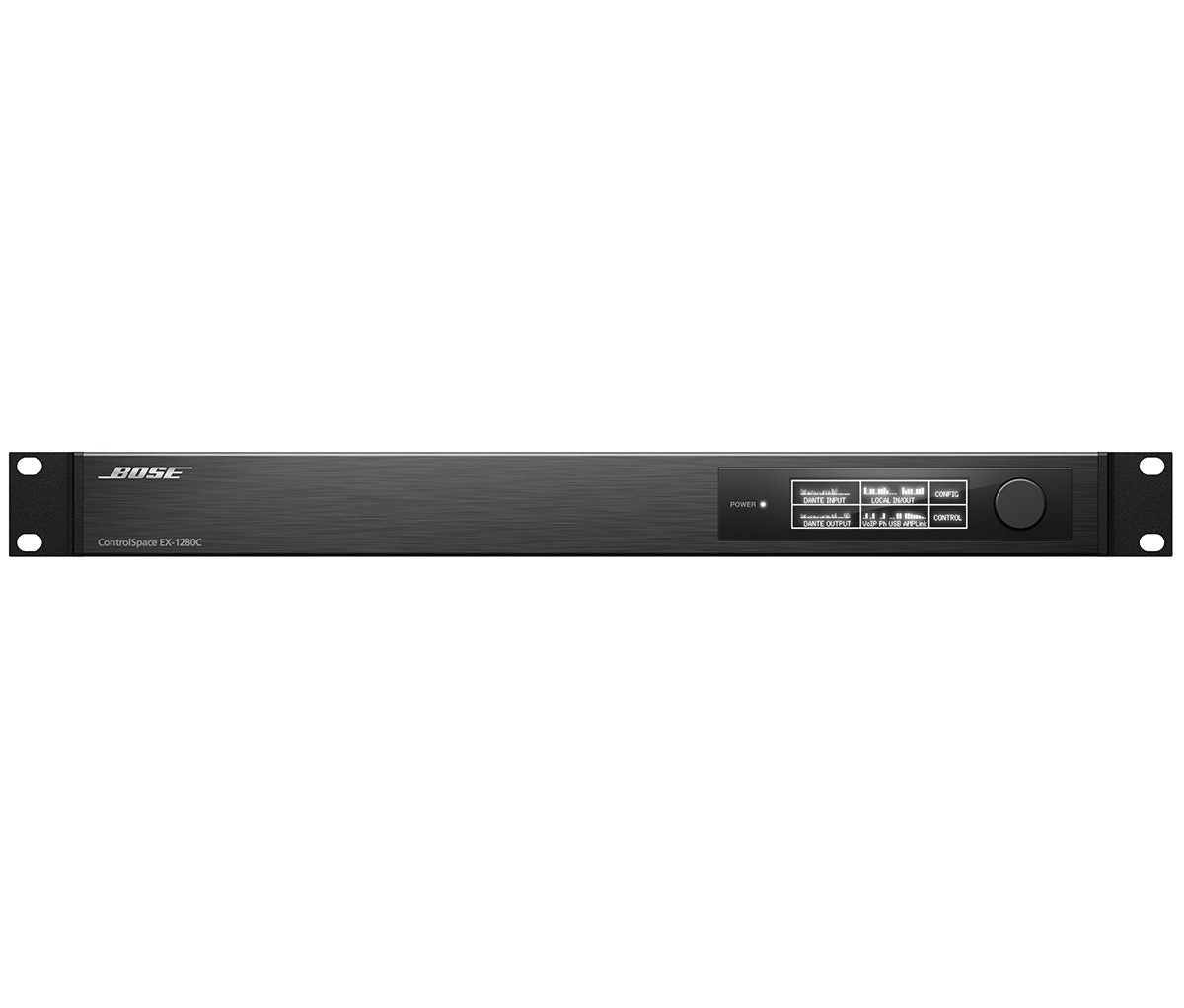

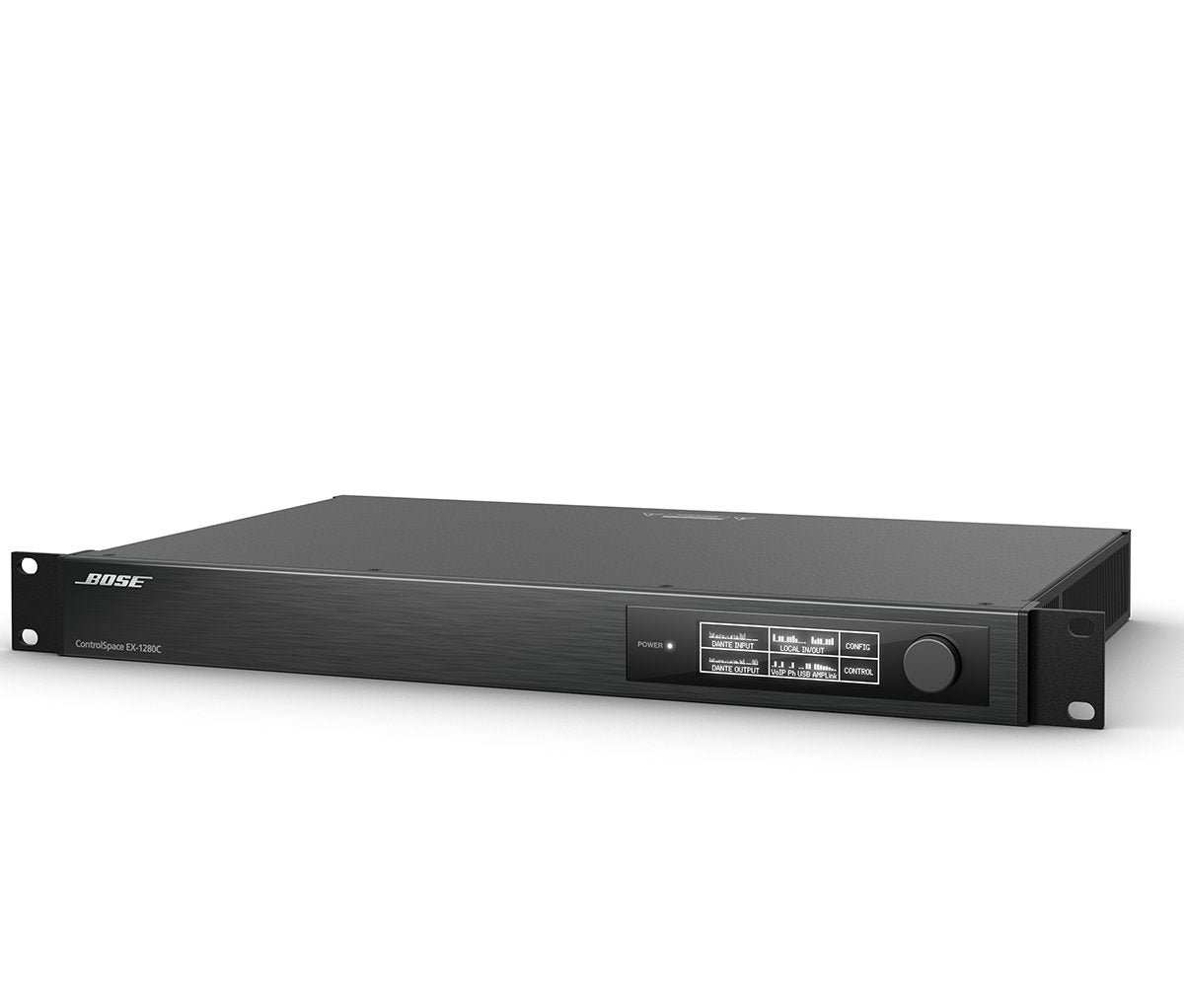

    Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity



  •

    GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs

TECHNICAL SPECIFICATION

AMPLIFICATION

  • Channel Separation (Crosstalk)

  • < -105 dB at +4 dBu, 1 kHz input signal

  • Dynamic Range

  • > 115 dB, A-weighted, 20 Hz – 20 kHz, analog input to analog output

  • Frequency Response

  • 20 Hz – 20 kHz (+0.3 dB/-0.1 dB)

  • THD+N

  • 0.002% at +4 dBu (A-weighted, 20 Hz – 20 kHz)

ACOUSTIC ECHO CANCELATION (AEC)

  • AEC-Enabled

  • Yes

  • Channels

  • 12

  • Latency

  • 50 ms

  • Noise Reduction

  • 32 dB

  • References

  • 4

  • Tail Length

  • 480 ms

AUDIO INPUTS, ANALOG

  • Channels

  • 12 balanced, mic/line

  • Connectors

  • (1) 6-pin Euroblock, 3.81 mm, detachable

  • Equivalent Input Noise

  • -118 dB at 44 dB gain

  • Gain Settings

  • 0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB

  • Input Impedance

  • 12 kΩ at 1 kHz, with or without phantom power

  • Maximum Input Level

  • +24 dBu

  • Phantom Power

  • 48 VDC, 10 mA, software-selectable per input

AUDIO INPUTS/OUTPUTS, DIGITAL

  • Channels

  • 64 Dante in × 64 Dante out, primary/secondary / 8 AmpLink out

  • Connectors

  • (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out

  • Type

  • Dante (input/output), AmpLink (output)

AUDIO OUTPUTS, ANALOG

  • Channels

  • 8 balanced, line

  • Connectors

  • (6) 6-pin Euroblock, 3.81 mm

  • Maximum Output Level

  • +24 dBu

  • Output Impedance

  • 200 Ω

COMPLIANCE

  • EMC

  • EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55103-2:2009, FCC Part 15B Class A, ICES-003 Class A, CNS13439, GB13837, GB17625.1, GB17625.2 25.2, CISPR13

  • EN 54-24 Certified

  • No

  • Safety

  • UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition)

CONTROL INPUTS

  • Voltage Range, Analog

  • 0 V – 3.3 V (5 V maximum)

  • Voltage Range, Digital

  • 0 V – 3.3 V (1.6 V threshold)

CONTROL OUTPUTS

  • Control Outputs

  • (5) digital, 6-pin Euroblock, 3.81 mm, detachable

  • Output Voltage

  • High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull

COMMUNICATION PORTS

  • PSTN

  • RJ-11, 1 line, Tx/Rx (transmit/receive)

  • USB

  • Micro-B type, stereo in/out

  • VoIP

  • RJ-45, 2 lines

ELECTRICAL

  • Mains Connector

  • IEC 60320-C14 inlet

  • Mains Voltage

  • 85–264 VAC, 50/60 Hz

  • Power Consumption

  • 35 W typical at 104 °F (40 °C) ambient

  • Power Dissipation

  • 60 W (205 BTU/hr, 52 kcal/hr)

GENERAL

  • Computer Interface Connection

  • RJ-45 (Dante), through network router or switch

  • Software Applications

  • ControlSpace Designer 5.5 or later (Windows)

INDICATORS AND CONTROLS

  • Display

  • 256 × 64 OLED

  • LED Status Indicators

  • (1) power/status LED

INTEGRATED DSP

  • A/D and D/A Conversion

  • 48 kHz / 24-bit

  • Audio Latency

  • 1.05 ms, analog input to analog output without AEC

  • Delay

  • 43 s

  • DSP-Enabled

  • Yes

  • Maximum Calculation

  • 3.6 GIPS / 2.7 GFLOPS

  • Signal Processor/CPU

  • 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor

  • Sample Rate / Bit Depth

  • 48 kHz / 24-bit

PHYSICAL

  • Colors

  • Black

  • Cooling System

  • 2 variable-speed side-venting fans

  • Mounting/Rigging Provisions

  • Standard rack ears

  • Net Weight

  • 7.3 lb (3.6 kg)

  • Operating Temperature

  • 0 °C to 40 °C (32 °F to 104 °F)

  • Product Dimensions (H×W×D)

  • 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)

  • Rack Spaces

  • 1RU

Rs. 406,791.00
Rs. 480,014.00 Rs. 406,791.00
