ANALOG & DIGITAL INPUTS
– With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.
NETWORK MONITORING & CONTROL
– Better monitoring, control and audio manipulation with the HiQnet™ protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.
DIGITAL SIGNAL PROCESSING
– DSP capabilities include the following:
- LevelMAX Limiters
- Input/Output EQCrossover
- Delay
- Matrix Mixer
- Speaker Line Monitoring
Features
- ANALOG & DIGITAL INPUTS – With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.
- NETWORK MONITORING & CONTROL – Better monitoring, control and audio manipulation with the HiQnet™ protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.
- PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.
- DIGITAL SIGNAL PROCESSING – DSP capabilities include the following:LevelMAX LimitersInput/Output EQCrossoverDelayMatrix MixerSpeaker Line Monitoring
- EN 54-16 Compliant for Life Safety Applications - Part 16 of the European Union’s (EU) EN 54 standard for fire detection and alarm systems has a specific requirement for voice alarms, which output messages in the form of a voice message rather than a traditional siren. This amplifier is certified as part of an EN 54-16 VACIE*, meeting the stringent requirements of a life safety system to serve the needs of hospitality, large venue and other markets.
General Information
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : DCI2X300N-U-USFX
Brand Name : Crown
Product Line : DriveCore Install
Product Series : DCi
Product Model : 2|300N

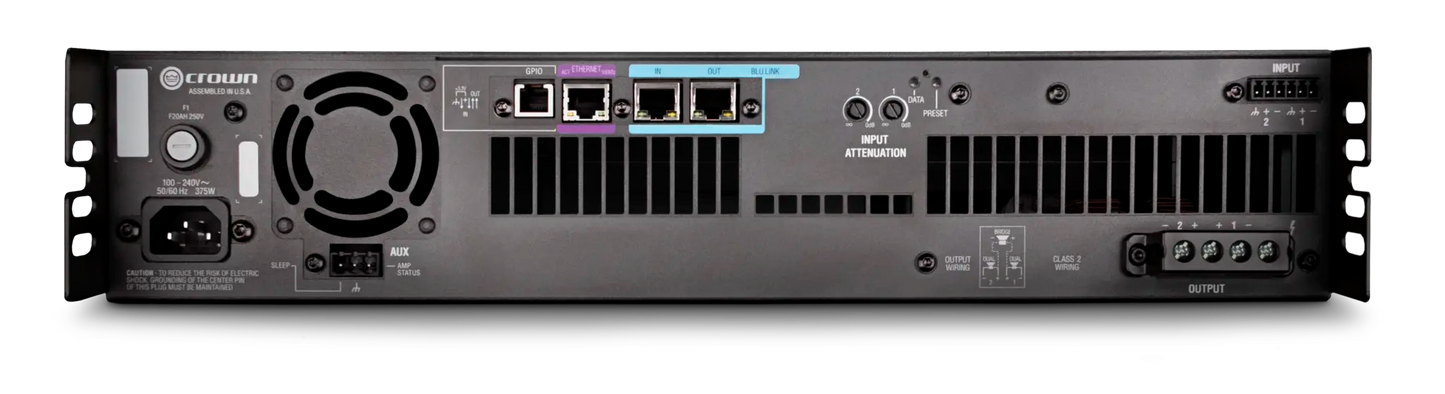

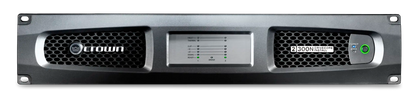

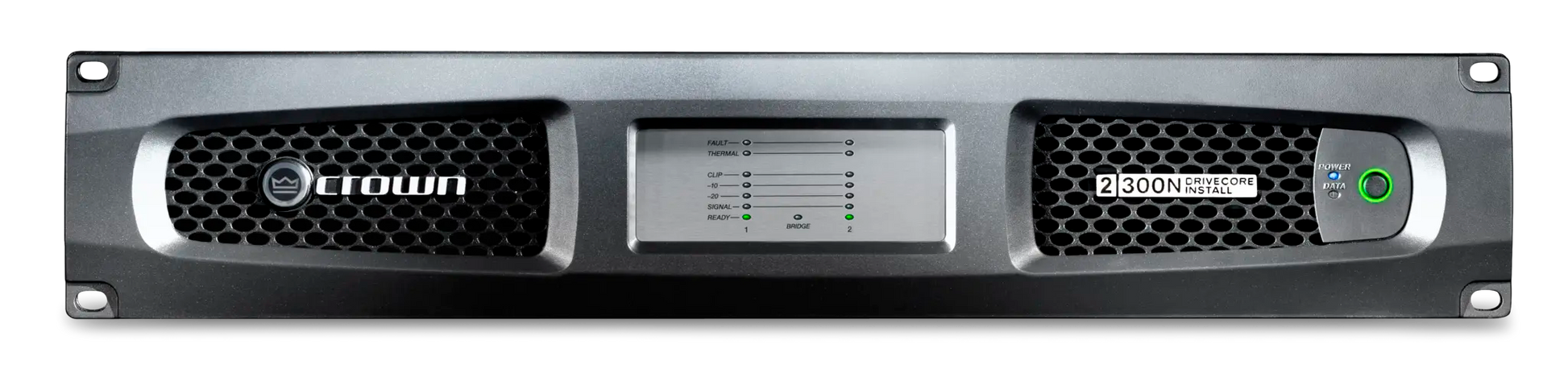

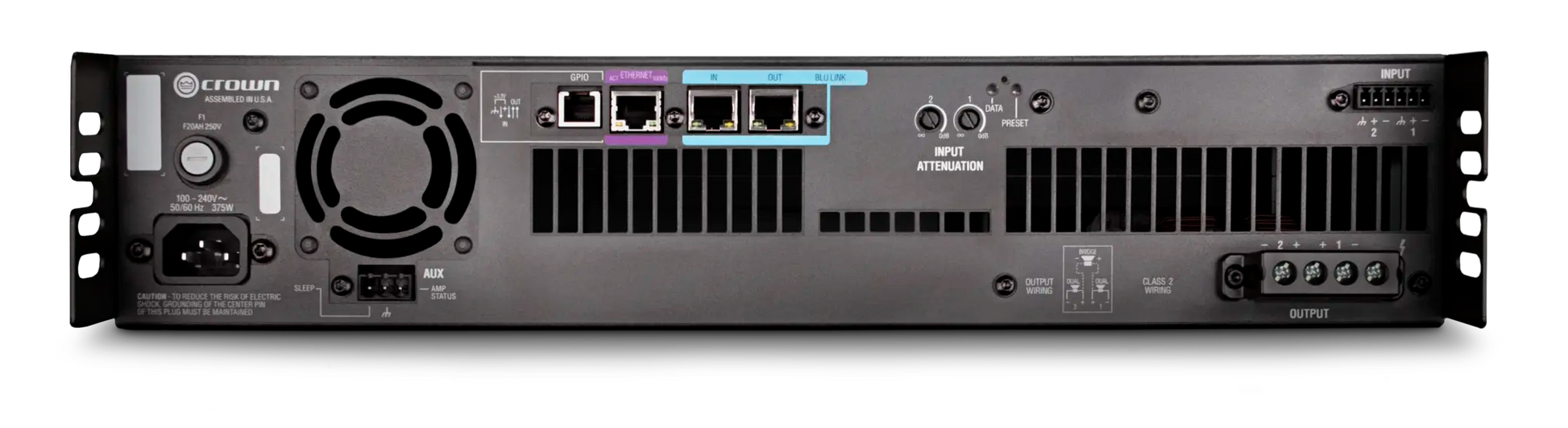

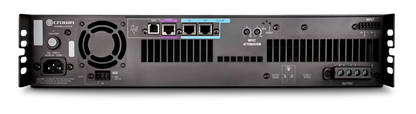

Product Name : DriveCore Install DCi 2|300N Amplifier
Product Type : Amplifier
Specifications
Output Channels : 2
Frequency Response (8Ω, 20Hz - 20kHz)±0.25dB
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz)0.35%Damping Factor (20Hz to 100Hz)>1000Load
Impedance (Stereo/Dual Mode)2Ω - 16Ω; 70Vrms and 100VrmsLoad Impedance Bridge Mono4Ω - 16Ω; 140Vrms and 200Vrms
CoolingContinuously variable speed forced air, front to back airflowMaximum Fan Noise (re dBA SPL @ 1M)45Required
AC Mains (±10%)100V-240V ~ 50/60HzPower Connector15A
IECDimensions (W x H x D)483 mm x 89 mm x 362 mm19 in x 3.5 in x 14.25 in
Weight8.53 kg (18.8 lbs)
