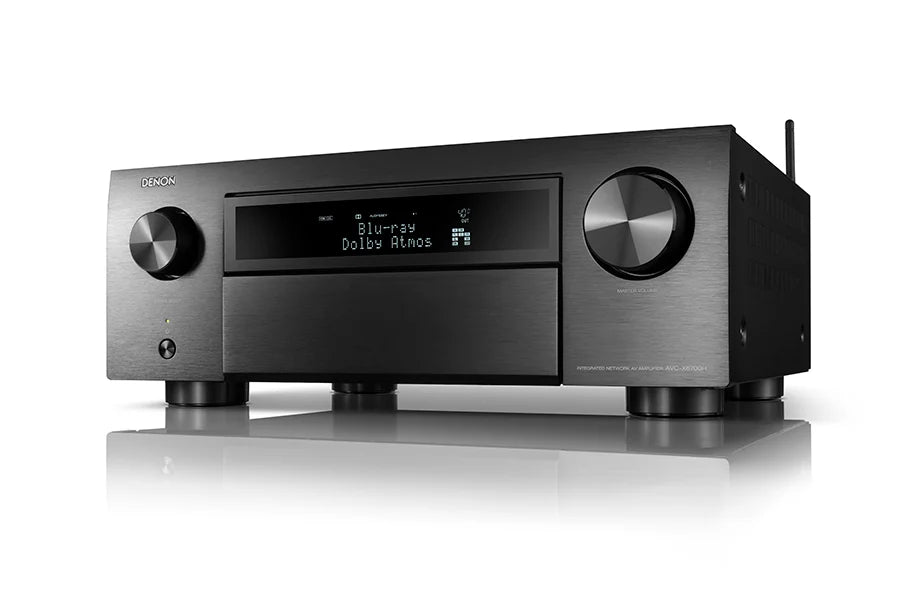

Denon AVC-X6700H

Premium-performance discrete 11-channel amplifier in a monolithic design: Delivers a precise and powerful 205W per channel, to provide trusted, precise and powerful Denon sound.

Full 8K/60Hz and 4K/120Hz support and upscaling: With the latest technology in HDMI support, you can enjoy 8K quality video from your 8K source devices with the highest quality available, with 1 supported 8K input and 2 outputs allowing for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 8 HDMI inputs.

The latest in HDMI support: With 8 advanced HDMI inputs with full HDCP 2.3 support and 3 HDMI outputs connect to all your favourite media devices and output up to 3 monitor displays so you can enjoy from any room.

Enjoy your favourite immersive 3D audio: Enjoy immersive, 3D audio from sources like Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X, DTS:X Pro and Auro-3D.

DTS:X Pro support: With the latest in DTS technology, enjoy DTS:X Pro that can process up to 13 channels via future firmware update.

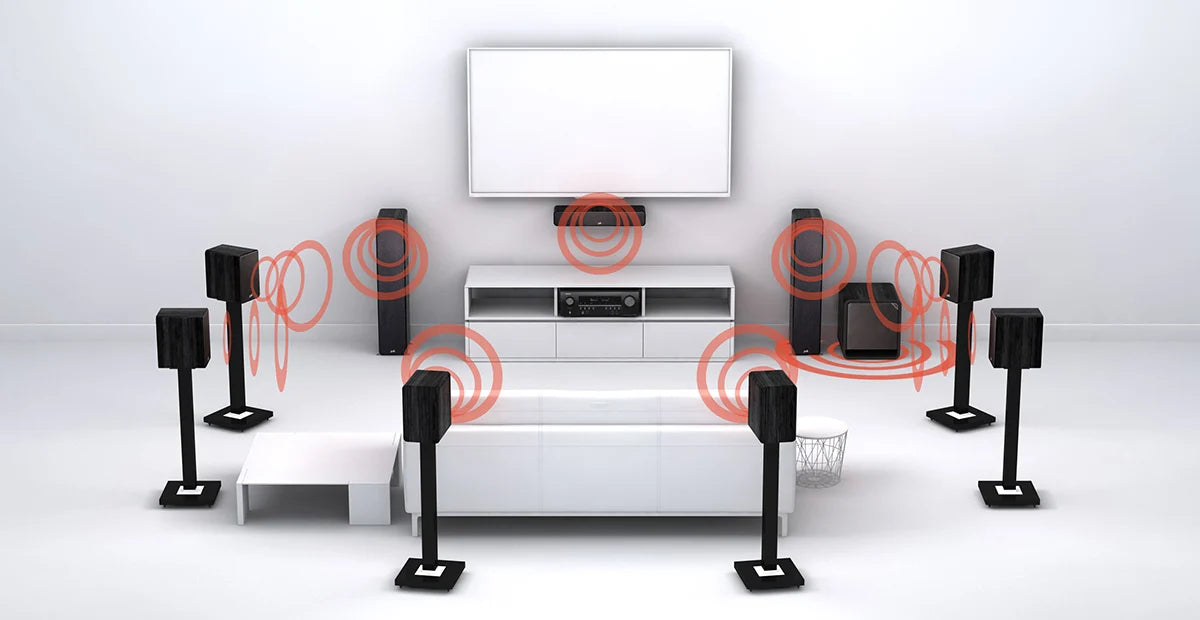

Front wide speakers supported for Dolby Atmos and DTS:X Pro up to 13 channel setups: Supports front wide speakers for a more seamless front surround stage reproduction either in 9.1.2 or 9.1.4 speaker setup.
IMAX Enhanced Technology: Delivers a true IMAX theatre experience at home.

Enhanced Audio Return Channel (eARC) HDMI support: Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from your smart TV app to your AV amplifier.

The latest in video compatibility: The latest HDR format support including HDR10, HDR10+ (New in 2020), HLG, Dolby Vision, as well as Dynamic HDR (New in 2020), to provide the greatest picture quality for brightness, clarity and contrast.

The next generation in movie immersion: With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear and smoothest picture in the highest quality available.
With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging, as well as reduced lag and latency.

New DSP for more processing power: With 13.2 ch. max audio processing, connect external power amplifier to the AVC-X6700H to power two additional channels to enjoy a 13.2 ch. home theatre setup.
Works with your favourite voice assistants: Use your voice to control the AVC-X6700H and wireless music services hands-free, works with Amazon Alexa, Google Assistant and Apple Siri.

Wireless streaming from the most popular music services: Enjoy all of your favourite music services like Spotify, TuneIn Internet Radio, Amazon Music HD, TIDAL, Deezer and more. The AVC-X6700H also lets you enjoy your music via AirPlay 2, letting you stream your favourite tracks from Apple Music.
“Roon Tested” Certified: Get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more. Subscription required.

Phono input: With its included phono input, the AVC-X6700H lets you connect your turntable and play vinyl records. Enjoy your collection with exceptional quality and sound.

Dual subwoofer outputs: Smooths out low frequencies for better bass dispersion.
HEOS Built-in wireless multi-room music streaming technology: Listen from any room for a connected, whole-home audio experience. The AVC-X6700H also works with the newly introduced Denon Home speakers to let you enjoy a whole-home audio experience.

High-resolution audio streaming for Hi-Fi enthusiasts: Enjoy your favourite Hi-Res quality file playback with FLAC, ALAC, and WAV support, as well as DSD 2.8/5.6MHz.

All Zone TV audio: Play the audio from your TV to another zone for your favourite shows without losing fully discrete surround sound in the main zone.
Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support: Solid wireless network connectivity even in congested environments.

Bluetooth Audio Transmitter: Enjoy your favourite audio through your Bluetooth headphones late at night or with your family member who is hearing impaired. This feature supports Bluetooth-only playback as well as simultaneous playback with connected speakers.
Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box and setup experience.

Smart TV connectivity: Control the Denon AVC-X6700H with your TV remote via HDMI CEC.
Audyssey MultEQ XT32, Dynamic Volume, Dynamic EQ, LFC and Sub EQ HT: Delivers the ultimate equalization for your individual room including subwoofer EQ.

Custom install ready: The Denon AVC-X6700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions.

Equipped with two 12V trigger outputs: Connect up to two devices such as an automatic screen or projector and operate on standby power.

Amazing audio built on 110-years of innovation: Denon is the defining audio company of Japan. Founded in 1910, we enable the moments that matter through the relentless pursuit of quality, innovation and audio performance.

Multichannel Surround

DTS HD Master / DTS:X
DTS:X Pro
DTS Neo:X / DTS Neural:X
DTS Virtual:X


Dolby TrueHD / Dolby Atmos
Dolby ProLogic Il / Dolby Surround
Dolby Height Virtualization
Front Wide Speakers: Dolby / DTS

Auro 3D - 13ch
IMAX Enhanced
MPEG-H
Multichannel Stereo

Max Number of Processing (Preamp) Channels
13.2

Sound Enhancements
Mono Block Power Amp Construction
Discrete Power Amplifier
11


D.D.S.C. HD Digital
o (32 bit)

Pure Direct
o

High Grade Audio Components
o

Gold Plated RCA Terminals
o

Clock Jitter Reducer
o

Alpha Processing
AL32 Processing Multichannel

Audyssey
MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume
o / o

Audyssey LFC
o

Audyssey APP support
o

Speaker Setup Presets
2

Compressed Audio Restorer
o

HDMI
HDMI Inputs: Back / Front
7 / 1

HDCP2.3 support
o

HDMI Outputs: Main / Zone
2 / 1

HDMI max Resolution (8k / 4k)
8k/60 - 4k/120

Video Conversion Analog -> HDMI
o

HDMI to HDMI Scaling
up to 8K 60/50

HDMI: 8K / 4K / CEC / eARC
o / o / o / o

HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG
o / o / o / o

HDMI: ALLM / QMS / QFT / VRR
o / o / o / o

HDMI pass-though in standby mode
o

DSD Audio Capability
o

Specifications
Number of Poweramps
11

Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
-

Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
140 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
175 W

Power Output (6 ohm, 1 kHz, 1% 1ch Drive)
205 W

Available Colours: Black / Premium Silver
o / o

Metal Front Panel
o

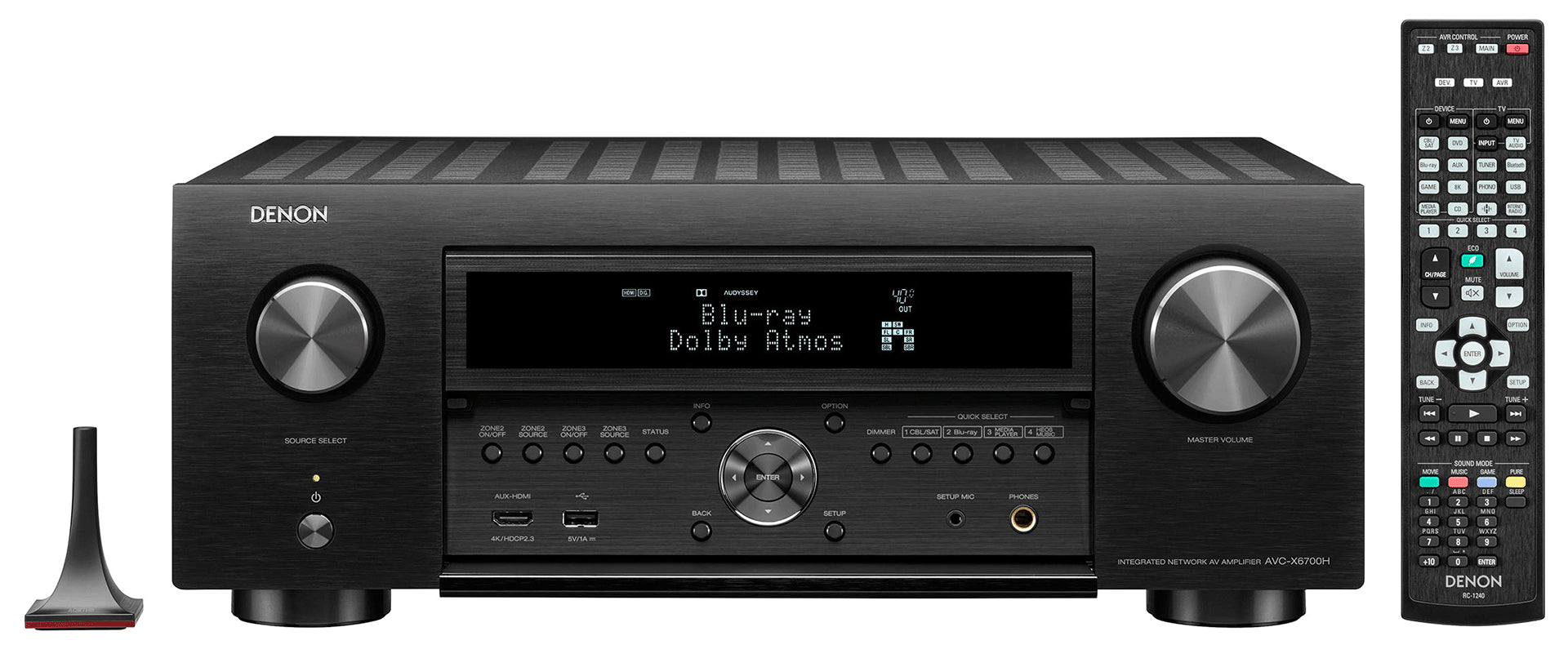

System Remote Control
RC-1240

Pre-programmed / Learnable / LCD Display
o / - / -

Power Consumption in W
750

Power Consumption No-Sound (ECO On / Off) in W
65 W / 110 W

Standby Consumption in W
0.1

CEC Standby Consumption in W
0.5

Network Control On Consumption in W
3.7

Maximum Dimensions
Antenna:Horizontal: (W x D x H) in mm
Antenna:Vertical: (W x D x H) in mm
No Antenna: (W x D x H) in mm
434 x 389 x 167
( 434 x 389 x 235 )
【 434 x 379 x 167 】

Weight in kg
14.8

Carton Maximum Dimensions (W x D x H) in mm
531 x 464 x 302

Carton Weight (inc. product) in kg
17.4
