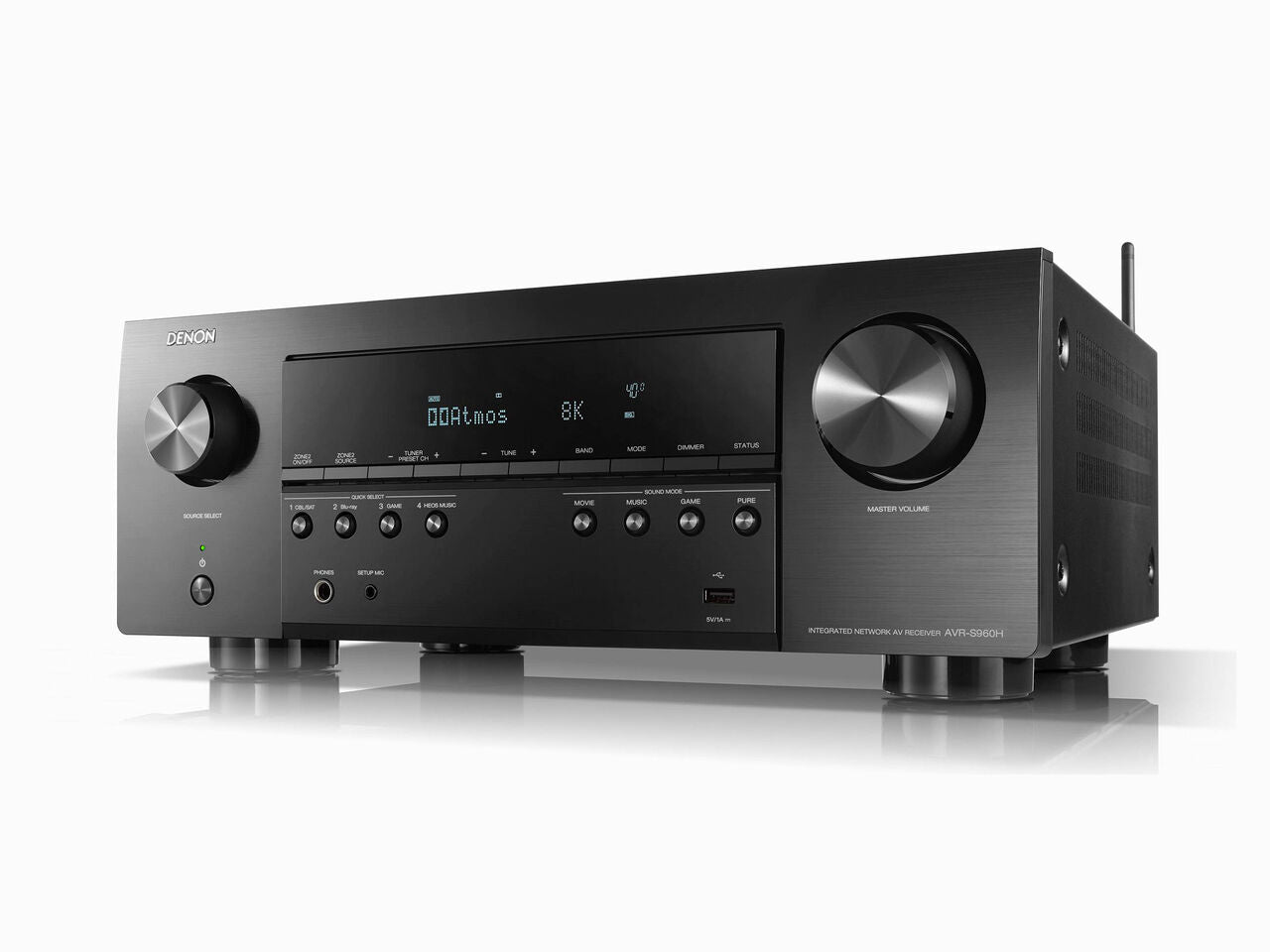

Denon AVR-S960H

Multichannel Surround
DTS HD Master / DTS:X / DTS:X ProYes / Yes / No
DTS Neo:X / DTS Neural:XNo / Yes
DTS Virtual:XYes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height VirtualizationYes / Yes / Yes
Dolby ProLogic Ilz / Dolby SurroundNo / Yes
Multichannel StereoYes
Max Number of Processing (Preamp) Channels7.1
DTS HD Master / DTS:X / DTS:X ProYes / Yes / No
DTS Neo:X / DTS Neural:XNo / Yes
DTS Virtual:XYes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height VirtualizationYes / Yes / Yes
Dolby ProLogic Ilz / Dolby SurroundNo / Yes
Multichannel StereoYes
Max Number of Processing (Preamp) Channels7.1
DTS HD Master / DTS:X / DTS:X ProYes / Yes / No
DTS Neo:X / DTS Neural:XNo / Yes
DTS Virtual:XYes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height VirtualizationYes / Yes / Yes
Dolby ProLogic Ilz / Dolby SurroundNo / Yes
Multichannel StereoYes
Max Number of Processing (Preamp) Channels7.1
Sound Enhancements
Discrete Power AmplifierYes
Pure DirectYes
AudysseyMultEQ
Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
Compressed Audio RestorerYes
Discrete Power AmplifierYes
Pure DirectYes
AudysseyMultEQ
Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
Compressed Audio RestorerYes
Discrete Power AmplifierYes
Pure DirectYes
AudysseyMultEQ
Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
Compressed Audio RestorerYes
Network
Media ServerYes
HEOS Wireless Multi-Room TechnologyYes
Bluetooth Re-transmit for Bluetooth headphonesYes
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
DSD Audio StreamingYes (2.8/5.6MHz)
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless playbackYes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio StreamingYes (AirPlay2)
Internet RadioYes (TuneIn)
Spotify*Yes (connect)
PandoraYes
SiriusXMYes
Other Streaming ServicesAmazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App ControlYes
Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes
Media ServerYes
HEOS Wireless Multi-Room TechnologyYes
Bluetooth Re-transmit for Bluetooth headphonesYes
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
DSD Audio StreamingYes (2.8/5.6MHz)
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless playbackYes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio StreamingYes (AirPlay2)
Internet RadioYes (TuneIn)
Spotify*Yes (connect)
PandoraYes
SiriusXMYes
Other Streaming ServicesAmazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App ControlYes
Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes
Media ServerYes
HEOS Wireless Multi-Room TechnologyYes
Bluetooth Re-transmit for Bluetooth headphonesYes
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Lossy Formats: MP3 / WMA / AACYes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
DSD Audio StreamingYes (2.8/5.6MHz)
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless playbackYes (FLAC, WAV, ALAC ,DSD)
AirPlay Audio StreamingYes (AirPlay2)
Internet RadioYes (TuneIn)
Spotify*Yes (connect)
PandoraYes
SiriusXMYes
Other Streaming ServicesAmazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App ControlYes
Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes

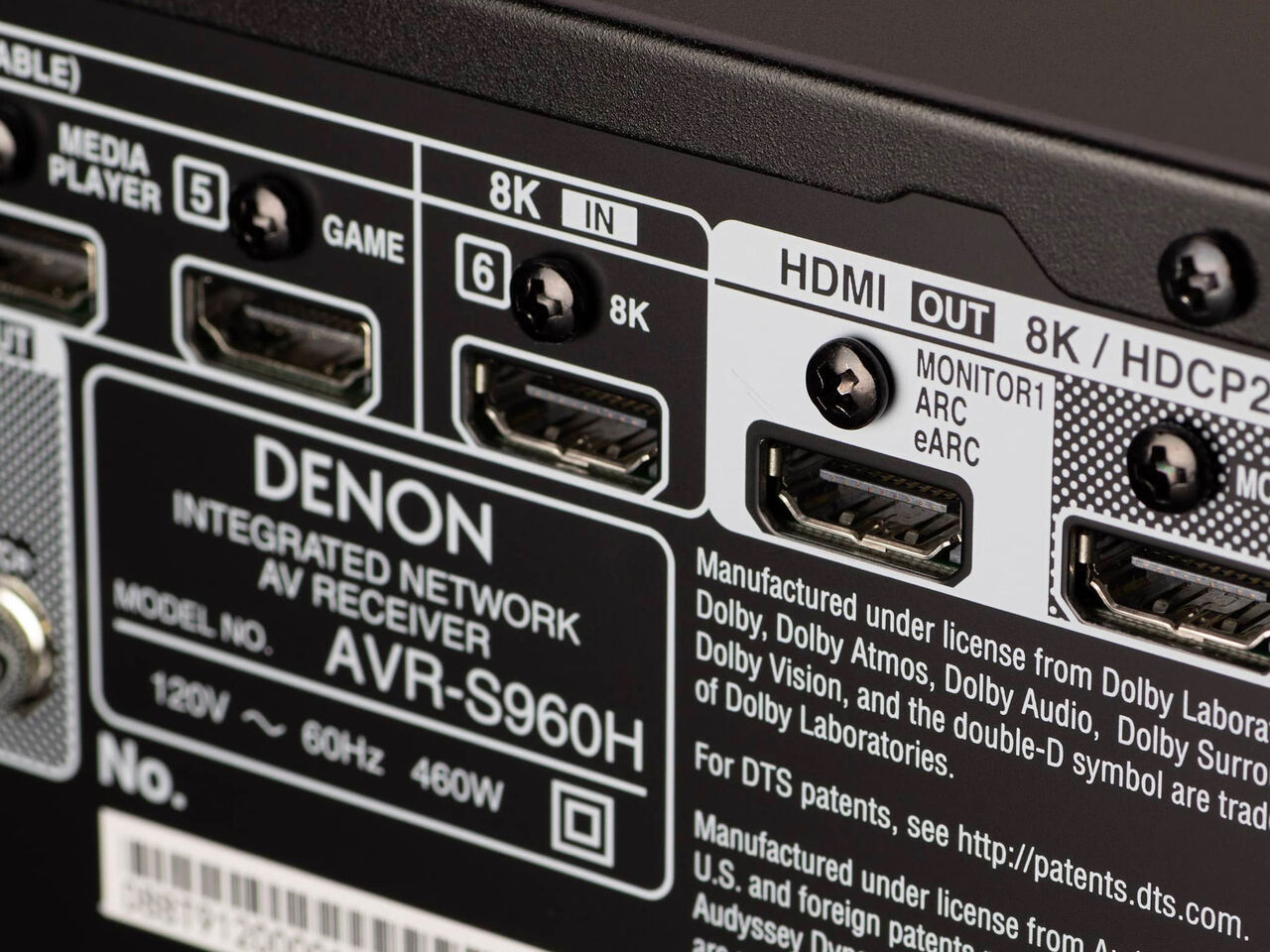

HDMI
HDMI Inputs: Back / Front6 / No
HDCP2.3 supportYes
HDMI Outputs: Main / Zone2 / No
HDMI to HDMI Scalingup to 8K 60/50
GUI Overlay on HDMIYes
UNKNOWN mapping guid: {029143fa-34bc-47ca-8629-cbbfff8bf599}Yes / Yes
UNKNOWN mapping guid: {0f498a75-53eb-48cb-9e7e-75d149050331}Yes / Yes / Yes / Yes / No
Enhanced ARCYes
UNKNOWN mapping guid: {71e0f993-7831-43de-8d11-db5cb7a1c47e}Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gamingYes
UNKNOWN mapping guid: {d18a5301-c3f0-402e-972b-872b7cc78a67}Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-throughYes
8K signal pass-through / scaling / GUI overlayYes / Yes / Yes
4K Signal Pass-through / Scaling / GUI OverlayYes / Yes / Yes
HDMI pass-though in standby modeYes
Picture Adjust / Noise ReductionYes / Yes
CECYes
Audio Return ChannelYes
Auto LipSyncYes
HDMI Inputs: Back / Front6 / No
HDCP2.3 supportYes
HDMI Outputs: Main / Zone2 / No
HDMI to HDMI Scalingup to 8K 60/50
GUI Overlay on HDMIYes
UNKNOWN mapping guid: {029143fa-34bc-47ca-8629-cbbfff8bf599}Yes / Yes
UNKNOWN mapping guid: {0f498a75-53eb-48cb-9e7e-75d149050331}Yes / Yes / Yes / Yes / No
Enhanced ARCYes
UNKNOWN mapping guid: {71e0f993-7831-43de-8d11-db5cb7a1c47e}Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gamingYes
UNKNOWN mapping guid: {d18a5301-c3f0-402e-972b-872b7cc78a67}Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-throughYes
8K signal pass-through / scaling / GUI overlayYes / Yes / Yes
4K Signal Pass-through / Scaling / GUI OverlayYes / Yes / Yes
HDMI pass-though in standby modeYes
Picture Adjust / Noise ReductionYes / Yes
CECYes
Audio Return ChannelYes
Auto LipSyncYes
HDMI Inputs: Back / Front6 / No
HDCP2.3 supportYes
HDMI Outputs: Main / Zone2 / No
HDMI to HDMI Scalingup to 8K 60/50
GUI Overlay on HDMIYes
UNKNOWN mapping guid: {029143fa-34bc-47ca-8629-cbbfff8bf599}Yes / Yes
UNKNOWN mapping guid: {0f498a75-53eb-48cb-9e7e-75d149050331}Yes / Yes / Yes / Yes / No
Enhanced ARCYes
UNKNOWN mapping guid: {71e0f993-7831-43de-8d11-db5cb7a1c47e}Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gamingYes
UNKNOWN mapping guid: {d18a5301-c3f0-402e-972b-872b7cc78a67}Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-throughYes
8K signal pass-through / scaling / GUI overlayYes / Yes / Yes
4K Signal Pass-through / Scaling / GUI OverlayYes / Yes / Yes
HDMI pass-though in standby modeYes
Picture Adjust / Noise ReductionYes / Yes
CECYes
Audio Return ChannelYes
Auto LipSyncYes
Multi-room CI
Multiroom zones2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / PreoutYes / No
IP Control / RS232 Control / Web Control / App ControlYes / No / Yes / Yes
Remote In / OutNo / No
HDMI DiagnosticsYes
Multiroom zones2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / PreoutYes / No
IP Control / RS232 Control / Web Control / App ControlYes / No / Yes / Yes
Remote In / OutNo / No
HDMI DiagnosticsYes
Multiroom zones2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / PreoutYes / No
IP Control / RS232 Control / Web Control / App ControlYes / No / Yes / Yes
Remote In / OutNo / No
HDMI DiagnosticsYes
Others
Auto Speaker Setup by MicrophoneAudyssey MultEQ
FL Display1 line
Graphic User Interface - GUIAdvanced
GUI Languages3
Setup AssistentYes
Quick Select Plus / Quick SelectYes / No
Firmware Update by: Network / USBYes / Yes
Variable Cross OverYes
Optimized Bass RedirectionYes
ECO ModeYes
Auto Power OffYes
Sleep TimerYes
Auto Speaker Setup by MicrophoneAudyssey MultEQ
FL Display1 line
Graphic User Interface - GUIAdvanced
GUI Languages3
Setup AssistentYes
Quick Select Plus / Quick SelectYes / No
Firmware Update by: Network / USBYes / Yes
Variable Cross OverYes
Optimized Bass RedirectionYes
ECO ModeYes
Auto Power OffYes
Sleep TimerYes
Auto Speaker Setup by MicrophoneAudyssey MultEQ
FL Display1 line
Graphic User Interface - GUIAdvanced
GUI Languages3
Setup AssistentYes
Quick Select Plus / Quick SelectYes / No
Firmware Update by: Network / USBYes / Yes
Variable Cross OverYes
Optimized Bass RedirectionYes
ECO ModeYes
Auto Power OffYes
Sleep TimerYes

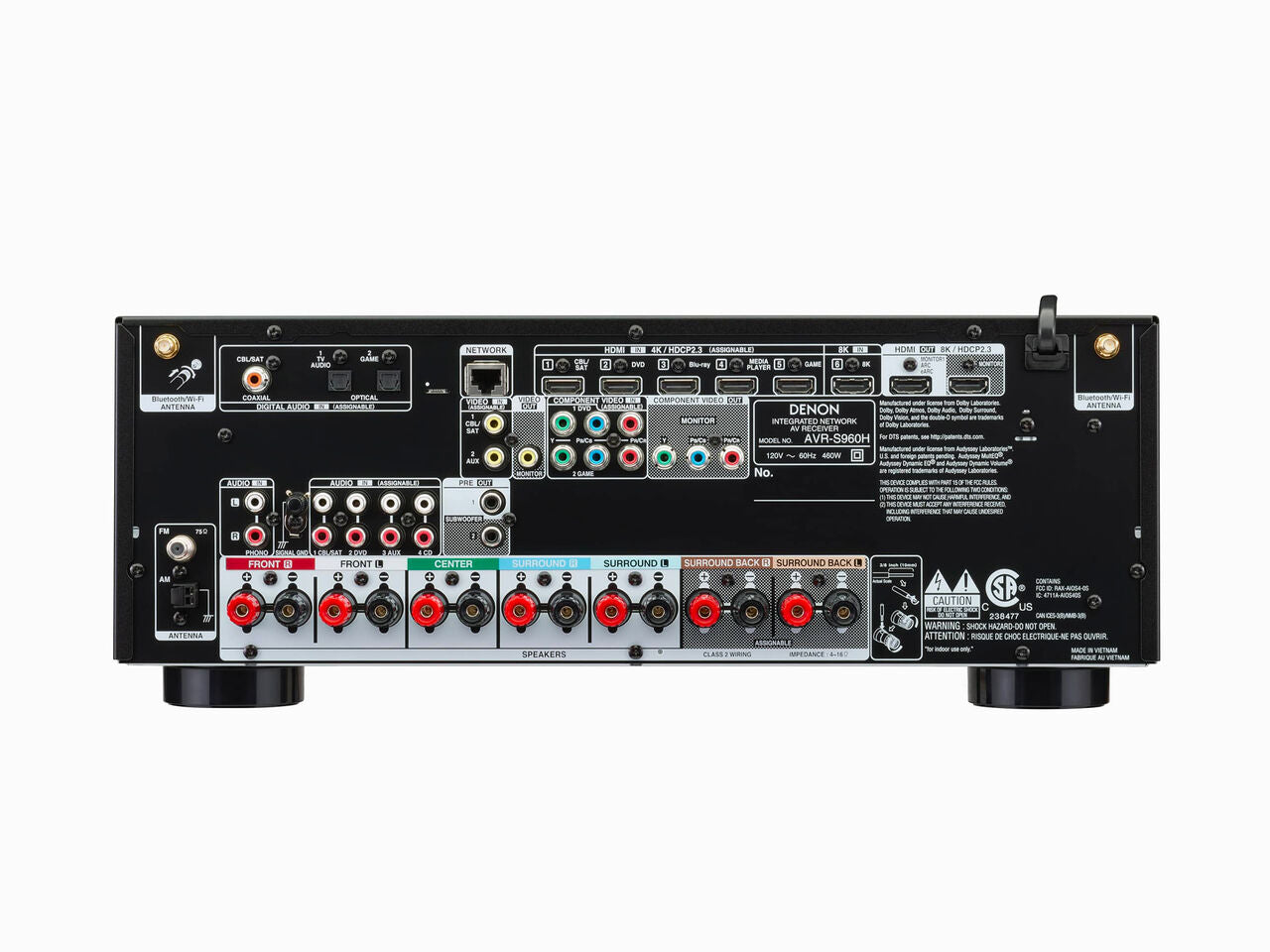

Inputs Outputs
Composite In / Out2 / 1
Component In / Out2 / 2
HDMI In / Out6 / 2
Multi-room Video Out: Video / HDMINo / No
Analogue In/out4 / No
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 1
Multi-room Out: Analog / DigitalNo / No
Multichannel Pre-outYes (0.2)
Subwoofer Out2
Speaker Terminal: Gold Plated Screw / Regular ScrewNo / Yes
Number of Speaker Terminals7
Multi-Room Speaker Terminalassignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
AM/FM TunerYes
Composite In / Out2 / 1
Component In / Out2 / 2
HDMI In / Out6 / 2
Multi-room Video Out: Video / HDMINo / No
Analogue In/out4 / No
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 1
Multi-room Out: Analog / DigitalNo / No
Multichannel Pre-outYes (0.2)
Subwoofer Out2
Speaker Terminal: Gold Plated Screw / Regular ScrewNo / Yes
Number of Speaker Terminals7
Multi-Room Speaker Terminalassignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
AM/FM TunerYes
Composite In / Out2 / 1
Component In / Out2 / 2
HDMI In / Out6 / 2
Multi-room Video Out: Video / HDMINo / No
Analogue In/out4 / No
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 1
Multi-room Out: Analog / DigitalNo / No
Multichannel Pre-outYes (0.2)
Subwoofer Out2
Speaker Terminal: Gold Plated Screw / Regular ScrewNo / Yes
Number of Speaker Terminals7
Multi-Room Speaker Terminalassignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
AM/FM TunerYes
Specifications
Number of Power Amps7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)90 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)125 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)185 W
Number of Power Amps7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)90 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)125 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)185 W
Number of Power Amps7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)90 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)125 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)185 W
General
System Remote ControlRC-1239
Pre-programmed / Learnable / LCD DisplayNo / No / No
Power Consumption in W500
Power Consumption No-Sound (ECO On / Off) in W35 W / 75 W
Standby Consumption in W0.1
CEC Standby Consumption in W0.5
Network Standby Consumption in W2.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in InchesTBD
17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches)20.5 x 16.9 x 9.6 (in) (TBD)
Weight in LBS21.0 (TBD)
Weight in LBS (Packaging)25.4 (TBD)
Power SupplyAC 120 V, 60 Hz
Speaker impedance4 -16Ω/ohms
UNKNOWN mapping guid: {ba7181cf-2a47-4299-9741-2a1224a751a0}200 mV
UNKNOWN mapping guid: {a97fc604-f9df-4896-81e2-daf54d013518}10 Hz - 100 kHz — +1, –3 dB (Direct mode)
UNKNOWN mapping guid: {e250bc02-0727-46bb-848c-47c1af8cf203}100 dB (IHF-A weighted, Direct mode)
UNKNOWN mapping guid: {e549e849-2a65-4234-9c93-2948a54d62d1}87.5 - 107.9 MHz
UNKNOWN mapping guid: {8c4f5f87-a3d4-4656-8b5e-6414d3d6bf8f}520 kHz – 1710 kHz
System Remote ControlRC-1239
Pre-programmed / Learnable / LCD DisplayNo / No / No
Power Consumption in W500
Power Consumption No-Sound (ECO On / Off) in W35 W / 75 W
Standby Consumption in W0.1
CEC Standby Consumption in W0.5
Network Standby Consumption in W2.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in InchesTBD
17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches)20.5 x 16.9 x 9.6 (in) (TBD)
Weight in LBS21.0 (TBD)
Weight in LBS (Packaging)25.4 (TBD)
Power SupplyAC 120 V, 60 Hz
Speaker impedance4 -16Ω/ohms
UNKNOWN mapping guid: {ba7181cf-2a47-4299-9741-2a1224a751a0}200 mV
UNKNOWN mapping guid: {a97fc604-f9df-4896-81e2-daf54d013518}10 Hz - 100 kHz — +1, –3 dB (Direct mode)
UNKNOWN mapping guid: {e250bc02-0727-46bb-848c-47c1af8cf203}100 dB (IHF-A weighted, Direct mode)
UNKNOWN mapping guid: {e549e849-2a65-4234-9c93-2948a54d62d1}87.5 - 107.9 MHz
UNKNOWN mapping guid: {8c4f5f87-a3d4-4656-8b5e-6414d3d6bf8f}520 kHz – 1710 kHz
System Remote ControlRC-1239
Pre-programmed / Learnable / LCD DisplayNo / No / No
Power Consumption in W500
Power Consumption No-Sound (ECO On / Off) in W35 W / 75 W
Standby Consumption in W0.1
CEC Standby Consumption in W0.5
Network Standby Consumption in W2.7
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in InchesTBD
17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches)20.5 x 16.9 x 9.6 (in) (TBD)
Weight in LBS21.0 (TBD)
Weight in LBS (Packaging)25.4 (TBD)
Power SupplyAC 120 V, 60 Hz
Speaker impedance4 -16Ω/ohms
UNKNOWN mapping guid: {ba7181cf-2a47-4299-9741-2a1224a751a0}200 mV
UNKNOWN mapping guid: {a97fc604-f9df-4896-81e2-daf54d013518}10 Hz - 100 kHz — +1, –3 dB (Direct mode)
UNKNOWN mapping guid: {e250bc02-0727-46bb-848c-47c1af8cf203}100 dB (IHF-A weighted, Direct mode)
UNKNOWN mapping guid: {e549e849-2a65-4234-9c93-2948a54d62d1}87.5 - 107.9 MHz
UNKNOWN mapping guid: {8c4f5f87-a3d4-4656-8b5e-6414d3d6bf8f}520 kHz – 1710 kHz
Accessories Included
Size2.25 M/7.4 ft
Connector TypeHDMI
Cable TypeHDMI
Compatible DevicesTelevision
ColorRed/Black
Product Dimensions90 x 5.51 x 0.87 inches
Item Weight1.69 ounces
ManufacturerAudioQuest
Size100 ft
Gauge16 AWG
ColorWhite
MetalSemi Solid Long-Grain Copper
Product Dimensions7.28 x 7.28 x 7.28 inches
Item Weight4.85 pounds
ManufacturerAudioQuest
Item Weight7 ounces
ManufacturerAudioQuest
