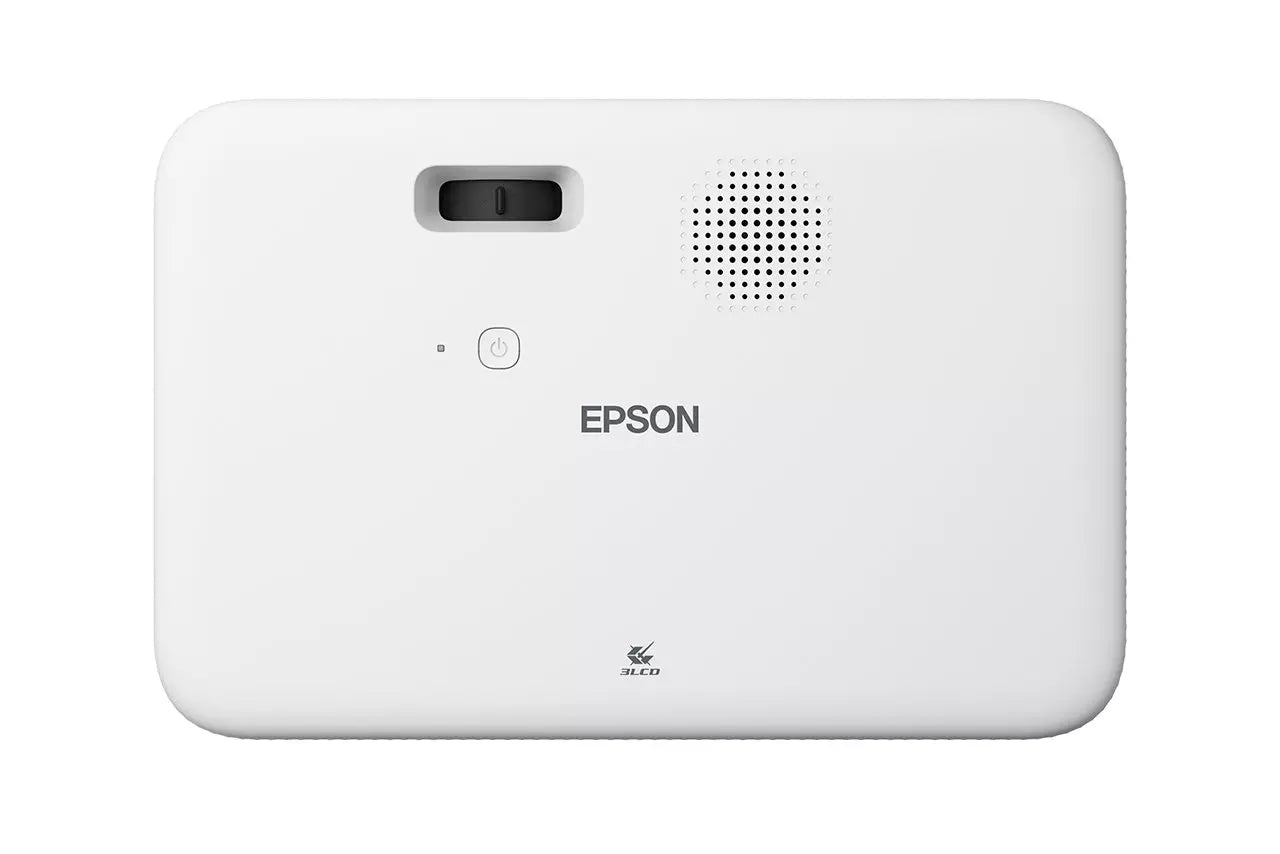

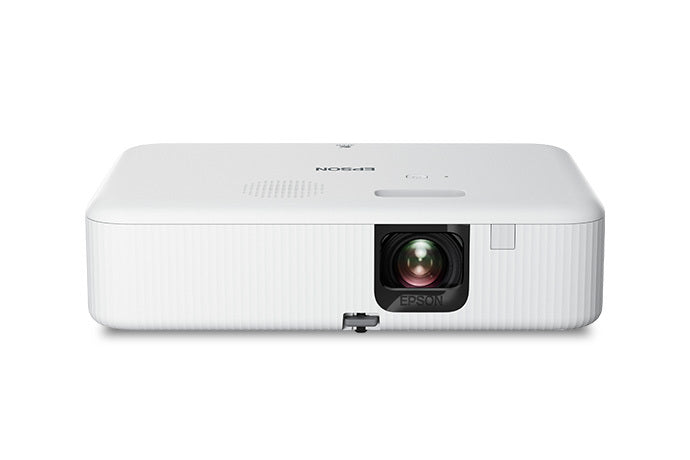

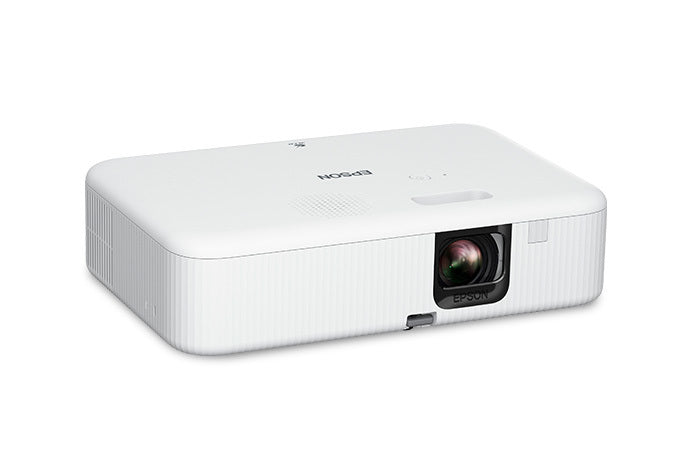

Epson CO-FH02

Display Stunning Images up to 300"
Full HD 1080p picture four times larger than a 75" flat panel delivers an immersive experience for business presentations, home viewing and beyond
Compact Design
Sleek, lightweight design easily fits in backpacks for easy portability on the go
Ultra Bright Images

3,000 lumens of color brightness (IDMS Rated) and 3,000 lumens of white brightness (ISO Rated)1 deliver outstanding-quality images in a variety of lighting conditions

Best-in-Class Color Brightness2
Advanced 3LCD technology displays 100% of the RGB color signal for every frame, allowing for outstanding color accuracy while maintaining excellent color brightness without any distracting "rainbowing" or "color brightness" issues seen with other projection technologies.

Smart Streaming Capability
Android TV3 interface with a simple-to-use remote – including voice search with built-in Google Assistant™; watch all your favorite streaming channels including Netflix, Apple TV+, Amazon Prime, Hulu, Disney+, HBO Max, YouTube and more; even stream live TV with apps like YouTube TV™4

High-Quality Speaker
integrated high-quality bass-reflex speaker and Bluetooth® wireless speaker support for a true audiophile performance

Versatile for Virtual Meetings and Learning — Enhance meetings and learning at home with detailed, life-sized images perfect for Zoom calls and Microsoft Teams® video conferencing; enjoy virtual hangouts with friends and family like they are in the room with you
Chromecast™ Included5 — Wirelessly cast your favorite content directly from your smartphone, tablet or computer, including from popular Android™ and Apple® devices6

Advanced Scene Adaptive Color Correction — Automatic scene-based color correction produces a clear and natural picture—regardless of the content being played

All-Digital HDMI® Connectivity — Easily connect your laptop, cable/satellite box, Blu-ray Disc™ player, gaming console or streaming devices, such as Roku, Amazon Fire TV, Apple TV® and Google TV™4

Projection System Epson® 3-chip 3LCD technology
Projection Method Front/rear
Driving Method Epson Poly-Silicon TFT Active Matrix
Pixel Number 2,073,600 dots (1920 x 1080) x 3
Color Brightness1 Color Light Output: 3,000 lumens
White Brightness1 White Light Output: 3,000 lumens
Aspect Ratio 16:9 widescreen
Native Resolution Native 1080p (1920 x 1080)
Resize Support 16:10, 4:3

Lamp Type 188 W UHE
Lamp Life (Normal Mode)7 Up to 6,000 hours
ECO Mode7 Up to 12,000 hours
Throw Ratio Range 1.19 – 1.61
Size (Projected) 34" to 391"
Keystone Correction (Auto Vertical) ± 30 degrees
Keystone Correction (Manual Horizontal) ± 30 degrees
Color Reproduction Up to 16.8 million colors
Projection Lens
Type No optical zoom, manual focus
F-Number 1.44
Focal Length 16.4 mm
Zoom Ratio 1.0 – 1.35 (Digital Zoom)

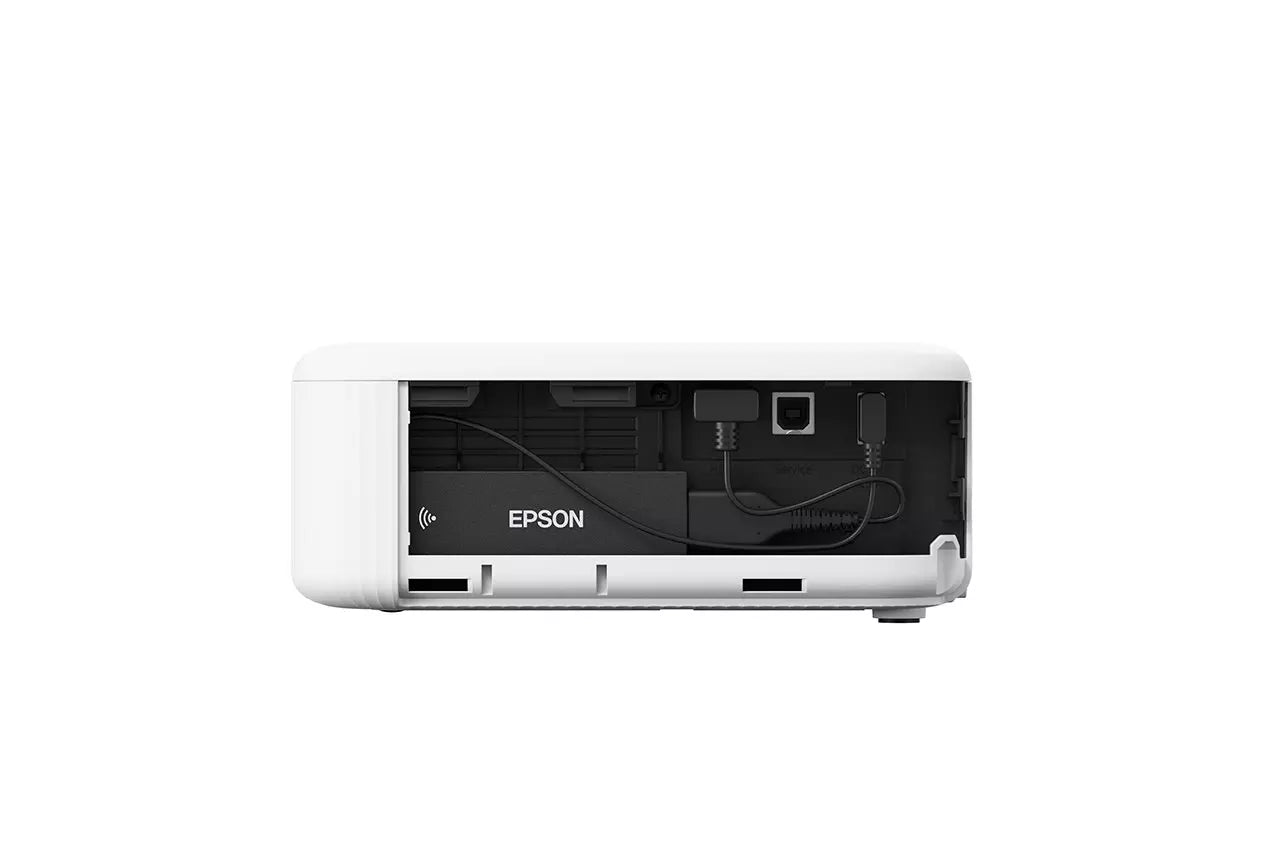

Interfaces :
1x HDMI
1x USB Type-A Connector: Power (5 V/2 A)
1x USB Type-B Connector: Service only

Streaming Media Player
Model Epson Android TV Streaming Media Player
Wireless 2.4 GHz, 5 GHz
Operating System Android TV
Bluetooth® Ver 5.0 Class 2
Supported Codecs SBC
Features for Streaming Media Player Remote Power, Google. Assistant, Home, Applications, Directional Navigation and Enter,
Back, Volume down and up, Direct Streaming Application Buttons
(YouTube, Netflix, Google PlayTM), Directional Arrows and Enter Other Video Compatibility VGA, SVGA, XGA, WXGA, WXGA+, WXGA++, SXGA, SXGA+, WSXGA+, UXGA 60, SDTV, HDTV (720p), HDTV (1080i), HDTV (1080p)
Computer Compatibility PC, Mac®
Speaker 5 W monaural with enclosure
Operating Temperature 5 °C to 40 °C <41 °F to 104 °F
Power Supply Voltage 100 – 240 V AC ± 10%, 50/60 Hz

Power Consumption
Normal Mode: 284 W
ECO Mode: 223 W (lamp on)
Energy Saving Mode: 0.5 W
Fan Noise
Normal Mode: 37 dB
Quiet Mode: 29 dB
Country of Origin China/Philippines

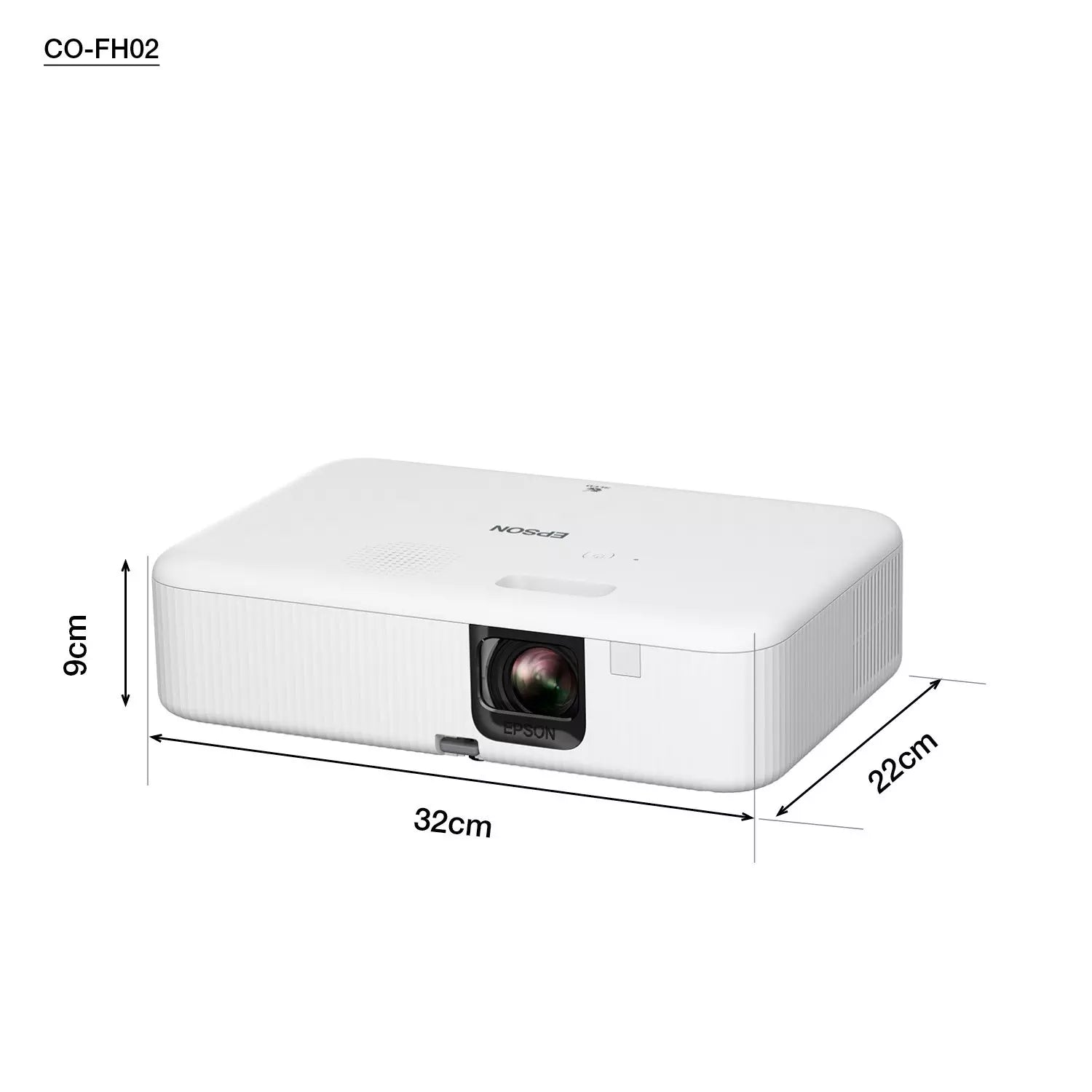

Dimensions (W x D x H)
Including Feet 12.5 in x 3.4 in x 8.3 in
Excluding Feet 12.5 in x 3.2 in x 8.3 in
Weight (Approx.) 5.7 lb
Projector Remote Control
Features Front and rear directional
Operating Angle Right/left: ± 30 degrees; upper/lower:
± 15 degrees
Operating Distance 19.7 ft (6 m)

What’s in the Box
Epson EpiqVision Flex CO-FH02 projector, power cable, projector
remote control, batteries, Quick Start Guide, Android TV
Streaming Media Player with remote, mini-USB cable for
Android TV power, HDMI cable
Ordering Information
