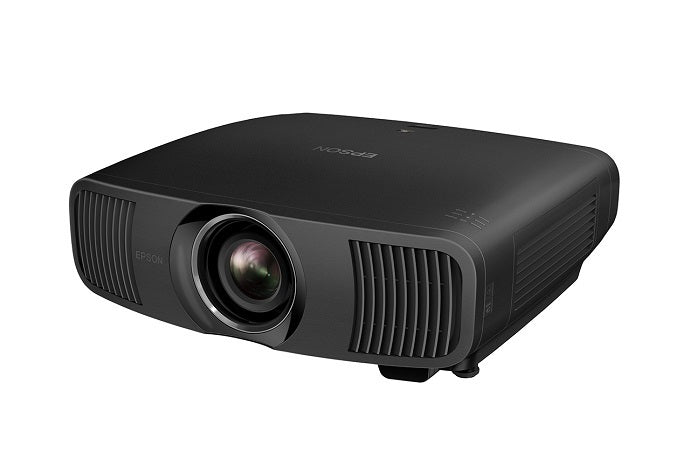

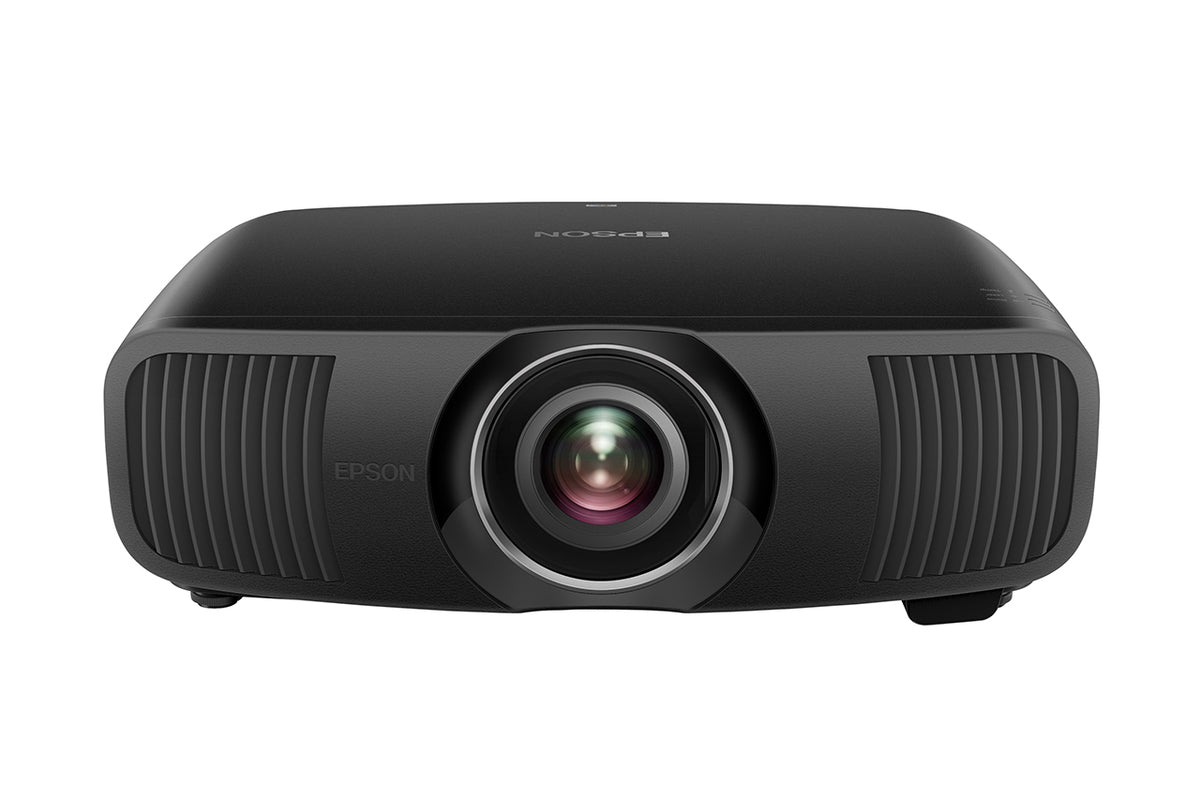

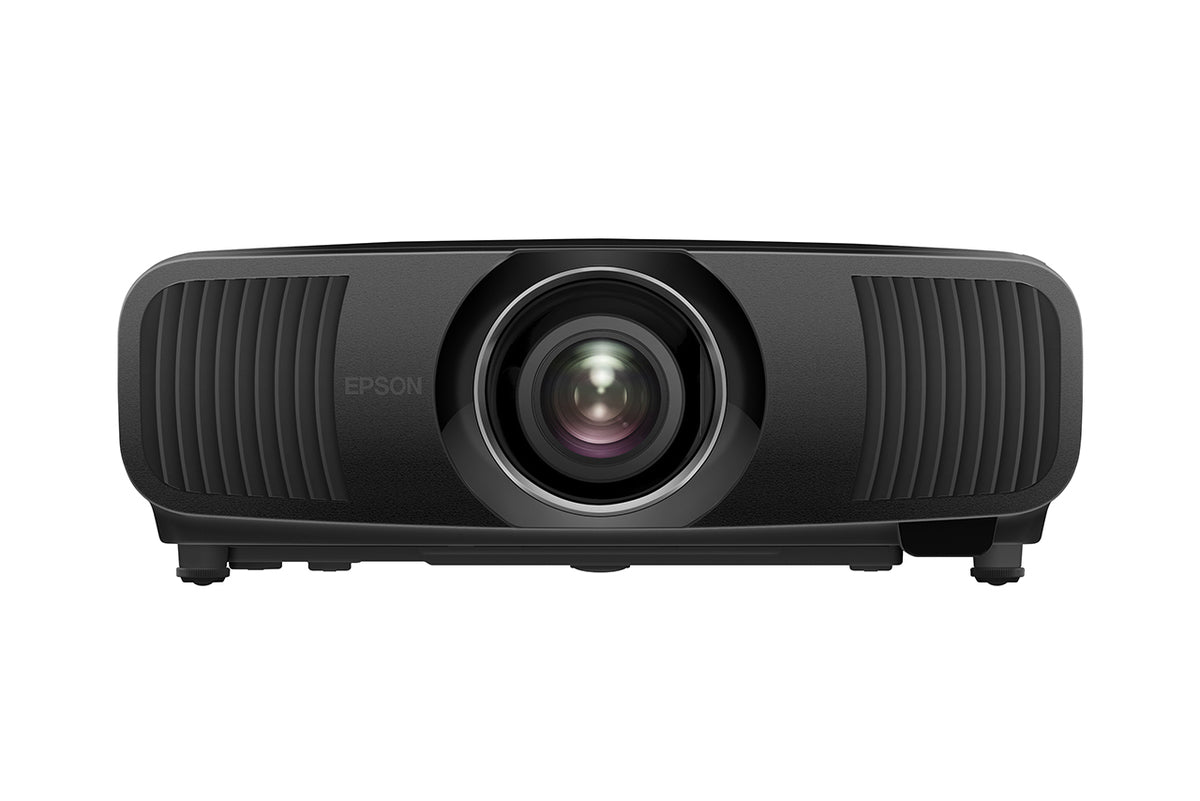

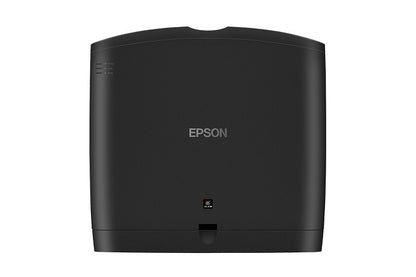

Epson EH-LS12000B

Bring image to life

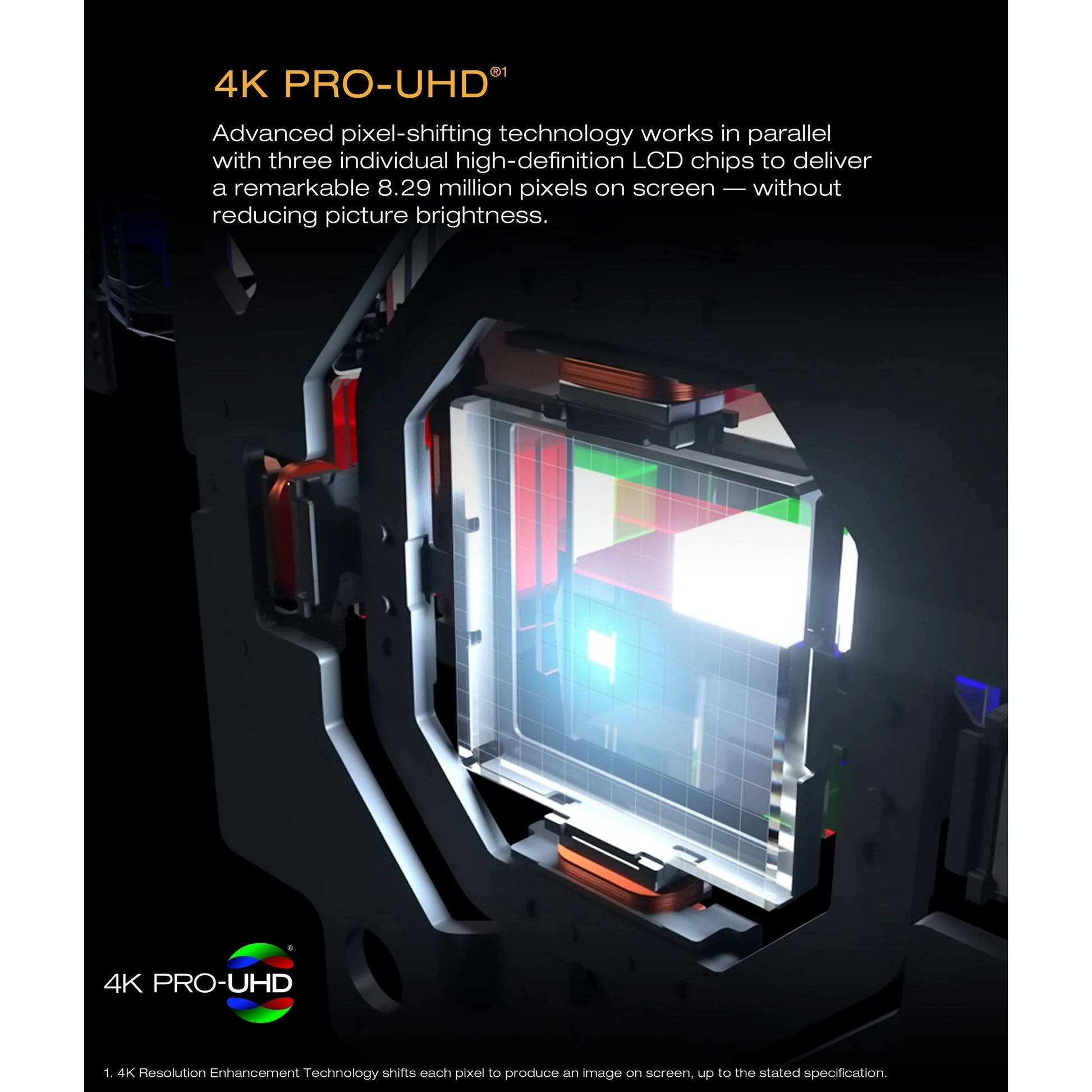

Using Epson's proprietary shift device technology, a high aperture ratio 1080p panel is upscaled to 4K with incredible accuracy and precision to deliver bright 4K images far beyond those seen in competing projectors.

Dedicated 4K projector lens
The 4K image created by the panel, light source, and image processing chip is projected as-is across a wide angle. Based on Epson's goal of maintaining a consistent image quality from any angle, all materials and processes are carefully selected and inspected so that you can enjoy pristinely focused images even at high levels of lens shift with power. Click here to know more about Epson's 4K pro UHD technology.

2,500,000:1 high contrast
A much higher overall image contrast is now possible by applying Scene Adaptive Gamma when processing brightness and contrast. Along with the new Auto Contrast Enhancement, which enhances contract levels of objects. With advanced super-resolution technology, this produces 4K high-definition images that are clearer, more detailed, and more three-dimensional than ever before. The laser optical engine's 2,500,000:1 contrast creates jet-black images which combines with the high-quality image processing chip's contrast-enhancing effects to create a high-contrast image that looks superb in both bright and dark program scenes.

Express more with HDR10+
HDR is a key technology emphasized by filmmakers, that helps convey the visual intent of a film more faithfully. Evolution in HDR technology means that now even subtle shadow tones can be displayed in fine detail.

Fast-moving 4K video that's clear and smooth
As well as current frame interpolation technology, blurring reduction is now improved. Even when watching fast-moving sports or gaming, image contours stay clear, and motion is smooth to bring a fuller sense of realism and dynamism than ever to 4K video.

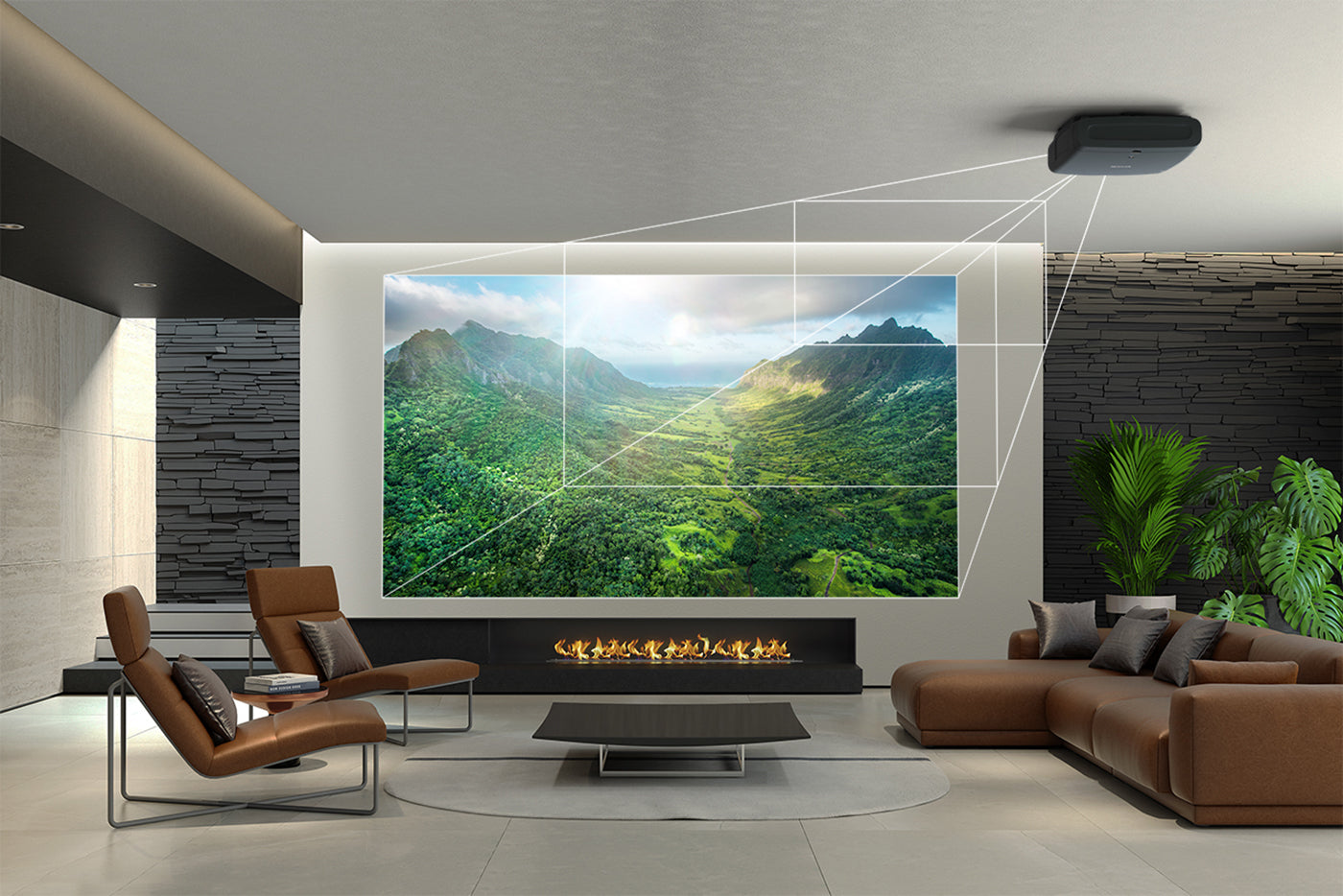

Designed for extraordinary installation flexibility
The wide-range powered lens shift (Vertical ± 96.3 %, horizontal ± 47.1 %) and zoom (x2.1) that only a high-end home model provides means the EH-LS12000B can be installed in living rooms as well as dedicated home cinemas. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands. Additionally, a low noise level of 25dB/Light output 75% creates less distraction and allows for a more immersive experience, anytime, anywhere.

Practical functionality, convenient connectivity

eARC/ARC support,
Thanks to ARC, audio can be broadcasted via the projector using an HDMI cable. In addition, eARC supports high-quality sound4, allowing you to enjoy a beautifully cohesive mix of video and sound in an easier installation.

4K/120fps input support,
Optimised support for fast-moving game video output.

LCD Native Resolution:
2,073,600 pixels (1,920 x 1,080) x 3
On screen Resolution: 4K 3840 x 2160, 8.3m pixels, 16:9

Projection Technology:
RGB liquid crystal shutter projection system
Screen Size (Projected Distance):
Standard Size: 100” screen 3.00 - 6.30 m
Zoom : Wide: 50” - 300” [1.48 - 9.08 m]
Zoom : Tele: 50” - 300” [3.13 - 18.99 m]

Brightness: White Light Output (Normal / Eco):
2,700 lm / 1,000 lm*1
Colour Light Output: 2700lm*1
Contrast Ratio:
Over 2,500,000:1
Contrast Ratio:
1,200,000:1
Geometric Correction:
Vertical/Horizontal Keystone: ±30° / ±30°
Point Correction: Yes
Quick Corner: Yes

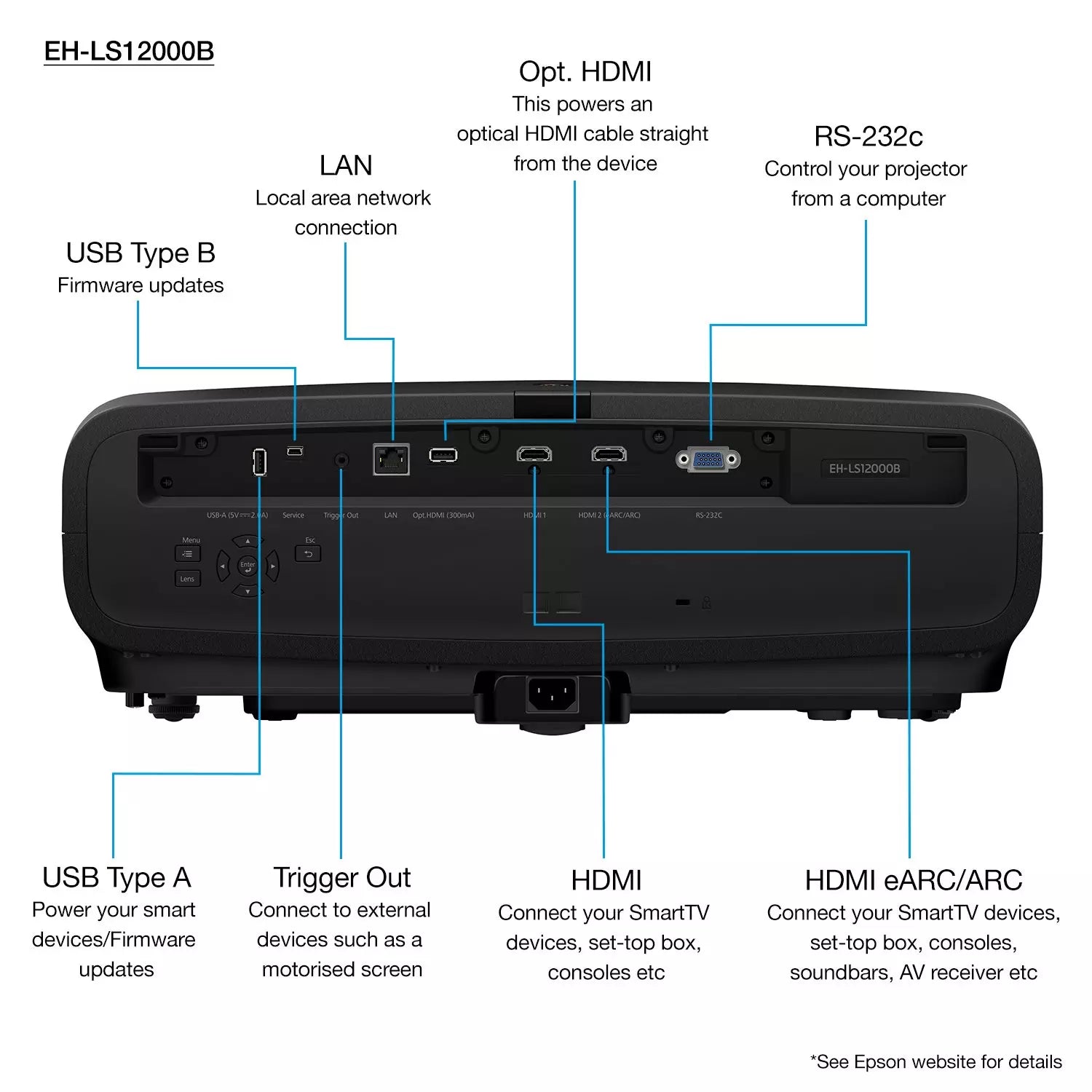

Connectivity:
USB Interface:
USB Type A: 2 (1: Firmware Update, Copy OSD Settings, Save Log or 5V/2A Power Supply; 2: For Opt HDMI and 5V/300mA Power Supply)
USB Type Mini-B: 1 (For Firmware Update, Copy OSD Settings)
Network: Wired LAN: RJ45 x 1
Digital Input: HDMI: 2 (HDCP2.3; HDMI2: eARC/ARC)
Control I/O: RS-232C: D-Sub 9pin x 1
Trigger Out (12V): 3.5mm Mini Jack x 1
Wireless: Optional using Streaming Media stick ELPAP12

Operating Altitude:
0 - 3048 m <0 -10000 ft> (over 1500 m / 4,921 ft : with high altitude mode)
Start-Up Period:
Start-Up Period:
Less than 8 seconds
Warm-up period: 30 seconds
Direct Power On/Off:
Direct Power On/Off:
Yes / NA

Projection Lens Type:
Power Zoom, Power Focus, Powered Lens Shift
Focal Length:
22.5 - 46.7 mm
F-number:
2.0 - 3.0
Lens Shift:
Vertical Lens Shift: ±96.3 % (H Center, Powered)
Horizontal Lens Shift: ±47.1 % (V Center, Powered)
Screen Size:
Zoom: Wide: 50” to 300” [1.48 to 9.08 m]
Zoom: Tele: 50” to 300” [3.13 to 18.99 m]
Standard Size: 100” screen 3.00 to 6.30 m
Zoom:
1 - 2.1
Throw Ratio Range:
1.35 - 2.84
Adjustment Functions:
Aspect Mode: Auto / Normal / Full / Zoom / Anamorphic Wide / Horizontal Squeeze
Frame Interpolation: Yes
Image Enhancement: Image Preset Mode:
Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)
Mpeg Noise Reduction: Yes
Super Resolution: Yes
Detail Enhancement: Scene Adaptive Gamma:
Yes
Auto Contrast Enhancement: Yes
Main Parts Specification: LCD
Size: 0.74” wide panel with SMLA (C2Fine, 12bit, OD)

Light Source:
Type: Laser Diode: 198W
Laser Life: 20,000 hours (Normal / ECO)
Life (Normal/Long):
20,000 hours (Normal / ECO)
Power Consumption (220-240V):
Laser Diode:
(Normal / Eco): 302W / 198W
Standby:
Standby (Network On / Off): 2W / 0.4W
Dimension (Not including protruding parts):
Folded (D x W x H):
447 x 520 x 169 mm
Weight:
Approx. 12.7 kg
