Epson EpiqVision Ultra EH-LS500B
Epson EpiqVision Ultra EH-LS500B
Epson EpiqVision Ultra LS500 Laser Projection 4K PRO-UHD® 3LCD technology, the Laser Projection TV combines an advanced, ultra-short-throw laser-array projector — along with a high resolution, ambient-light-rejecting screen — to produce vivid colours and deep blacks for an exceptionally bright, colorful and sharp picture in virtually any viewing environment.
TV represents a new generation of digital projection that transforms the television experience by offering:
- Immersive 305cm (120") Display
- Ultra-Short Throw Laser-Array Technology
- 4K PRO-UHD Projection Technology
- Incredibly Bright Picture
- 10-bit HDR Color Processing
Couldn't load pickup availability
Share
Features
Features
Fuss-free Set-up
With Epson's unique ultra short-throw lens, this sleek and compact design of EH-LS500B can be placed on the TV console to project up to 305cm (120-inch) of display onto the wall or screen. It comes with a built-in speaker that provides you the opportunity to be immersed in a breathtaking cinematic experience at the comfort of your own home.
Screen-less Experience
No longer do you have to deal with black TV screen that sticks out like a sore thumb. Instead, let the wall at home be your canvas with EH-LS500B that is able to display big and beautiful projections as and when you want it.
Easy Plug-and-Play Option
You can even turn EH-LS500B into a smart projector by plugging in your USB-powered media device to kickstart your entertainment contents with just a click of a button.
3LCD and Laser Technology
100% of the RGB colour brightness is displayed for every frame even in bright environment. This ensures outstanding colour performance while maintaining excellent brightness, without any “rainbow effect” or “colour brightness” issues seen with other projection technologies.
Specification
Specification
LCD Native Resolution:
1080
Size: 0.61-inch (C2fine)
Projection Technology:
RGB liquid crystal shutter projection system
Screen Size (Projected Distance):
Standard Size: 80" [49 cm]
Zoom : Wide: 65" to 130" [39.8 to 81.7 cm]
Brightness White Light Output (Normal / Eco):
4000 lm / 1200 lm
Colour Light Output: 4000 lm
Contrast Ratio: Over 5,000,000:1
Geometric Correction:
Vertical/Horizontal Keystone:
±3° / ±3°

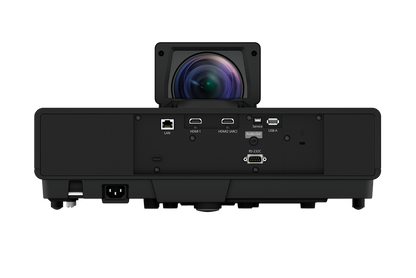

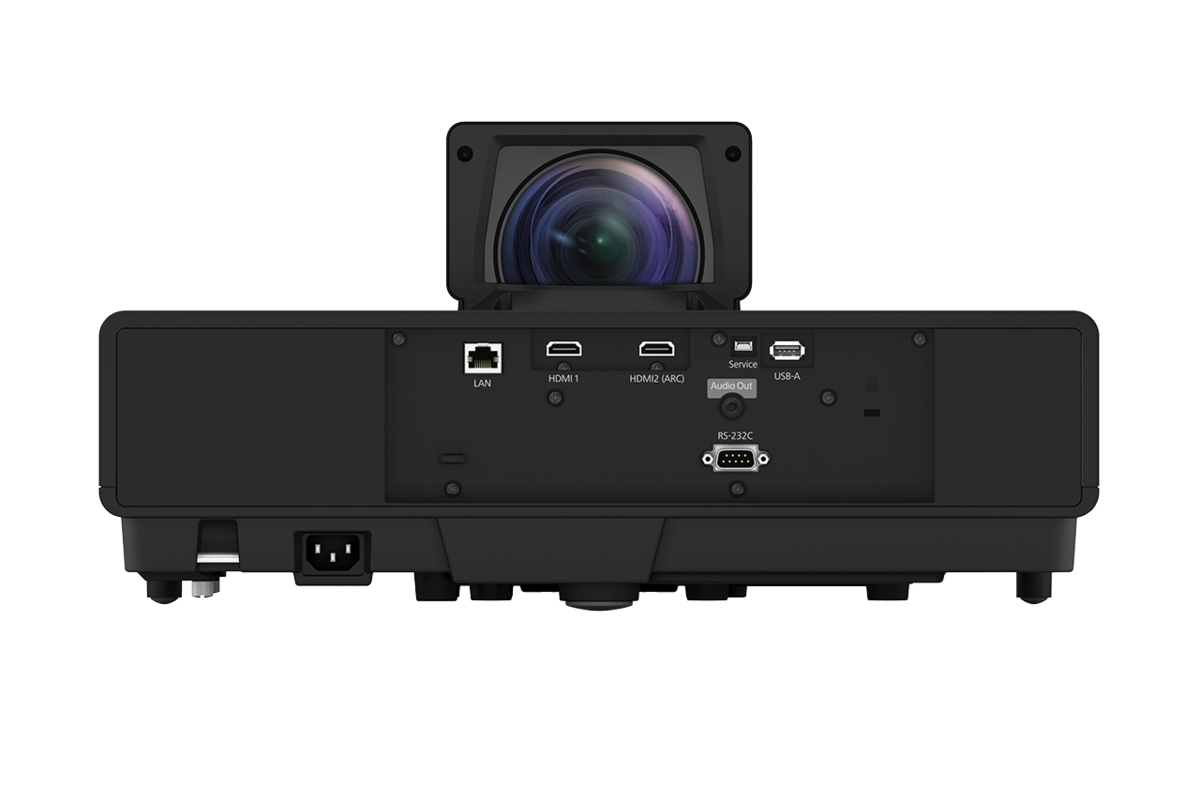

Connectivity:
USB Interface:
USB Type A: 1 (for USB Memory, Firmware Update, Copy OSD Settings)
USB Mini Type B: 1 (for Firmware Update)
Network:
Wireless: Optional (ELPAP10); Wired Lan: RJ45 x 1
Analog Input:
D-Sub 15 pin: NA
Composite: NA
Digital Input: HDM: 3 (HDCP2.2)
Analog Output: Stereo Mini Jack: 1
Control I/O: RS-232C: D-sub 9 pin x 1
Bluetooth: Version:Ver. 5.0; Output: Class 2; Frequency used: 2.4 GHz
Operating Altitude:
0 - 3,000 m <0 - 9,843 ft> (over 1500m / 4,921 ft: with high altitude mode)
Start-Up Period:
Start-Up Period:
About 6 seconds
Warm-up period: 30 seconds
Direct Power On/Off:
Yes / Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):
458 x 228 x 375 mm
Wireless Specifications (Wireless LAN: Built-in):
Supported Speed for Each Mode:
IEEE 802.11n (2.4GHz): 130 Mbps*
IEEE 802.11g (2.4GHz): 54 Mbps*
IEEE 802.11b (2.4GHz): 11 Mbps*
*Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.
Wireless LAN Security:
Quick: WPA2-PSK, Advanced: WPA/WPA-PSK
Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Supported Connection Mode:
Infrastructure, Access Point
Internal Speaker(s):
Sound Output:
10W x 10W Stereo
