LG AU810PW

Optimal Quality for Any Image and Any Environment

All-around home cinema projector to consider your surroundings and the type of movie.
Performance

8.3 Mega Pixels Real 4K UHD
DCI-P3 97% Dual Laser (Red & Blue)
2,000,000:1 Contrast Ratio Black Level

Imaging Technology
Brightness Optimizer
Iris Mode
Adaptive Contrast
webOS
WiSA
Auto Calibration (w/ CalMan)

Real 4K UHD Laser Projector
Exceptional Picture Quality

With 8.3 mega pixels utilizing 4K UHD Laser technology, LG CineBeam delivers impeccable precision and detail up to 300 (762cm) screen. With 2,000,000:1 contrast ratio Black level, it can express the deep black. And it accurately represents colors, thanks to a wide color gamut 97% of DCI-P3.

Spec8.3M Pixels

Real 4K UHD

DCI-P3 97%

Dual Laser (Red & Blue)

2,000,000:1

Contrast Ratio Black Level

Image of UHD 4K 8.3 Megapixel

UHD 4K 8.3 Megapixel

Brightness Optimizer

Iris Mode
Designed for Both Bright and Dark Environment

Depending on lighting condition of viewing environment, you can change iris mode.

Iris‘s maximum aperture
Dark indoor environment

Iris‘s minimum aperture
Bright indoor environment

Headline can be up to 200 characters.

Body Copy is no limit

Dark Room Mode

Optimized brightness for dark room. Recommended white brightness + lowest (best) black level with iris’s min. aperture.

Adaptive Contrast

Adaptive Contrast
Fits Laser Output to the Scene

Adaptive Contrast gives more depth to your image by adaptively adjusting the Laser output to image, in order to create a high contrast ratio. Bright scenes appear brighter, while dark scenes remain detailed with deep blacks and shade detail.

Watch the Full Movie

Pause video

Filmmaker Mode
Feel the Emotions of the Original Content Creator

Filmmaker Mode turns off motion smoothing and other video processing setting. So it can faithfully and accurately deliver the creator’s intent.

HDR pro
Covers HDR10, Dynamic Tone Mapping, HLG and HGiG

HDR pro improves quality by making the bright part brighter and the dark part darker while using the dark side details. So it is compatible with almost HDR industry standards.

Optimal Quality for Any Image and Any Environment

All-around home cinema projector to consider your surroundings and the type of movie.
Performance

8.3 Mega Pixels Real 4K UHD
DCI-P3 97% Dual Laser (Red & Blue)
2,000,000:1 Contrast Ratio Black Level

Imaging Technology

Brightness Optimizer
Iris Mode
Adaptive Contrast

Usability
webOS
WiSA
Auto Calibration (w/ CalMan)

Real 4K UHD Laser Projector
Exceptional Picture Quality

With 8.3 mega pixels utilizing 4K UHD Laser technology, LG CineBeam delivers impeccable precision and detail up to 300 (762cm) screen. With 2,000,000:1 contrast ratio Black level, it can express the deep black. And it accurately represents colors, thanks to a wide color gamut 97% of DCI-P3.

Spec8.3M Pixels

Real 4K UHD

DCI-P3 97%

Dual Laser (Red & Blue)

2,000,000:1

Contrast Ratio Black Level

Images of FULL HD

FULL HD

Image of UHD 4K 8.3 Megapixel

UHD 4K 8.3 Megapixel

Brightness Optimizer

Iris Mode
Designed for Both Bright and Dark Environment

Depending on lighting condition of viewing environment, you can change iris mode.

Iris‘s maximum aperture
Dark indoor environment

Iris‘s minimum aperture
Bright indoor environment

Headline can be up to 200 characters.

Body Copy is no limit

Dark Room Mode

Optimized brightness for dark room. Recommended white brightness + lowest (best) black level with iris’s min. aperture.

Adaptive Contrast

Adaptive Contrast
Fits Laser Output to the Scene

Adaptive Contrast gives more depth to your image by adaptively adjusting the Laser output to image, in order to create a high contrast ratio. Bright scenes appear brighter, while dark scenes remain detailed with deep blacks and shade detail.

Filmmaker Mode
Feel the Emotions of the Original Content Creator

Filmmaker Mode turns off motion smoothing and other video processing setting. So it can faithfully and accurately deliver the creator’s intent.

HDR pro
Covers HDR10, Dynamic Tone Mapping, HLG and HGiG

HDR pro improves quality by making the bright part brighter and the dark part darker while using the dark side details. So it is compatible with almost HDR industry standards.

WebOS 5.0
The Smart Way to Access Contents

With webOS 5.0, you can explore a variety of TV shows and movies with a simple connect to your Wi-Fi network. Also you can enjoy video contents with built-in apps like YouTube, Amazon Prime and Disney app.

WiSA
delivers hi-resolution digital audio wirelessly from a source device to a maximum of eight powered speakers using 24-bit 48kHz or 96kHz signals, and can support 3D audio formats.

HDMI 2.1
The projector displays hi-resolution and hi-information images by HDMI 2.1 connection, can output 10-bit images with 444RGB specifications. And it supports eARC.

Native Resolution

4K UHD (3840 x 2160)

Brightness (ANSI Lumen)2

2700

Contrast Ratio (Full On Full Off)

2,000,000:1

Noise (typical) - Energy Saving Min. (Bright)

28 dB(A)↓

Noise (typical) - Energy Saving Med.

27 dB(A)↓

Noise (typical) - Energy Saving Max. (Eco)

26 dB(A)↓

Uniformorty (JBMMA 9point)

85%↑

Projection Lens - Focus (Auto/Manual)

Manual

Projection Lens - Zoom

1.6x

Projection Image - Screen Size

101.6cm (40) ~ 762cm (300)

Projection Image - Standard/254cm (100) (lens to wall)

381cm (150) @4.3~6.9m
254cm (100) @2.9~4.6m
101.6 (40) @1.1~1.8m

Projection Image - Throw Ratio

1.3 - 2.08

Lens Shift

V +-60% / H +-24%

Projection Offset

0% (+110% ~ -110%)

Light source - Type

Dual Laser (B LD+G-rap Phophor, R LD)

Light source - Life High Brightness

20,000 Hrs

Light source - Life Economic

30,000 Hrs

GENERAL SPECIFICATION
OSD Language

English(UK)/French/Spanish/German/Portuguese/Dutch/Russian/Polish/Hungarian/Romanian/Slovenian/Croatian/Bulgarian/Serbian/Italian/Czech/Turkish/Slovak
Arabic/ChineseSimplified/
Indonesian/L-Spanish/India/English

Aspect Ratio Control

16:9/Original/Full Wide/4:3/Vertical Zoom

Sound - Output

5W + 5W Stereo

Sound - Clear Voice

Yes (Clear Voice lll)

Sound - Dolby Atmos compatible

Yes (Pass through)

Sound - WiSA Ready (dongle)

Yes (EU : up to 5.1Ch
MEA : 2.0Ch only)
(Dongle and Speakers sold separately)

Net Size (mm) (W x D x H)

337 x 410 x 145

Net Weight (kg or g)

11kg

Power Consumption (Max.)

300W

Stand-by Power

<0.5W

Power Supply

100V – 240V @ 50~60 Hz
(PSU Built-in)

Operation Temperature

0 ~ 40℃

Input Signal Compatibility - Digital(HDMI)

Up to 4K (4096x2160)
(60Hz, 50Hz, 24Hz)

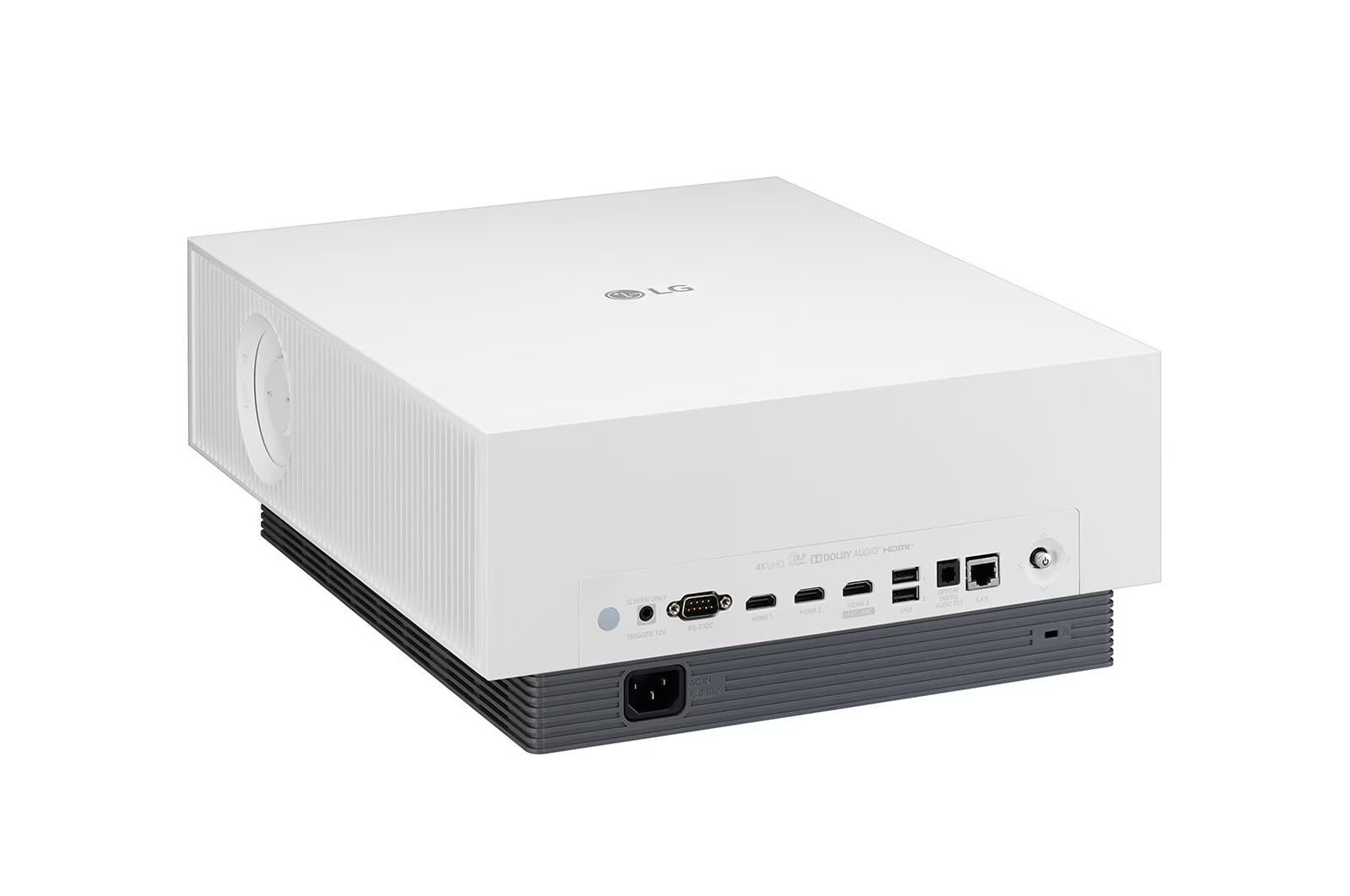

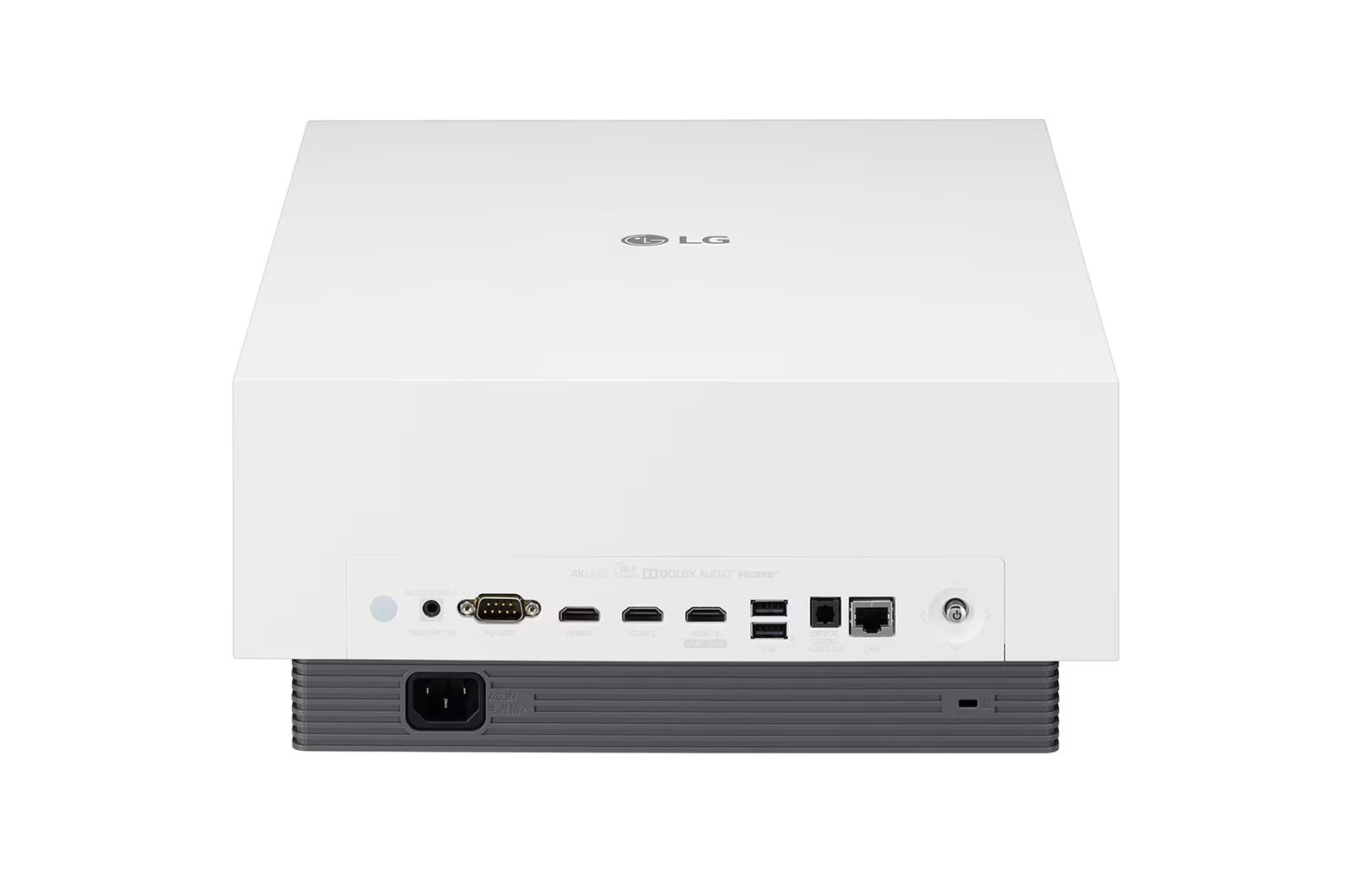

INPUT/OUTPUT TERMINALS
Audio out

S/PDIF 1(Optical)

RS-232C

Yes

IP control

Yes

RJ45

1

HDMI

3 (HDMI2.1* : 1EA / HDMI2.0 : 2EA)
*ALLM (Auto Low Latency Mode),
eARC (Enhanced Audio Return Channel),
up to 24Gbps (input) / 4:4:4/RGB 10 bit (output)

USB Type-A

2 (USB2.0)

12V Trigger

Yes

OS/CONNECTIVITY
Platform (OS, UI)

webOS 5.0 (Smart)

Home Dashboard (Input, IoT with OCF device)

Yes (OCF/UEI IoT not supported)

Background Image

Yes

Premium CP

Yes

Contents Store (LG App Store)

Yes

Contents Suggestion

Yes

Internet Browser

Yes

Voice Recognition - Speaker Compatible (works-with)

Apple Homekit works-with

Screen Share (Wireless Mirroring with MiraCast supporting Android/Window device)

Yes (up to 4K/30Hz)

Airplay 2 (iOS/Mac Video Casting, mirroring, Audio Streaming)

Yes (up to 4K/30Hz)

Wireless Contents Share (with Android, iOS)

Yes (Thru TV Plus App)

Contents Sharing (with DLNA supporting device)

Yes

Bluetooth - Bluetooth Sound out

Yes

Bluetooth - Bluetooth AV(Lip) Sync Control

Yes

LG Sound Sync(with Sound Bar)

Yes

HDMI ARC(Audio Return Channel)

Yes (eARC)

HDMI simplink(CEC)

Yes

HDCP

HDCP2.2 (HDCP2.3)

Plug & Play(RGB/DVI/HDMI Auto Source Detection)

Yes

USB Host (Movie, Music, Photo)

Yes

Setting Guide

Yes (Bean Bird)

LG TV Plus App support

Yes

iPhone Home App control (Remote Function) (LG TV Plus App)

Yes

HID (Keyboard/Mouse/GamePad Connection Thru USB)

Yes

Eco Function - Energy Saving Mode

Yes (Min/Med/Max)

Eco Function - Sleep Timer

Yes

Eco Function - Auto Off / Auto Sleep

Yes

Eco Function - Time Power On/Off (On Time / Off Time)

Yes (On / Off)

Eco Function - Automatic Standby / Auto Power Off

Yes

Eco Function - HDD Eco Mode

Yes

PICTURE QUALITY AND SETTING
Processor

Quad Core

HDR

HDR10, HLG

HDR Effect

Yes

HDR Tone Mapping

Yes (Auto, Dynamic/frame by frame)

Brightness Optimizer - Iris Mode

Yes (BrightRoom/Medium/Darkroom/User)

Brightness Optimizer - Adaptive Contrast

Brightness Optimizer - Adaptive Contrast

TrueMotion

Yes (up to 4096 x 2160)

Real Cinema

Yes (up to 4096 x 2160)

Upscaler

Yes (4K)

Super Resolution (Expert Control)

Yes (4K)

FILMMAKER mode

Yes

HGiG (HDR Gamming Interest Group) mode

Yes

Digital Keystone Correction

V-Keystone

Image Flip

Yes (Horizontal/Vertical)

Callibration II (Auto Calibration / CalMan)

Yes

Smooth Gradation

Yes

Black Level Control

Yes

Noise Reduction

Yes

Color Temperature Adjustment

Yes

Dynamic Contrast (Expert control)

Yes

Dynamic Color (Expert control)

Yes

Color Management System (Expert control)

Yes

Color gamut setting (Expert control)

Yes

Gamma Correction (Expert control)

Yes

White balance setting (Expert control)

Yes

ADDED FEATURES
Quick(Instant) Power on/off

Yes (on 12 Sec ↓/off 2 Sec)

Store Mode

Yes

Self Diagnosis

Yes

DESIGN
Cabinet Color

White

Local Key

Joystick

Kensington Lock

Yes

Leg-Stand

Yes

Ceiling mount hole (for bracket)

Yes

ACCESSORY
Manual (Full or Simple Book)

Simple Book

Warranty Card

Yes

Remote control (Battery included) - Motion

Yes (Magic Lighting Remote)

Conformances(Regulation)

CE/CB
