LG HF60LG

Vivid and Clear Full HD Picture Quality

The LG CineBeam HF60LG offers clear Full HD picture quality with 1,400 lumen high brightness*, 150,000:1 contrast ratio, LED light and triple XD Engine.
LG HF60LG Full HD Picture Quality

*The brightness(Lumen) is based on the perceived brightness equivalent to the brightness of lamp projector.

TruMotion
Free From Judder
MEMC (Motion Estimation and Motion Compensation) Technology, a type of video processing where animation frames are generated between existing frames, makes animation look and feel more fluid.

Viewing Experience up to 120 (304.8cm) Size
LG CineBeam gives you an cinematic viewing experience with up an extra large 120 (304.8cm) class size. The screen size of the projector, which is equal to four 60 (152.4cm) TV’s will make your home cinema experience so immersive you will feel like you brought the theater into your home.

LG HF60LG Class Size
LG HF60LG Cinebeam Everywhere

WebOS Makes it Even Smarter
Enjoy optimized SMART UI for the big screen and smart functions. Content navigation is easy, with a UI design based on TV customer feedback.
LG HF60LG Wireless Screen Share with Mobile Devices
LG HF60LG Wireless Screen Share with Mobile Devices

Wireless Screen Share with Mobile Devices

LG’s Screen Share* provides wire-free experiences when connecting PC, smartphone, tablets or bluetooth speaker.

*LG Screen share only supports connection between CineBeam and Miracast (Android) /WIDI (Intel) devices.

It is no longer need to connect PC anymore. Just plug and play USB to watch movies, picture, music and office files like PPT, Excel, and Word.
LG HF60LG No Laptop Required

Enjoy Smart Contents Anywhere
Experience various contents* such as YouTube, hulu, vudu anywhere with HF60LG.
LG HF60LG Various Contents Support

*Provided contents could be changed according to provider's condition.

Live TV Anywhere
The LG CineBeam HF60LG is a portable projector with TV functions. Be it the TV tuner, HF60LG is able to receive over-the-air TV signals to enjoy real-time sports games and TV shows with up to 120 (304.8cm) class size.

Design for Easy Installation
HF60LG provides 1.1x Zoom and 4corner keystone for easy installation. It corrects distortion and missed distance of picture.

LG HF60LG Easy Installation
Semi-permanent LED Illumination System
LG’s LED light lasts for 30,000 hours. It means you can use it 20 years when using 4 hours a day. Don’t spend lamp replacement cost anymore.

Display Type DLP

Native Resolution Full HD (1920x1080)

Brightness (ANSI Lumen) 1400

Contrast Ratio (Full On Full Off) 150,000:1

Noise (typical) - Energy Saving Min. (Bright)
30dB (A)

Noise (typical) - Energy Saving Med.
24dB (A)

Noise (typical) - Energy Saving Max. (Eco)
21dB (A)

Uniformorty (JBMMA 9point)
85%

Projection Lens - Focus (Auto/Manual)
Manual

Projection Lens - Zoom 1.1 x

Projection Image - Screen Size

76.2cm (30) ~ 304.8cm (120)

Projection Image - Standard/254cm (100) (lens to wall)

203.2cm (80) @2.46m (254cm (100) @3.1~3.4m)

Projection Image - Throw Ratio - 1.4

Projection Offset
100%

Light source - Type
RGB LED

Light source - Life High Brightness
30,000Hrs

GENERAL SPECIFICATION
OSD Language

Arabic/ChineseSimplified/Indonesian/L-Spanish/Br-Portuguese/India/English/Russian/French

Aspect Ratio Control
16:9/Original/4:3/Vertical Zoom/All-Direction Zoom

Sound - Output
3W + 3W Stereo

Sound - Dolby Surround Audio
Yes

Sound - DTS-HD
Yes

Sound - Clear Voice
Yes (Clear Voice lll)

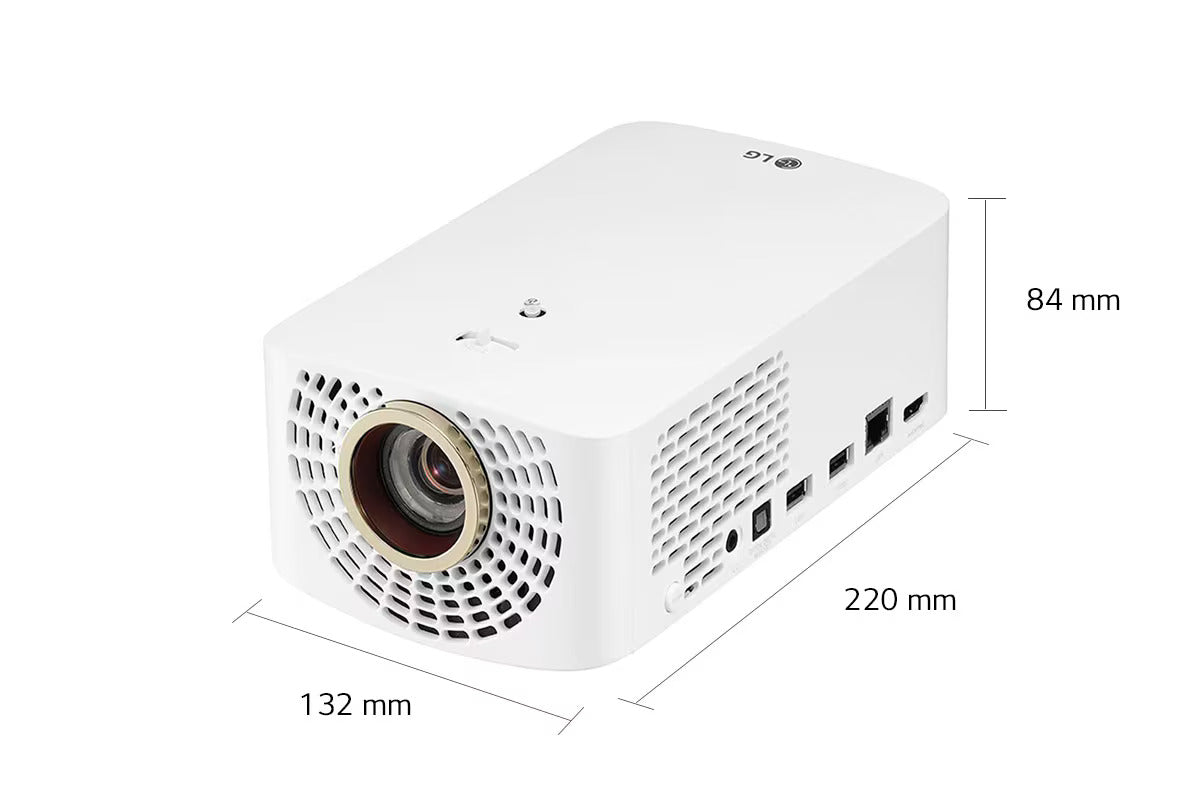

Net Size (mm) (W x D x H)
132 x 220 x 84

Net Weight (KG)
1.5 KG

Power Consumption (Max.)
100W

Stand-by Power
<0.5W

Power Supply
Adapter (100V – 240V @ 50~60 Hz)

Operation Temperature
0 ~ 40℃

Input Signal Compatibility - Digital(HDMI)
Up to 1080p (60Hz/24Hz)

INPUT/OUTPUT TERMINALS
Audio out
1 (Φ3.5), S/PDIF 1(Optical)

RJ45
1

HDMI
2

USB Type-A
2 (USB2.0)

MAIN FEATURES
Platform (OS, UI)

WebOS 4.0 (UI only)

Home Launcher - Edit mode / Recent
Yes

Screen Share (Wireless Mirroring with MiraCast supporting device)
Yes

Contents Sharing (with DLNA supporting device)
Yes

Wireless Contents Share (with Android, iOS)
Yes (Thru TV Plus App)

HDMI Wired Mirroring (Cable/adapter required, sold separately)5)Thru Apple Digital AV Adapter8)
Yes

HDMI Wired Mirroring (Cable/adapter required, sold separately)5)Thru Slimport Adapter9)
Yes

Bluetooth Sound out
Yes

Bluetooth AV Sync Control
Yes

LG Sound Sync (with Sound Bar)
Yes

Plug & Play (RGB/DVI/HDMI Auto Source Detection)
Yes

USB Host (Movie, Music, Photo)
Yes

File (Office) Viewer
Yes

Setting Guide
Yes (Bean Bird)

LG TV Plus App support (Remote function)
Yes

HID (Keyboard/Mouse/GamePad Connection Thru USB)
Yes

Eco Function - Energy Saving Mode
Yes (Min/Med/Max)

Eco Function - Sleep Timer
Yes

Eco Function - Auto Off / Auto Sleep
Yes

Eco Function - Time Power On/Off (On Time / Off Time)
Yes (On/Off)

Eco Function - Automatic Standby / Auto Power Off
Yes

Eco Function - HDD Eco Mode
Yes

ADDED FEATURES
Processor

Quad Core

Digital Keystone Correction

Edge Adjustment (HV 4 Corner Keystone)

Auto Keystone

Yes (Vertical)

Upscaler

Yes (Full HD)

Super Resolution (Expert Control)

Yes (Full HD)

Trumotion

Yes (up to 1080p)

Black Level Control

Yes

Noise Reduction

Yes

Color Temperature Adjustment

Yes

Dynamic Contrast (Expert control)

Yes

Dynamic Color (Expert control)

Yes

Color Management System (Expert control)

Yes

Color gamut setting (Expert control)

Yes

Gamma Correction (Expert control)

Yes

White balance setting (Expert control)

Yes

Quick(Instant) Power on/off

Yes (on 10 Sec off 2 Sec)

Store Mode

Yes

Image Flip

Yes (Horizontal/Vertical)

HDMI ARC(Audio Return Channel)

Yes

HDMI simplink(CEC)

Yes

Self Diagnosis

Yes

DESIGN
Cabinet Color

white (Lens Deco : Gold)

Local Key

Joystick

Kensington Lock

Yes

Leg-Stand

Yes (4 Leg)

Ceiling mount hole (for bracket)

Yes

Tripod hole (for Tripod, Ceiling mount)

Yes

ACCESSORY
Manual (Full or Simple Book)

Simple Book

Quick User Guide (Quick Set-up Guide)

Yes

Warranty Card

Yes

Cable - Adaptor

1

Cable - Power cord

1

Remote control (Battery included) - Normal

Yes

Conformances (Regulation)

CE/CB
