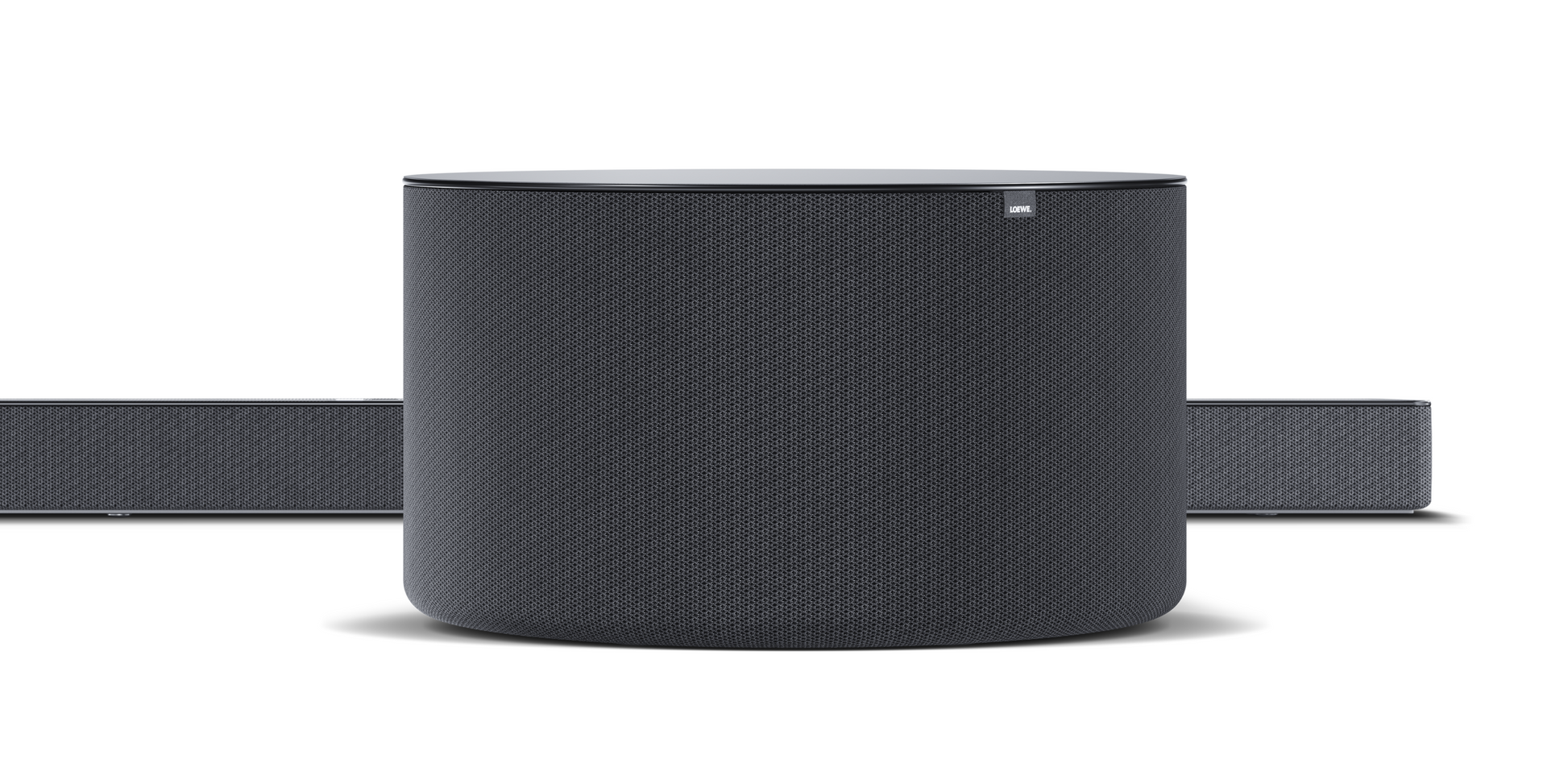

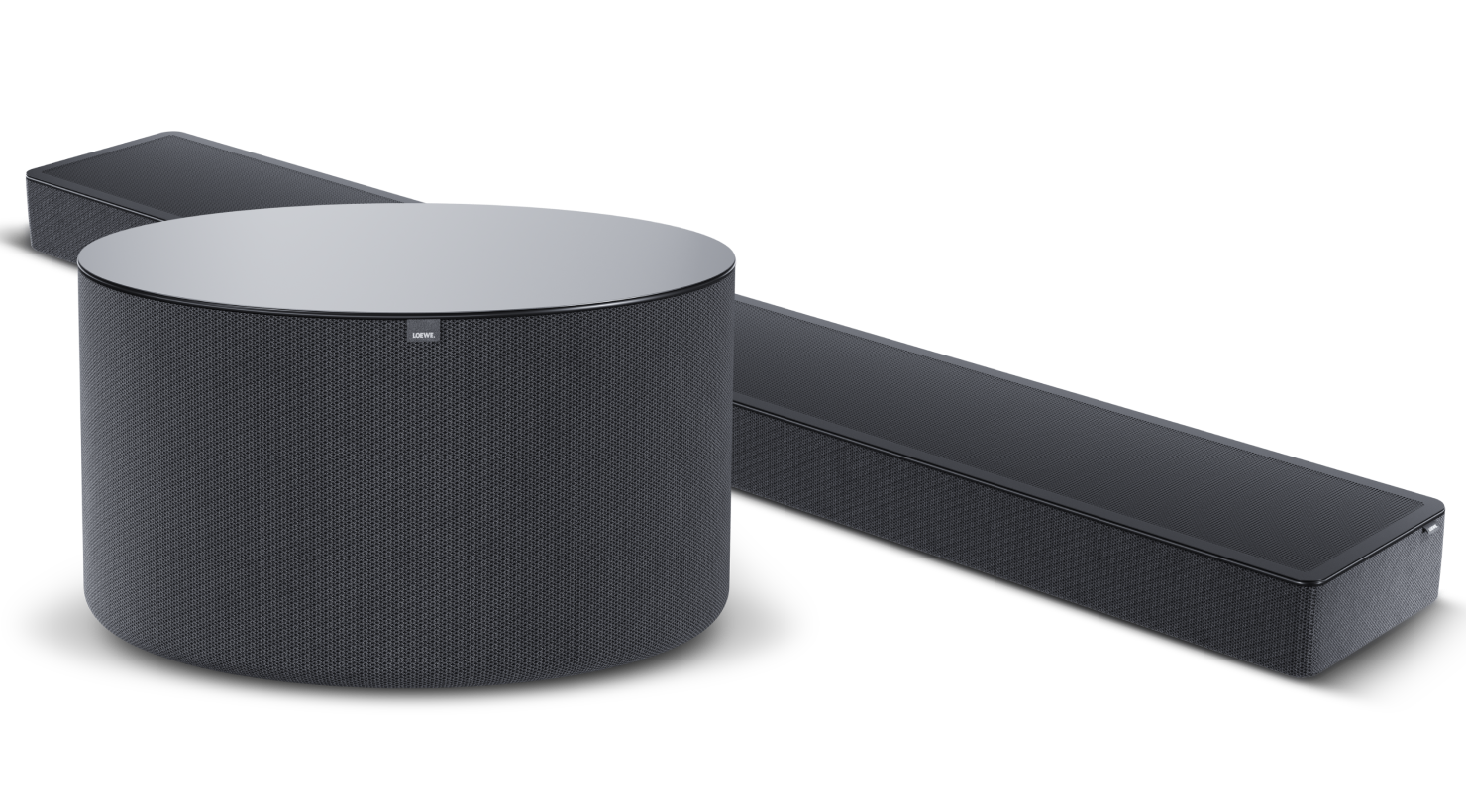

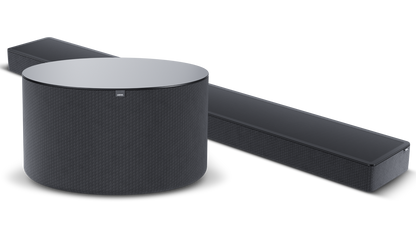

Loewe Klang Bar5 Inc. Klang Sub5

Dolby Atmos soundbar.
With a total music output of 440 watts crystal-clear,
powerful 3D Dolby Atmos sound is guaranteed. Dolby
Atmos, Dolby Atmos Music and DTS:X ensure an
immersive movie experience.
The result: breathtaking three-dimensional surround
sound like in a cinema or concert hall.

Versatile streaming options.
Apple AirPlay, Google Cast and Bluetooth provide
a variety of services such as Spotify, Amazon Music,
Tidal, Deezer and Internet radio. Stream your
favourite content at the touch of a button.
Multichannel and multiroom.

Three HDMI connections and 4K pass-through
leave nothing to be desired when connecting to UHD
players, set-top boxes and game consoles.
The multichannel platform makes expanding the
system a breeze, as additional klang mr speakers can
be added to the existing setup in seconds.

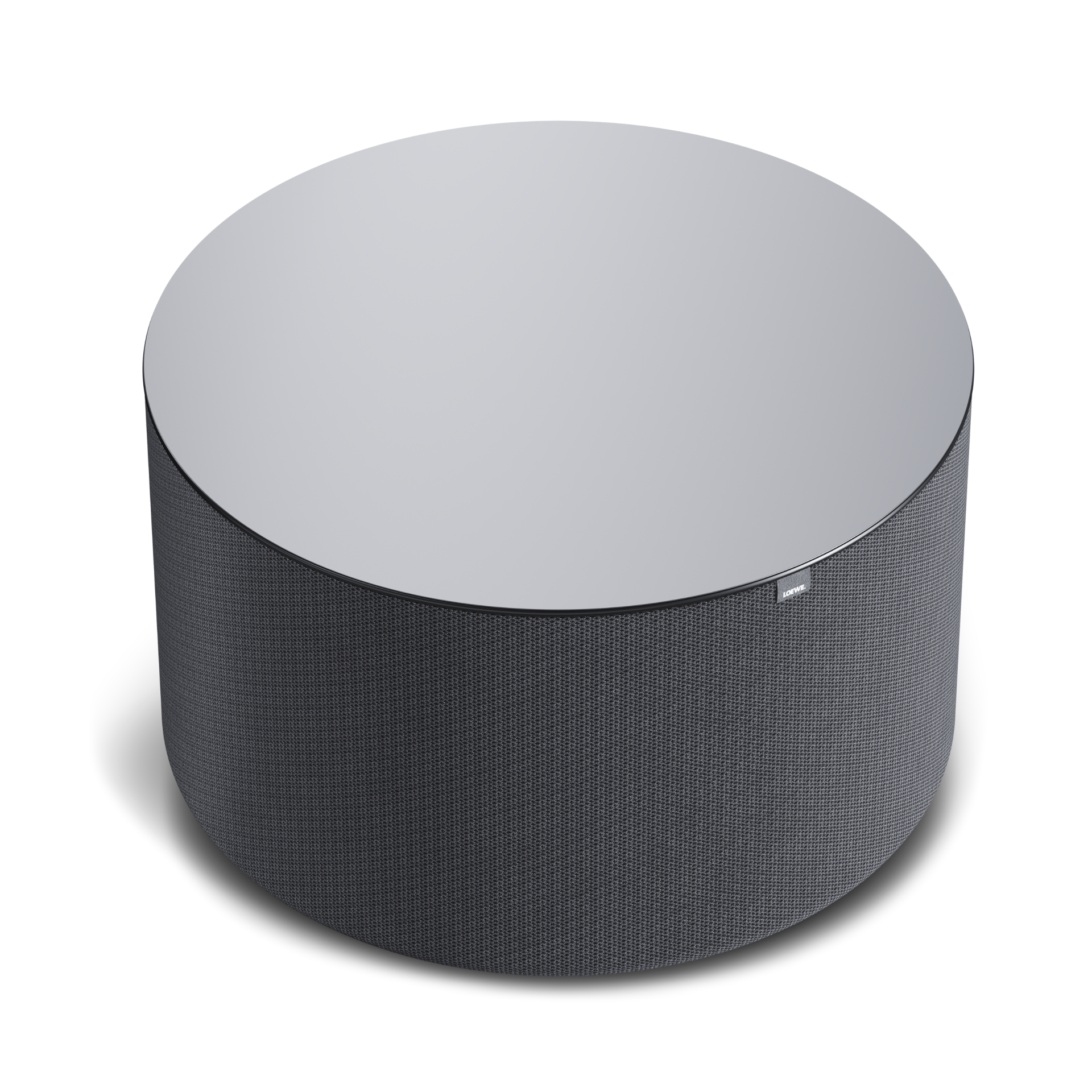

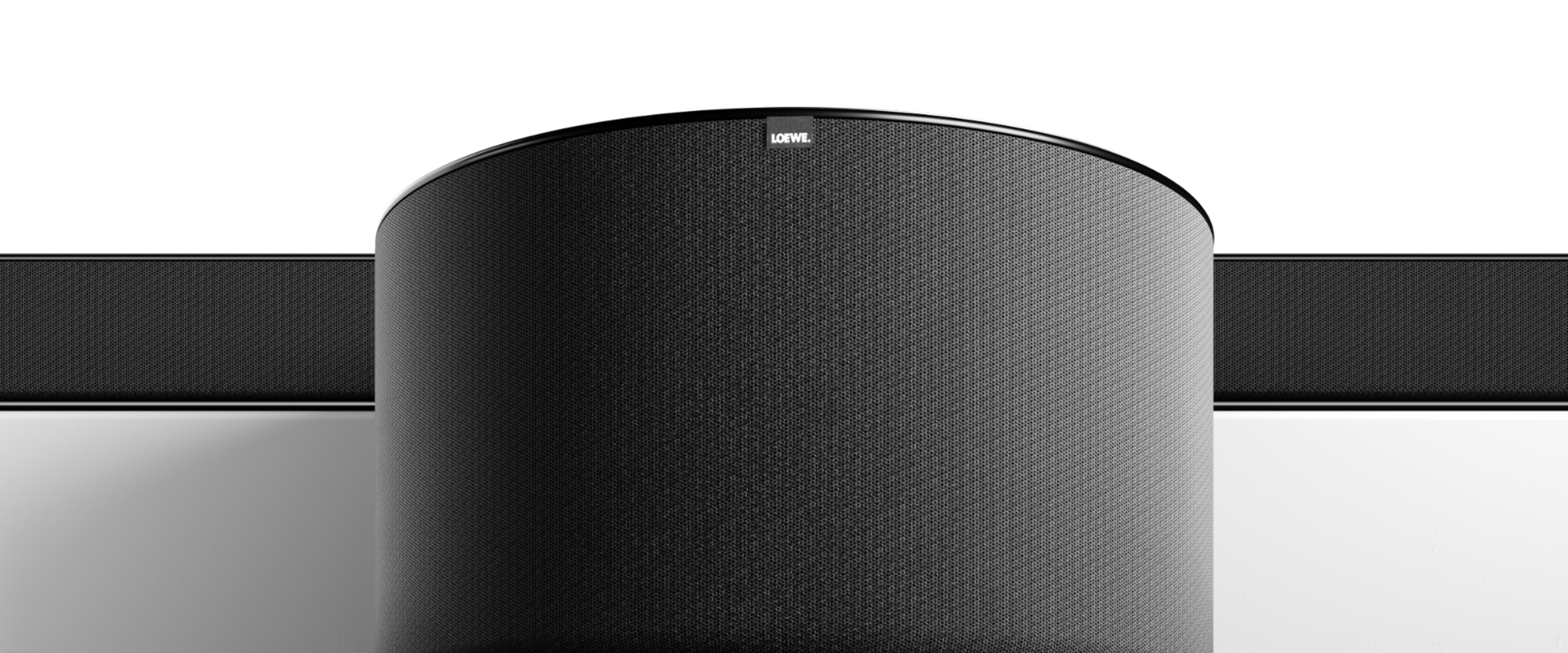

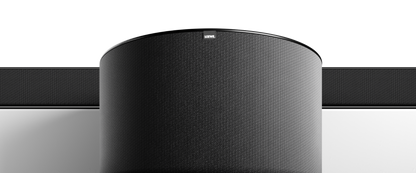

The subwoofer: invisible power.
The round and pleasing 360° design allows to
place the wireless subwoofer almost anywhere.
Its powerful and controlled low-frequency sound
spreads evenly and non-localisable throughout
the room – without disturbing the neighbours with
structure-borne noise: Thanks to the clever design
with a precisely balanced, mirrored construction in
hexagonal arrangement, it always remains outwardly
vibration-free at peace in itself.

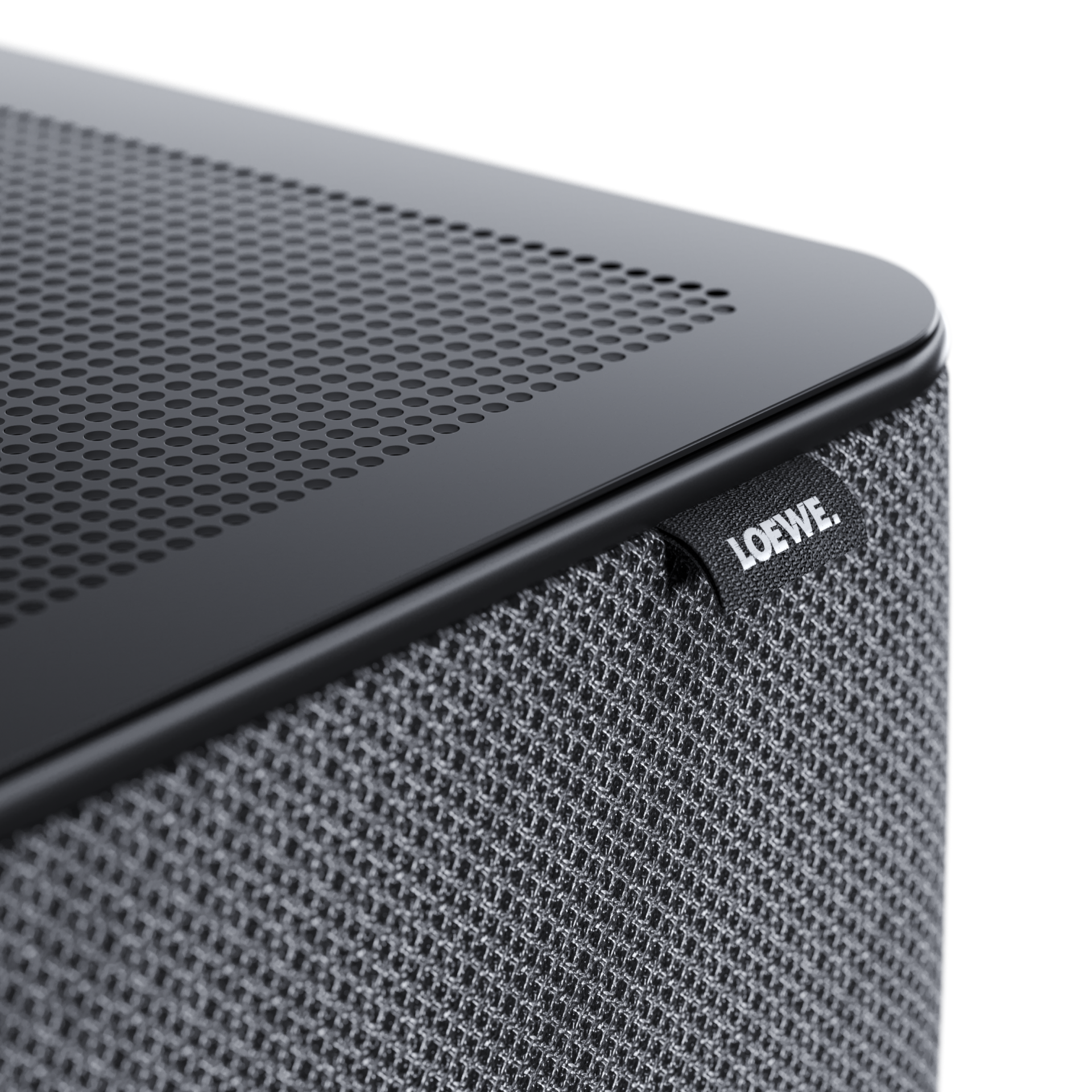

Elegance and perfection in every detail.
A lacquered stainless steel plate covers the top of
the subwoofer and simultaneously dampens any
interfering stimulus through its sheer mass. The
special two-yarn woven and robust acoustic fabric
creates a vivid visual plasticity. The power connection
and level control are unobtrusive located on the
bottom and rear panels. The Loewe system colour
basalt grey and the typical Loewe signature flag
round off the harmonious 360° design.

Bigger inside than outside.
The active subwoofer delivers a total music output
of 360 watts and has in total of more than 1.000 cm²
of effective membrane surface from 2 active 6-inch
drivers and 4 passive radiators. This means it can
easily play down to 35 Hertz low frequency and offers
an astonishingly impressive bass foundation in the
home cinema. The Loewe Wireless Digital Audio
Link 2.0 ensures lossless and latency-free signal
transmission.

Loewe klang bar5 mr

Audio (acoustic)
Frequency range (Hz) @ ±3 dB
Orientation front / side / up / rear firing
Acoustic speaker concept
Channel configuration (speaker layout)
Driver total amount
Driver active
2-channel crossover
60-20.000

closed bar + klang sub5
5.1.2 (surround)
11
4x 48 x 90 mm, 3x 0,75“, 2x 44 x 74 mm, 2x 3“
i active
Audio (electric)

Frequency range (Hz) @ ±1 dB

Class-D amp
Power (watts sine / music)
Total harmonic distortion @ 1 watt /10 watts
Dynamic range / Signal to noise ratio (dB)
Bass and treble control / loudness
Balance / gain adjustment (dB)
Protection circuit: heat / current / voltage / short cut
Dolby Audio / Digital / Digital Plus / Volume / Atmos / Atmos Music

DTS HD / DTS:X
100-20.000 + 10-200
220 / 440 < 0,5
24 bit / > 75
i (remote) / dynamic
h /i (+/-6 dB)

Operation and apps
Display technology
Screen resolution (pixels)
Screen diagonal (cm / inch)
my Loewe app / smart apps (all: Android + iOS)
Voice control by Alexa skills
Software update (via USB / Internet)
White D-LED

5 x 16 segments
6 / 2,4
i(DTS Play-Fi)

i/i(DTS Play-Fi)
Media and receiption
USB music player
Bluetooth music player
Internet radio
DTS Play-Fi / Hi-Res Audio
Spotify Connect / Google Cast / Apple AirPlay
Multiroom audio support
Multichannel home cinema support
(via DTS Play-Fi app)

Connectivity and interfaces
HDMI
HDCP 2.2 / HDMI-CEC / ARC / eARC
USB
Bluetooth
WLAN (Wi-Fi) integrated
Wireless Digital Audiolink (second generation)
Optical TOSLINK
Analogue audio jack in (3.5 mm stereo)
Wall mount
2 x HDMI 2.0b (incl. 4K pass-through)
i/i/i/i
1 x USB 2.0

Network and formats
WLAN (Wi-Fi) standard
WLAN (Wi-Fi) power (max. mW)
WLAN (Wi-Fi) frequency range
WLAN (Wi-Fi) encryption
WLAN (Wi-Fi) encryption WPA
Bluetooth standard
Bluetooth power (max. mW)
Bluetooth frequency range
Bluetooth protocols
Supported audio formats
Supported video formats
IEEE 802.11a/b/g/n/ac
<100
2400-2483,5 / 5150-5725 MHz
WEP 64, 128 Bit (ASCII, HEX)
WPA PSK, WPA2 AES, WPS
4.2
<10
2,4 GHz

A2DP SNK, AVRCP
MP3, AAC, AAC+, M4A, WAV, FLAC, PCM, Dolby True HD, Dolby
Audio, Dolby Digital, Dolby, Digital Plus, Dolby Atmos, Dolby Atmos
Music, DTS, DTS HD, DTS Virtual X, DTS Play-Fi, Hi-Res AUDIO
4K Video Pass-Through, Dolby Vision, DR10, HDR10+

Energy and environment
Mains voltages AC
Power consumption eco standby mode (watts)
Power consumption multiroom sleep mode (watts)
Ambient temperature while in operation
Relative humidity (non-condensing)
100-240V, 50/60 Hz
0,5
6
5-35° C
20-80%
Dimensions

Weight (approx. kg)
W* x H x D (approx. cm)
6,5 + 8,8
120,0 x 7,1 x 16,0
Scope of Delivery
Remote control (incl. batteries)
Manual / power cord
Others
Loewe remote klang mr (2x CR2032)
i/i
klang sub5, HDMI cable
Optional accessories
Selection of recommended setup solutions
and audio systems
bild i, floor stand flex, spacer table stand v,
spacer table stand i, wall mount klang bar
klang mr5, klang mr3, klang mr1, klang sub5
Technical data

Loewe klang sub5
Audio (acoustic)
Frequency range (Hz) @ ±3 dB
Orientation front / side / up / rear firing
Acoustic speaker concept
Channel configuration (speaker layout)
Driver total amount
Driver active
Driver passive
2-channel crossover
35-150
radial (motion compensation)
closed + passive membranes
0.1 (subwoofer)
6
2x 6“
4x 6“
ilow pass
Audio (electric)
Frequency range (Hz) @ ±1 dB
Class-D amp
Power (watts sine / music)
Total harmonic distortion @ 1 watt /10 watts
Dynamic range / Signal to noise ratio (dB)
Bass and treble control / loudness
Balance / gain adjustment (dB)
Protection circuit: heat / current / voltage / short cut
10-200
i
180 / 360
< 1
16 bit / > 60
i (gain adjustment) / h
h /i (via volume knob)
i/i/i/i
Media and receiption
Multiroom audio support
Multichannel home cinema support
i(via klang bar mr)
i
Connectivity and interfaces
Bluetooth
Wireless Digital Audiolink (second generation)
Analogue audio jack in (3.5 mm stereo)
h
i
i
Network and formats
WLAN (Wi-Fi) standard
WLAN (Wi-Fi) power (max. mW)
WLAN (Wi-Fi) frequency range
WLAN (Wi-Fi) encryption
WLAN (Wi-Fi) encryption WPA
h
<100
5725-5850 MHz
h
h
Energy and environment
Mains voltages AC
Power consumption eco standby mode (watts)
Power consumption network standby mode (watts)
Ambient temperature while in operation
Relative humidity (non-condensing)
100-240V, 50/60 Hz
0,5
0,5
5-35° C
20-80%
Dimensions
Weight (approx. kg)
W* x H x D (approx. cm)
8,8
38,0 x 21,4 x 38,0
Scope of Delivery
Manual / power cord
Others
i/i
h
Optional accessories
Selection of recommended setup solutions
and audio systems
klang bar5 mr, klang bar3 mr
iconic v, iconic i
