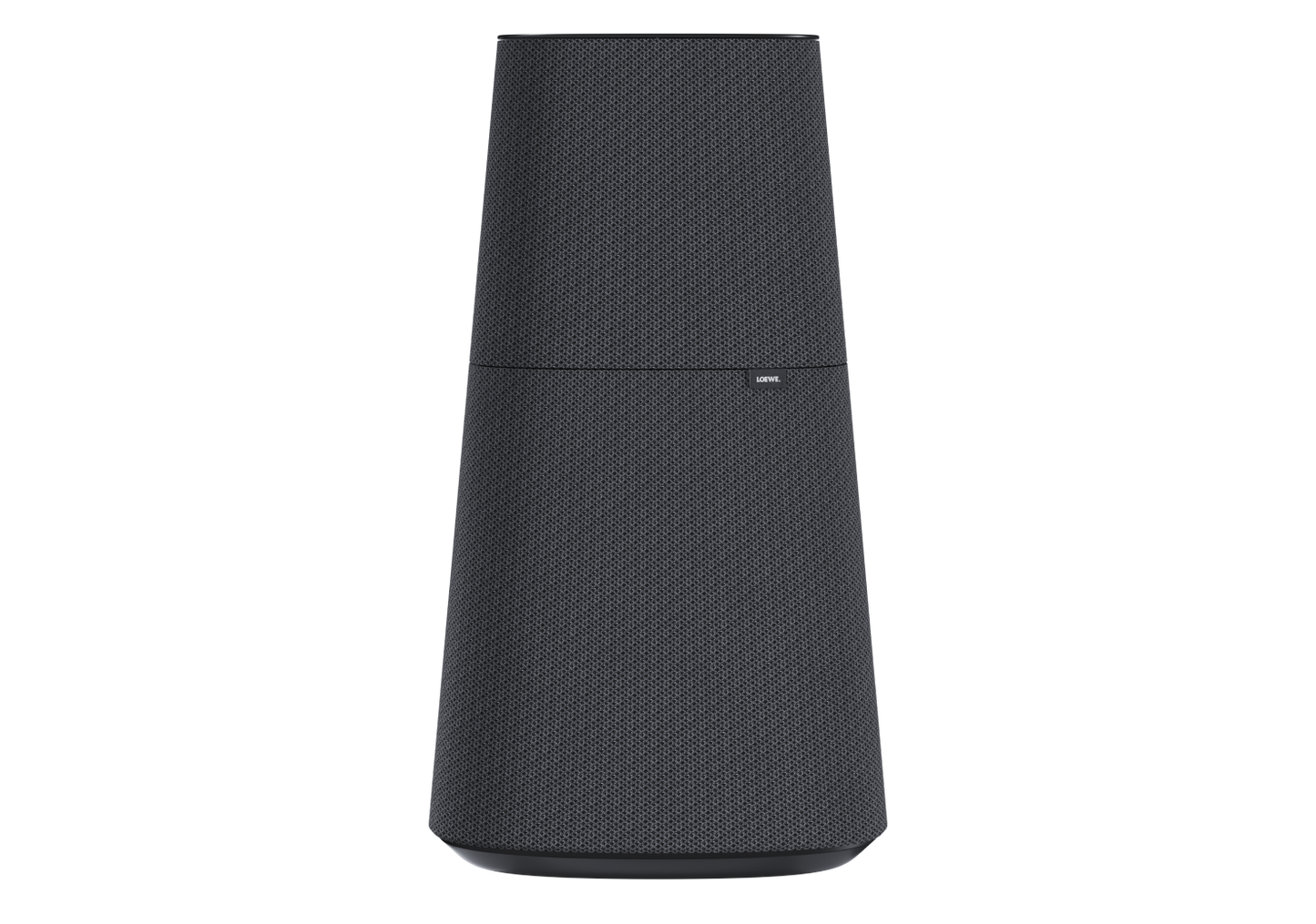

Loewe Klang MR5

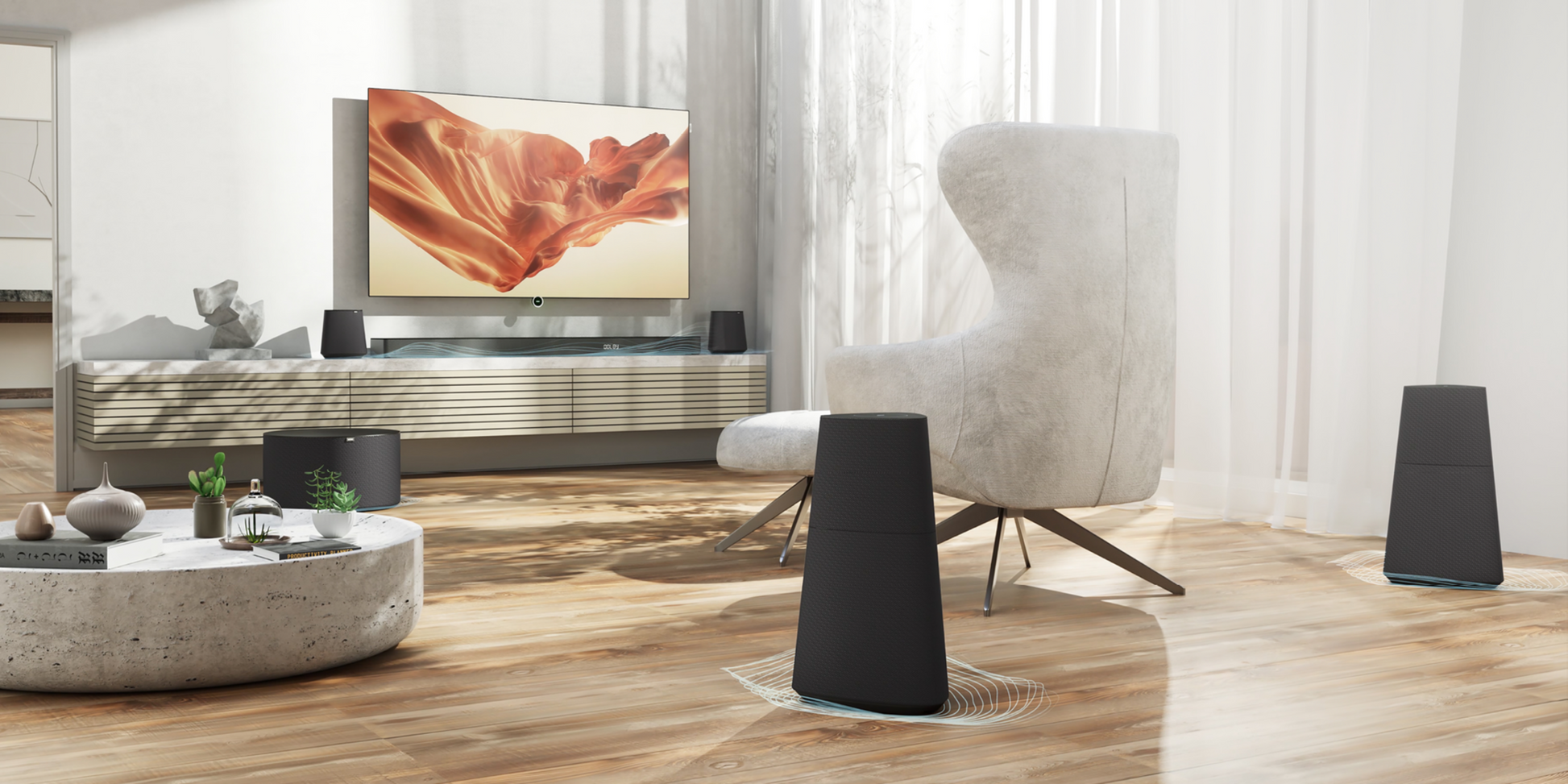

Multichannel home cinema.

Loewe wireless digital audiolink (second generation)
for lossless and latency-free wireless signal
transmission in multichannel home cinema with
Loewe klang mr as the active surround speakers.
Bluetooth direct streaming.

Connect your mobile phone via Bluetooth directly to
the speaker and enjoy your playlist.
Multiroom Audio.

DTS Play-Fi, Apple Airplay and Google Cast offer a
variety of services such as Spotify, Amazon Music,
Tidal, Deezer and Internet radio.

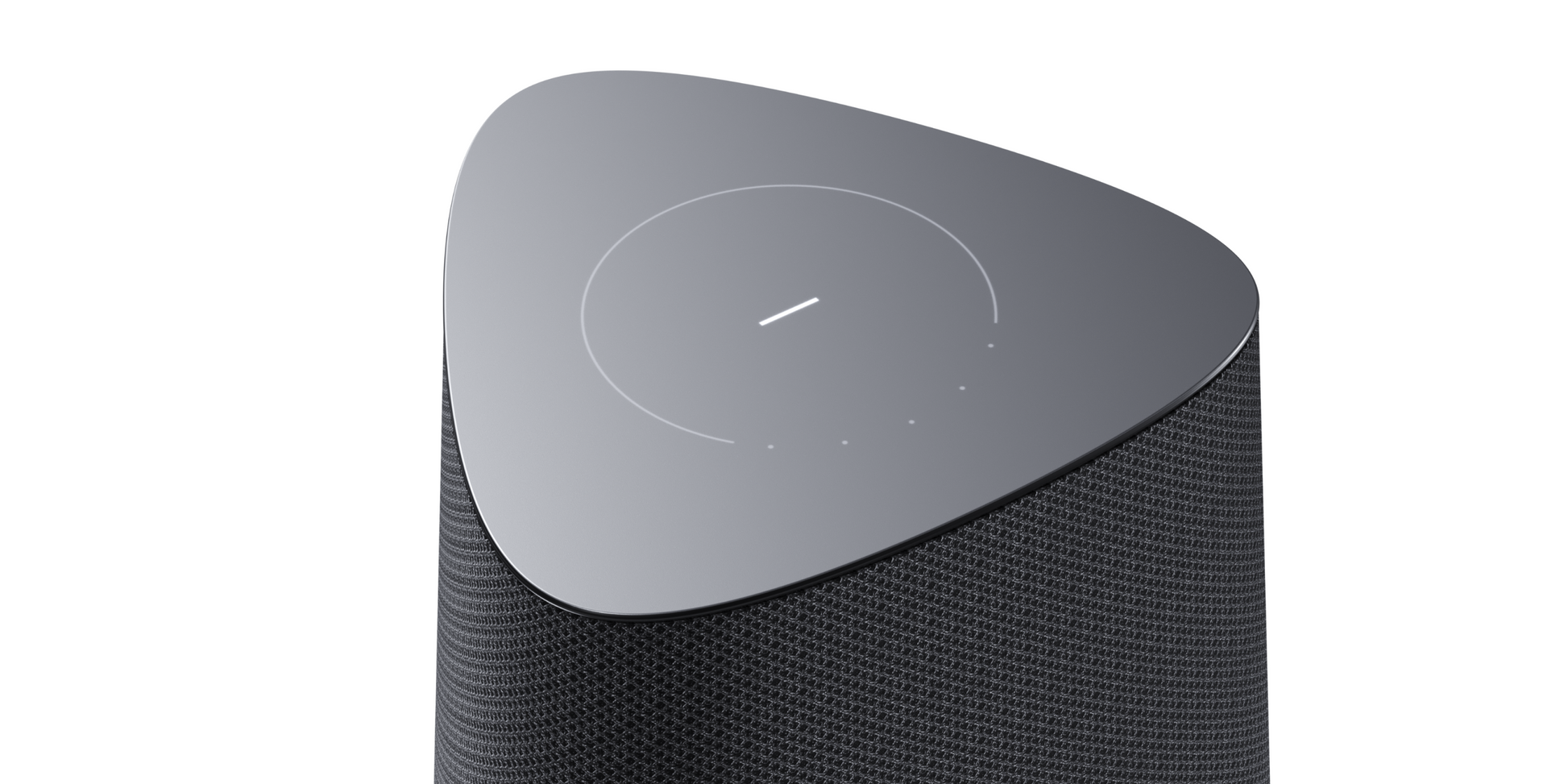

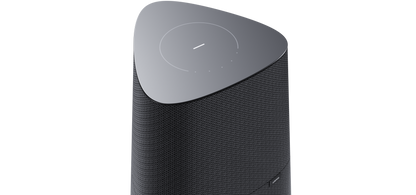

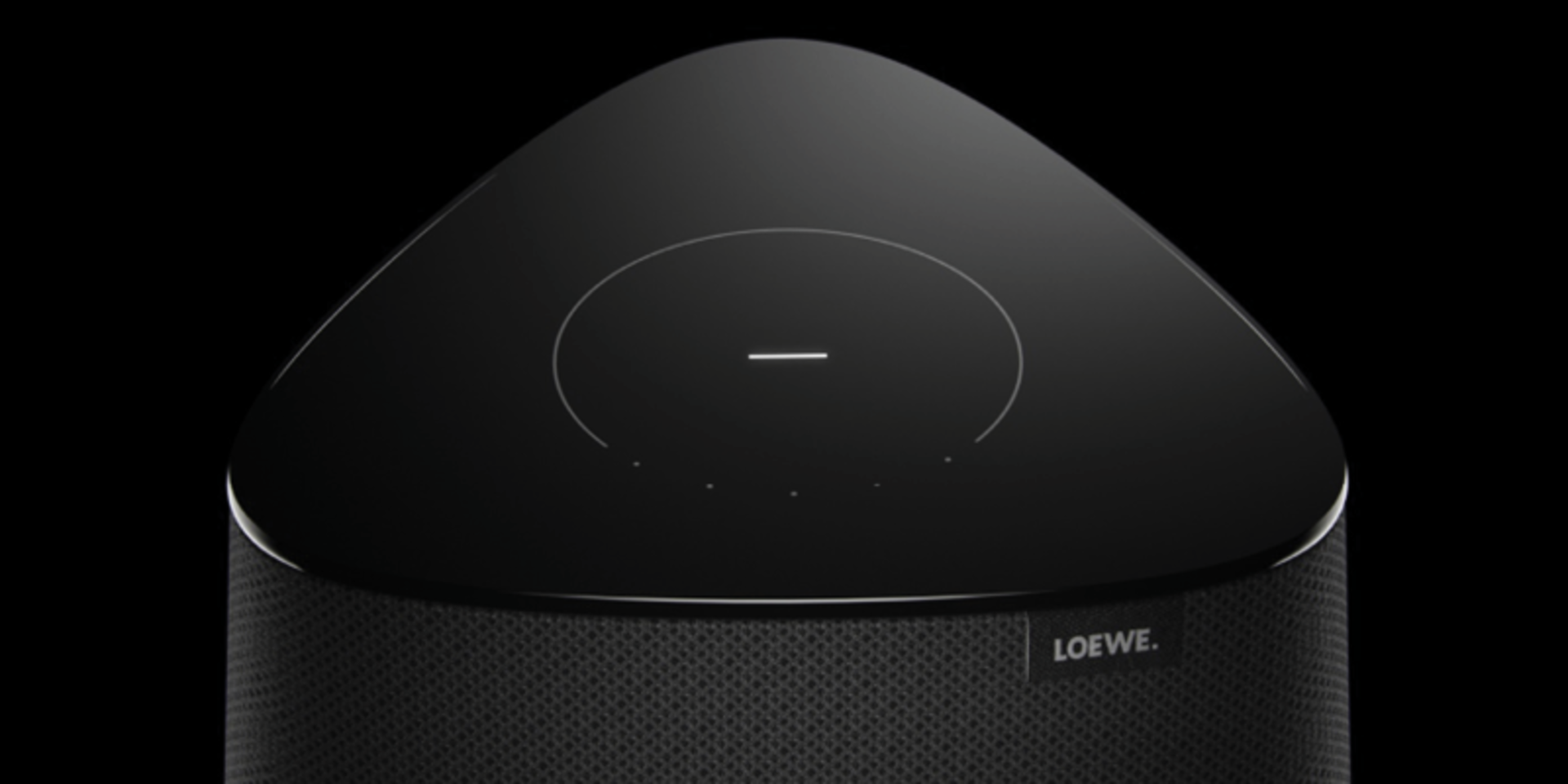

Touch surface.
The glass touch panel on the top is easy to operate
and offers space for up to five favourites, which can
be compiled from any source.

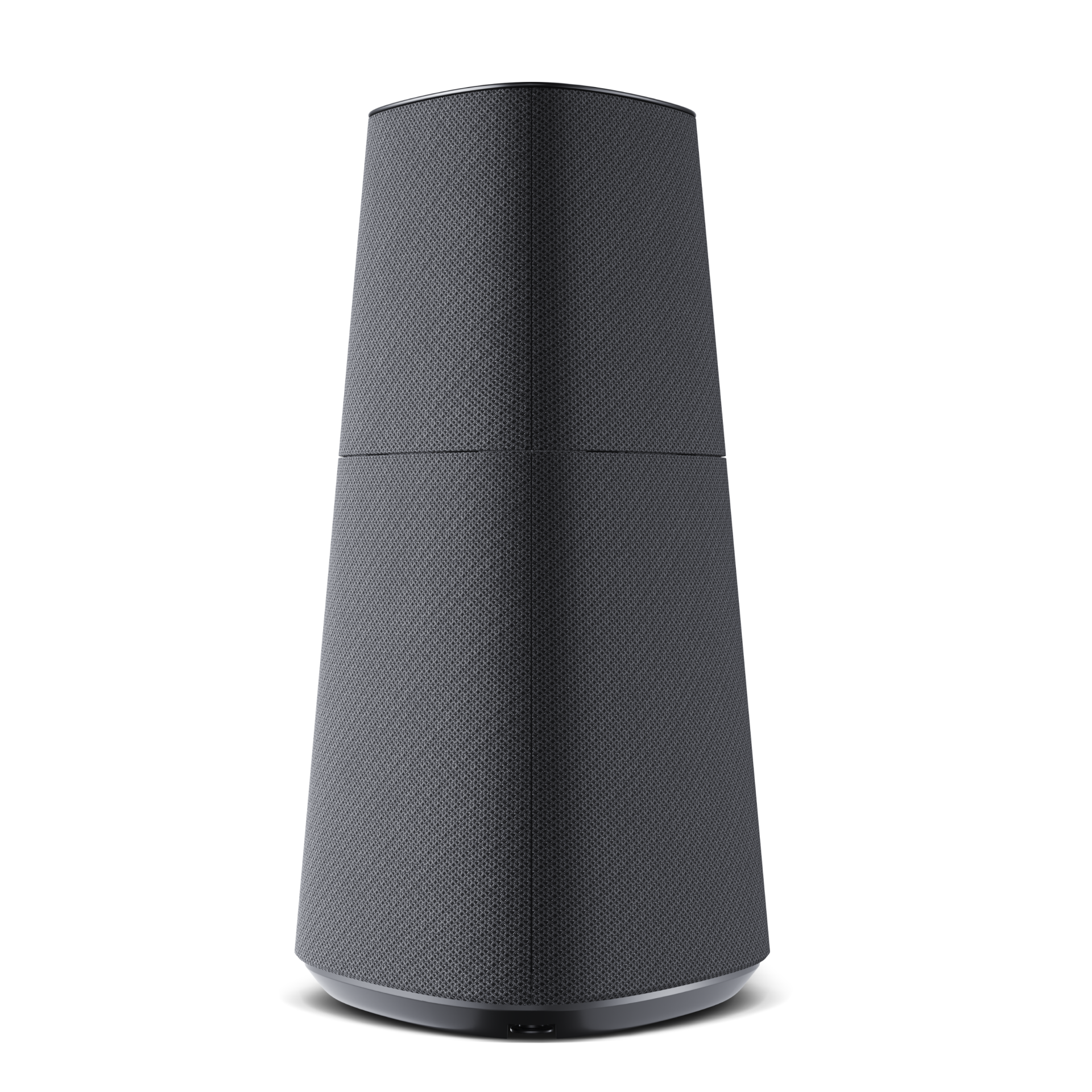

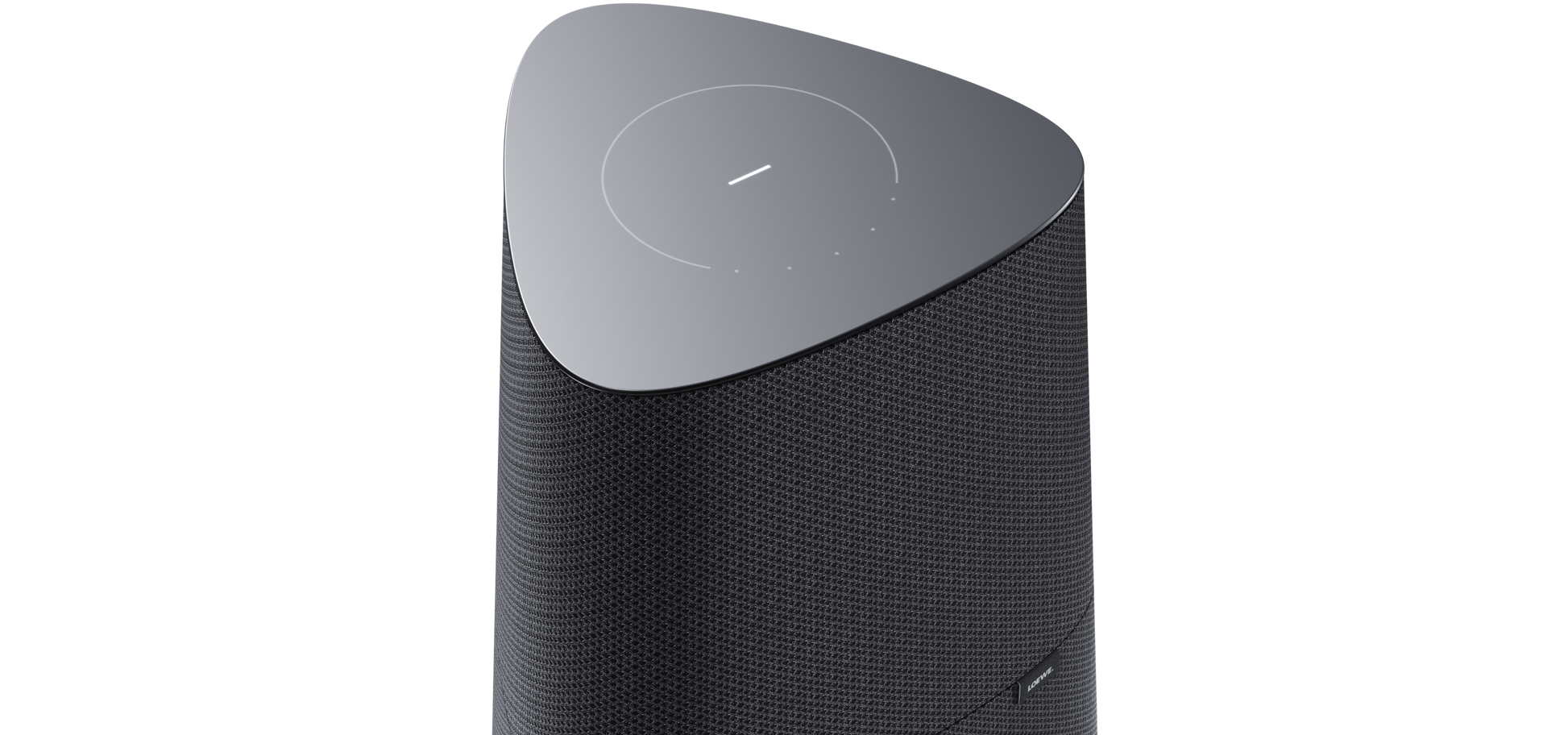

Elegant.

The design is refined and elegant. The glass top with
integrated touch panel and illuminated status LED
is a tribute to the Loewe eye. The cabinet is covered
with our high-quality acoustic fabric and blends
perfectly into your living environment.
Powerful sound.

The layout of the speakers in combination with
passive radiators creates a perfectly balanced sound
experience with 30 / 150 / 180 watts - with powerful
bass and crystal clear high tones.

Audio (acoustic) :-
Frequency range (Hz) @ ±3 dB : 35-20.000
Orientation front / side / up / rear firing
Acoustic speaker concept : closed + passive membranes
Channel configuration (speaker layout) : 1.0 (mono)
Driver total amount : 9
Driver active : 3x 3/4“, 3x 2,5“, 1x 5“
Driver passive : 2x 5“
2-channel crossover : iactive

Audio (electric) :-
Frequency range (Hz) @ ±1 dB : 20-20.000
Class-D amp
Power (watts sine / music) : 90 / 180
Total harmonic distortion @ 1 watt /10 watts : < 0,3 / < 0,3
Dynamic range / Signal to noise ratio (dB) : 24 bit / > 80
Bass and treble control / loudness : i (remote) / dynamic
Protection circuit: heat / current / voltage / short cut : y/y/y/y
Dolby Audio / Digital / Digital Plus / Volume / Atmos / Atmos Music : via klang bar mr
DTS HD / DTS:X : via klang bar mr

Operation and apps :-
Display technology : White LED + Color LED
Screen resolution (pixels) : 5x dot + 1x line
Screen diagonal (cm / inch) : 6 / 2,4
my Loewe app / smart apps (all: Android + iOS) : i/ DTS Play-Fi app
Voice control by Alexa skills : i
Software update (via USB / Internet) : i/i(DTS Play-Fi)

Media and receiption :-
USB music player : i
Bluetooth music player : i
Internet radio : i (via DTS Play-Fi app)
DTS Play-Fi / Hi-Res Audio : i/i
Spotify Connect / Google Cast / Apple AirPlay : i/i/ i
Multiroom audio support : i
Multichannel home cinema support : i

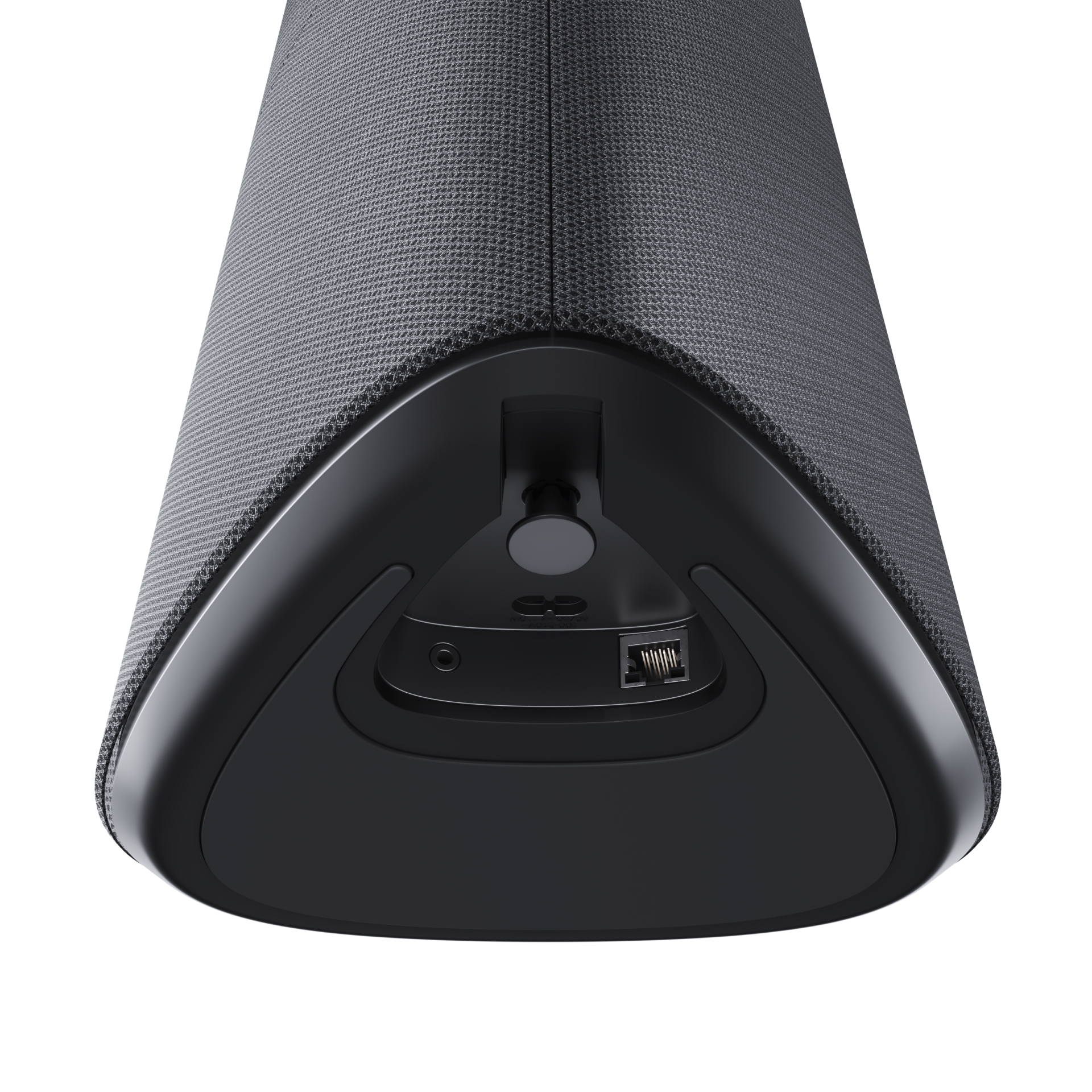

Connectivity and interfaces
USB : 1 x USB 2.0 (SW update)
Bluetooth : i
WLAN (Wi-Fi) integrated : i
LAN network connection : i
Wireless Digital Audiolink (second generation) : i
Analogue audio jack in (3.5 mm stereo) : i
Wall mount : o

Network and formats
WLAN (Wi-Fi) standard : IEEE 802.11a/b/g/n/ac
WLAN (Wi-Fi) power (max. mW) : <100
WLAN (Wi-Fi) frequency range : 2400-2483,5 / 5150-5850 MHz
WLAN (Wi-Fi) encryption : WEP 64, 128 Bit (ASCII, HEX)
WLAN (Wi-Fi) encryption WPA : WPA PSK, WPA2 AES, WPS
Bluetooth standard : 4.2
Bluetooth power (max. mW) : <10
Bluetooth frequency range : 2,4 GHz
Bluetooth protocols : A2DP SNK, AVRCP
Supported audio formats : MP3, M4A, AAC, FLAC, WAC, AIFF, Hi-Res AUDIO

Energy and environment
Mains voltages AC : 100-240V, 50/60 Hz
Power consumption eco standby mode (watts) : 0,3
Power consumption multiroom sleep mode (watts) : 6
Ambient temperature while in operation : 5-35° C
Relative humidity (non-condensing) : 20-80%
