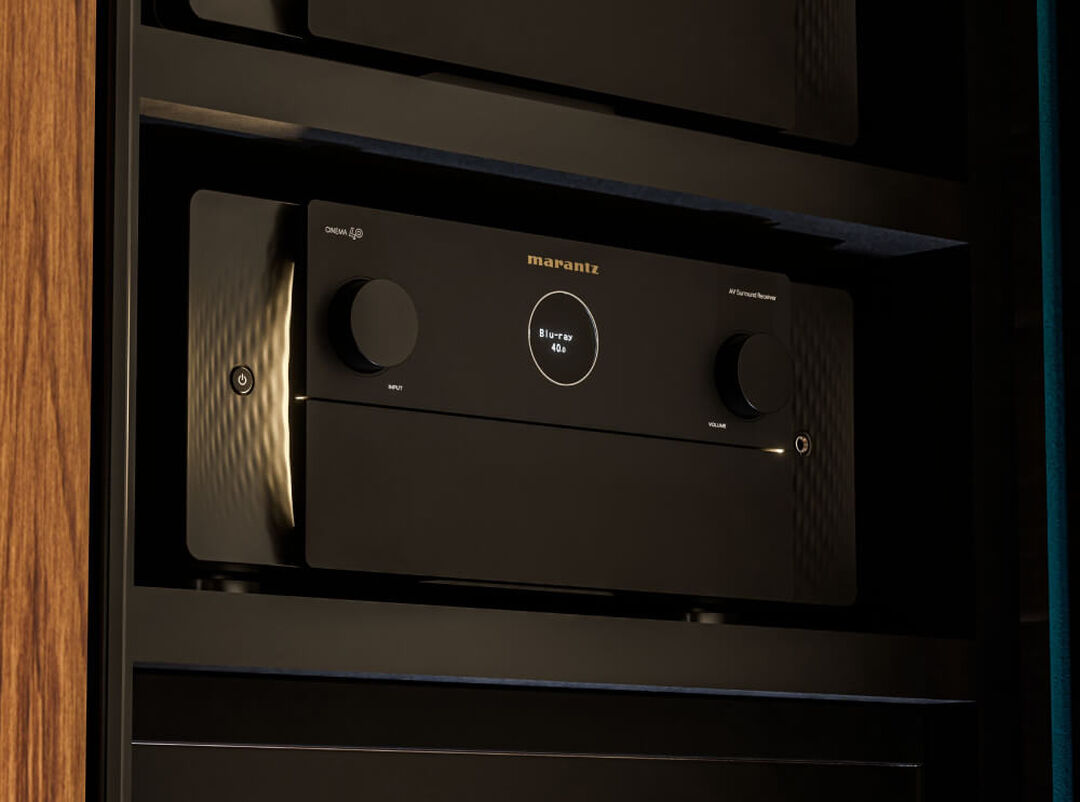

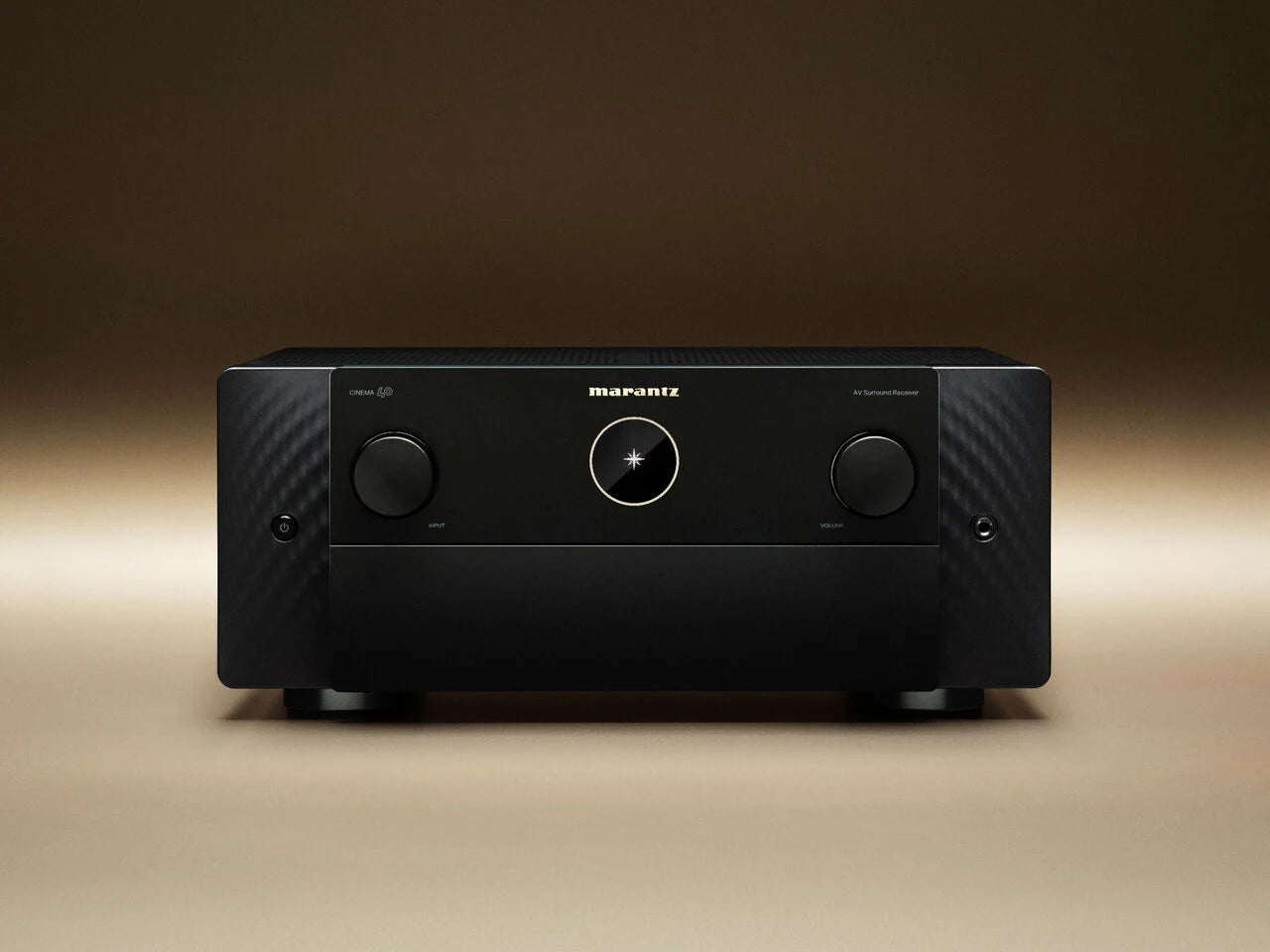

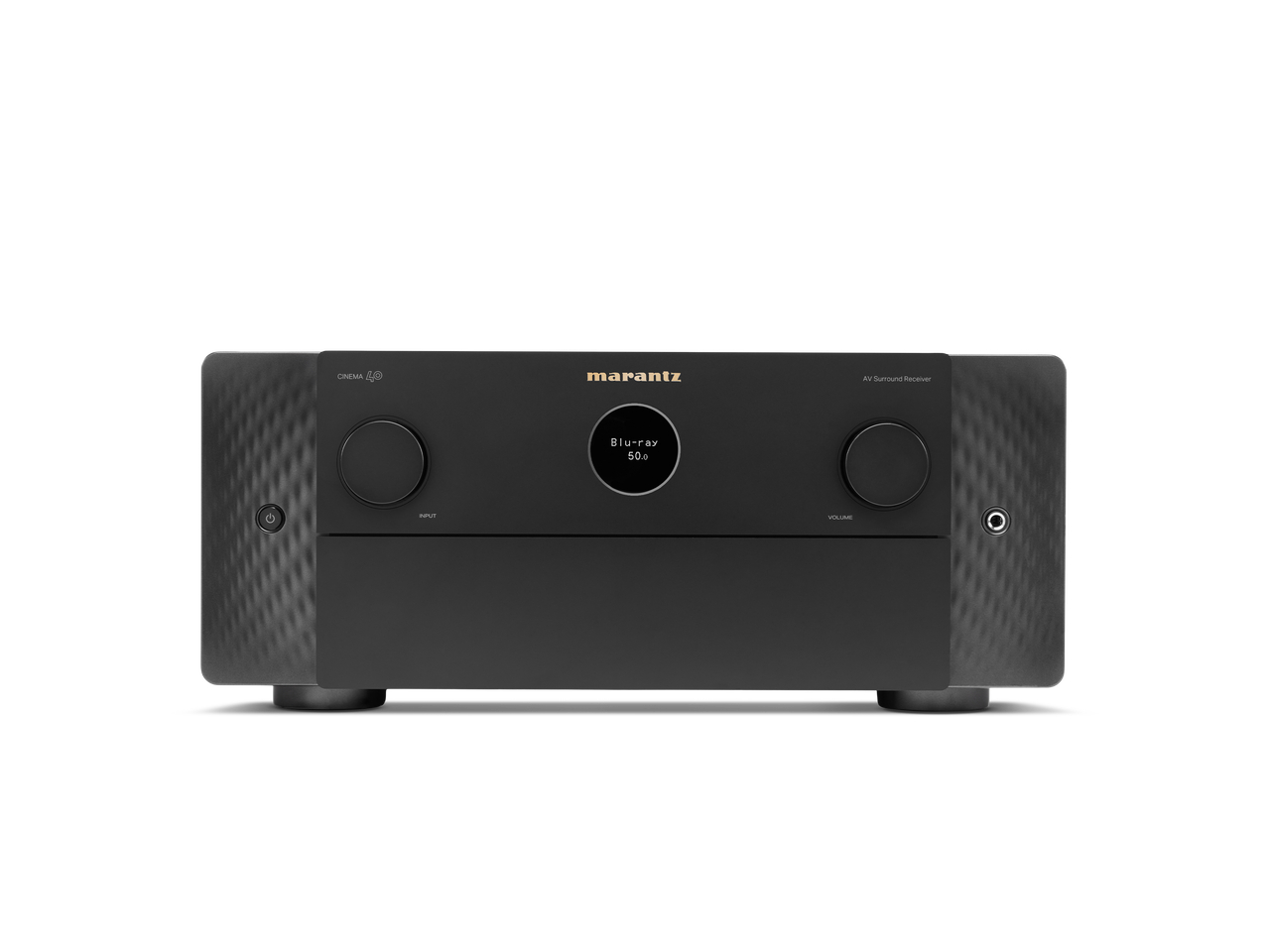

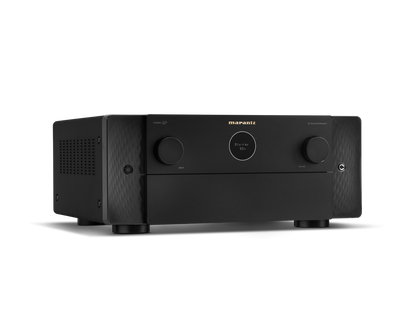

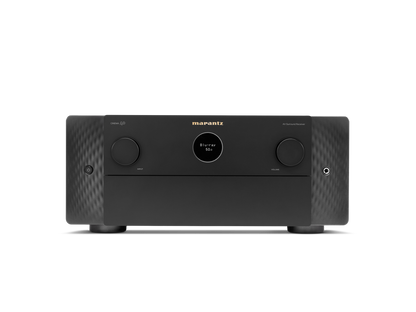

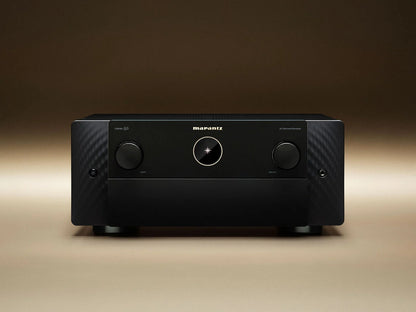

Marantz CINEMA 40

Power Amplifier
Number of Powered Channels9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)165 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)235 W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable
Multichannel Surround Technologies
DTSDTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
DolbyDolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2
Max Number of Processing (Preamp) Channels11.4

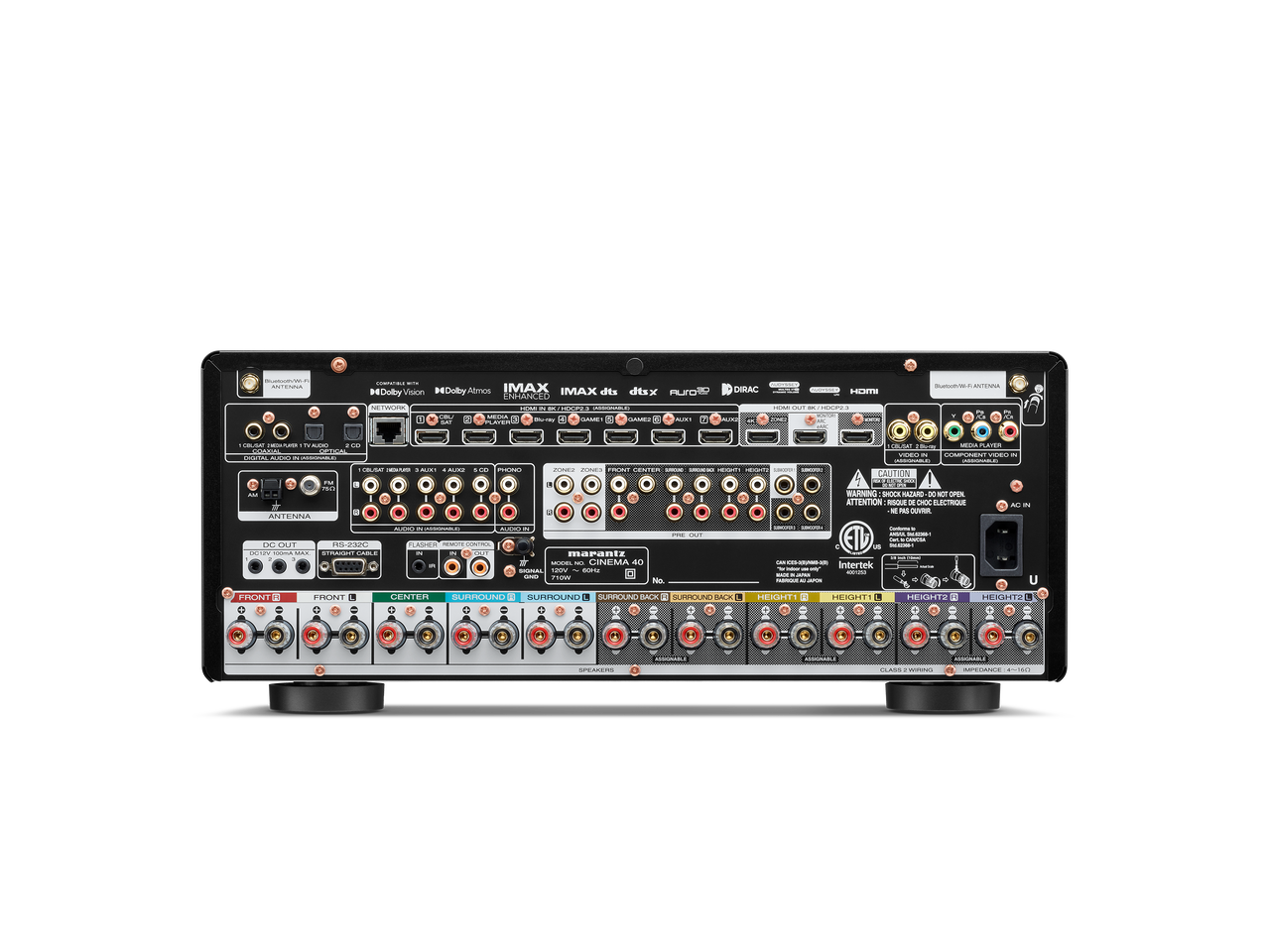

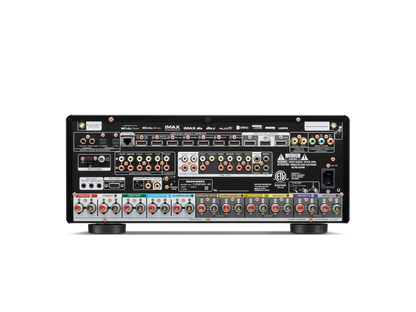

Inputs Outputs
Composite In / Out2 / 0
Component In / Out1 / 0
HDMI In / Out7 / 3
Multi-Room Video Out via HDMI Yes
Analog In / Fixed Level Out5 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial2 / 2
Multi-Room Out: analog / digital2 / 0
Multichannel Preamp Out11.4
Subwoofer Out4 (independent)
7.1 multichannel input No
Number of Speaker Terminals11
Speaker A / B assignable
Multi-Room Speaker Terminal assignable
Front Inputs USB-A
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
HDMI
Total HDMI Inputs / No. Support 8K7 / 7
HDCP2.3 support Yes
HDMI Outputs: Main / Zone2 / 1
Analog to HDMI Video Conversion Yes
HDMI Upscaling1080P/4K to 8K
Max resolution @ framerate8K @ 60Hz, 4K @ 120Hz
Audio Return ChannelARC, eARC
Video Dynamic RangeHDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio over HDMI Yes
Auto LipSync Yes
Performance Technologies
Copper Plated Chassis No
Toroidal Power Supply Transformer No
Hyper Dynamic Amplifier Modules (HDAM) (List version)Yes
Pure Direct Mode Yes
Gold Plated RCA Terminals Yes
Clock Jitter Reducer Yes
Acoustic Room Correction
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes / Yes
Dirac Live Upgradability Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
Music File Support
Lossy FormatsMP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio2.8MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2Yes

Network Audio Sharing Yes
Streaming Services
HEOS Multi-room and Streaming Yes
Airplay Audio Streaming Airplay 2
Internet RadioTuneIn
Spotify*Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services *Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested Yes
Network Connectivity
Ethernet Ports Yes
Wi-Fi (include version / band)Yes
Bluetooth (Include version)Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration and Control
Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room zones3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output3
HDMI Diagnostics Yes
Others
Front Display2 line FLD + port hole OLED
GUI Languages 9
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes

Available Colors: Black/Silver-Gold
Metal Front Panel: Yes
System Remote ControlRC048SR
Power Consumption in W710
Power Consumption No-Sound (ECO on/off) in W65 / 110
Standby Consumption in W0.2
CEC Standby Consumption in W0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna: Horizontal:(W x D x H) in inches
Antenna: Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches17.3 x 16.2 x 7.3
17.3 x 16.2 x 10
17.3 x 15.8 x 7.3
Weight in lbs.33.3
What's in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
