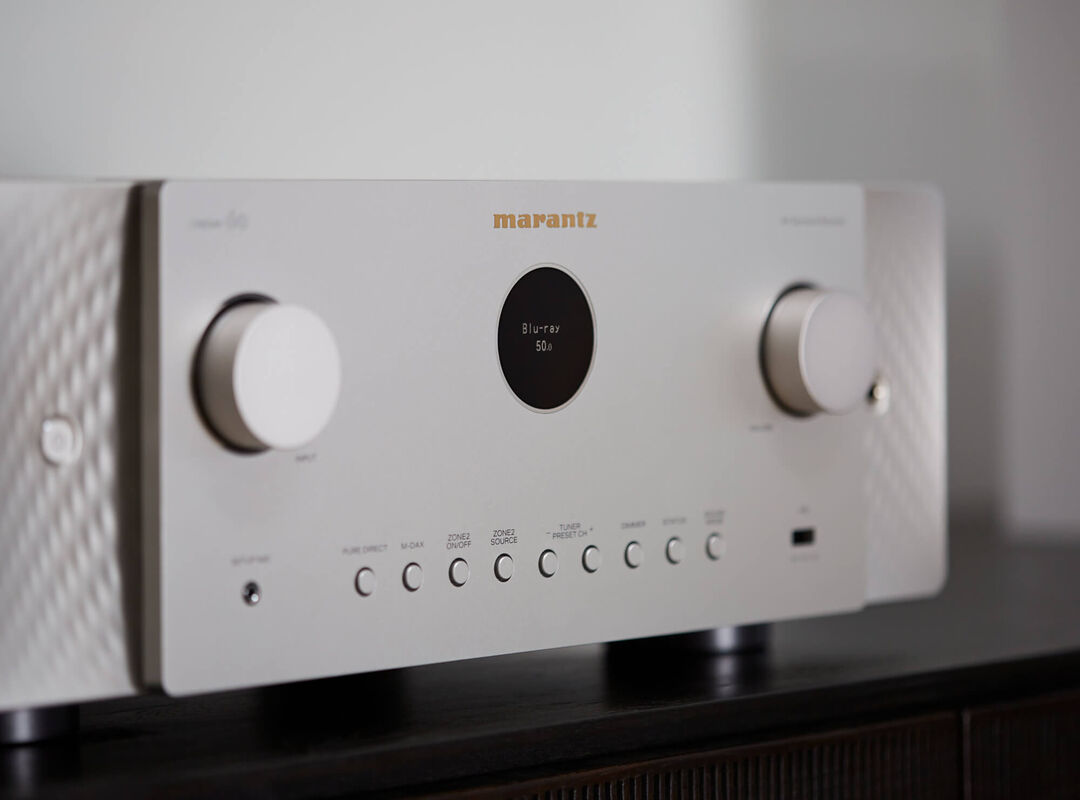

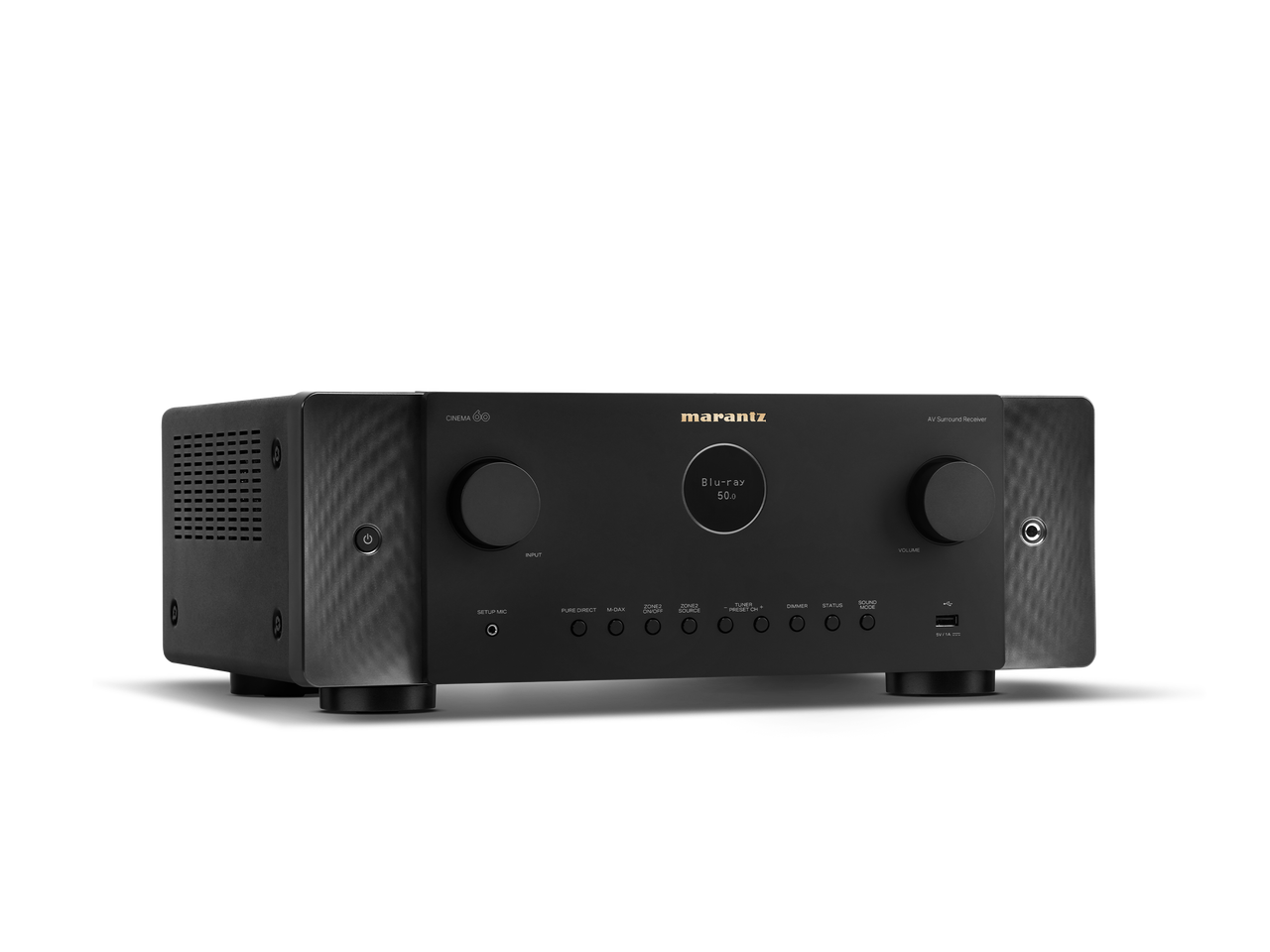

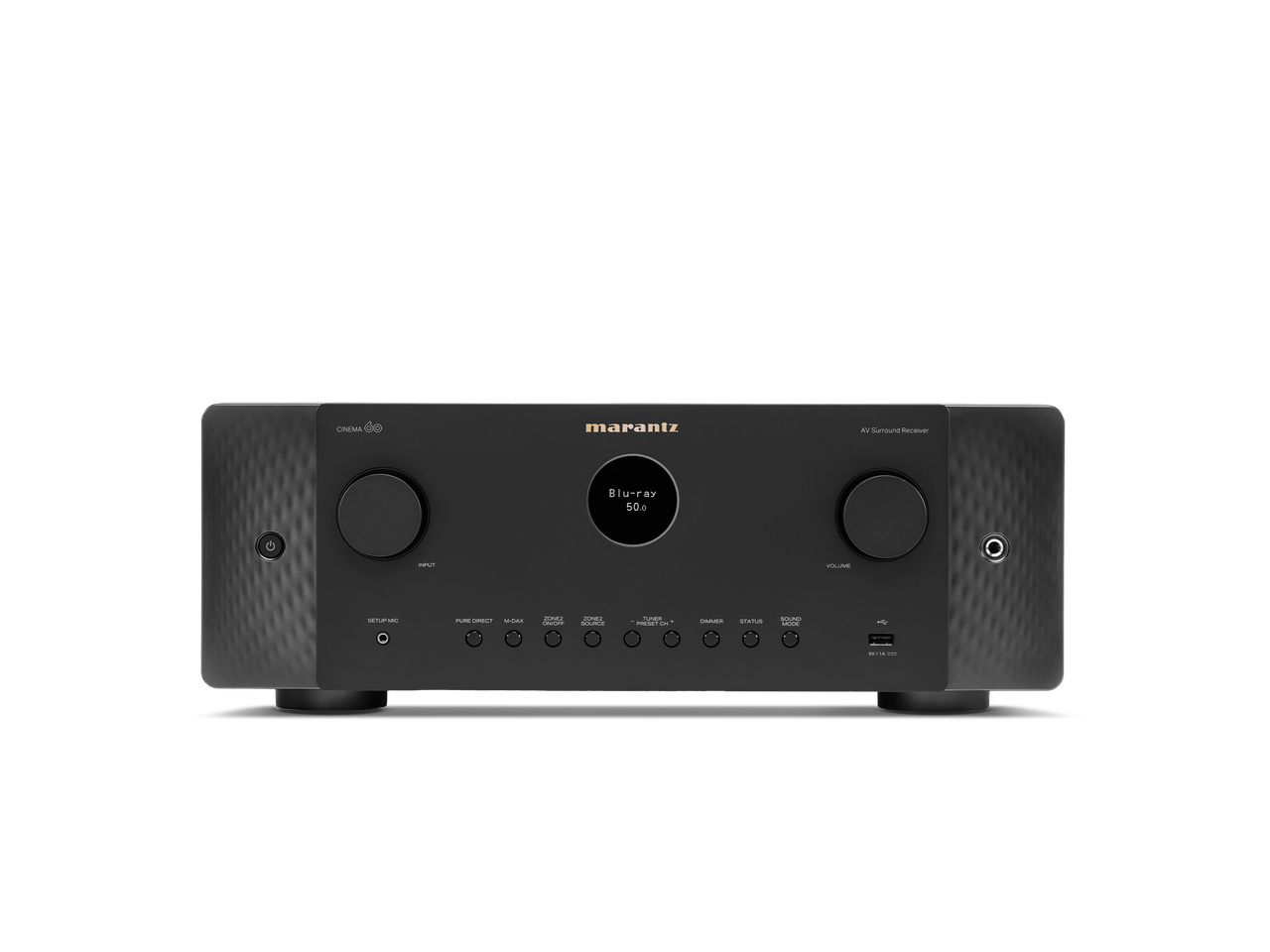

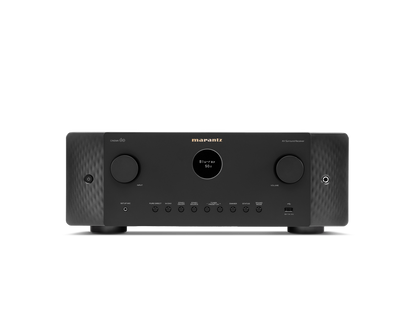

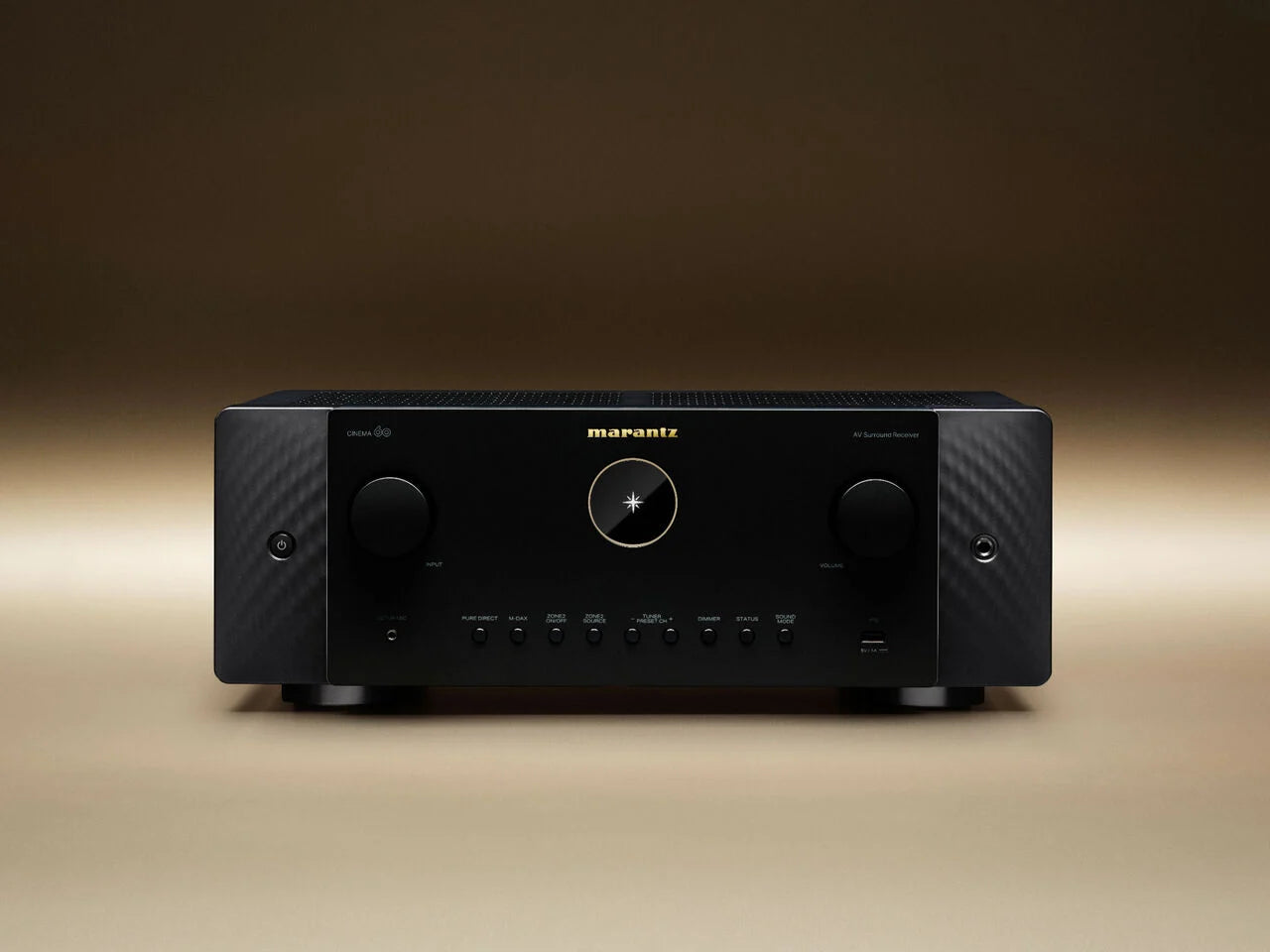

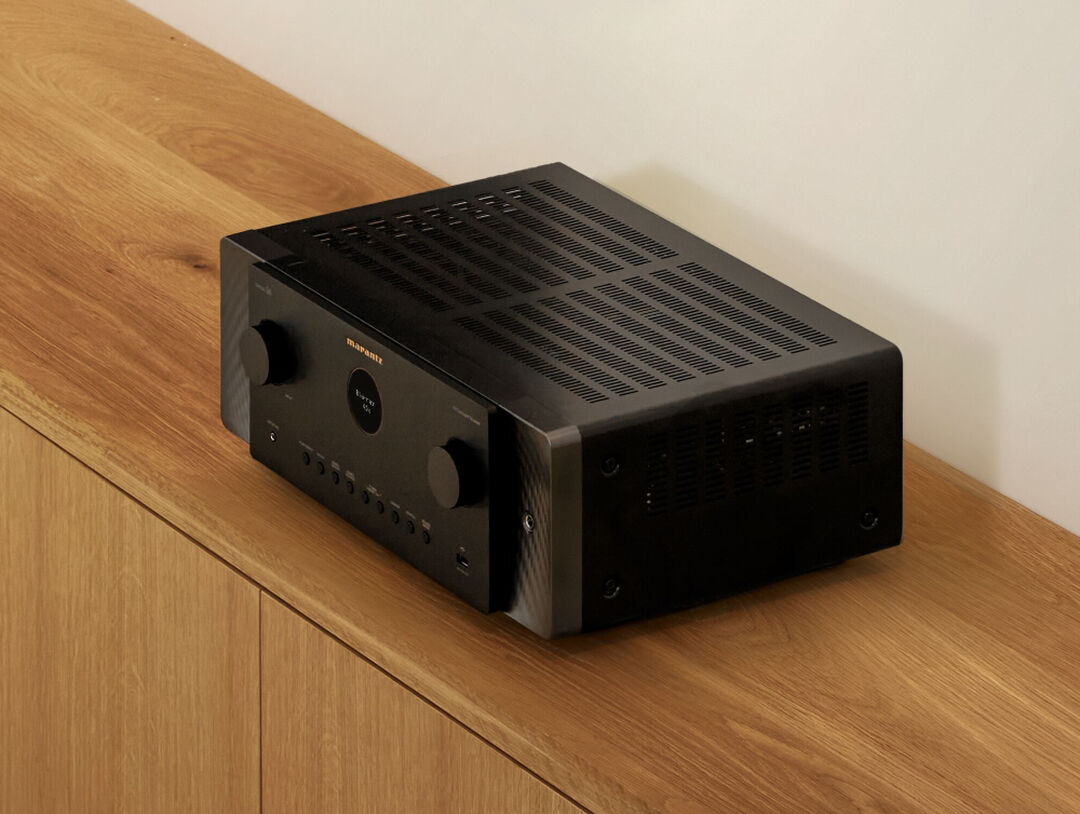

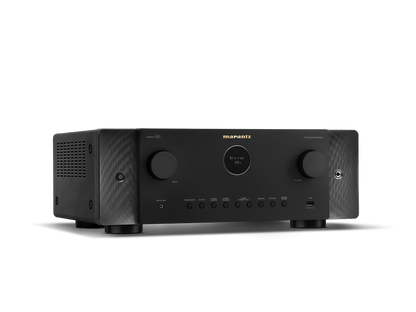

Marantz CINEMA 60

Power Amplifier
Number of Powered Channels7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)100 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)200 W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable
Multichannel Surround Technologies
DTSDTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
DolbyDolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround

Other
Max Number of Processing (Preamp) Channels7.1

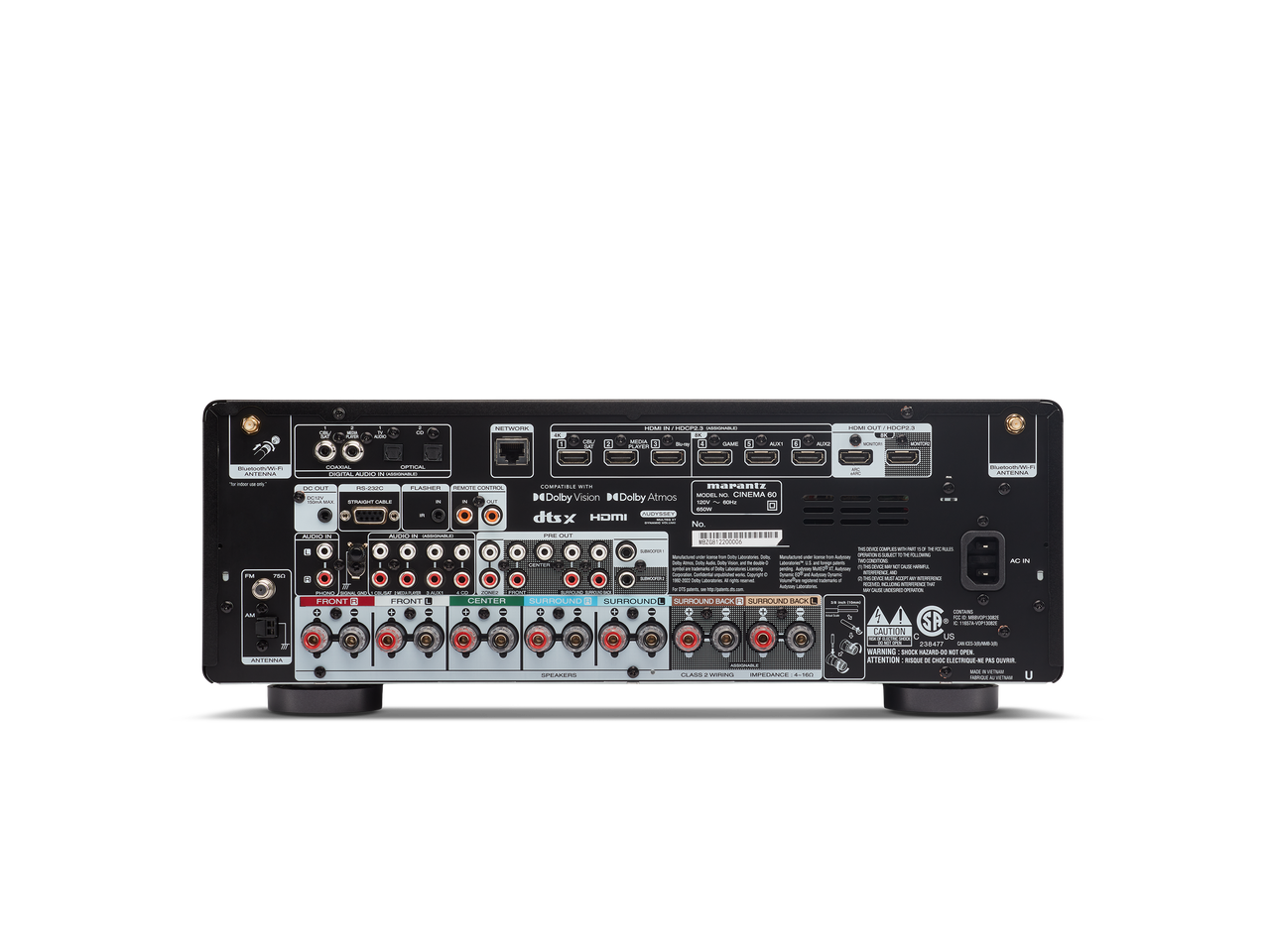

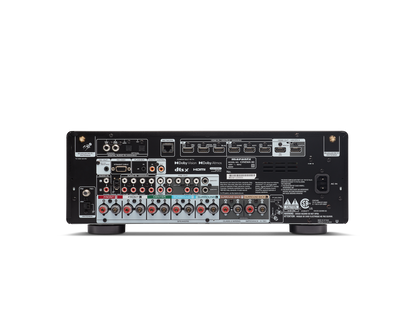

Inputs Outputs
Composite In / Out0/0
Component In / Out0/0
HDMI In / Out6 / 2
Multi-Room Video Out via HDMI No
Analog In / Fixed Level Out4 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial2 / 2
Multi-Room Out: analog / digital1 / 0
Multichannel Preamp Out7.2
Subwoofer Out2

7.1 multichannel input No
Number of Speaker Terminals7
Speaker A / B assignable
Multi-Room Speaker Terminal assignable
Front Inputs USB-A
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes

HDMI
Total HDMI Inputs / No. Support 8K6 / 3
HDCP2.3 support Yes
HDMI Outputs: Main / Zone2 / 0
Analog to HDMI Video Conversion No
HDMI Upscaling1080P/4K to 8K
Max resolution @ framerate8K/60Hz, 4K/120Hz
Audio Return ChannelARC, eARC
Video Dynamic RangeHDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio over HDMI No
Auto LipSync Yes
Performance Technologies
Copper Plated Chassis No
Toroidal Power Supply Transformer No
Hyper Dynamic Amplifier Modules (HDAM) (List version)Yes
Pure Direct Mode Yes
Gold Plated RCA Terminals No
Clock Jitter Reducer No
Acoustic Room Correction
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC No
Dirac Live Support No
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync No
Music File Support
Lossy FormatsMP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio2.8 MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2Yes

Network Audio Sharing Yes
Streaming Services
HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming AirPlay 2
Internet RadioTuneIn
Spotify*Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services *Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested Yes
Network Connectivity
Ethernet Ports Yes
Wi-Fi (include version / band)Yes
Bluetooth (Include version)Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration and Control
Voice Assistant CompatibilityAlexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room zones2

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog2 Ch / 2Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source No
Control ConnectivityIP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output1
HDMI Diagnostics Yes
Others
Front Displayport hole OLED
GUI Languages3

Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes
General

Available ColorsBlack
Metal Front PanelNo
System Remote ControlRC049SR
Power Consumption in W650
Power Consumption No-Sound (ECO on/off) in W45 / 75
Standby Consumption in W0.2
CEC Standby Consumption in W0.5
Network Standby Consumption in WLess than 2.0

Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches17.4 x 13.9 x 6.5
17.4 x 13.9 x 9.3
17.4 x 13.5 x 6.5
Weight in lbs.24

What's in the box
Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
