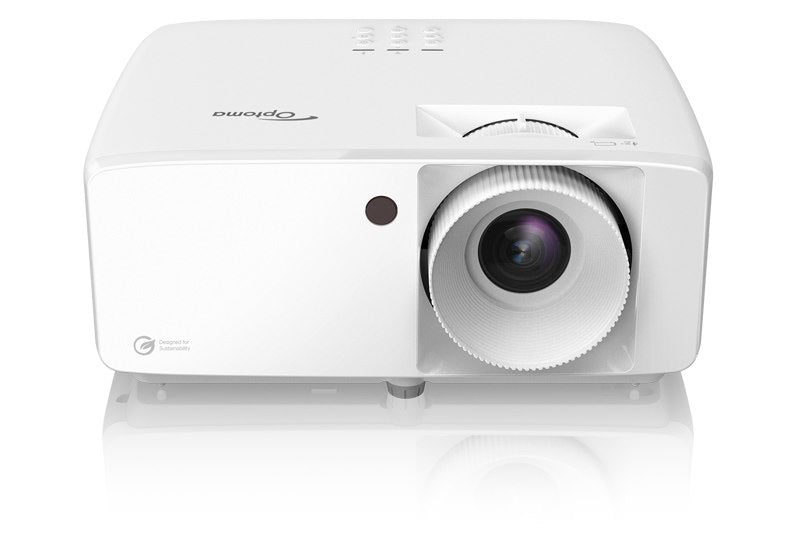

Optoma AZH500

4K & HDR Compatible
High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Optoma DURACORE Made for Environmental Sustainability
Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.

Mercury Free
High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.

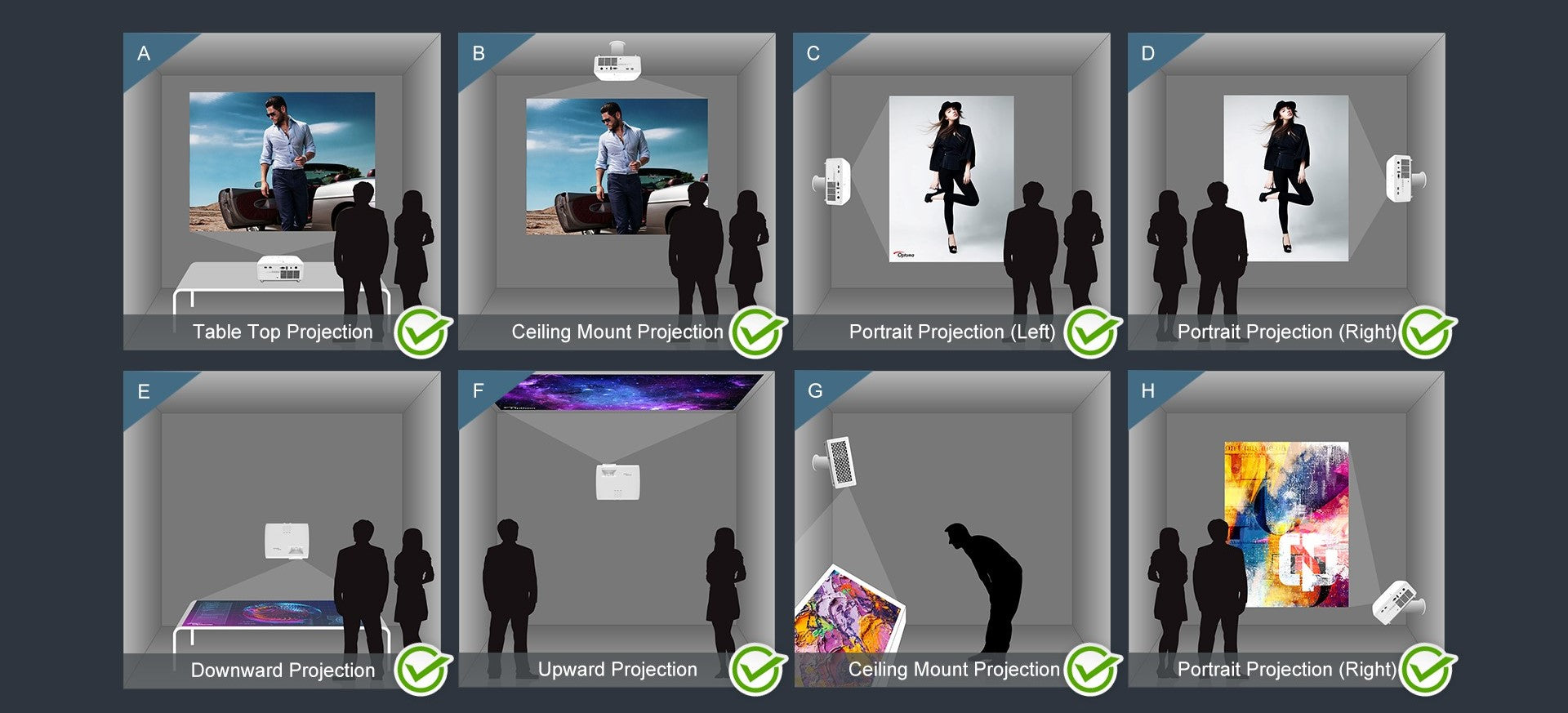

Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

1.3x Zoom Range
A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen.

An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

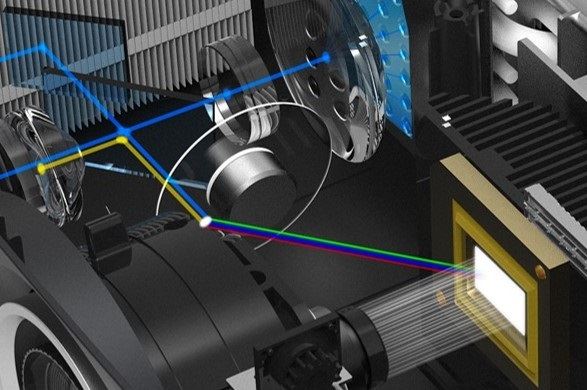

IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.


Quick start-up and shutdown
This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

Low Noise: Quieter than a Whisper
Less than 30 dB in ECO mode.

Display technology DLP™
Resolution 1080p Full HD (1920x1080)
Brightness 5,200 lumens
Contrast ratio 30,000:1
Contrast ratio - dynamic
3,00,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3,16:9,16:10
Keystone correction - horizontal
30°
Keystone correction - vertical
30°
Displayable colours (millions)
1073.4
Uniformity
75%

Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
1.13:1 ~ 1.47:1
Projection distance
1m - 8m
Zoom
1.3
Zoom type
Manual
Focal length
16.90 ~ 21.61
Native offset
116%

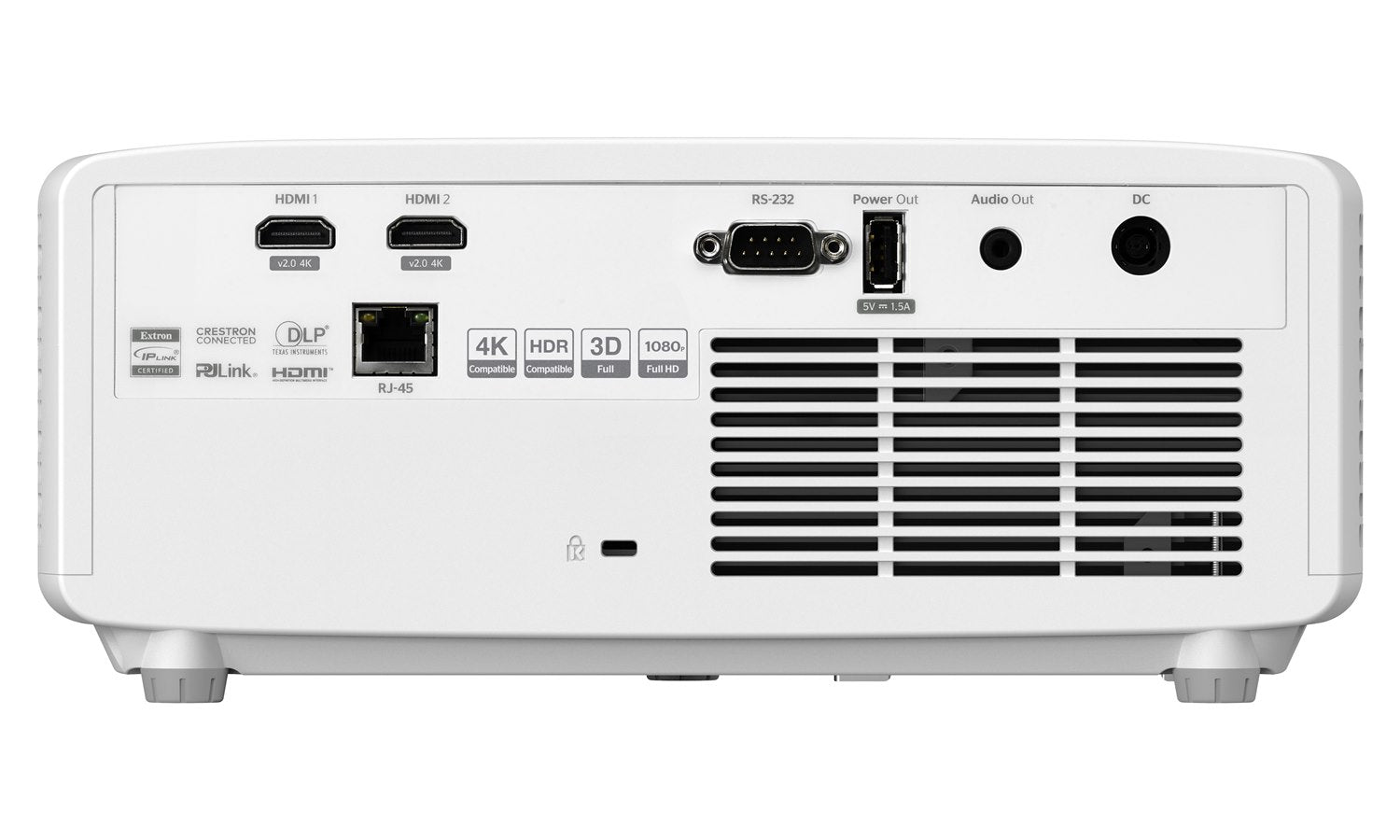

Connectivity Connections
Inputs 2 x HDMI 2.0
Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control 1 x RS232, 1 x RJ45
General
Noise level (min)
29dB
Noise level (max)
31dB
PC compatibility
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-r
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m
Remote control
Card style
Speaker count
1
Watts per speaker
15W

In the box
AC power cord
Remote control
1x CR2025 battery
Basic user manual

Power supply
External power supply, 100V ~ 240V, 50-60Hz
Power consumption (standby)
<0.5W
Power consumption (min)
160W
Power consumption (max)
258.75W
Weight and dimensions
Dimensions (W x D x H)
274 x 216 x 114
Gross weight
4.5 kg
Net weight
2.9 kg
