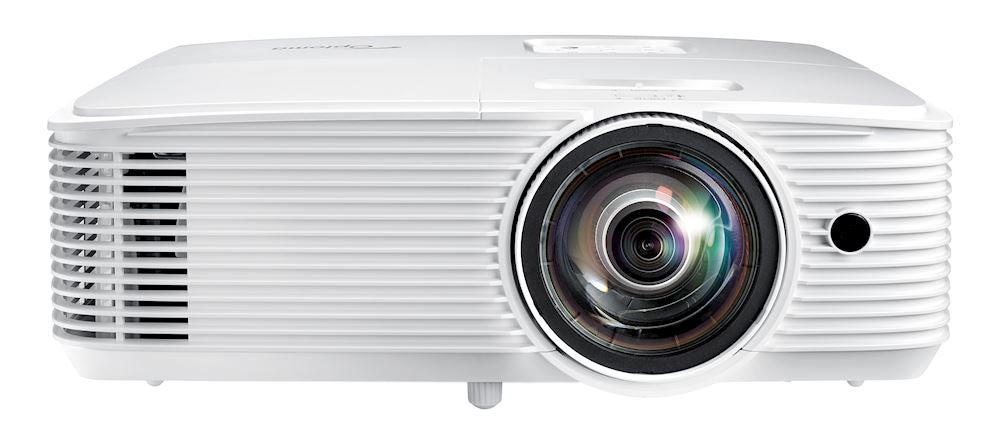

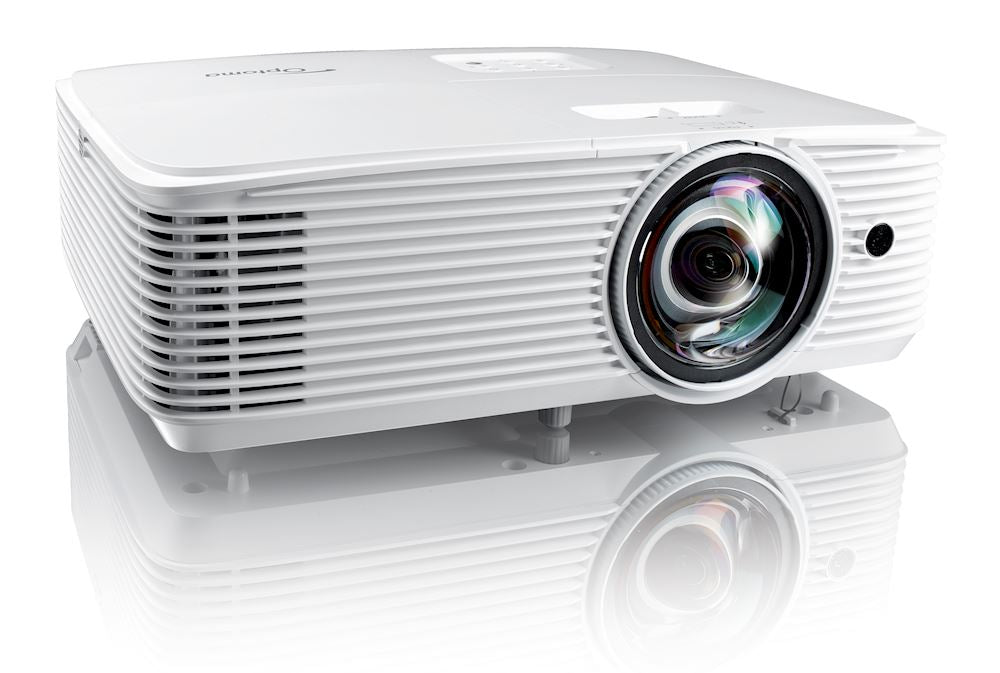

Optoma X309ST
Optoma X309ST
Short throw, bright and compact projector
Project bright and vibrant presentations effortlessly any time of day. Designed for small meeting rooms and classrooms, this short throw projector boasts amazing colour, a long lamp life and energy saving features for a lower overall cost of ownership.
Multiple inputs, USB power and a built-in speaker provide an easy set-up - perfect for connecting to laptop, PC or Blu-ray player for clear projected images with sound. You can even connect a HDMI dongle for wireless presentations.
Couldn't load pickup availability
Share
Features
Features
Bright XGA short throw projector – 3700 lumens
Short throw lens - 100" image from just over a metre away
Easy connectivity – HDMI, VGA, USB power
Clear, powerful audio - 10W speaker
Short Throw
With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.
Brighter Performance
With the high lumens brightness, it is definitely the best choice in medium-sized spaces. Lights on viewing, vibrant in all conditions.
Eco+ technology brings together high contrast, improved lamp life and energy saving features that are easy to use while reducing power consumption.
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
USB-Power
The built-in USB power output can be utilized to provide power for your streaming dongles such as Chromecast, HDCast Pro, or mobile devices. Charge your extended devices simply by plugging in your USB charging cable.
Low Noise: Quieter than a Whisper
Less than 30 dB in ECO mode.
Specification
Specification
Display technology DLP™
Resolution XGA (1024x768)
Brightness 3,700 lumens
Contrast ratio 25,000:1
Native aspect ratio
4:3
Aspect ratio - compatible
16:9
Keystone correction - vertical
+/-40°
Horizontal scan rate
15.38 ~ 91.15Khz
Vertical scan rate
50 ~ 85(120 for 3D)Hz
Uniformity
75%
Screen size
0.81m ~ 6.28m (31.9" ~ 247.3") diagonal
Lamp info
Light source type
Lamp
Lamp watts
203
Lamp life hours (up to)
6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
Optical
Throw ratio
0.617:1
Projection distance
0.4m - 3.1m
Focal length
7.15mm
Native offset
115%

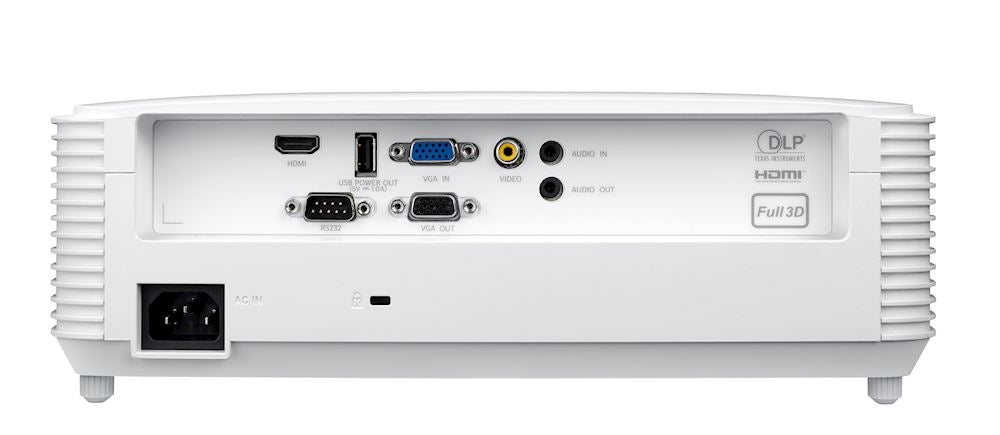

Connectivity Connections
Inputs 1 x HDMI 1.4a 3D support, 1 x VGA, 1 x Composite video, 1 x Audio 3.5mm
Outputs 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1A
Control 1 x RS232
General
Noise level (min)
26dB
Noise level (max)
28dB
PC compatibility
WUXGA,1080P,UXGA, SXGA+,SXGA ,WXGA+,WXGA,720P,XGA,SVGA,VGA
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Speaker count
1
Watts per speaker
10W
In the box
AC power cord
Remote control
Basic user manual
Power supply
100 ~ 240V, 50 ~ 60Hz
Power consumption (standby)
0.5W
Power consumption (min)
187W
Power consumption (max)
225W
Weight and dimensions
Dimensions (W x D x H)
316 x 244 x 108
Gross weight
3.87 kg
Net weight
2.9 kg
