Optoma ZK507-W
Optoma ZK507-W

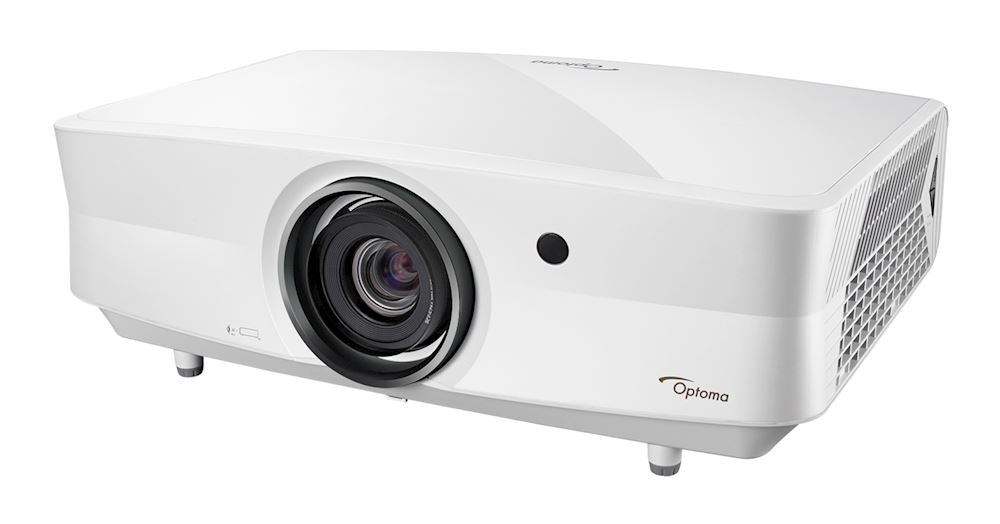

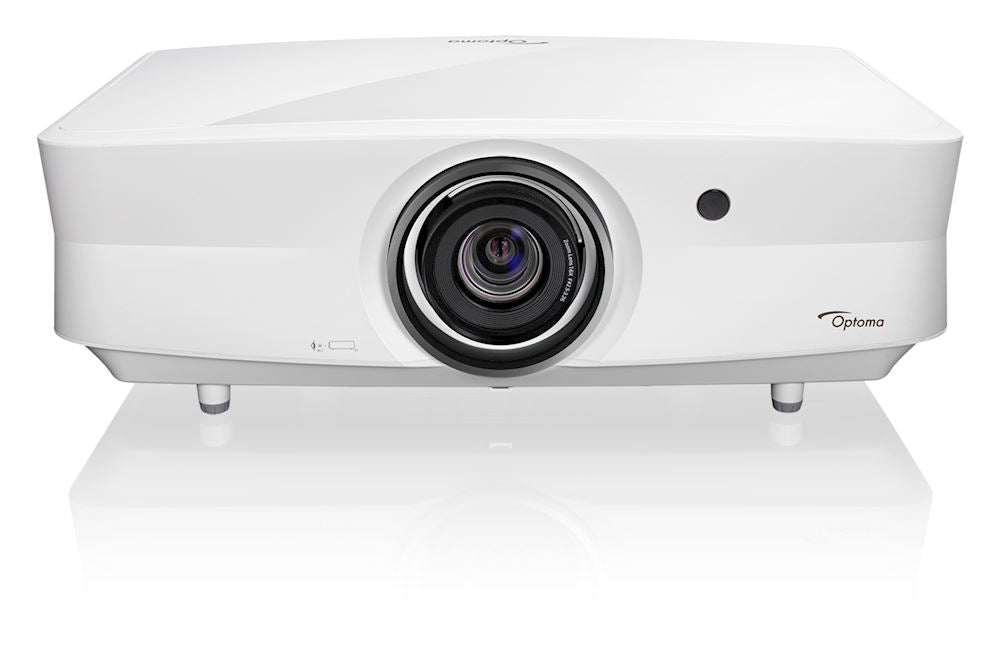

Optoma ZK507 4K ultra HD laser projector is perfect for large venues, education, museums, houses of worship and anywhere a clean bright image is required.
Packed full of features this advanced laser projector comes with a huge 1.6x zoom and vertical lens shift making it easy to install.
Couldn't load pickup availability
Share
Features
Features
Bright 4K UHD Laser Projector - 5000 lumens
HDR Compatible

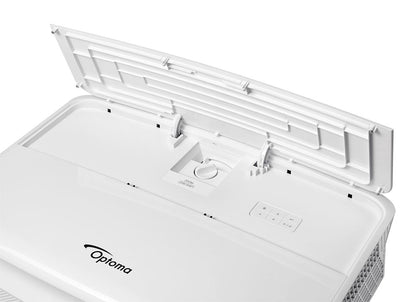

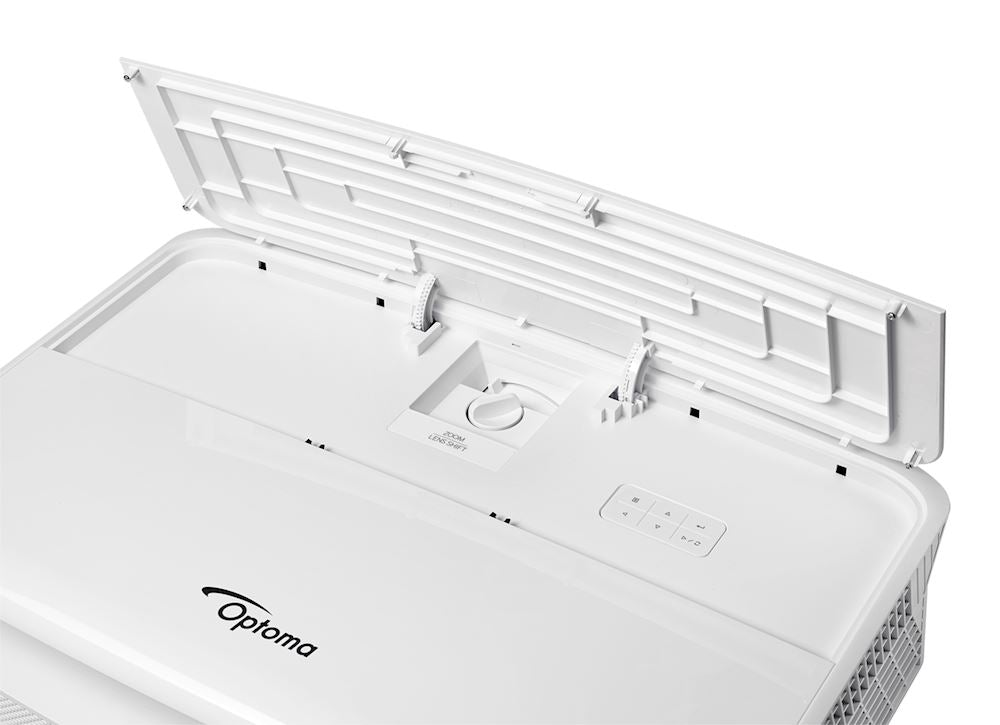

1.6 x zoom, vertical lens shift
30,000 hours maintenance-free laser light source
Specification
Specification
Display/image
Display technology DLP™
Resolution UHD (3840x2160)
Brightness 5,000 lumens
Contrast ratio 30,000:1
Contrast ratio - dynamic
3,00,000:1
Native aspect ratio
16:9
Aspect ratio - compatible
4:3,16:9
Displayable colours (millions)
1073.4
Horizontal scan rate
31 ~ 135Khz
Vertical scan rate
24 ~ 120Hz
Uniformity
70%
Screen size
0.67m ~ 7.68m (26.45" ~ 302.2") diagonal
Light source type
DuraCore Laser
LASER life
30,000 hours
Optical
Throw ratio
1.39:1 ~ 2.22:1
Projection distance
1.3m - 9.3m
Zoom
1.6
Zoom type
Manual
Focal length
20.91mm~32.62mm/0.823"~1.284"
Lens shift
Vertical +15%, Horizontal: +/-0%
Native offset
100%
Lens shift
Yes

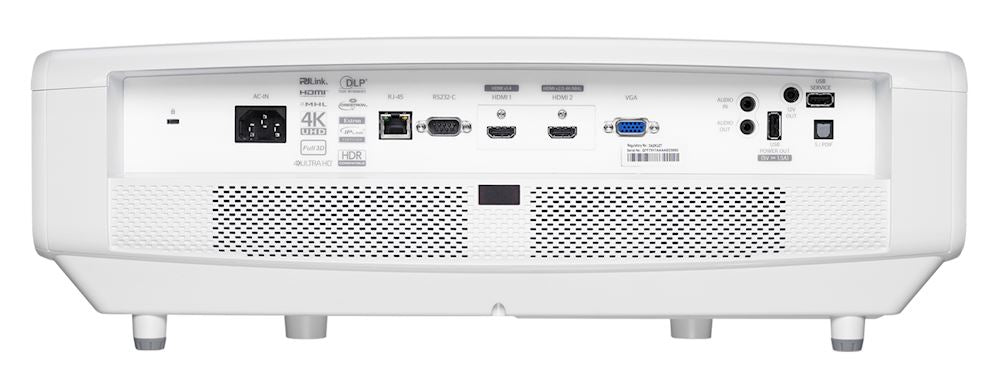

Connectivity Connections
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm
Outputs 1 x Audio 3.5mm, 1 x S/PDIF, 1 x USB-A power 1.5A
Control 1 x USB-A service, 1 x RS232, 1 x RJ45, 1 x 12V trigger
General
Noise level (min)
30dB
Noise level (max)
32dB
PC compatibility
UHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
UHD: 2160p(24/50/60Hz) / HDTV: 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz) / SDTV : 480i/p, 576i/p
3D compatibility
Frame packing, Side-by-Side, Top-and-Bottom
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
24/7 operation
Yes
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control
Backlit ProAV remote
Speaker count
2
Watts per speaker
5W
In the box
AC power cord
Remote control
Networking
LAN - control
Yes
Power
Power supply
100V ~ 240V, 50-60Hz
Power consumption (standby)
<0.5W
Power consumption (min)
328W
Power consumption (max)
444W
Weight and dimensions
Dimensions (W x D x H)
498 x 331 x 154
Gross weight
12.4 kg
Net weight
10.54 kg
