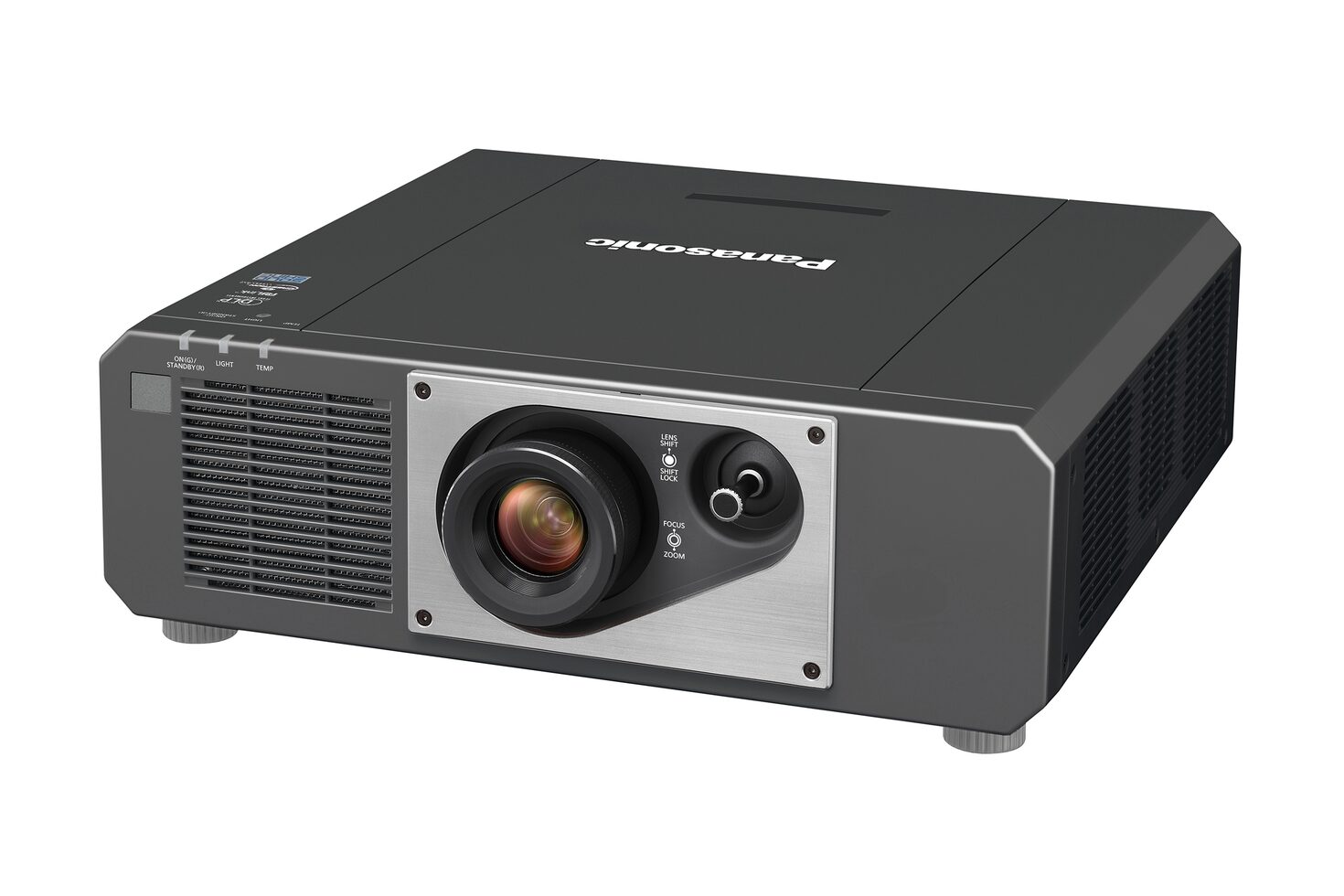

Panasonic PT-FRQ50

Smooth and Detailed 4K Image Quality
Quad Pixel Drive creates sharp, detailed 4K images with Rich Color Enhancer achieving vivid, accurate color. High-speed processing supports 240 Hz/1080p frame rates with latency of 8 ms or less for smooth, grid-less images.

Flexible, Simple to Use, and Easy to Integrate
V/H Lens-Shift and 2.0x zoom enhance installation flexibility while two CEC-compatible HDMI® inputs and DIGITAL LINK integrate into 4K infrastructure. Preactivated upgrade kits for Geo Pro and Remote Preview Lite secure an effortless 4K experience.

Highly Reliable Low-Maintenance Projection
Filterless heat-pipe-based cooling and hermetically sealed optical block support 20,000-hour maintenance-free projection. Optional Early Warning functions streamline management and enhance reliability in museums, classrooms, and offices.

Projector type 1-Chip DLP™ projector
DLP™ Chip | Panel Size 16.5 mm (0.65 in) diagonal (16:9 aspect ratio)
DLP™ Chip | Display Method DLP™ chip x 1, DLP™ projection system
DLP™ chip | Number of Pixels*1 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.)

Light Source Laser diodes
Light Output : 5,200 lm
Time until light output declines to 50 %
20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution 4K (3840 x 2160 pixels) (With Quad Pixel Drive)
Contrast Ratio 20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input)
Screen Size (Diagonal) 1.02–7.62 m (40–300 in), 16:9 aspect ratio
Center-to-corner zone ratio 90 %
Lens 2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm
Lens shift | Vertical(From the origin point of the lens mounter) +71 %, -48 % (manual)
Lens shift | Horizontal(From the origin point of the lens mounter) +34 %, -27 % (manual)
Keystone Correction Range Vertical: ±40 °, Horizontal: ±20 °

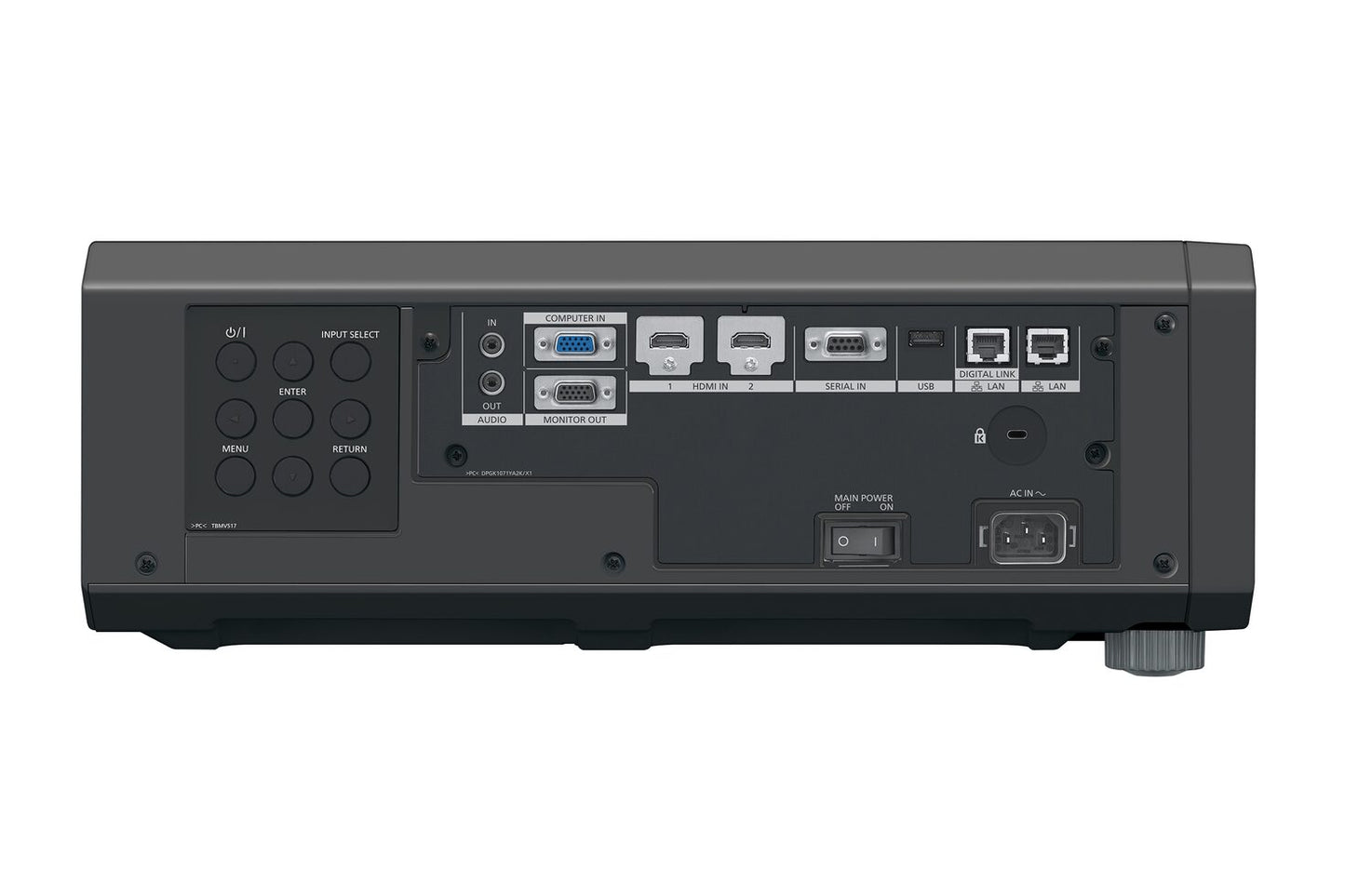

Terminals | HDMI IN 1/2
HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input 5), CEC supported
Terminals | Computer In D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | Monitor Out D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | Audio In/Out M3 stereo mini-jack x 2
Terminals | Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input 6 )
Terminals | LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
Terminals | USB USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A)

Power Supply AC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan)
Power Consumption 480 W
Operation Noise*2 35 dB (NORMAL/ECO) / 28 dB (QUIET
Dimensions (W x H x D)*7 498 x 168 x 492 mm (19 5/8˝ x 6 5/8˝ x 19 3/8˝ )

Weight Approx. 16.1 kg (35.5 lbs)
Operating Environment Operating temperature: 0–45 °C (32–113 °F 9), operating humidity: 10–80 % (no condensation)

Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro 10
