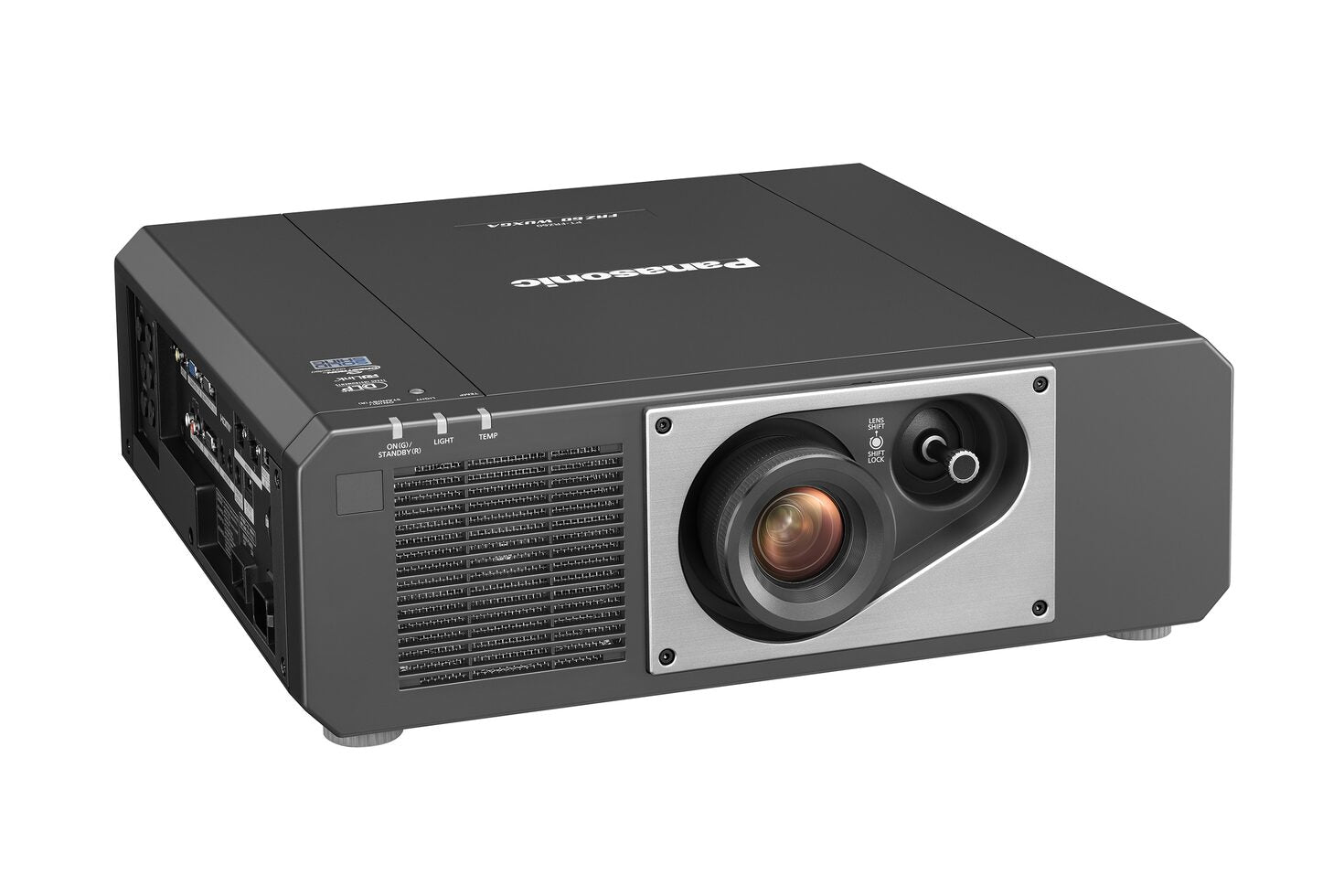

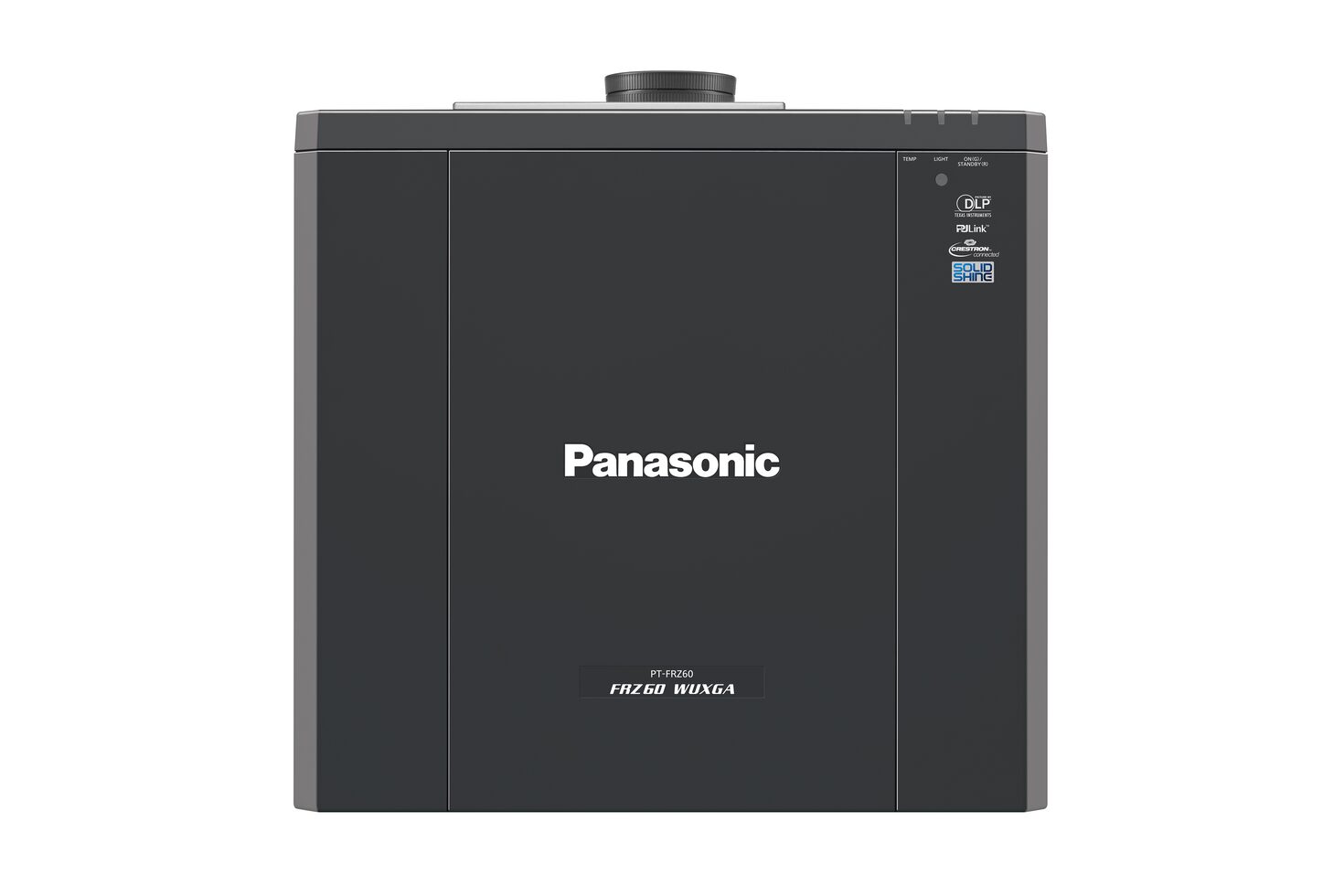

Panasonic PT-FRZ60

Dynamic Colour for Bright Rooms
Brilliant Colour Reproduction
Quartet Colour Harmonizer is an original colour-wheel mechanism featuring optimized optical design. It modulates light-output according to the image’s colour requirements, achieving wide-gamut reproduction with pure white for greater colour accuracy and depth without sacrificing brightness. Combined with stable SOLID SHINE Laser brightness and the superior uniformity of DLP™ imaging, colours appear richer and brighter without the greenish cast sometimes experienced with alternative projection technologies.

Rich Colour Enhancer
Rich Colour Enhancer includes a Dynamic Mode that prioritizes image brightness, and a Graphic Mode/Standard Mode to suit graphical content. This mode adjusts colour-wheel timing for deeper colour saturation in situations where projection at maximum brightness is not required.

Quiet, Versatile, and Easy to Install

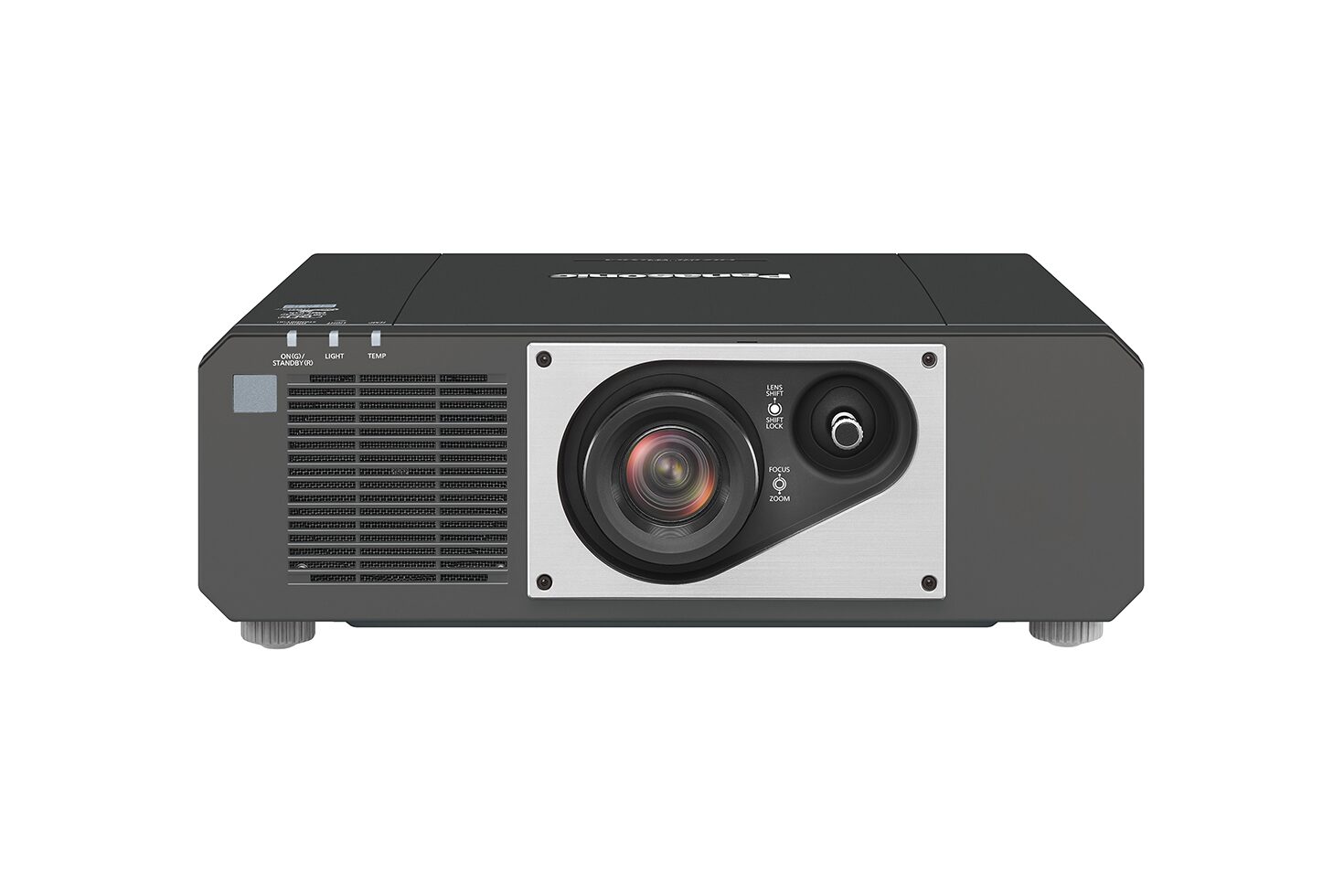

Wide-Range 2.0x Zoom Lens with Lens-Shift
To smooth the path to stress-free installation, the projectors equip a 2.0x optical zoom lens that supports a wide range of throw-distances while filling your screen with a large, bright image. V/H Lens-Shift (Vertical: +64 %, -44 % and Horizontal: +34 %, -27 %) locates the image on screen when optimal projector placement isn’t possible, such as in rooms with high ceilings or for angled projection applications. The projectors share the same 2.0x zoom lens and lens-shift adjustment as our PT-RZ570 (and will fit the same mounting bracket), making the PT-FRZ60/FRZ50 a streamlined, cost-effective replacement. V/H Keystone Correction (Vertical: ±40 °, Horizontal: ±20 °), curved-screen correction, and Auto Image Rotation function are included to further enhance installation flexibility.

Proven SOLID SHINE Laser Reliability
SOLID SHINE Laser for Dependably High Brightness
PT-FRZ60 and PT-FRZ50 have durable solid-state laser modules in place of a consumable lamp. The benefits of laser projection are emphatically proven, with no need for consumable parts replacement over years of continuous 24/7 projection and a shallower brightness ramp with superior colour uniformity. Experience better picture quality for longer at a comparably lower cost. Another advantage is the ability to switch the unit on and off from the room breaker any time without risking damage to the light-source.

Filter less Cooling and Airtight Optical Block
Implementation of heat-pipe-based cooling with heat-sinks for the DMD block eliminate need for an air filter. These projectors can operate continuously in dusty environments for 20,000 hours without maintenance thanks to a hermetically sealed optical engine that prevents dust intrusion and associated image degradation.

Projector type 1-Chip DLP™ projector
DLP™ Chip | Panel Size 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
DLP™ Chip | Display Method DLP™ chip x 1, DLP™ projection system
DLP™ chip | Number of Pixels 2,304,000 (1920 x 1200 pixels)
Light Source Laser diodes
Light output 6,000 lm*1/6,200 lm (Center)*2
Time until light output declines to 50 %*3 20,000 hours (NORMAL)
Resolution 1920 x 1200 pixels
Contrast Ratio*1 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON)
Screen size [diagonal] 1.02–7.62 m (40–300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 90 %

Lens 2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm
Lens shift | Vertical(From the origin point of the lens mounter) +64 %, -44 % (manual)
Lens shift | Horizontal(From the origin point of the lens mounter) +34 %, -27 % (manual)
Keystone Correction Range Vertical: ±40 °, Horizontal: ±20 °. When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously,
correction cannot be made exceeding a total of ±60 °.
Installation Ceiling/floor, front/rear, free 360-degree installation

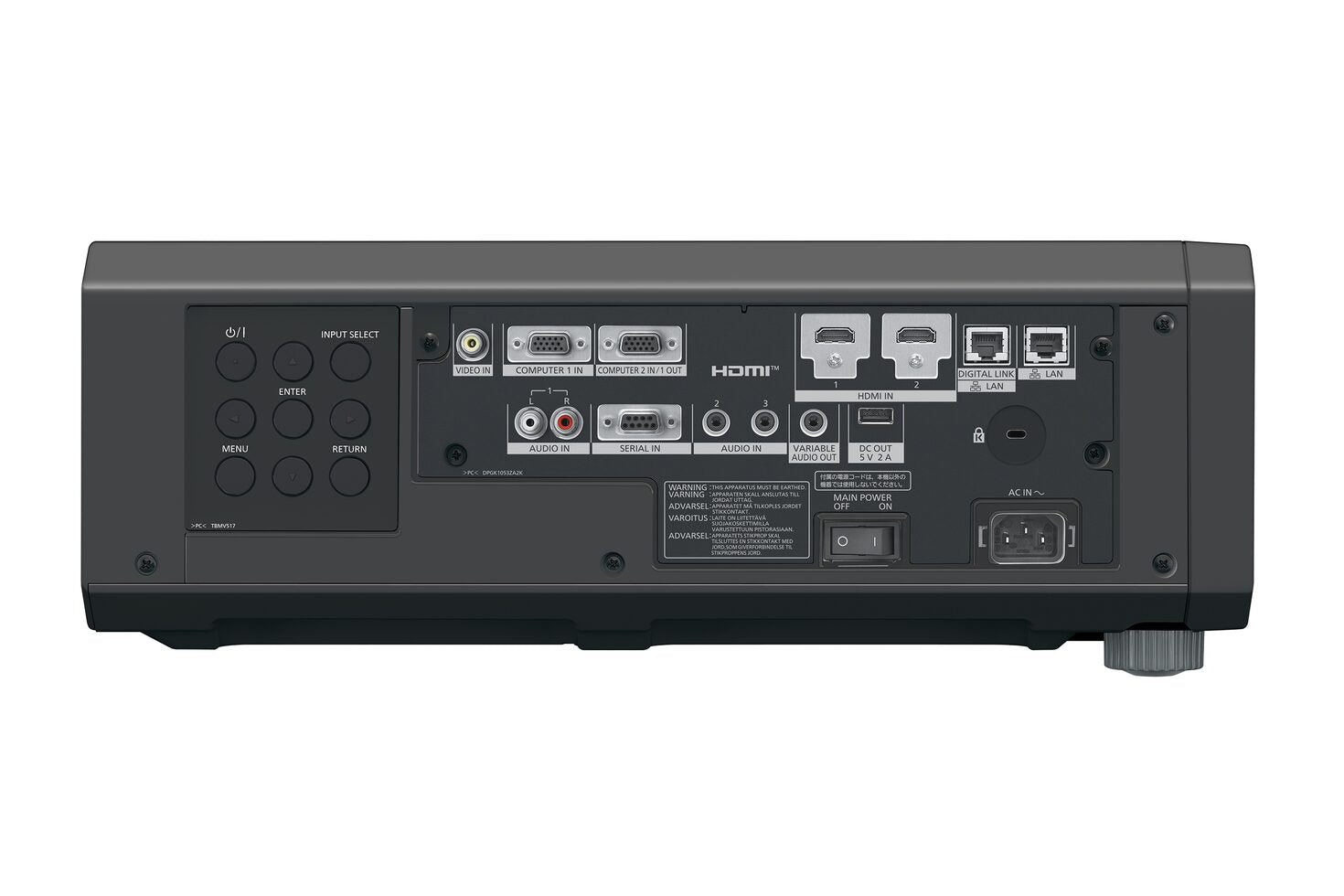

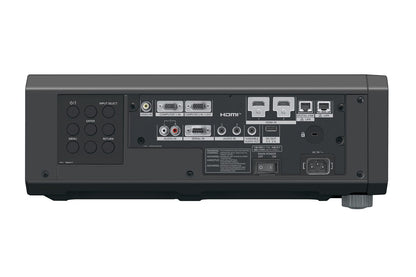

Terminals | HDMI In HDMI 19-pin x 2 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*4 ), CEC supported
Terminals | Computer 1 In D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC)
Terminals | Computer 2 In/1 Out D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC)
Terminals | Video In Pin jack x 1 (composite video)
Terminals | Audio In 1 Pin jack x 2 (L, R)
Terminals | Audio In 2/3 M3 x 1/M3 x 1
Terminals | Audio Out M3 x 1 (Variable)
Terminals | Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible,4K/60p signal input*4
Terminals | LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals | USB USB connector (Type A) x 1 (Output 5 V/2 A)

Power Supply AC 100–240 V, 50/60 Hz
Power Consumption TBD
Cabinet Materials Molded plastic
Operation noise*1 30 dB (Quiet Mode) (TBD), 35 dB (Normal Mode) (TBD)
Dimensions (W x H x D) 498 x 168*5 x 492 mm (19 5/8˝ x 6 5/8˝*5 x 19 3/8˝ )
Weight*6 Approx. 16.6 kg (36.6 lbs) (TBD)
Operating Environment Operating temperature: 0–40 °C (32–104 °F),operating humidity: 10–80 % (no condensation) (TBD)

Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software
