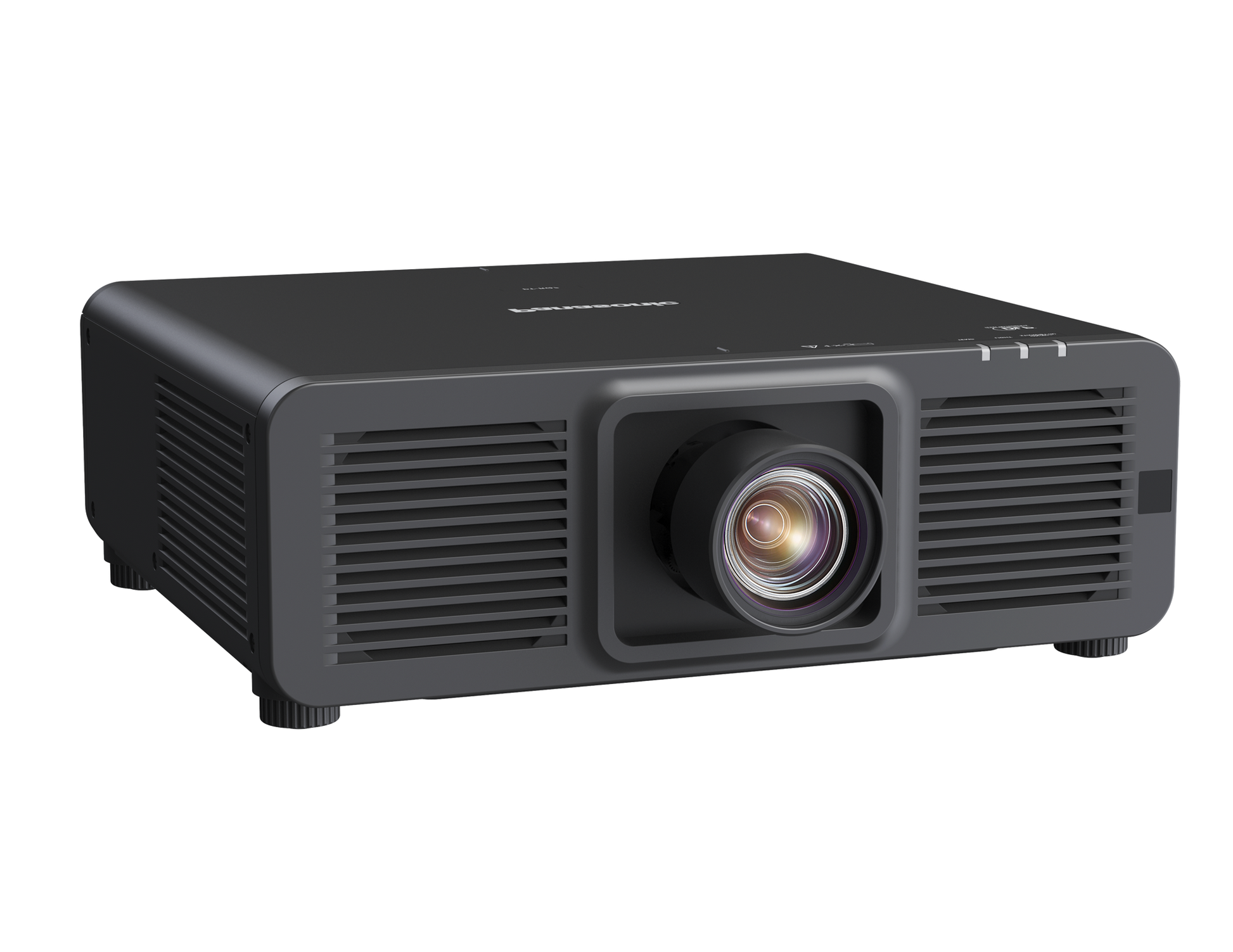

Panasonic PT-RQ7L

Making immersive 4K Visuals Accessible
Positioned between the FRQ60 Series and the REQ12 Series, the RQ7 Series expands our 4K projector offerings to give integrators more choice. Experience smooth 4K1 visuals courtesy of Quad Pixel Drive2 with rich color and minimal blur. Project 240 Hz/1080p content3 and fuse digital and analog elements seamlessly with our Real-Time Tracking Projection-Mapping System4. Improved Dynamic Contrast boosts visual impact, while a new Museum Mode further optimizes image quality.

Compact Design for an Effortless Workflow
Weighing just 18 kg (39.7 lbs) and about 29 % smaller than the existing RZ790/RZ690 models, the RQ7 Series reduces the logistical burden and your carbon footprint. Optional Intel® SDM standard SLOT-compatible function boards5, including Panasonic’s new ET-SBFMP10 media processor board6, adapts, scales, and expands projector connectivity. Save time with preactivated Geo Pro7 upgrade kits and use your existing Panasonic DLE Series lenses.

Stable, Reliable, and Efficient Projection
Project sustainably with lasting picture quality. The energy-efficient optical engine and laser light source module conform to the IP5X Dust Protected (IEC 60529) standard8, while a filterless design reduces waste and enables maintenance-free operation for 20,000 hours9. Multi-Laser Drive Engine and Backup Input10 maintain image display in the event of trouble, securing a repeatable guest experience.

Projector type 1-Chip DLP™ projector
DLP™ Chip
Panel Size 16.5 mm (0.65 in) diagonal (16:9 aspect ratio)
Display Method DLP™ chip x 1, DLP™ projection system
Number of Pixels 2,073,600 (1920 x 1080 pixels)

Light Source Laser diodes
Light Output 7,500 lm
Time until light output declines to 50 %
20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Resolution
4K (3840 x 2160 pixels) (Quad Pixel Drive: ON)
Contrast Ratio*2 15,000:1 (Full On/Full O , Dynamic Contrast [3]) (TBD)
Center-to-corner zone ratio*2 90%
Lens Optional (no lens included with this model)
Keystone Correction Range TBD
Installation Ceiling/floor, front/rear, free 360-degree installation

Terminals | HDMI™ IN HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input5)
Terminals | Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial Out D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals | Remote In M3 stereo mini-jack x 1 for wired remote control
Terminals | Remote Out M3 stereo mini-jack x 1 for link control (for wired remote control)
Terminals | DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p5, 6 signal input)
Terminals | LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals | USB USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory (dual-use with DC OUT terminal)
Terminals | DC Out USB Type A x 1 (for power supply, DC 5 V, 2 A)
Terminals | Expansion Slot Open slot for function boards, Intel® SDM compatible
Protocol versions IPv4, IPv6*7

Power Supply AC 100–240 V, 50/60 Hz
Maximum power consumption*8 650 W (6.6–2.9A) (660 VA) (TBD)
On-mode power consumption (Operating mode) *8
NORMAL 500 W (TBD)
ECO 370 W (TBD)
QUIET 365 W (TBD)
Cabinet Materials Molded plastic
Operation Noise*2 35 dB (NORMAL/ECO), 32 dB (QUIET) (TBD)

Dimensions (W x H x D) Approx. 498 x 170 x 440 mm (19 19/32˝ x 6 11/16˝ x 17 5/16˝) (With legs at shortest position, excluding lens and protruding parts) (TBD)

Weight *9 18.0 kg (39.7 lbs) or less (TBD)
Operating Environment Operating temperature: 0–45 °C (32–113 °F)10, operating humidity: 10–80 % (no condensation)

Applicable Software Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System11, Geometry Manager Pro, Smart Projector Control for iOS/Android™
Control function via LAN Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2)
