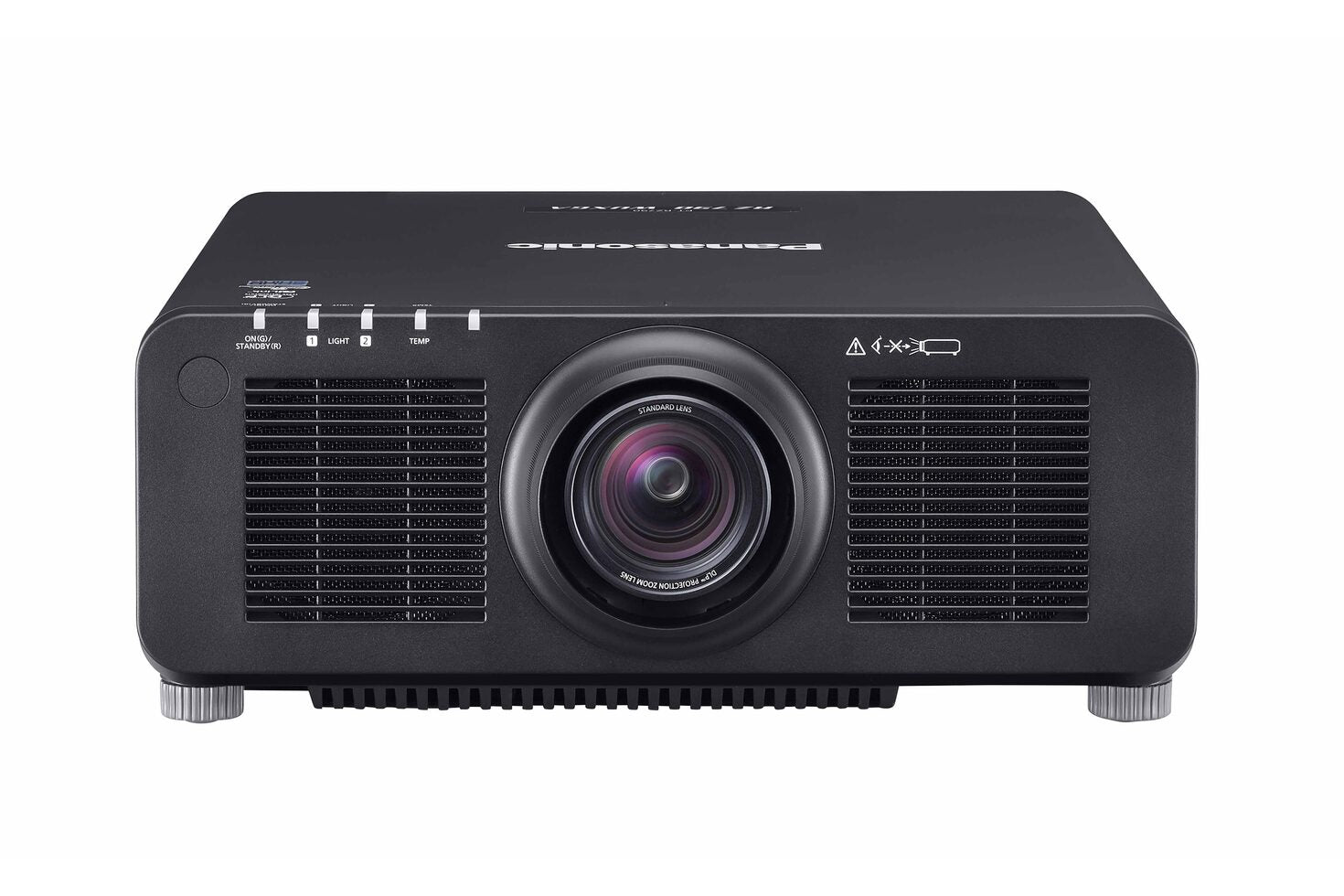

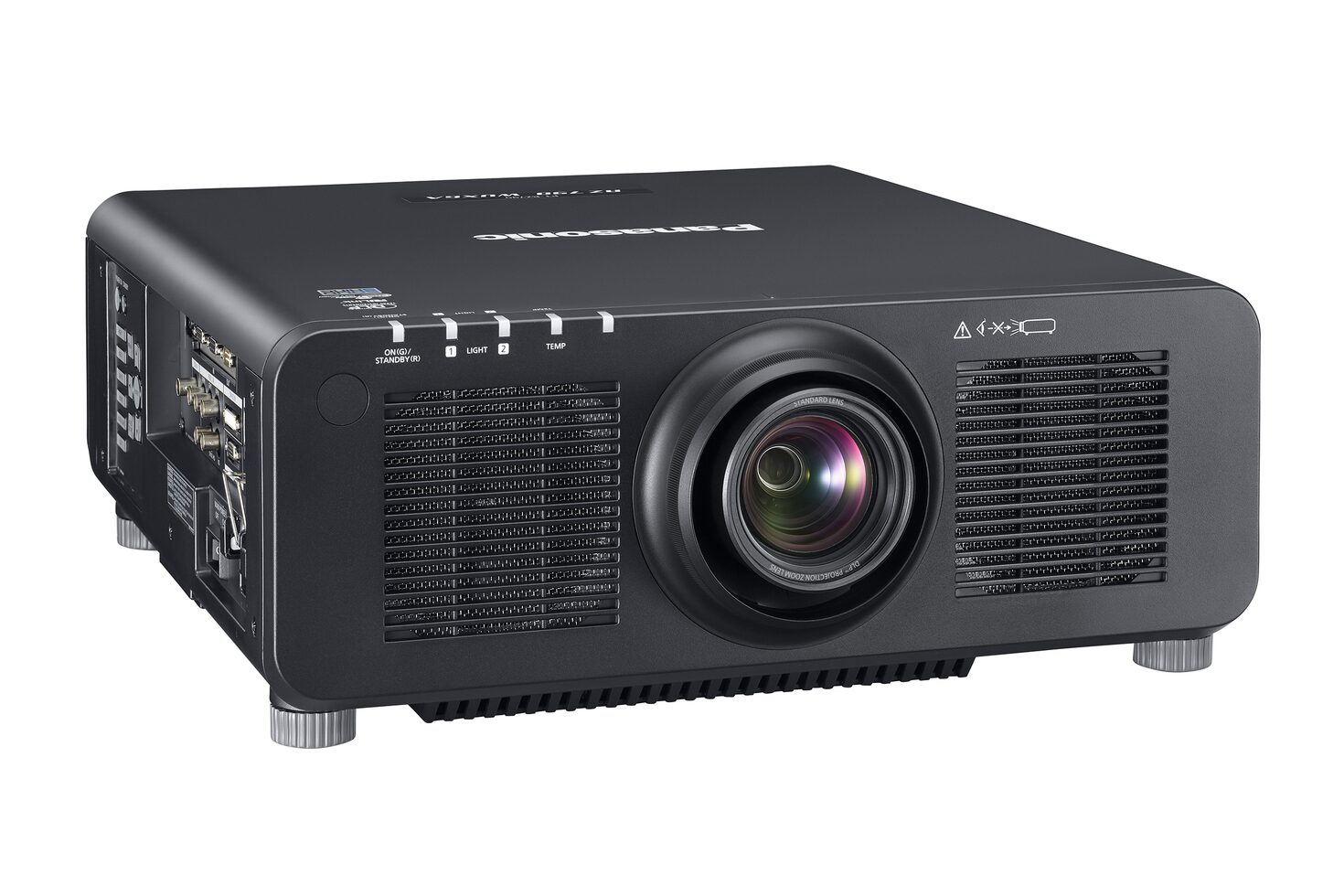

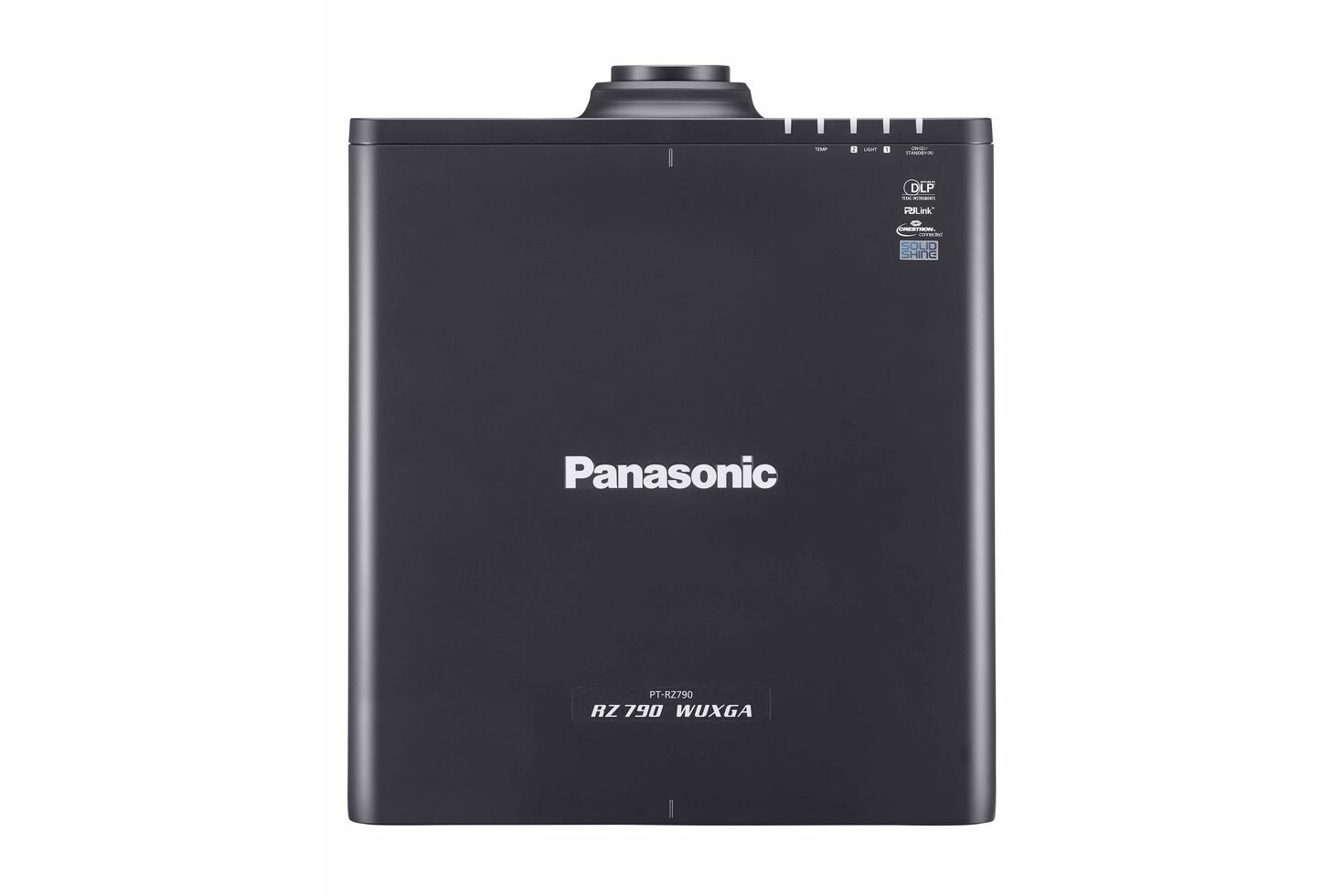

Panasonic PT-RZ990

Power to impress with accurate colours
Panasonic Quartet Colour Harmonizer Realizes High Brightness and Accurate Colours
Expect saturated colour and finely expressed detail from next-generation 1-Chip DLP™ technology without sacrificing brightness thanks to Quartet Colour Harmonizer, an original colour-wheel technology with optimized optical design that precisely modulates light-source output according to colour requirements.

Easy to install and integrate
Supports 4K/60p Signal Input
PT-RZ990 Series supports uncompressed 4K/60p signal input* via HDMI® or DIGITAL LINK terminals. The ability to play Ultra HD video at the projector’s actual resolution is useful when the same signal is distributed to multiple endpoints of differing display resolutions, making the hassle and expense of external converters a thing of the past. These projectors fit your system infrastructure and work flawlessly with other 4K-ready display devices.

* 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.

Accept 4K Signals
Optional Lenses Offer New Creative Possibilities
Eleven optional interchangeable lenses cover every installation situation at wide throw-distances from 0.280:1 to 8.58:1. Compatible lenses include the ET-DLE020 Ultra-Short-Throw Zoom Lens. As the world’s first UST lens with optical zoom, a range of post-installation adjustments are enabled via zoom and V/H lens-shift with zero screen offset. The mirrorless, aspherical glass lens suits compact projector bodies to enable front- or rear-projection in spaces otherwise too small to support short-throw projection.

Geometric Adjustment with Free Grid Correction
PT-RZ990 benefits from a proprietary Free Grid function built into onboard Geometric Adjustment that supports grid-based image adjustment via remote control. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x 17 can be projected and areas of the image reshaped or geometrically altered to fix screen distortion. This correction is performed by adjusting control-points at grid-line intersections. Move freely between grid resolutions to achieve the desired level of granularity without losing work progress. This clever data-saving function allows technicians to quickly create a distortion-free image.


Reliable Even in Harsh Conditions
Filter less Projector Structure with Airtight Optical Block
Heat-pipe-based filter less cooling, dust-resistant architecture, and efficient airflow path enable deployment of a hermetically sealed optical engine. With dust resistance exceeding the industry’s toughest guidelines, you’re assured of a linear brightness ramp, superior colour uniformity, and maintenance-free projection for 20,000 hours*1. These benefits are welcome when the projector is installed in a difficult-to-access location.

*1 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until brightness decreases to 50 % varies depending on environment and usage conditions

Dual Lasers for Failsafe Reliability
Dual laser optical engine groups diodes into two discrete modules. A redundancy circuit works to minimize brightness- and colour-uniformity loss in the unlikely event a diode fails, making supported products ideal for applications where picture presentation must be maintained.

Projector type 1-Chip DLP™ projector
DLP™ Chip | Panel Size 17.0 mm (0.67 in) diagonal ( Panel size 16:10 aspect ratio)
DLP™ Chip | Display Method DLP™ chip x 1, DLP™ projection system
DLP™ chip | Number of Pixels 2,304,000 (1920 x 1200 pixels)
Light Source Laser diodes
Light output 9,400 lm (Normal)*1 /10,000 lm (Center)*2 / 7,500 lm (Eco)*1 /8,000 lm (Quiet 1)*1 / 6,000 lm (Quiet 2)*1 /3,700 lm (Long Life 1)*1 / 3,100 lm (Long Life 2)*1 /2,500 lm (Long Life 3)*1
Time until light output declines to 50 %*3 20,000 hours (Normal/Quiet 1/Quiet 2)/24,000 hours (Eco)
Resolution 1920 x 1200 pixels
Contrast Ratio*1 10,000:1 (Full On/Full Off, Dynamic Contrast

Screen size [diagonal] 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio
Center-to-corner zone ratio*1 90 %
Lens With supplied lens: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm Without lens: Optional powered zoom/focus lenses
Lens shift*4 | Vertical(From the origin point of the lens mounter) +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)

Lens shift*4 | Horizontal(From the origin point of the lens mounter) +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)

Keystone Correction Range Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)

Keystone correction range with optional ET-UK20 Upgrade Kit Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.

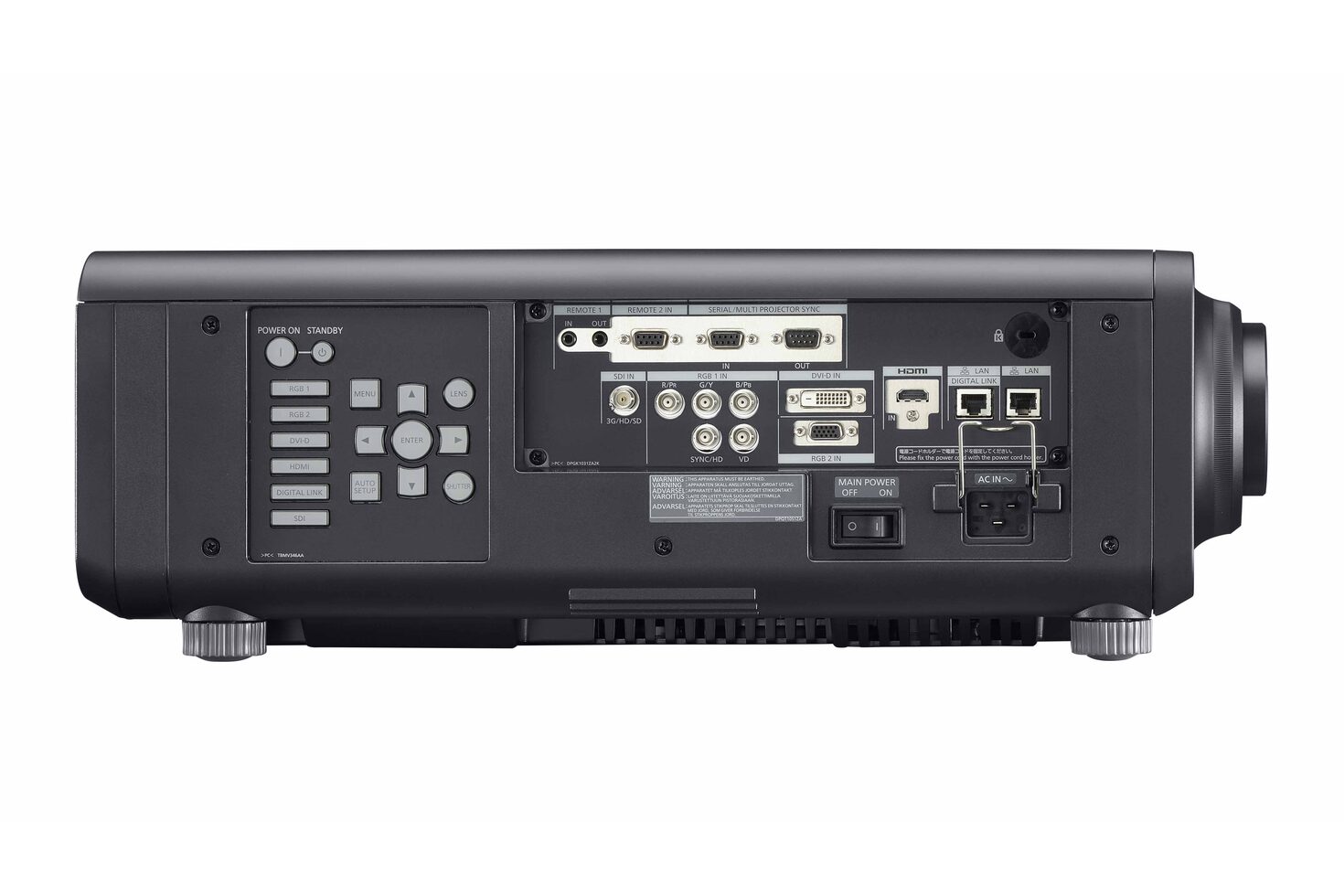

Terminals | SDI In BNC x 1: 3G/HD/SD-SDI input
Terminals | HDMI In HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5 )
Terminals | DVI-D In DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Terminals | RGB 1 In RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
Terminals | RGB 2 In D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
Terminals | Serial/Multi Projector Sync In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial/Multi Projector Sync Out D-sub 9-pin (male) x 1 for link control
Terminals | REMOTE 1 IN M3 x 1 for wired remote control
Terminals | REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
Terminals | Remote 2 In D-sub 9-pin (female) x 1 for external control (parallel)
Terminals | DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5
Terminals | LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible

Power Supply AC 100–240 V, 50/60 Hz
Power Consumption 735 W (Normal)/575 W (Eco)/490 W (Quiet 1)/ 365 W (Quiet 2)/265 W (Long Life 1)/ 235 W (Long Life 2)/205 W (Long Life 3)
Operation noise*1 40 dB (Normal) / 36 dB (Quiet 1) / 35 dB (Quiet 2)
Dimensions (W x H x D) With supplied lens: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) Without lens: 498 x 200*6 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝)
Weight*7 With supplied lens: Approx. 23.0 kg (50.7 lbs) Without lens: Approx. 22.2 kg (48.9 lbs)

Operating Environment Operating temperature: 0–45 °C (32–113 °F)*8 , operating humidity: 10–80 % (no condensation)
Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
