Dynaudio S4-LCRMT
Dynaudio S4-LCRMT
The Dynaudio S4-LCR65 system is modular, its separate woofer and tweeter modules are designed to fit snugly in the spaces between standard American 16" on-center wall-studs. That means you can configure a full three-way LCR array with no modifications – and no more effort than it takes to spec the rest of the system.
Couldn't load pickup availability
Share
Features
Features

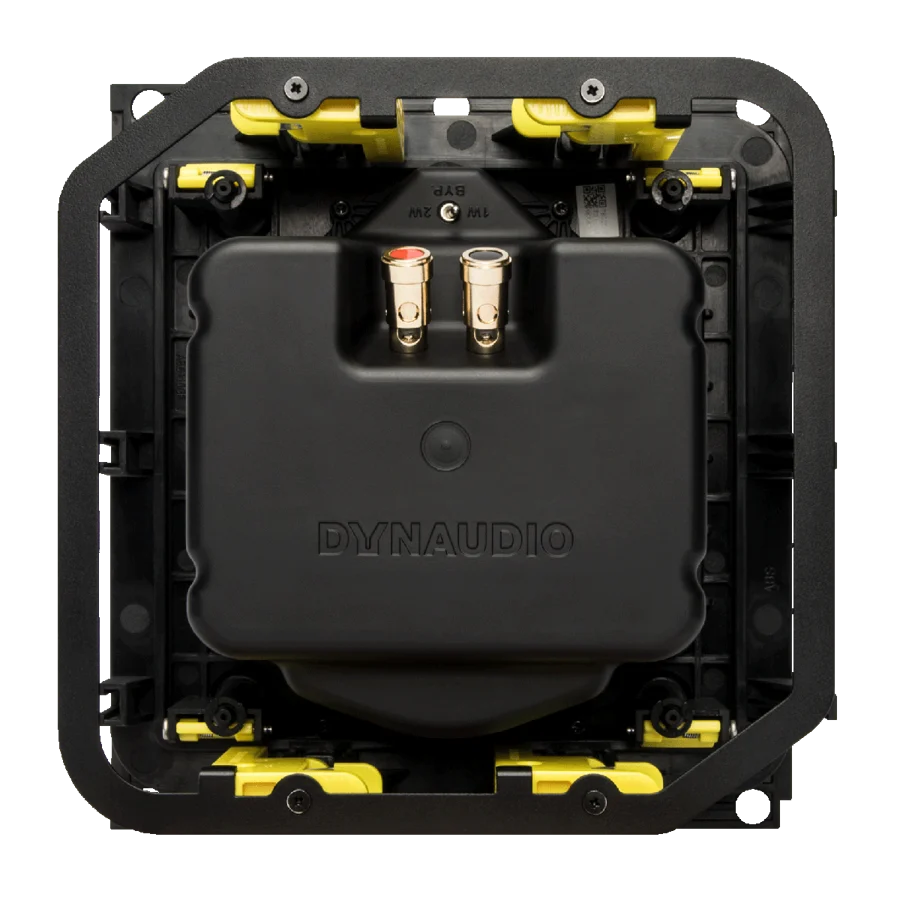

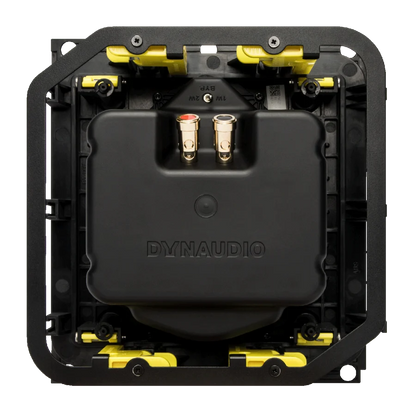

The Dynaudio Custom range, all the modules fit into their frames without any tools required. And each module uses a passive crossover with a three position switch, pre-configured to standard LCR channel configurations that use one or two connected woofer modules.
There’s also a bypass position to enable an unlimited
number of fully active and completely customised S4-LCR65 system setups with external DSP processing and a dedicated amplifier channel for every driver.
Specification
Specification
Segment : Custom Install
Series : Studio

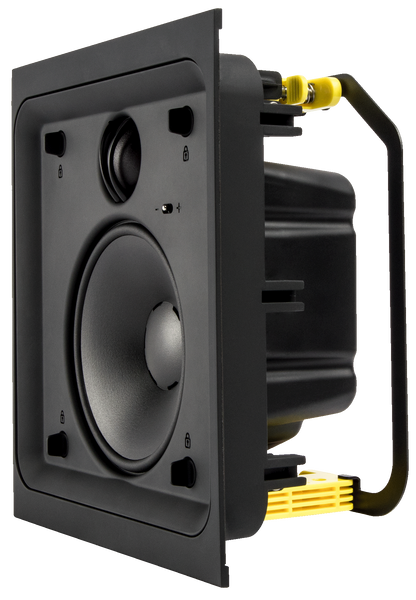

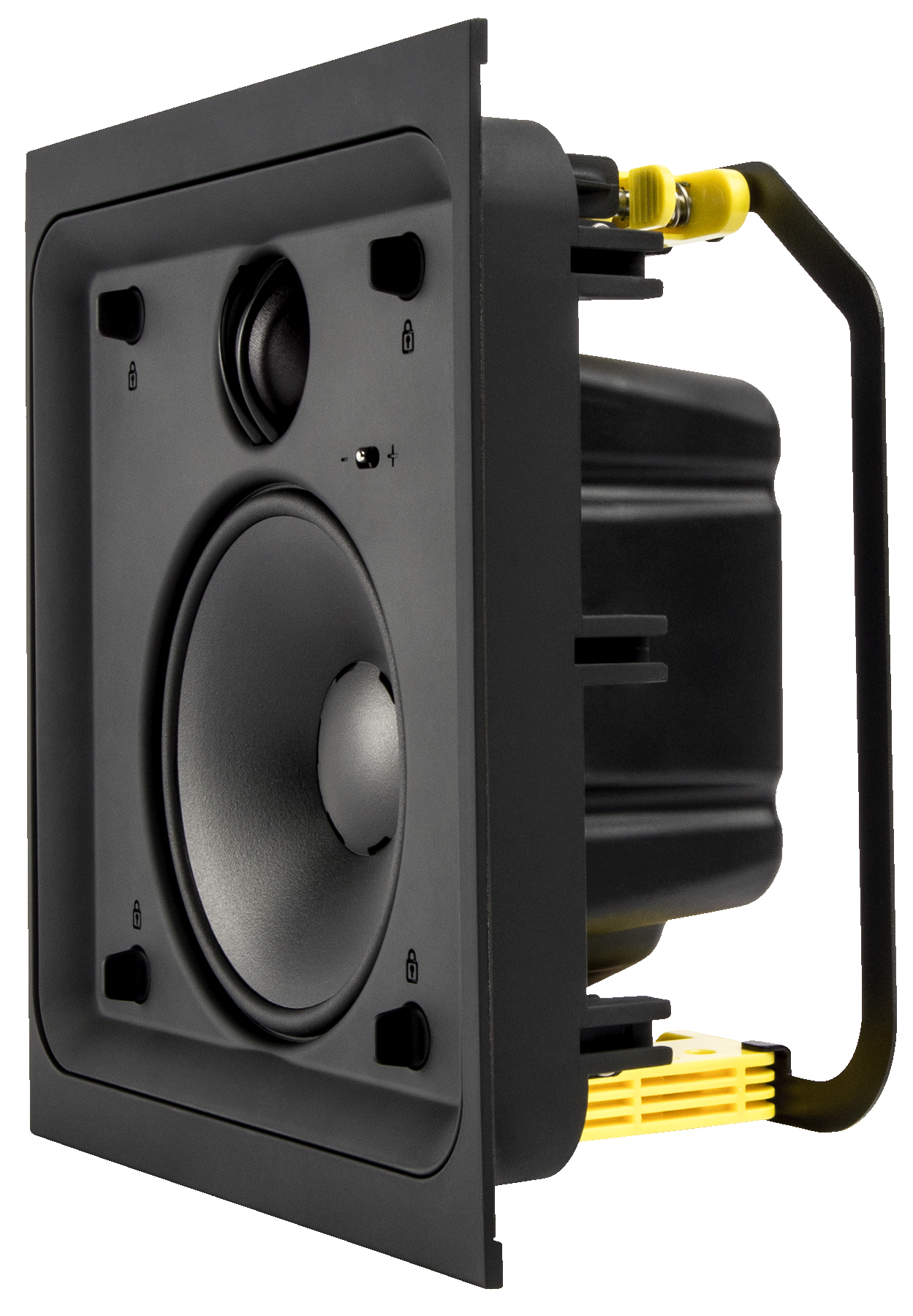

Type : In-wall tweeter/mid module
Sensitivity (dB @ 2.83V/1m) : 89
Rated Power : 50
Long Term Power : 150
Rated Impedance (Ohm) : 8
Impedance (Minimum) : 5
Lower Cutoff (Hz @ +/- 3 dB) : 250
Upper Cutoff (kHz @ +/- 3 dB) : 20
Crossover : 2-way
Tweeter : 28 mm soft dome
Midrange : 10 cm MSP
Tweeter level options : -3dB, 0dB, +3dB
Width mm : 235
Height mm : 213
Depth mm : 90
Width inches : 9 1/4
Height inches : 8 3/8
Depth inches : 3 9/16
Width Cutout mm : 190
Height Cutout mm : 213
Height cutout inches : 7 4/8
Width cutout inches : 8 3/8
Grille material : Painted steel
Grille options : Rectangular
Grille attachment : Magnetic
Grille finish : White (paintable)
