Dynaudio S4-W80
Dynaudio S4-W80
Give your room the sound it deserves, with the Studio range’s biggest in-wall speaker.
Just add music. Or movies, for that matter. Whatever you’re listening to, the S4-W80 in-wall speaker from Dynaudio’s Custom Architectural Studio range delivers all the accuracy and refinement of the smaller S4-W65, and turns it up a notch.
Offering a bolder, even more authoritative sound, the S4-W80 makes easy work of bigger rooms. That’s thanks to its larger 20cm mid/bass driver, which – like the rest of the Custom Studio range – is matched with Dynaudio’s iconic 28mm soft-dome tweeter for a treble that sings.
Couldn't load pickup availability
Share
Features
Features

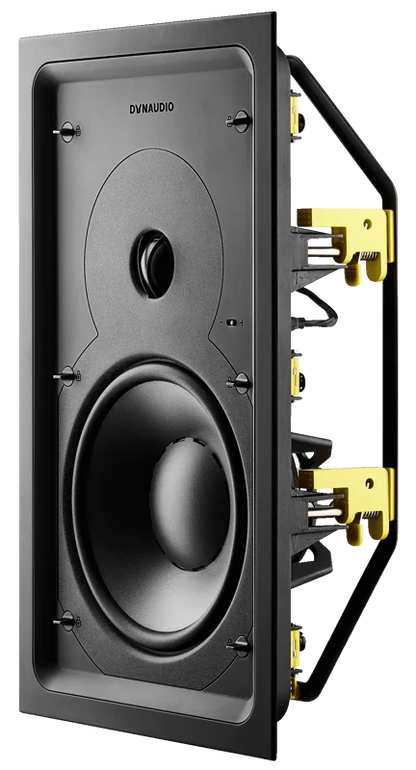

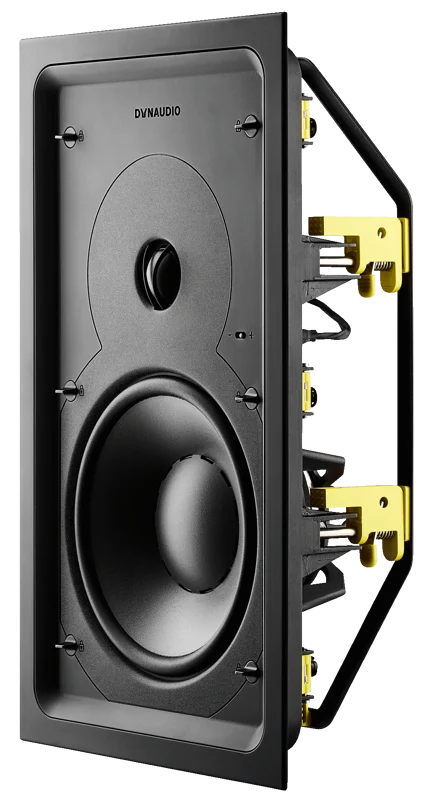

The in-wall frames can be installed either way up and, like our in-ceiling units, have paintable magnetic grilles that can be swapped out if the room’s design changes.
The frames even retrofit in many existing popular-sized cavities – meaning no tearing down
walls.
In-wall (8in)
• Pre-install frame for ultra-simple tool-free fitting
• Unique patent-pending baffle latch for mounting speakers
• Paintable magnetic grille (rectangular)
• Internal magnet system for greater voice-coil control
• Designed and engineered in Skanderborg, Denmark
• Tuned by decades of high-quality audio expertise
Specification
Specification
Segment : Custom Install
Series : Studio
Type : In-wall
Sensitivity (dB @ 2.83V/1m) : 89
Rated Power : 100
Long Term Power : 140
Rated Impedance (Ohm) : 8
Impedance (Minimum) : 5
Lower Cutoff (Hz @ +/- 3 dB) ; 45
Upper Cutoff (kHz @ +/- 3 dB) : 20
Crossover : 2-way
Tweeter : 28 mm soft dome
Midrange/Woofer : 20 cm MSP
Tweeter level options : -3dB, 0dB, +3dB
Width mm : 236,5
Height mm : 391,5
Depth mm : 99
Width inches : 9 5/16
Height inches : 15 3/8
Depth inches : 3 15/16
Width Cutout mm : 215
Height Cutout mm : 370
Height cutout inches : 8 4/8
Width cutout inches : 14 5/8
Grille material : Painted steel
Grille options : Rectangular
Grille attachment : Magnetic
Grille finish : White (paintable)
