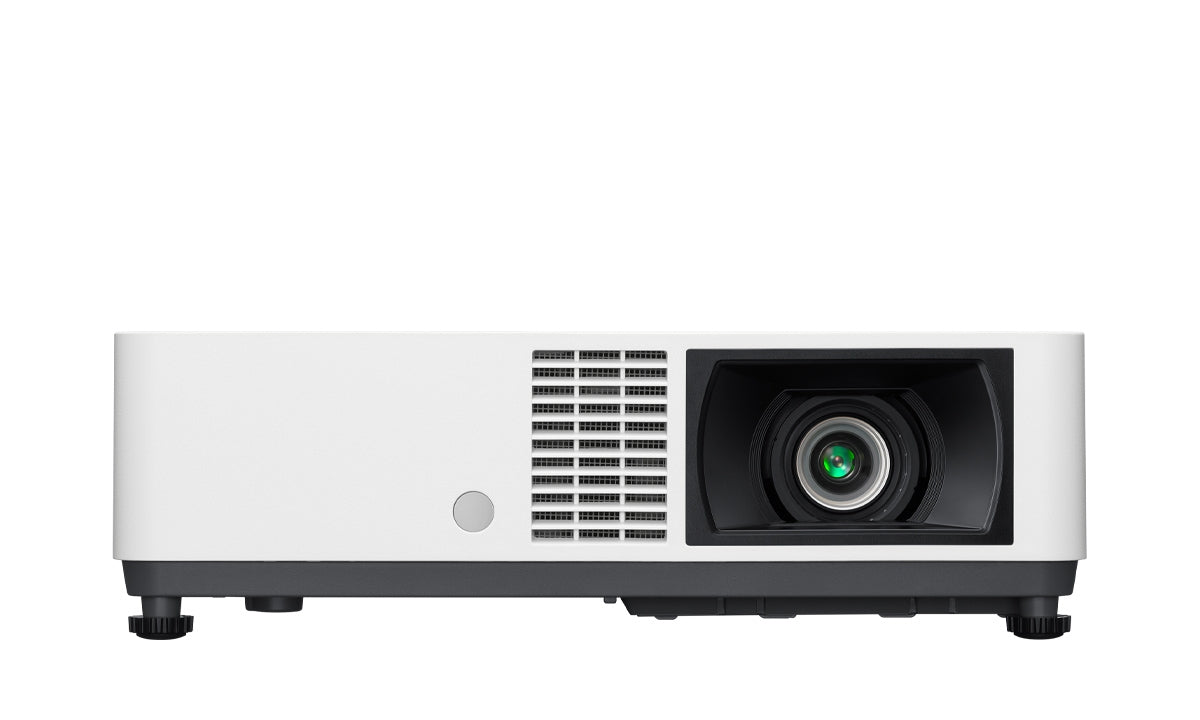

Sony VPL-CWZ10

Quick start, long lasting laser
Switch on and start presenting without waiting for lamp warm-up. The advanced laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs and lifetime running costs compared with traditional projectors.

A male and female stood at the front of a lecture room looking out onto an audience with a projection screen behind them. The male is speaking into a handheld microphone
Faster, fuss-free set-up
Save time with Intelligent Setting presets that instantly fine-tune brightness, cooling, colour and other projector settings for great pictures in any environment.

Beautifully light and compact
Light, compact and easy to carry, the VPL-CWZ10 is the smallest* projector in it’s class. The stylish design looks great in any space, with a flat top surface that blends in discreetly when the projector’s ceiling mounted.

A group of 7 people are sat around a table in a contemporary office setting looking at a screen which is projecting a video conference of a male
A small group of 5 people are sat around a table in an office looking at a screen which is projecting a video conference of a woman

Seamless AV integration
Integration’s easy in today’s AV environments. The VPL-CWZ10 partners brilliantly with leading networked control, monitoring and management systems

Display system: 3 LCD system
Display device
Size of effective display area
0.64”(16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels
3,072,000 (1280 x 800 x 3) pixels
Projection lens
Focus: Manual
Zoom - Powered/Manual
Manual
Zoom - Ratio
Approx. x 1.6
Throw ratio
1.29:1 to 2.07:1
Lens shift
N/A (Lens Offset Vertical +37%)

Light source Type : Laser diode
Filter cleaning / replacement cycle (Max.)
Standard mode : 1000 H (cleaning)
Screen size
Screen size
40" to 300" (1.02 m to 7.62 m)
Light output
Mode: Standard
5,000 lm / 5,200 lm (Center)
Mode: Middle
4,000 lm
Mode: Low
-
Color light output
Mode: Standard
5,000 lm
Mode: Middle
4,000 lm
Mode: Low
-
Contrast ratio (full white / full black)
∞ : 1

Speaker
Speaker
16 W (monaural)
Displayable scanning frequency
Horizontal　
15 kHz to 92 kHz
Vertical
48 Hz to 92 Hz
Accepted signal resolution
Computer signal input
Maximum signal resolution: 1920 x 1200 *4
Video signal input
NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p
Color System
Color System
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction (Max.)
Horizontal
+/- 30 degrees
Vertical
+/- 30 degrees

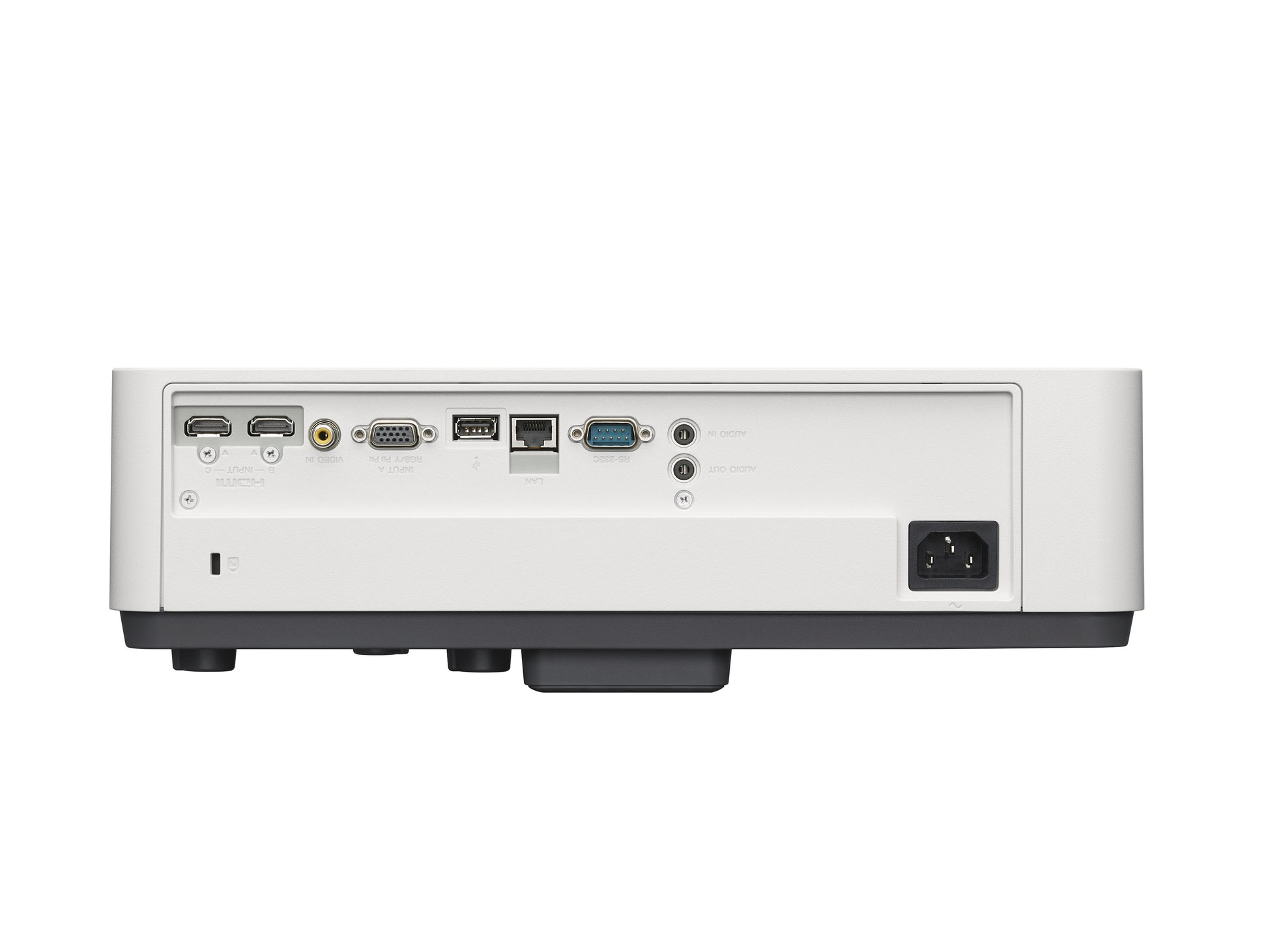

INPUT OUTPUT (Computer/Video/Audio/Control)
INPUT A
RGB / Y PB PR input connector: Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
VIDEO IN
Video input connector: Phono Jack
Audio input connector: Shared with INPUT A
OUTPUT
Audio output connector: Stereo mini jack
REMOTE
D-sub 9-pin (male) / RS232C
LAN
RJ45, 10BASE-T/100BASE-TX
USB
TYPE-A (Only for FW upgrade)

Acoustic Noise
Lamp Mode: Standard / Middle / Low
36 dB / 32 dB / 28 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity
-10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)

Power requirements
AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz
Power Consumption
AC 100 V to 120 V
Mode: Standard: 342 W
AC 220 V to 240 V
Mode: Standard: 326 W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.5 W (when "Standby mode" is set to "Low")
AC 220 V to 240 V
0.5 W (when "Standby mode" is set to "Low")
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V
2 W (“Remote Start” is set to “On” , when "Standby Mode" is set to “Low")
15W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V
2 W (“Remote Start” is set to “On” , when "Standby Mode" is set to “Low")
15W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes
Heat dissipation
AC 100 V to 120 V
1167 BTU/h
AC 220 V to 240 V
1112 BTU/h

Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions)
Approx. 371x 100 x 319.3 mm (14 19/32 x 3 15/16 x 12 9/16 inches)
Mass
Approx. 5.7 kg (13 lb)

Supplied accessories
Remote commander
RM-PJ8
