Sony VPL-CXZ10

The VPL-CXZ10 features an energy-efficient Z-Phosphor laser light source that’s teamed with Sony's acclaimed BrightEra 3LCD engine for crisply detailed XGA resolution images with high 5,000 lumen brightness and rich, stable colours. Equipped with the latest scaler chip, Full HD image quality is achieved ensuring all your content looks its best, whether it’s PC presentations, video or signage.

Switch on the VPL-CXZ10 and start presenting without waiting for lamp warm-up. The advanced laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs and lifetime running costs compared with lamp-based projectors.

You’ll save even more time with Intelligent Setting presets that instantly fine-tune brightness, cooling, colour and other projector settings for impressive pictures in any environment.

Integration’s easy in today’s AV environments. The VPL-CXZ10 is an ideal partner with leading networked control, monitoring and management systems such as Crestron Connected™.

Beautifully light, compact and easy to carry, the VPL-CXZ10 is the smallest** projector in its class. The stylish design fits elegantly into any space, with a flat top surface that blends in discreetly when the projector’s ceiling mounted.

Very high image quality
The long-lasting Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure bright, high quality images with vivid, natural colour reproduction.　

Minimal maintenance
The laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs compared with traditional projectors. Near-zero maintenance is complemented by a range of energy saving features that significantly drive down total lifetime ownership costs.

Consistent brightness
Experience consistent image brightness throughout the laser light source’s 20,000 hours recommended lifespan.

Intelligent settings
Leveraging its long-term experience in laser projector development and analysis, our Intelligent Settings offer three presets, optimising brightness, cooling system and other projector settings to suit all usage environments - simplifying installation for busy system integrators.

Full HD resolution images
Equipped with the latest scaler chip, Full HD image quality is achieved ensuring all your content looks its best, whether it’s PC presentations, video or signage.

Networked control and monitoring
The VPL-CXZ10 is ideal for integration in AV environments with leading control, monitoring and management systems such as Crestron Connected™.

Stylish blend-in design
The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted

Display system : 3 LCD system
Display device : Size of effective display area
0.63”(16.0 mm) x 3 BrightEra LCD Panel, Aspect ratio: 4:3
Number of pixels : 2,359,296 (1024 x 768 x 3) pixels
Projection lens :
Focus
Manual
Zoom - Powered/Manual
Manual
Zoom - Ratio
Approx. x 1.6
Throw ratio
1.41:1 to 2.27:1
Lens shift
N/A (Lens Offset Vertical +33%)

Light source Type
Laser diode
Filter cleaning / replacement cycle (Max.)
Standard mode : 1000 H (cleaning)
Screen size
40" to 300" (1.02 m to 7.62 m)
Light output
Mode: Standard
5,000 lm
Mode: Standard (Centre)
5,200 lm
Color light output
Mode: Standard
5,000 lm
Contrast ratio (full white / full black) *1
Contrast ratio (full white / full black)
∞ :１

Speaker
16 W (monaural)
Displayable scanning frequency
Horizontal　
15 kHz to 92 kHz
Vertical
48 Hz to 92 Hz
Accepted signal resolution
Computer signal input
Maximum signal resolution: 1920 x 1200 *4
Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p
Color System
Color System
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction (Max.)
Horizontal
+/- 30 degrees
Vertical
+/- 30 degrees

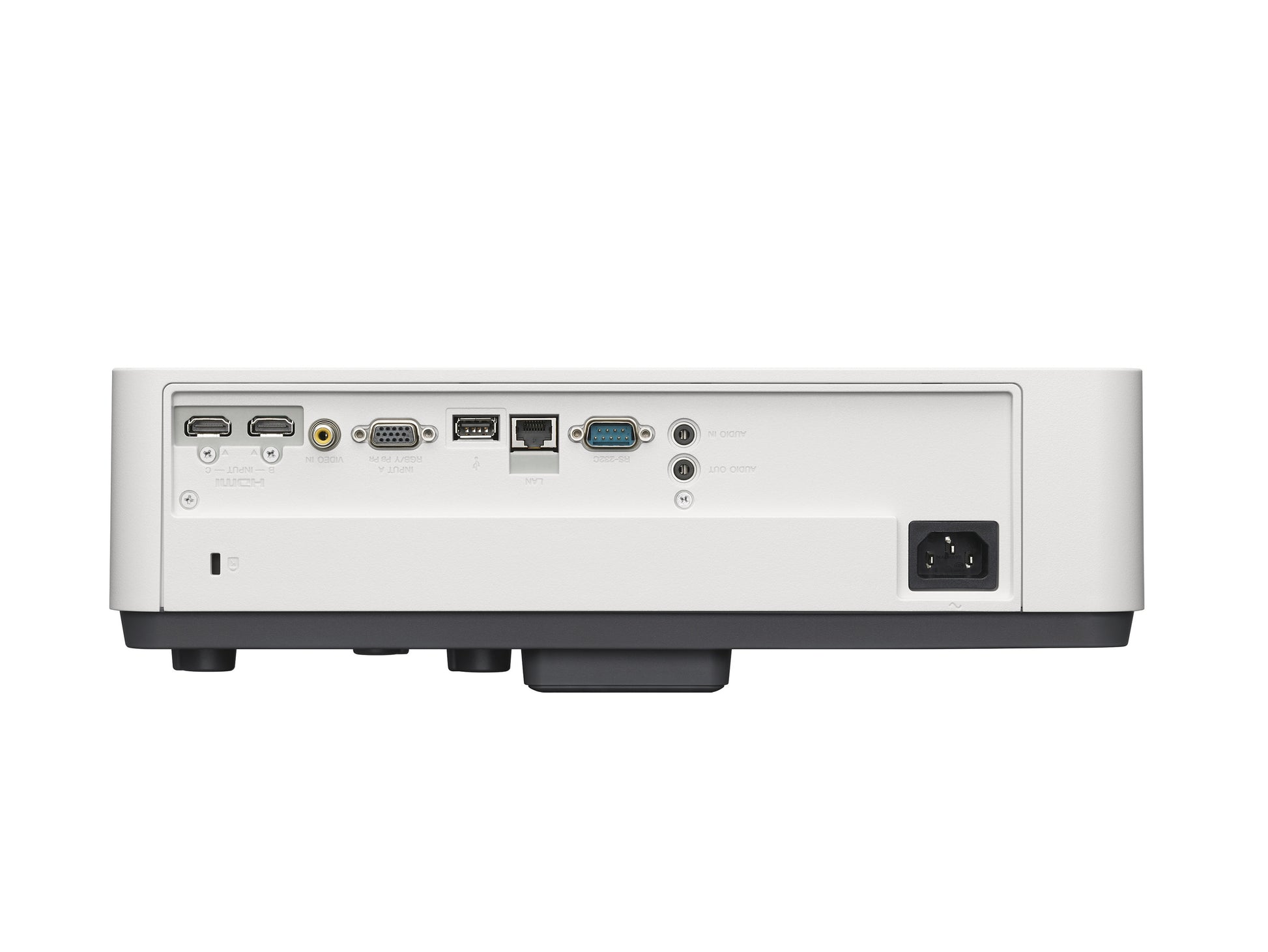

INPUT OUTPUT (Computer/Video/Audio/Control)
INPUT A
RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
VIDEO IN
Video input connector: Phono jack
Audio input connector: Shared with INPUT A
OUTPUT
Audio output connector: Stereo mini jack
REMOTE
D-sub 9-pin (male) / RS232C
LAN
RJ45, 10BASE-T/100BASE-TX
USB
TYPE-A (Only for FW upgrade)

Acoustic Noise
Lamp Mode: Standard / Middle / Low
36 dB / 32 dB / 28 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity
-10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)

Power requirements
AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz
Power Consumption
AC 100 V to 120 V
Mode: Standard: 342 W
AC 220 V to 240 V
Mode: Standard: 326 W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.5 W (when "Standby mode" is set to "Low")
AC 220 V to 240 V
0.5 W (when "Standby mode" is set to "Low")
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V
2 W (“Remote Start” is set to “On” , when "Standby Mode" is set to “Low")
15W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V
2 W (“Remote Start” is set to “On” , when "Standby Mode" is set to “Low")
15W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes
Heat dissipation
AC 100 V to 120 V
1167 BTU/h
AC 220 V to 240 V
1112 BTU/h
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions)
Approx. 371 x 100 x 319.3 mm (14 19/32 x 3 15/16 x 12 9/16 inches)

Approx. 5.7 kg (13 lb )

Supplied accessories
Remote commander
RM-PJ8
