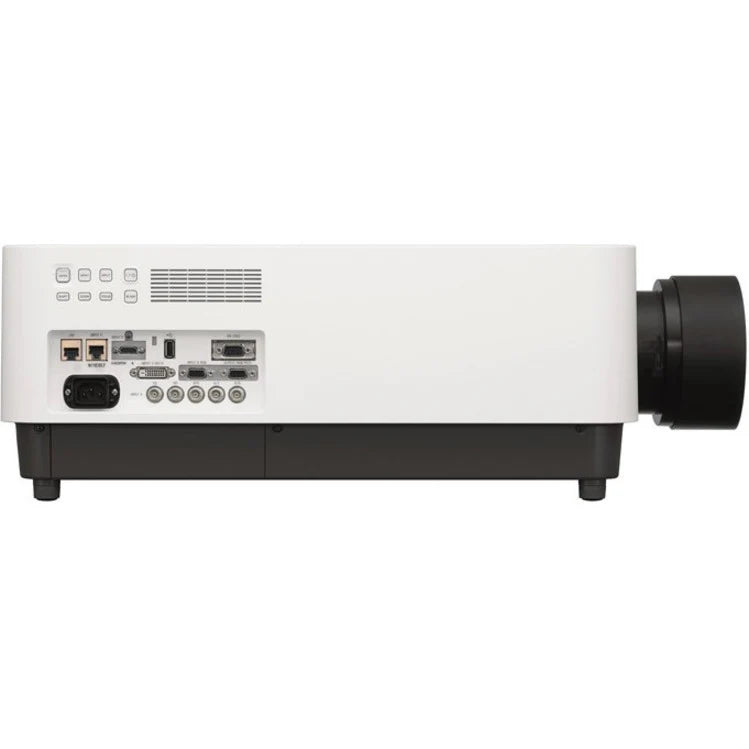

Sony VPL-FHZ131L

Innovative features

Reduced maintenance
The laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs compared with traditional projectors.

* Depending on usage environment.

Consistent brightness
Experience consistent image brightness throughout the laser light source’s 20,000 hours recommended lifespan.

Networked control and monitoring
Ideal for integration in AV environments with leading control, monitoring and management systems such as Crestron Connected™ and Extron® XTP™ Systems.*

* Extron and XTP Systems are trademarks of RGB Systems Inc.

Easy edge blending
Seamlessly join colour-matched images from multiple projectors for stunning super-size displays in corporate and education environments.

Versatile lens options
There’s a wide range of lens options to suit virtually any size of room and throw requirements. Quick-release bayonet mount simplifies lens exchange.

Generous lens shift range
Enjoy greater flexibility to position the projector in restricted spaces, ensuring that audience and presenters aren’t distracted by the light source.

Memories and recall up to six settings for projected image size, position and aspect ratio, saving time in different environments. (Requires optional VPLL-Z4111 lens)

Stylish blend-in design
The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

Icon representing the Protocol Emulation feature, allowing customers to control Sony projectors using other manufacturer's RS232C control protocols.
Protocol Emulation

Sony’s Protocol Emulation feature allows one to control Sony projectors using other manufacturer’s RS232C control protocols. This feature allows integrators to replace other manufacturer’s projector with Sony’s, without re-programming the AV system. Consult your Sony representative for the details.

Display System: 3 LCD system
Display Device: Size of Effective Display Area
1” x 3 Bright Era LCD Panel, Aspect ratio: 16:10
Number of Pixels
6,912,000 (1920 x 1200 x 3) pixels
Aspect Ratio 16:10
Resolution WUXGA (1920 x 1200 pixels)
Projection Lens
Focus
Powered / Manual (Depend on lens)
Zoom - Powered / Manual
Powered / Manual (Depend on lens)
Zoom - Ratio
Depend on Lens
Throw Ratio
Depend on Lens
Lens Shift - Powered / Manual
Powered
Lens Shift - Range Vertical / Horizontal
Range Vertical: Depend on Lens
Range Horizontal: Depend on Lens

Light Source Type
Laser diode
Filter Replacement Cycle (Max.)
Filter Replacement Cycle (Max.)
10,000 H (service maintenance)
Screen Size
Screen Size
Depend on Lens
Light Output *1
Mode: Standard
13,000lm *2 / 13,600lm (Center)*3
Mode: Middle 10,000lm
Mode: Low 8,600lm
Colour Light Output
Mode: Standard 13,000lm
Mode: Middle 10,000lm
Mode: Low 8,600lm
Contrast Ratio
Contrast Ratio (full white / full black)
Contrast Ratio (full white / full black) : ∞ : 1

Colour Space
sRGB 100% (Picture mode: sRGB)
Displayable Scanning Frequency
Horizontal 15 kHz to 92 kHz
Vertical 48 Hz to 92 Hz
Accepted Signal Resolution
Computer Signal Input
Maximum signal resolution: 1920 x 1200
Video Signal Input
480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p, 1080/30p *4
Keystone Correction (Max.)
Horizontal
+/- 30 degrees
Vertical
+/- 30 degrees

INPUT OUTPUT (Computer/Video/Audio/Control)
INPUT A
RGB / Y PB PR input connector: 5 BNC (female)
INPUT B
RGB input connector: Mini D-sub 15-pin (female)
INPUT C
DVI input connector: DVI-D 24-pin (single link), HDCP support
HDCP: v1.4
INPUT D
HDMI input connector: HDMI 19-pin, HDCP support
HDCP: v1.4
INPUT E
HDBaseT interface connector: RJ45, 3 play
INPUT F
Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20)
INPUT G
HTML Viewer
OUTPUT 1
Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)
USB-1
Type-A x 1
USB-2
Type-B x 1 (for service)
REMOTE
D-sub9pin male/RS232C
LAN
RJ45, 10BASE-T/100BASE-TX/1000BASE-T
Acoustic Noise *1
Light Output Mode: Standard
42dB
Light Output Mode: Middle
39dB

Operating Temperature / Operating Humidity
0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)
Storage Temperature / Storage Humidity
Storage Temperature / Storage Humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Power Requirements
AC 100 V to 240 V, 10.8 A to 4.4 A, 50 Hz / 60 Hz
Power Consumption (Maximum)
AC 100 V to 120 V
1076W
AC 220 V to 240 V
1033W
Power Consumption (Standby Mode)
AC 100 V to 120 V
0.50W (when “Standby mode” is set to “Low”）
AC 220 V to 240 V
0.50W (when “Standby mode” is set to “Low”）
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V
21.6W (LAN)
26.5W (HDBT)
26.6W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V
21.3W (LAN)
26.5W (HDBT)
26.6W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated
Approx. 2 Minutes
Heat Dissipation
AC 100 V to 120 V
3671 BTU/h
AC 220 V to 240 V
3524 BTU/h
Dimensions (W x H x D) (without protrusions)
Dimensions (W x H x D) (without protrusions)
Approx. 544 x 205 x 564 mm
(21 13/32 x 8 1/16 x 22 7/32 inches)
Mass
Mass
Approx. 27 kg (58 lb)
Supplied Accessories
Remote Commander
RM-PJ30

Projection Lens
VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045

Optional Projection Lens:

VPLL-Z4107
Throw Ratio: 0:75:1 to 0:94:1
Lens Shift - Range Vertical: +/-50%
Lens Shift - Range Horizontal: +/-24%

VPLL-4008
Throw Ratio: 1:00:1
Lens Shift - Range Vertical: +/-32%
Lens Shift - Range Horizontal: +/-15%

VPLL-Z4111
Throw Ratio: 1:30:1 to 1:96:1
Lens Shift - Range Vertical: +/-99%
Lens Shift - Range Horizontal: +/-51%

VPLL-Z4015
Throw Ratio: 1:85:1 to 2:44:1
Lens Shift - Range Vertical: +/-98%
Lens Shift - Range Horizontal: +/-51%

VPLL-Z4019
Throw Ratio: 2:41:1 to 3:07:1
Lens Shift - Range Vertical: +/-107%
Lens Shift - Range Horizontal: +/-57%

VPLL-Z4025
Throw Ratio: 3:02:1 to 5:58:1
Lens Shift - Range Vertical: +/-107%
Lens Shift - Range Horizontal: +/-57%

VPLL-Z4045
Throw Ratio: 5.56:1 to 7.5:1
Lens Shift - Range Vertical: +/-107%
Lens Shift - Range Horizontal: +/-57%
