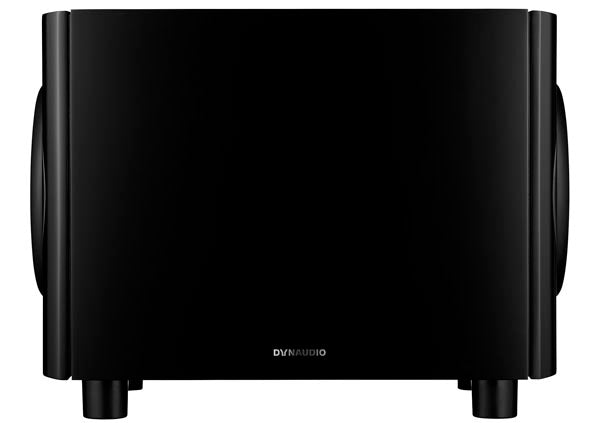

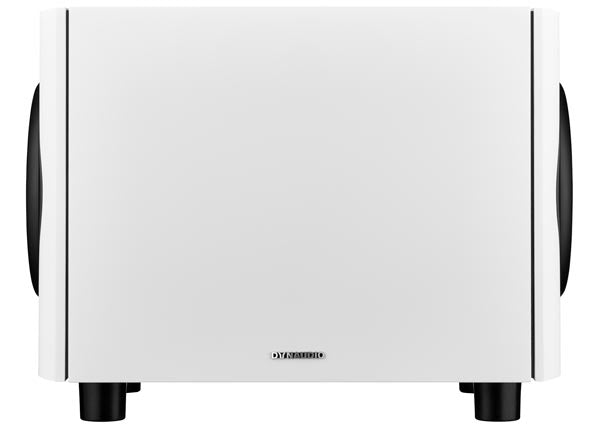

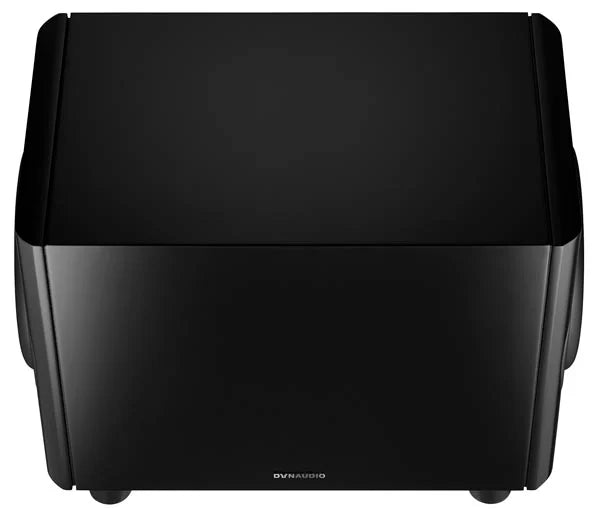

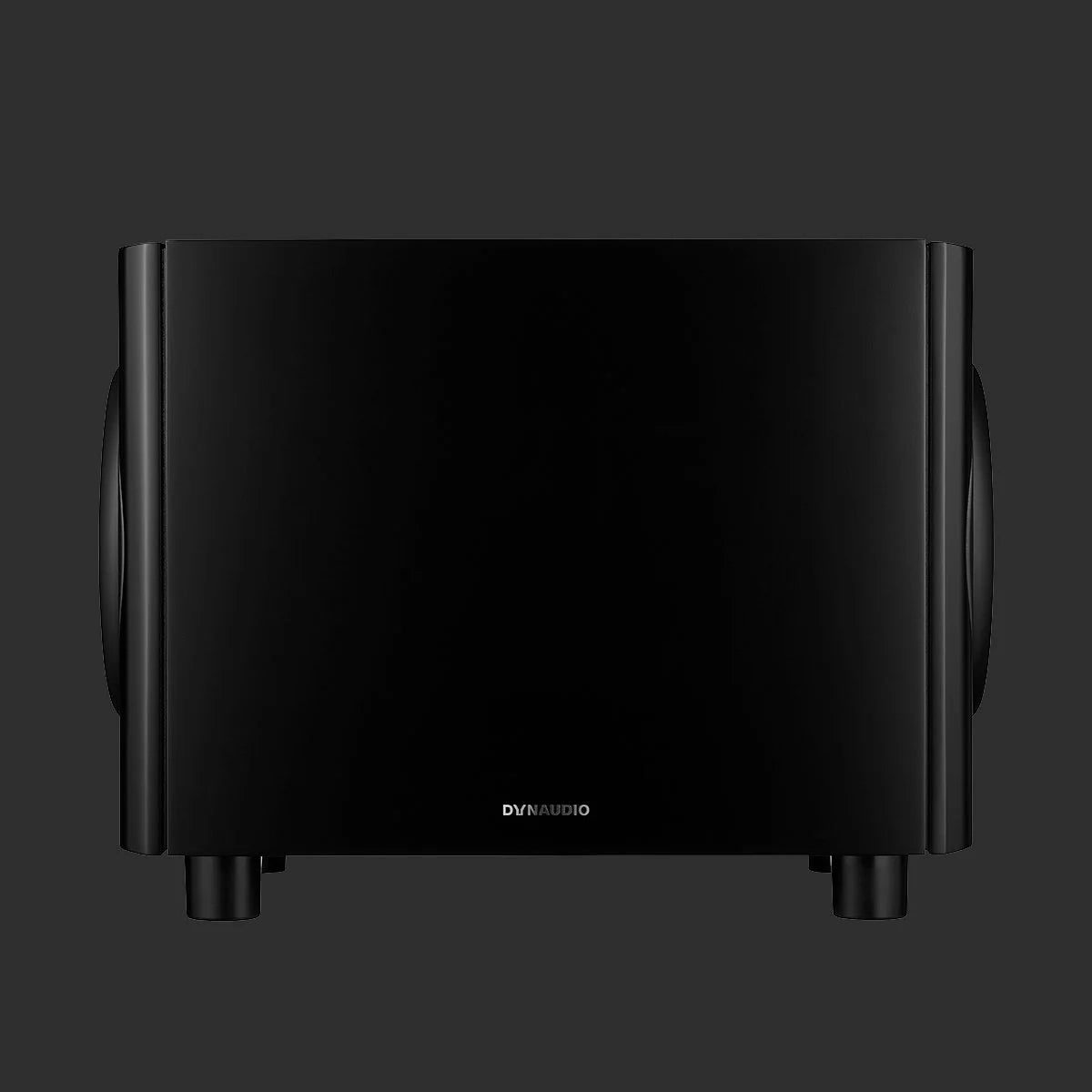

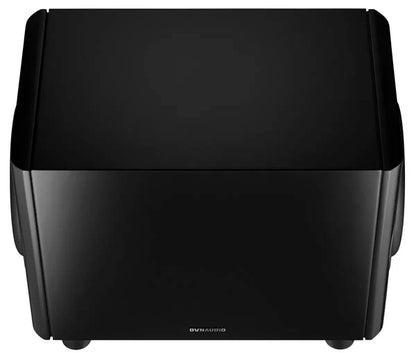

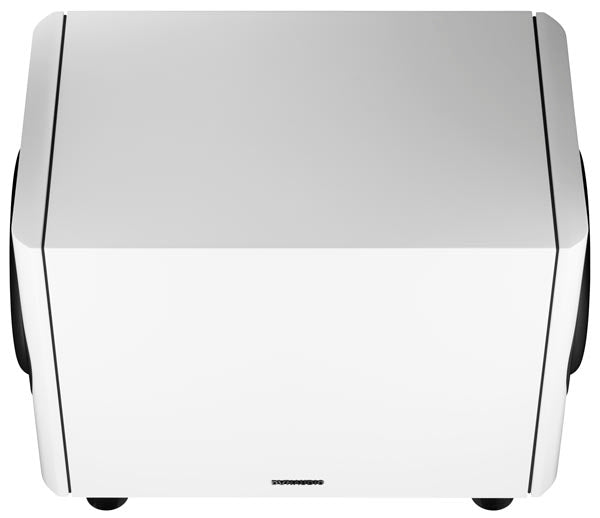

Dynaudio SUB 6

Dynaudio SUB 6

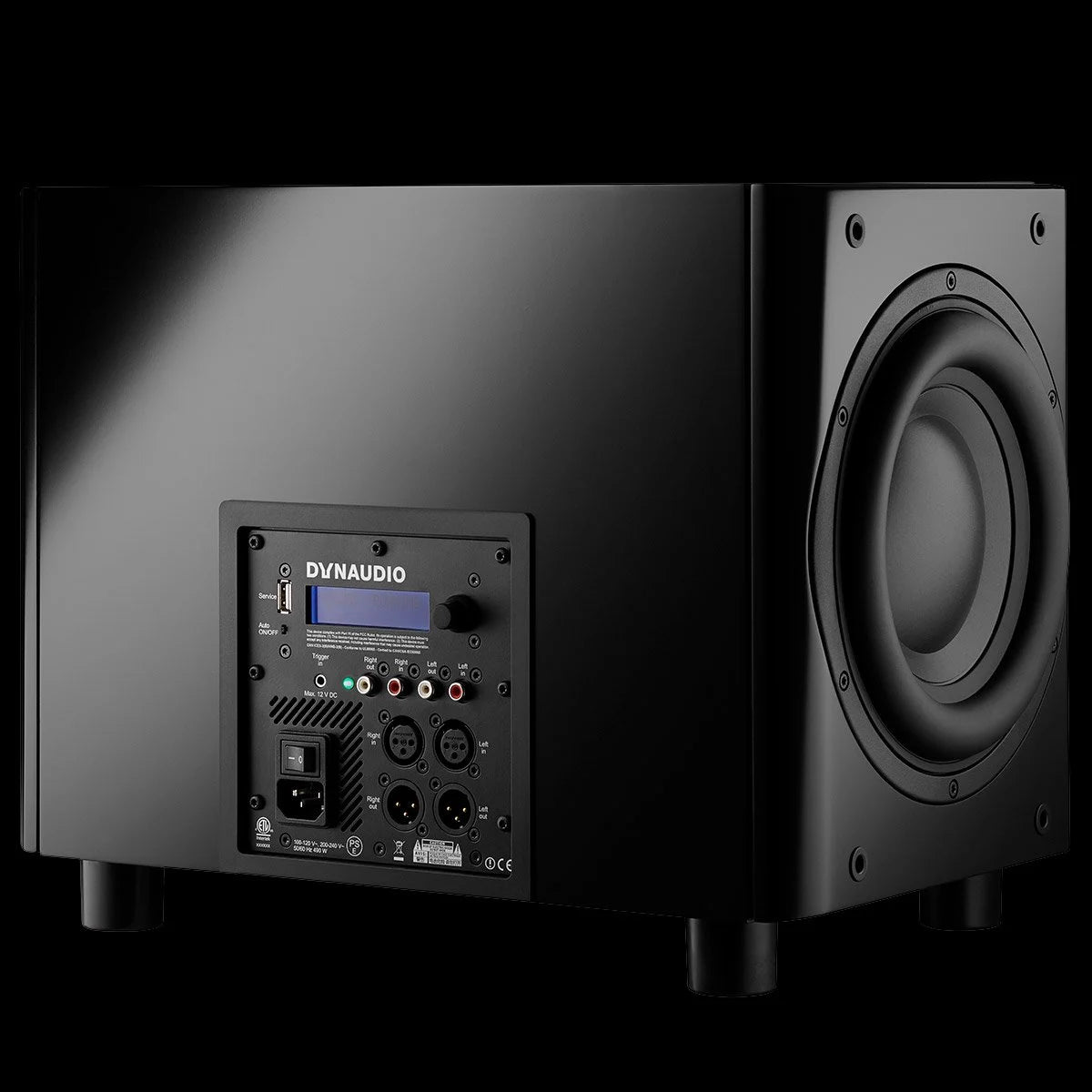

SUB 6 is In-charge of its powerful bass response are two brand-new 24cm MSP+ Hybrid Drive units, designed specifically for subwoofers, alongside a 500W power amplifier built into its base. These new drivers sit at either end of the carefully constructed sealed enclosure design, which stands wider than it does deep to help it sit more discreetly against a wall.

Key Specs :
☑️ 500W amplifier module
☑️ Dual 24cm MSP+ Hybrid Drive woofers
☑️ Preset speaker crossover filters
☑️ Automatic time-alignment
☑️ 16-230Hz frequency range
☑️ Three-band parametric EQ
☑️ Dual opposing driver design
☑️ Master/slave feature for multiple subwoofers

Rs. 349,999.00
Rs. 199,999.00 Rs. 349,999.00
Sale Sold out
Shipping calculated at checkout.
Color: Black stain

Features

What makes the Sub 6 so special?
The Sub 6 is the result of our engineers’ unending pursuit of subwoofer perfection for a high-end
system. Some of the highlights include:

Two-way to three-way
The Sub 6 integrates so well into existing Dynaudio setups because our engineers decided to go over
and above the call of duty to assess the acoustic characteristics of each of our popular high-end hi-fi
speakers – and then create a custom performance map for each one.

This information is built into the Sub 6 so, using its display and menu system, users can choose the
specific model of Dynaudio speakers they have in their setup. The Sub 6’s roll-off will then be
matched perfectly between the two, turning a two-way system into a three-way one.

Firmware upgrades
When we release new speakers, we'll release a firmware update for the Sub 6, adding their new
performance maps so the Sub 6 can work just as closely with our latest models as it does with the
classics.

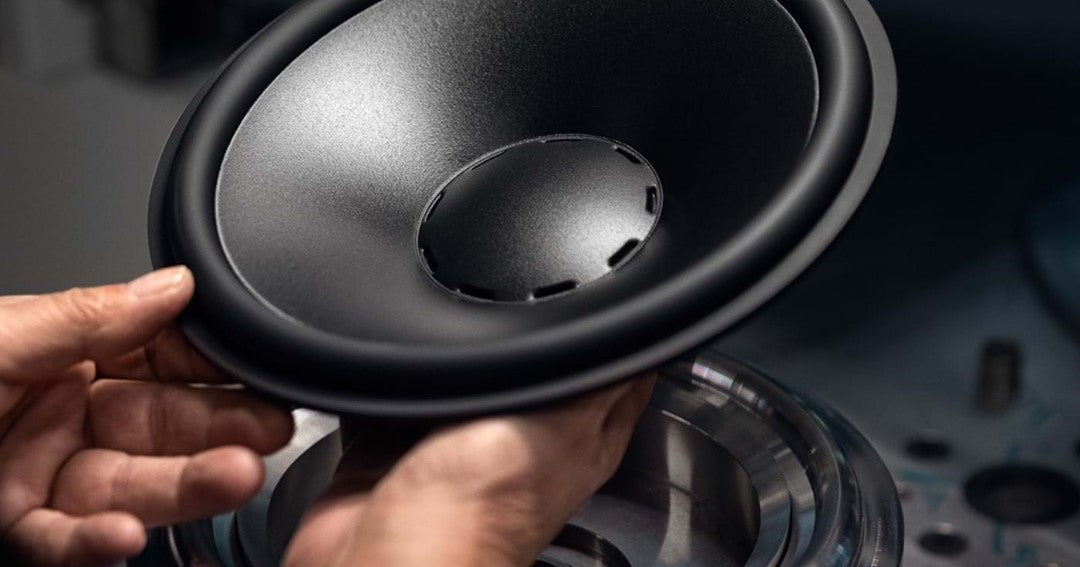

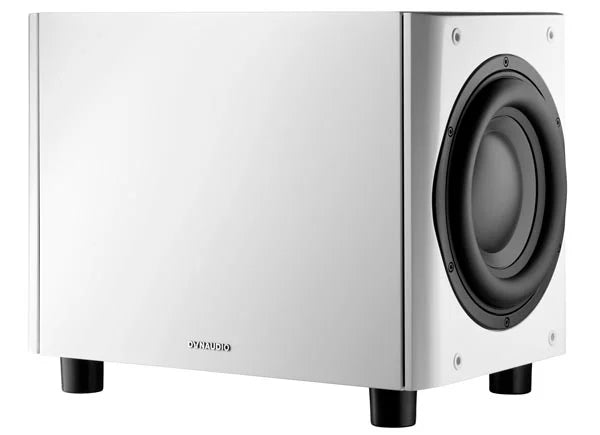

Brand-new drivers, tailor-made for subwoofers
Subwoofers need a different balance from their drivers than stereo speakers. That’s why the Sub 6
uses Dynaudio’s new MSP+ Hybrid Drive units, which are made primarily from aluminium for stiffness,
and specifically with subwoofers in mind.

To counter ringing from the aluminium, it utilises a dual-action damping system that combines paper
dampening on the back of the driver and Dynaudio’s own Magnesium Silicate Polymer material in a
dampening cap on the front, ensuring the best performance.

Specification

Segment : Home
Series : Subwoofers
Type : Subwoofer

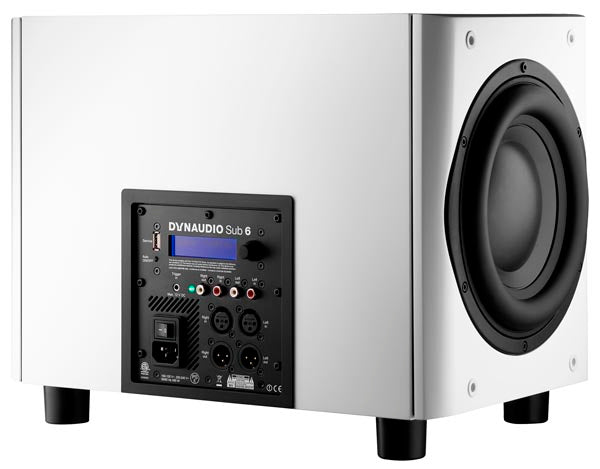

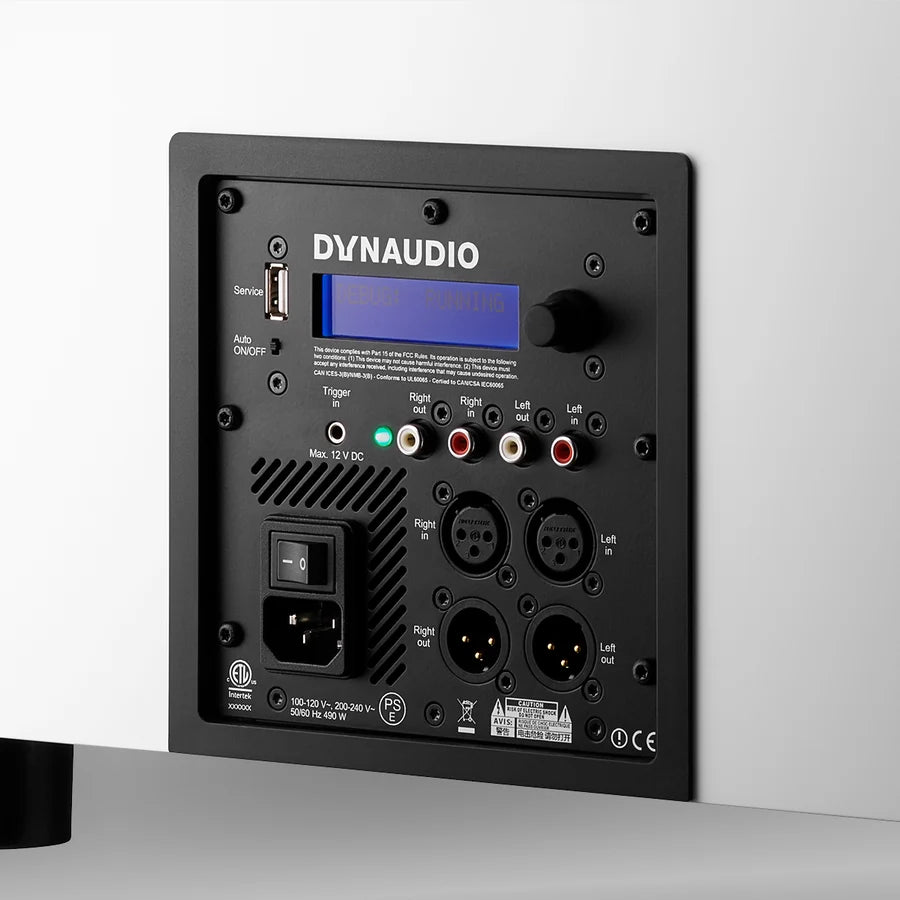

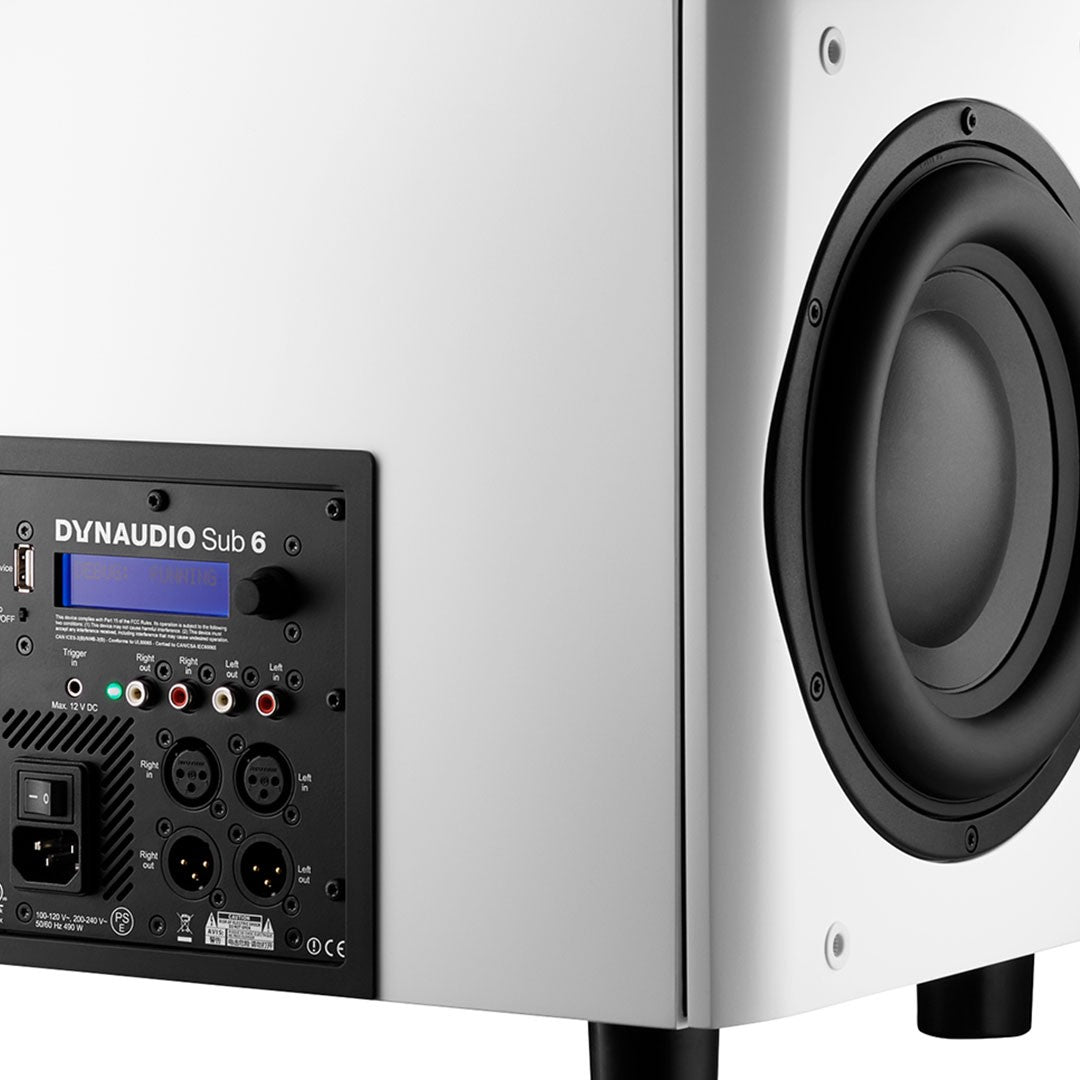

Analog inputs : 2x balanced XLR, 2x unbalanced RCA phono
Analog outputs : 2x balanced XLR, 2x unbalanced RCA phono
Amplifier Power (W) : 500W
AC Power Input : 100-120 V/200-240 V 50/60 Hz
Auto on/off : Yes
Max Stand-by Power Consumption (W) : 0,5
Max Power Consumption (W) : 490
Lower Cutoff (Hz @85 dB +/- 3 dB) : 16
Upper Cutoff (Hz @ 85dB +/- 3 dB) : 230

Box Principle : Sealed
Low pass filter : Adjustable/Preset
High pass filter : Adjustable
Phase adjustment : 0/180 degrees
Woofer : 2 x 23cm MSP Hybrid Drive

]Weight kg : 21.5
Weight lbs : 47.4
Width mm : 447
Height mm : 300
Depth mm : 268
Speakers per packaged box : 01
Grille : Black

View full details

SUB 6

Two-way to Three-way

The Sub 6 integrates so well into existing Dynaudio setups because our engineers decided to go over and above the call of duty to assess the acoustic characteristics of each of our popular high-end hi-fi speakers – and then create a custom performance map for each one.

This information is built into the Sub 6 so, using its display and menu system, users can choose the specific model of selected Dynaudio speakers they have in their setup. The Sub 6’s roll-off will then be matched perfectly between the two, turning a two-way system into a three-way one.

SUB 6

Brand-new Drivers

Tailor-Made for subwoofers

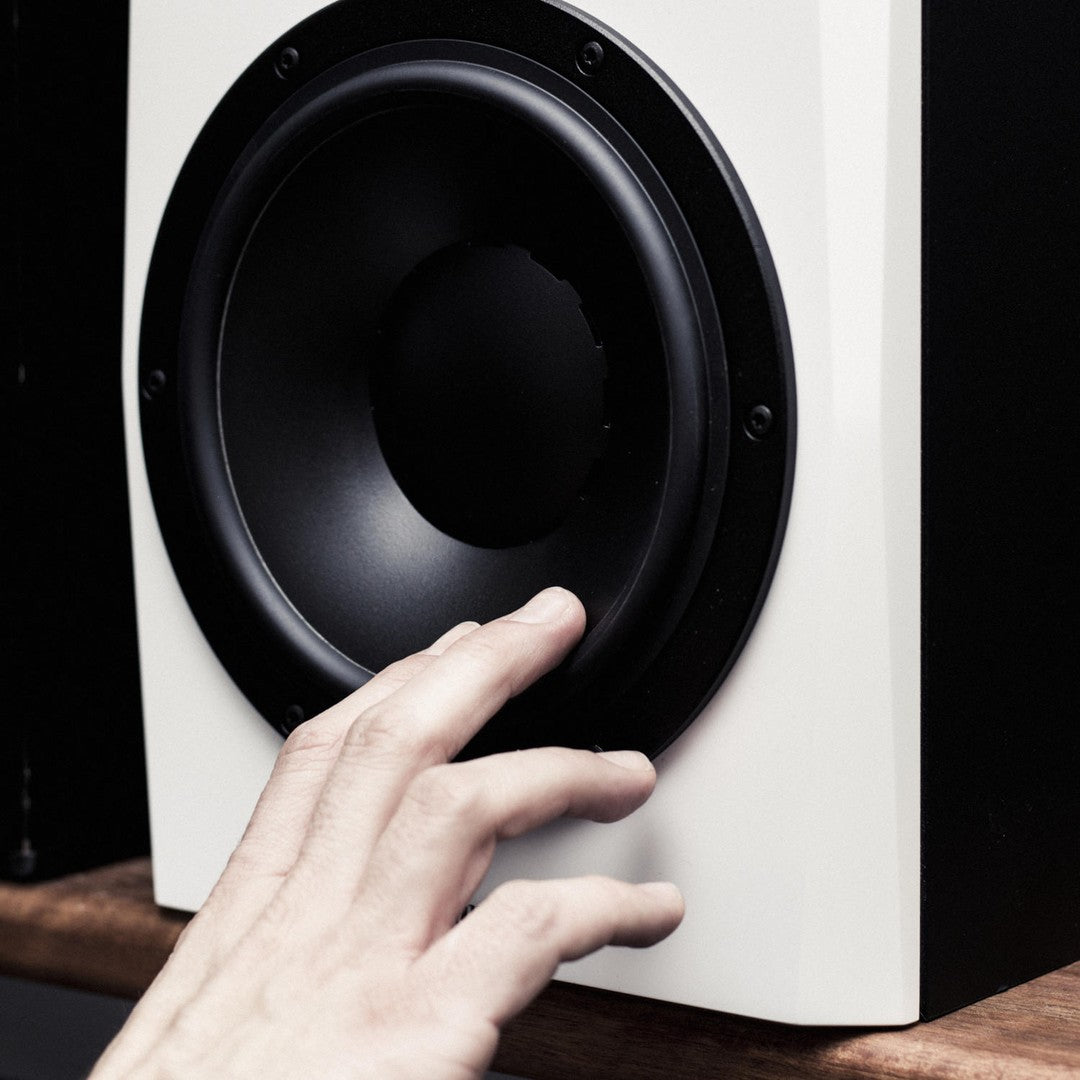

Subwoofers need a different balance from their drivers than stereo speakers. That’s why the Sub 6 uses Dynaudio’s new MSP+ Hybrid Drive units, which are made primarily from aluminium for stiffness, and specifically with subwoofers in mind.

To counter ringing from the aluminium, it utilises a dual-action damping system that combines paper dampening on the back of the driver and Dynaudio’s own Magnesium Silicate Polymer material in a dampening cap on the front, ensuring the best performance.

SUB 6

Firmware Upgrades

When we release new speakers, we'll release a firmware update for the Sub 6, adding their new performance maps so the Sub 6 can work just as closely with our latest models as it does with the classics.
