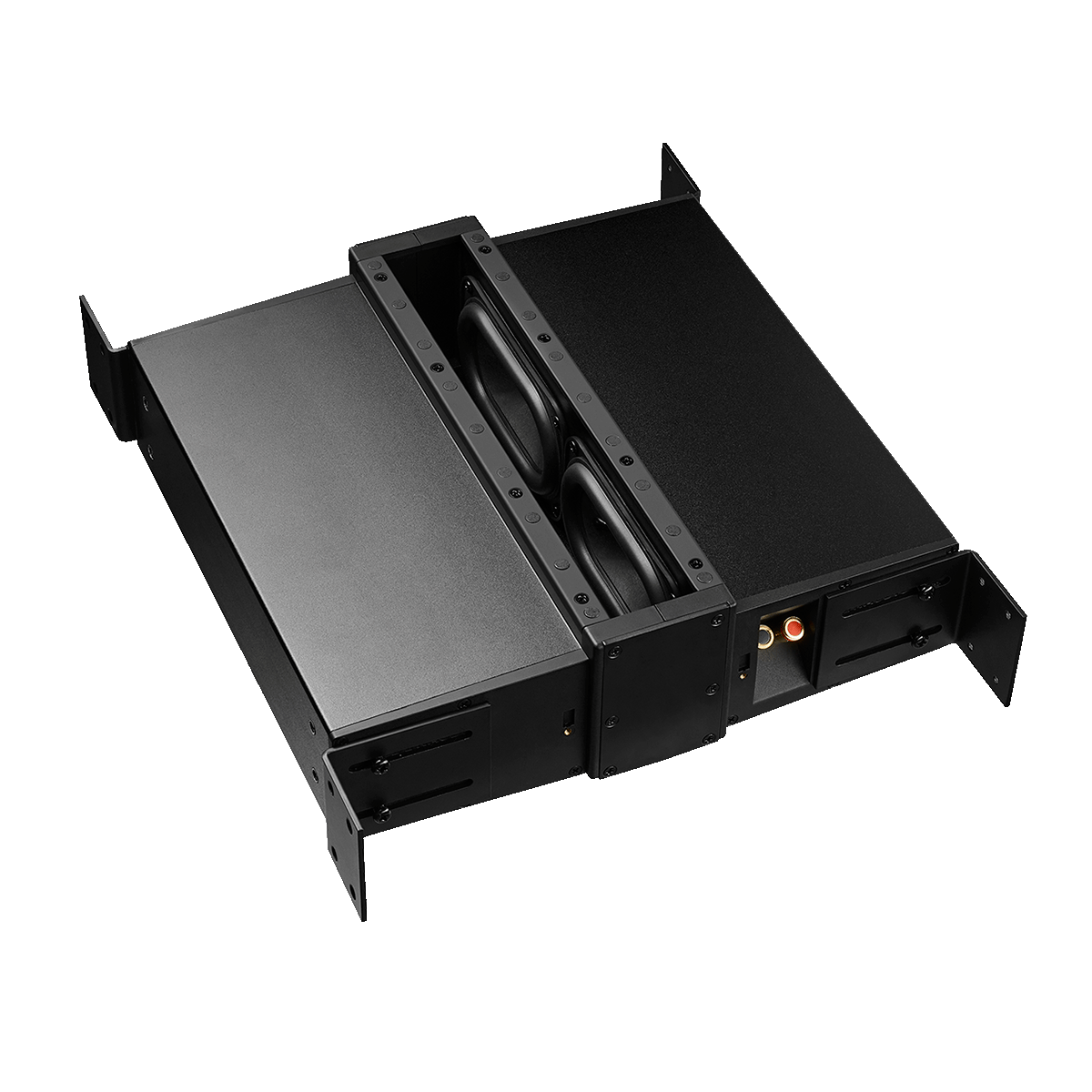

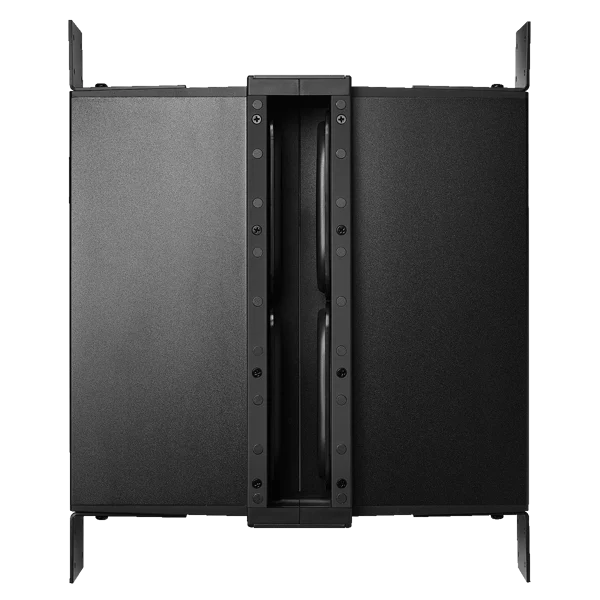

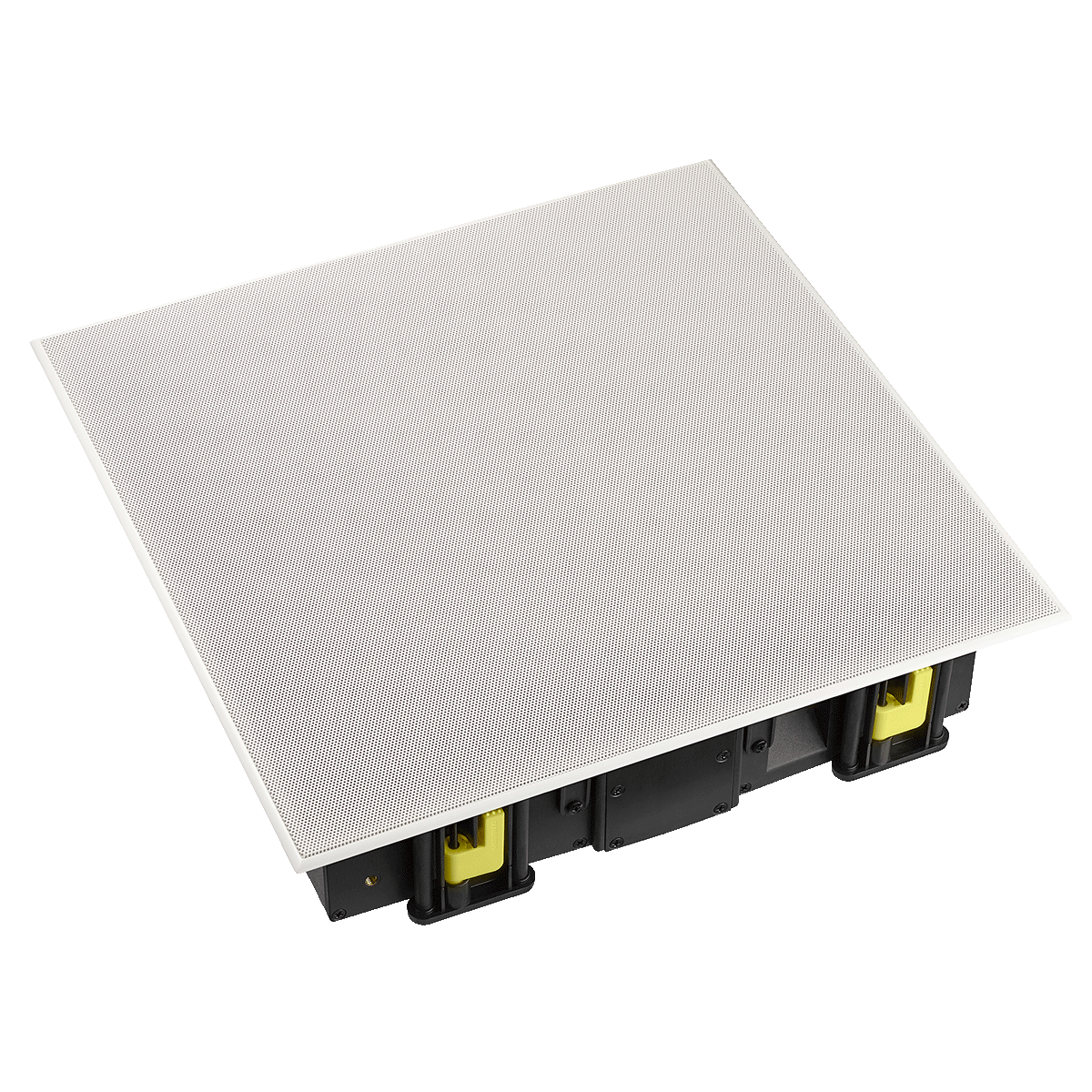

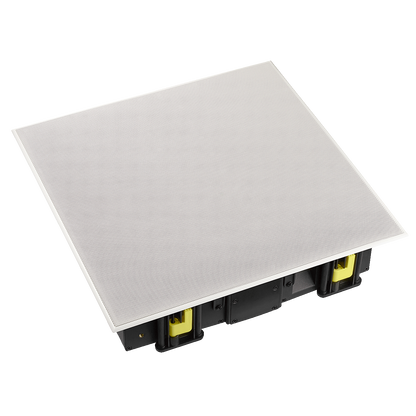

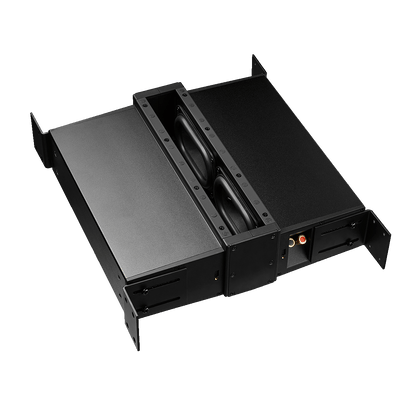

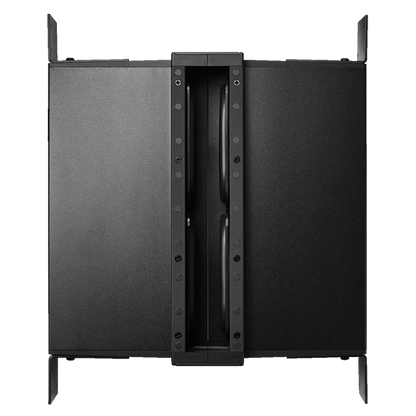

Dyanaudio Sub RCC

In-wall and in-ceiling installations: Authentic Dynaudio speakers, engineered to entertain

The Dynaudio Custom Architectural Studio range has been engineered without compromise.

We’ve developed cutting-edge mechanical solutions that solve the problems installers face – making the process as pain-free as possible.

The in-wall frames can be installed either way up and, like our in-ceiling units, have paintable magnetic grilles that can be swapped out if the room’s design changes.
The frames even retrofit in many existing popular-sized cavities – meaning no tearing down walls.

In-wall (3 x 6in)
• In-wall or in-ceiling installation
• Mounts on the wall surface or into a standard 2 x 4 stud-bay
before or after construction
• Reactance Cancellation Configuration (RCC) derived from
our professional studio subwoofers eliminates vibration
• Passive design with no complex crossovers
• Special one-piece aluminium enclosure design
• Adaptive bass limitation guarantees zero overload
• Designed and engineered in Skanderborg, Denmark
• Tuned by decades of high-quality audio expertise

Segment : Custom Install
Series : Custom Install Subwoofer
Type : In-wall Subwoofer
Sensitivity (dB @ 2.83V/1m) : 92
Continuous power 160W
Long-term power 400W
Rated Impedance (Ohm) : 8
Impedance (Minimum) : 5
Lower Cutoff (Hz @ +/- 3 dB) : 20
Upper Cutoff (kHz @ +/- 3 dB) : 145 Hz
Drivers : Four 3 x 6in long-throw

Width mm : 400
Height mm : 400
Depth mm : 101
Width inches : 15" 3/4
Height inches : 15" 3/4
Depth inches : 4"
Width Cutout mm : 366
Height Cutout mm : 366
Height cutout inches : 14" 3/8
Width cutout inches : 14" 3/8
Grille material : Painted steel
Grille options : Rectangular
Grille attachment : Magnetic
Grille finish : White (paintable)
